Digital Glass Body pH Electrode for General Purpose — photographie principale
Hanna InstrumentsDisponibilité: Fourni sur commande

Digital Glass Body pH Electrode for General Purpose

Référence HI11310

Appareil de mesure de laboratoire Digital Glass Body pH Electrode for General Purpose de Hanna Instruments — AxiTech en assure la vente, l'installation et la mise en service, ainsi que la maintenance préventive, l'étalonnage, le dépannage et la réparation, avec fourniture de pièces de rechange.

Commander cet article

Aucun paiement n’est effectué en ligne. Chaque demande est étudiée par un ingénieur AxiTech avant l’envoi du devis.

En un coup d’œil

Référence
HI11310
Catégorie
pH-mètres et analyse de l'eau
Famille d’équipements
Industry/Industrial, Industry/Industrial/Chemical manufacturing, Industry/Water, Industry/Water/Drinking water, Industry/Industrial/Plating, Industry/Laboratory, Industry/Laboratory/Research, Industry

Présentation

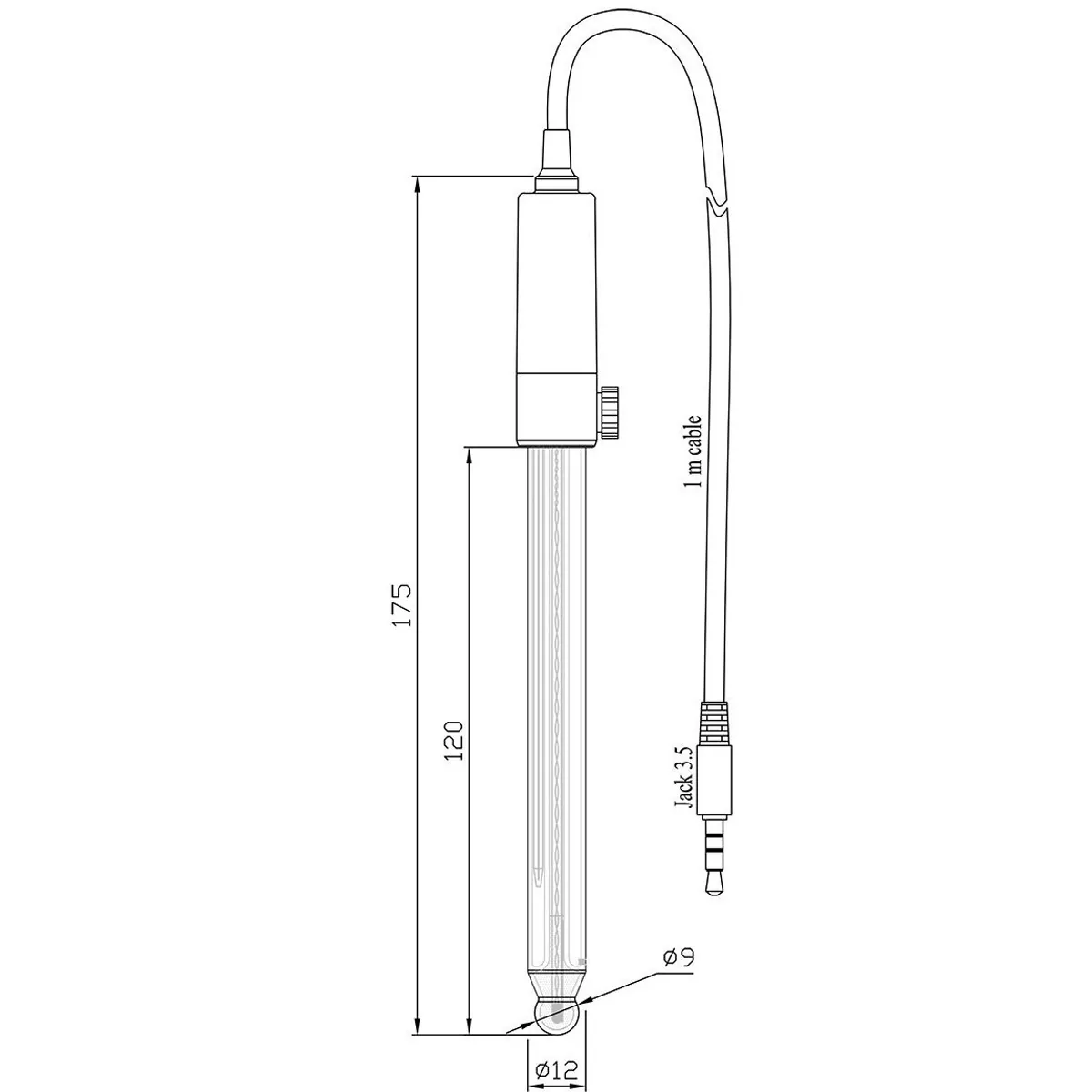

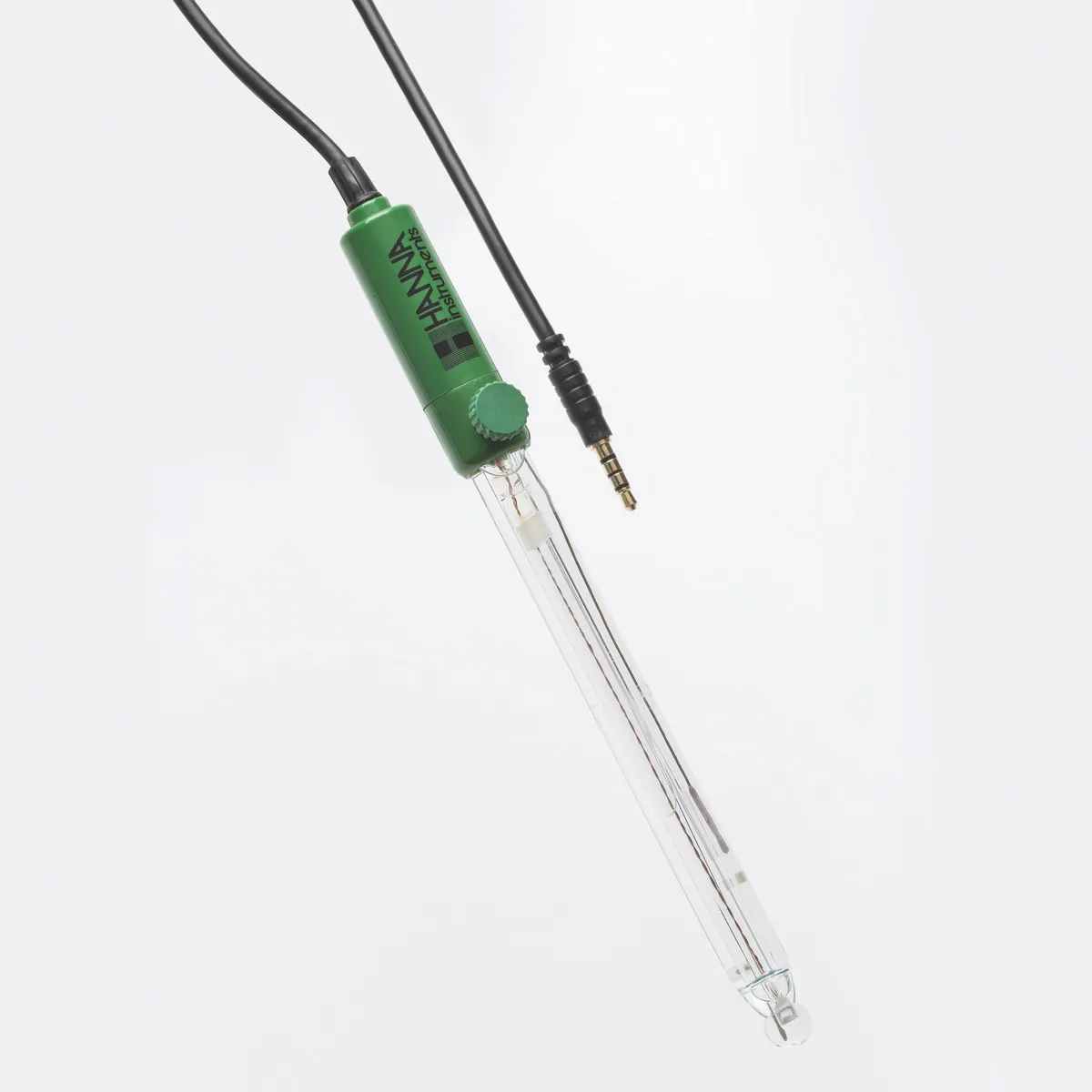

The HI11310 is a combination, glass, refillable pH electrode with a built-in temperature sensor. This probe features a 3.5 mm connector designed exclusively to be used with Hanna Instruments edge® Tablet Meters.

Maintenance contract — AxiTech provides planned preventive maintenance for Digital Glass Body pH Electrode for General Purpose from Hanna Instruments: scheduled visits, safety checks, periodic calibration and a documented service report, backed by a contractual response time.

Troubleshooting, repair and spare parts — our ph, conductivity & water analysis engineers diagnose and repair Digital Glass Body pH Electrode for General Purpose on site or in the workshop, fit genuine spare parts and recommission the equipment after performance verification.

Caractéristiques

  • Stores its calibration data making it easy to change our smart electrodes or adjust for different samples.
  • Built-in temperature sensor for temperature compensated measurements in a single probe.
  • Great for general purpose laboratory use.

Spécifications techniques

Specifications
SKU
HI11310 Description refillable, combination, digital pH electrode Reference double, Ag/AgCl Junction / Flow Rate ceramic, single / 15-20 µL/h Electrolyte KCl 3.5M Max Pressure 0.1 bar Range pH: 0 to 14 Recommended Operating Temperature -5 to 100°C (23 to 212°F) - HT Tip / Shape spheric (dia: 9.5 mm) Temperature Sensor yes Matching Pin no Amplifier yes Body Material glass Cable 1 m (3.3') Recommended Use laboratory general purpose, beer Connection 3.5 mm connector
Cable
1 m (3.3') Recommended Use laboratory general purpose, beer Connection 3.5 mm connector
Range
pH: 0 to 14 Recommended Operating Temperature -5 to 100°C (23 to 212°F) - HT Tip / Shape spheric (dia: 9.5 mm) Temperature Sensor yes Matching Pin no Amplifier yes Body Material glass Cable 1 m (3.3') Recommended Use laboratory general purpose, beer Connection 3.5 mm connector
Amplifier
yes Body Material glass Cable 1 m (3.3') Recommended Use laboratory general purpose, beer Connection 3.5 mm connector
Reference
double, Ag/AgCl Junction / Flow Rate ceramic, single / 15-20 µL/h Electrolyte KCl 3.5M Max Pressure 0.1 bar Range pH: 0 to 14 Recommended Operating Temperature -5 to 100°C (23 to 212°F) - HT Tip / Shape spheric (dia: 9.5 mm) Temperature Sensor yes Matching Pin no Amplifier yes Body Material glass Cable 1 m (3.3') Recommended Use laboratory general purpose, beer Connection 3.5 mm connector
Connection
3.5 mm connector
Description
refillable, combination, digital pH electrode Reference double, Ag/AgCl Junction / Flow Rate ceramic, single / 15-20 µL/h Electrolyte KCl 3.5M Max Pressure 0.1 bar Range pH: 0 to 14 Recommended Operating Temperature -5 to 100°C (23 to 212°F) - HT Tip / Shape spheric (dia: 9.5 mm) Temperature Sensor yes Matching Pin no Amplifier yes Body Material glass Cable 1 m (3.3') Recommended Use laboratory general purpose, beer Connection 3.5 mm connector
Electrolyte
KCl 3.5M Max Pressure 0.1 bar Range pH: 0 to 14 Recommended Operating Temperature -5 to 100°C (23 to 212°F) - HT Tip / Shape spheric (dia: 9.5 mm) Temperature Sensor yes Matching Pin no Amplifier yes Body Material glass Cable 1 m (3.3') Recommended Use laboratory general purpose, beer Connection 3.5 mm connector
Tip / Shape
spheric (dia: 9.5 mm) Temperature Sensor yes Matching Pin no Amplifier yes Body Material glass Cable 1 m (3.3') Recommended Use laboratory general purpose, beer Connection 3.5 mm connector
Matching Pin
no Amplifier yes Body Material glass Cable 1 m (3.3') Recommended Use laboratory general purpose, beer Connection 3.5 mm connector
Max Pressure
0.1 bar Range pH: 0 to 14 Recommended Operating Temperature -5 to 100°C (23 to 212°F) - HT Tip / Shape spheric (dia: 9.5 mm) Temperature Sensor yes Matching Pin no Amplifier yes Body Material glass Cable 1 m (3.3') Recommended Use laboratory general purpose, beer Connection 3.5 mm connector
Body Material
glass Cable 1 m (3.3') Recommended Use laboratory general purpose, beer Connection 3.5 mm connector
Recommended Use
laboratory general purpose, beer Connection 3.5 mm connector
Temperature Sensor
yes Matching Pin no Amplifier yes Body Material glass Cable 1 m (3.3') Recommended Use laboratory general purpose, beer Connection 3.5 mm connector
Junction / Flow Rate
ceramic, single / 15-20 µL/h Electrolyte KCl 3.5M Max Pressure 0.1 bar Range pH: 0 to 14 Recommended Operating Temperature -5 to 100°C (23 to 212°F) - HT Tip / Shape spheric (dia: 9.5 mm) Temperature Sensor yes Matching Pin no Amplifier yes Body Material glass Cable 1 m (3.3') Recommended Use laboratory general purpose, beer Connection 3.5 mm connector
Recommended Operating Temperature
-5 to 100°C (23 to 212°F) - HT Tip / Shape spheric (dia: 9.5 mm) Temperature Sensor yes Matching Pin no Amplifier yes Body Material glass Cable 1 m (3.3') Recommended Use laboratory general purpose, beer Connection 3.5 mm connector
Fourniture et réapprovisionnement

AxiTech fournit Digital Glass Body pH Electrode for General Purpose en pièce de rechange, afin qu’une pièce usée soit remplacée pendant la même intervention plutôt que de générer un second déplacement.

Commander Digital Glass Body pH Electrode for General Purpose

Indiquez-nous la référence, ou le modèle et le numéro de série de l’instrument concerné : nous confirmons la pièce exacte, son prix et son délai. Les pièces commandées dans le cadre d’un contrat de maintenance sont emportées lors de la visite.

  • Compatibilité vérifiée avec votre instrument avant expédition
  • Devis assorti d’un délai, et pas seulement d’un prix
  • Planifié avec votre visite de maintenance si vous êtes sous contrat
  • Commandes ouvertes pour les articles consommés à rythme régulier

L’instrument auquel il se rapporte

AxiTech entretient, étalonne et répare les instruments Hanna Instruments avec lesquels Digital Glass Body pH Electrode for General Purpose s’utilise. Si vous en exploitez un, nous pouvons le placer sous contrat de maintenance préventive et fournir cet article dans le cadre du planning.

Découvrir nos contrats de maintenanceParcourir le catalogue d’équipements

Les questions qu’on nous pose

Questions fréquentes sur Hanna Instruments Digital Glass Body pH Electrode for General Purpose

Oui. AxiTech fournit Digital Glass Body pH Electrode for General Purpose aux hôpitaux, cliniques et laboratoires, en commande ponctuelle ou selon un calendrier récurrent. Transmettez-nous la référence et la quantité : nous vous adressons un prix et un délai.
