Digital PEI Body pH Electrode for Field Applications — photographie principale
Hanna InstrumentsDisponibilité: Fourni sur commande

Digital PEI Body pH Electrode for Field Applications

Référence HI12300

Appareil de mesure de laboratoire Digital PEI Body pH Electrode for Field Applications de Hanna Instruments. Nos techniciens assurent l'installation, l'étalonnage et la maintenance préventive, interviennent en dépannage sur site et prennent en charge la réparation en atelier ainsi que les pièces de rechange.

Commander cet article

Aucun paiement n’est effectué en ligne. Chaque demande est étudiée par un ingénieur AxiTech avant l’envoi du devis.

En un coup d’œil

Référence
HI12300
Catégorie
pH-mètres et analyse de l'eau
Famille d’équipements
Industry/Water, Industry/Laboratory, Industry/Food, Industry/Beverage, Industry/Laboratory/Education, Product/Accessories, Product/Accessories/Electrodes and probes, Product/Accessories/Electrodes and

Présentation

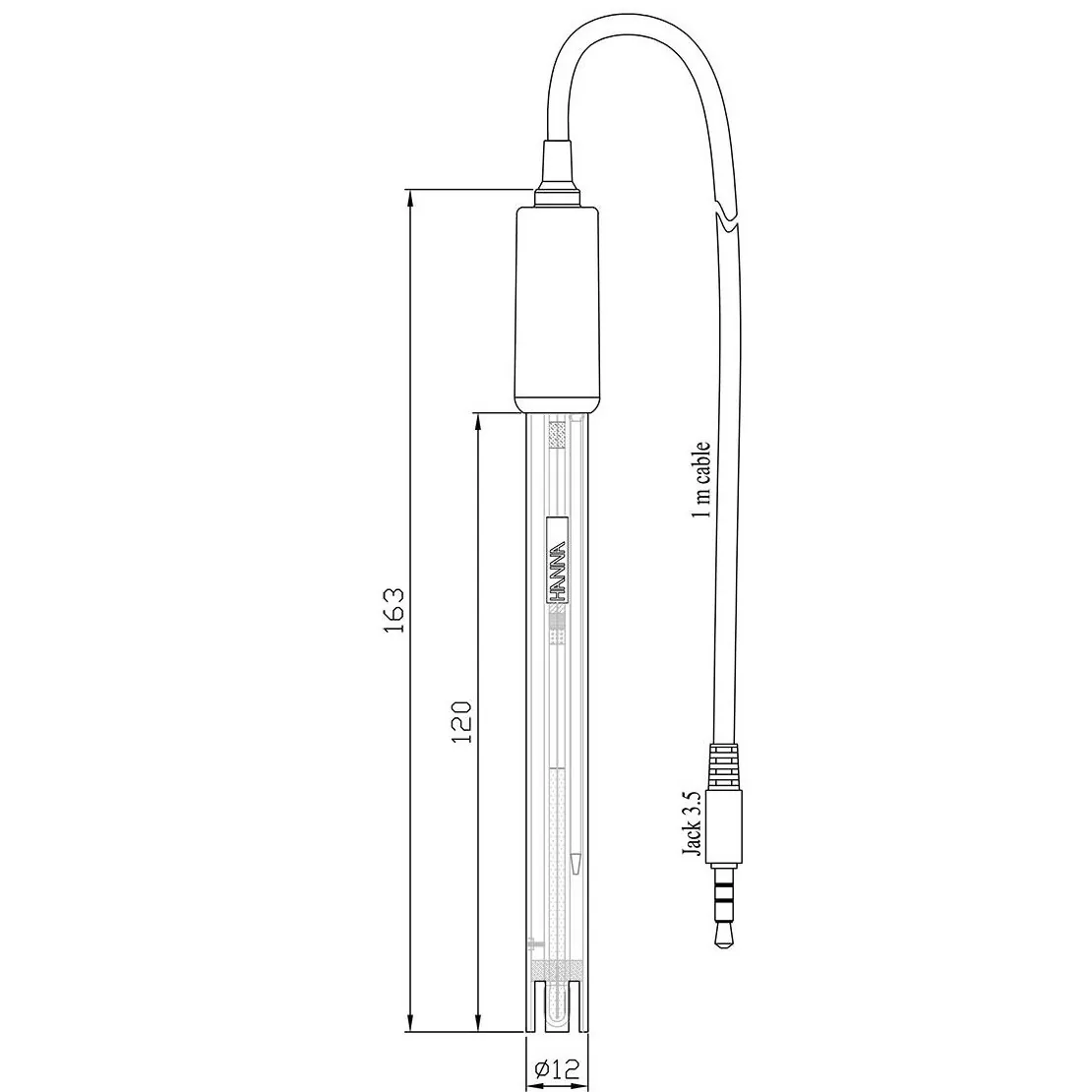

The HI12300 is a plastic body, double junction, gel filled pH electrode with a built-in temperature sensor for temperature compensated measurements in a single probe design. This probe features a 3.5 mm connector designed exclusively to be used with Hanna Instruments edge® Tablet Meters. The HI12300 electrode features a built-in microchip that stores sensor type, serial number, and calibration information. It also features a single ceramic junction and the spherical pH sensing portion is made with general purpose glass. The electrode has a rugged PEI (polyetherimide) body that has the chemical resistance of a glass body in an unbreakable plastic making it ideal for field and industrial applications.

Maintenance contract — AxiTech provides planned preventive maintenance for Digital PEI Body pH Electrode for Field Applications from Hanna Instruments: scheduled visits, safety checks, periodic calibration and a documented service report, backed by a contractual response time.

Troubleshooting, repair and spare parts — our ph, conductivity & water analysis engineers diagnose and repair Digital PEI Body pH Electrode for Field Applications on site or in the workshop, fit genuine spare parts and recommission the equipment after performance verification.

Caractéristiques

  • Spherical Glass Tip
  • Double Junction Reference
  • 3.5 mm Connector

Spécifications techniques

Specifications
SKU
HI12300 Description combination, digital pH electrode Reference double, Ag/AgCl Junction / Flow Rate e ceramic, single / 15-20 µL/h Electrolyte gel Max Pressure 2 bar Range pH: 0 to 12 Recommended Operating Temperature -5 to 70°C (23 to 158°F) - LT Tip / Shape spheric (dia: 7.5 mm) Temperature Sensor yes Matching Pin no Amplifier yes Body Material PEI Cable 1 m (3.3') Recommended Use field applications Connection 3.5 mm connector
Cable
1 m (3.3') Recommended Use field applications Connection 3.5 mm connector
Range
pH: 0 to 12 Recommended Operating Temperature -5 to 70°C (23 to 158°F) - LT Tip / Shape spheric (dia: 7.5 mm) Temperature Sensor yes Matching Pin no Amplifier yes Body Material PEI Cable 1 m (3.3') Recommended Use field applications Connection 3.5 mm connector
Amplifier
yes Body Material PEI Cable 1 m (3.3') Recommended Use field applications Connection 3.5 mm connector
Reference
double, Ag/AgCl Junction / Flow Rate e ceramic, single / 15-20 µL/h Electrolyte gel Max Pressure 2 bar Range pH: 0 to 12 Recommended Operating Temperature -5 to 70°C (23 to 158°F) - LT Tip / Shape spheric (dia: 7.5 mm) Temperature Sensor yes Matching Pin no Amplifier yes Body Material PEI Cable 1 m (3.3') Recommended Use field applications Connection 3.5 mm connector
Connection
3.5 mm connector
Description
combination, digital pH electrode Reference double, Ag/AgCl Junction / Flow Rate e ceramic, single / 15-20 µL/h Electrolyte gel Max Pressure 2 bar Range pH: 0 to 12 Recommended Operating Temperature -5 to 70°C (23 to 158°F) - LT Tip / Shape spheric (dia: 7.5 mm) Temperature Sensor yes Matching Pin no Amplifier yes Body Material PEI Cable 1 m (3.3') Recommended Use field applications Connection 3.5 mm connector
Electrolyte
gel Max Pressure 2 bar Range pH: 0 to 12 Recommended Operating Temperature -5 to 70°C (23 to 158°F) - LT Tip / Shape spheric (dia: 7.5 mm) Temperature Sensor yes Matching Pin no Amplifier yes Body Material PEI Cable 1 m (3.3') Recommended Use field applications Connection 3.5 mm connector
Tip / Shape
spheric (dia: 7.5 mm) Temperature Sensor yes Matching Pin no Amplifier yes Body Material PEI Cable 1 m (3.3') Recommended Use field applications Connection 3.5 mm connector
Matching Pin
no Amplifier yes Body Material PEI Cable 1 m (3.3') Recommended Use field applications Connection 3.5 mm connector
Max Pressure
2 bar Range pH: 0 to 12 Recommended Operating Temperature -5 to 70°C (23 to 158°F) - LT Tip / Shape spheric (dia: 7.5 mm) Temperature Sensor yes Matching Pin no Amplifier yes Body Material PEI Cable 1 m (3.3') Recommended Use field applications Connection 3.5 mm connector
Body Material
PEI Cable 1 m (3.3') Recommended Use field applications Connection 3.5 mm connector
Recommended Use
field applications Connection 3.5 mm connector
Temperature Sensor
yes Matching Pin no Amplifier yes Body Material PEI Cable 1 m (3.3') Recommended Use field applications Connection 3.5 mm connector
Junction / Flow Rate
e ceramic, single / 15-20 µL/h Electrolyte gel Max Pressure 2 bar Range pH: 0 to 12 Recommended Operating Temperature -5 to 70°C (23 to 158°F) - LT Tip / Shape spheric (dia: 7.5 mm) Temperature Sensor yes Matching Pin no Amplifier yes Body Material PEI Cable 1 m (3.3') Recommended Use field applications Connection 3.5 mm connector
Recommended Operating Temperature
-5 to 70°C (23 to 158°F) - LT Tip / Shape spheric (dia: 7.5 mm) Temperature Sensor yes Matching Pin no Amplifier yes Body Material PEI Cable 1 m (3.3') Recommended Use field applications Connection 3.5 mm connector
Fourniture et réapprovisionnement

AxiTech fournit Digital PEI Body pH Electrode for Field Applications en pièce de rechange, afin qu’une pièce usée soit remplacée pendant la même intervention plutôt que de générer un second déplacement.

Commander Digital PEI Body pH Electrode for Field Applications

Indiquez-nous la référence, ou le modèle et le numéro de série de l’instrument concerné : nous confirmons la pièce exacte, son prix et son délai. Les pièces commandées dans le cadre d’un contrat de maintenance sont emportées lors de la visite.

  • Compatibilité vérifiée avec votre instrument avant expédition
  • Devis assorti d’un délai, et pas seulement d’un prix
  • Planifié avec votre visite de maintenance si vous êtes sous contrat
  • Commandes ouvertes pour les articles consommés à rythme régulier

L’instrument auquel il se rapporte

AxiTech entretient, étalonne et répare les instruments Hanna Instruments avec lesquels Digital PEI Body pH Electrode for Field Applications s’utilise. Si vous en exploitez un, nous pouvons le placer sous contrat de maintenance préventive et fournir cet article dans le cadre du planning.

Découvrir nos contrats de maintenanceParcourir le catalogue d’équipements

Les questions qu’on nous pose

Questions fréquentes sur Hanna Instruments Digital PEI Body pH Electrode for Field Applications

Oui. AxiTech fournit Digital PEI Body pH Electrode for Field Applications aux hôpitaux, cliniques et laboratoires, en commande ponctuelle ou selon un calendrier récurrent. Transmettez-nous la référence et la quantité : nous vous adressons un prix et un délai.
