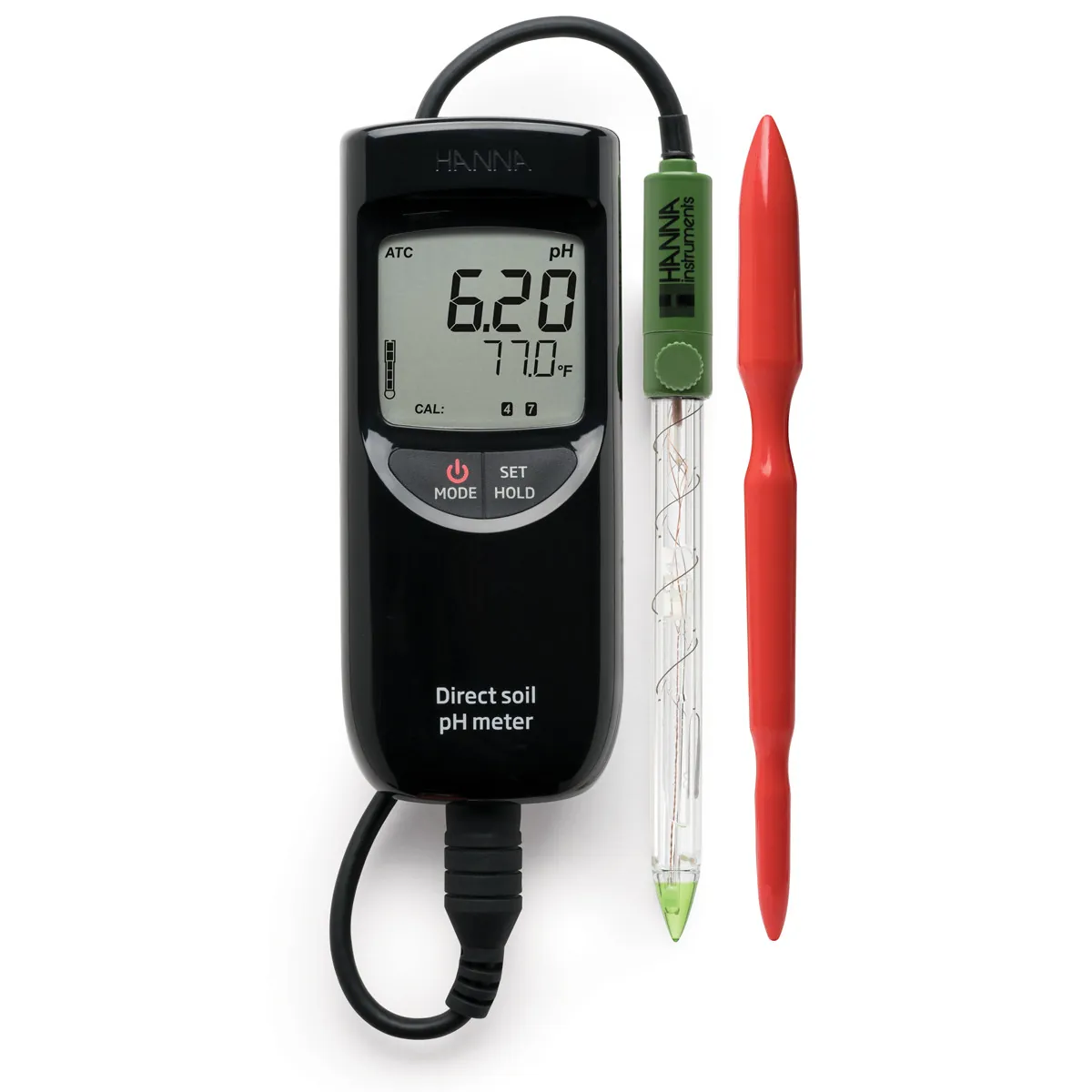

Direct Soil Measurement pH Portable Meter — photographie principale
Hanna InstrumentsDisponibilité: Fourni sur commande

Direct Soil Measurement pH Portable Meter

Référence HI99121

Appareil de mesure de laboratoire Direct Soil Measurement pH Portable Meter de Hanna Instruments — AxiTech en assure la vente, l'installation et la mise en service, ainsi que la maintenance préventive, l'étalonnage, le dépannage et la réparation, avec fourniture de pièces de rechange.

Demander une prestation pour cet équipement

Aucun paiement n’est effectué en ligne. Chaque demande est étudiée par un ingénieur AxiTech avant l’envoi du devis.

En un coup d’œil

Référence
HI99121
Catégorie
pH-mètres et analyse de l'eau
Famille d’équipements
Industry/Laboratory, Industry/Laboratory/Research, Industry/Laboratory/Education, Parameters/P - Z/pH, Parameters/G - O/ORP, Product/Meters, Product/Meters/Portable meters, Parameters/G - O/ISE, Indus

Présentation

Designed to bring simplicity to pH testing of soil, the HI99121 Direct Soil pH Portable Meter is designed specifically for soil analysis. The specialized probe features a rugged conical tip, open junction design, and a glass body making it ideal for measuring the pH of soil directly or after preparation of a soil slurry with deionized water.

Maintenance contract — AxiTech provides planned preventive maintenance for Direct Soil Measurement pH Portable Meter from Hanna Instruments: scheduled visits, safety checks, periodic calibration and a documented service report, backed by a contractual response time.

Troubleshooting, repair and spare parts — our ph, conductivity & water analysis engineers diagnose and repair Direct Soil Measurement pH Portable Meter on site or in the workshop, fit genuine spare parts and recommission the equipment after performance verification.

Caractéristiques

  • ±0.02 pH accuracy
  • Includes a plastic auger to break through harder soils.
  • Specialized for the direct pH measurement of soil.

Spécifications techniques

Specifications
Sku
HI99121 pH Range -2.00 to 16.00 pH / -2.0 to 16.0 pH pH Resolution 0.01 pH / 0.1 pH pH Accuracy @ 25°C / 77°F ±0.02 pH / ±0.1 pH pH Calibration automatic, at one or two points with two sets of standard buffers (pH 4.01 / 7.01 / 10.01 or pH 4.01 / 6.86 / 9.18) mV Range ±825 mV (pH-mV) mV Resolution 4 mV mV Accuracy ±1 mV (pH-mV) Temperature Range -5.0 to 105.0 °C/23.0 to 221.0 °F Temperature Resolution 0.1 °C/0.1 °F Temperature Accuracy @ 25°C / 77°F ±0.5 °C up to 60 °C ±1.0 °C outside ±1.0 °F up to 140 °F ±2.0 °F outside Temperature Compensation Automatic -5.0 to 105.0 °C/23.0 to 221.0 °F Power Supply 1.5V AAA batteries (3 pcs.) Power Consumption approx. 1400 hours of continuous use Environment 0 to 50°C (32 to 122°F) RH max 100% Dimensions s 154 x 63 x 30 mm (6.1 x 2.5 x 1.2in.) Weight 199 g (6.91 oz.) with batteries Ordering Information Each meter is supplied complete with: • HI12923 pH/temperature probe • pH 4.01 & 7.01 Buffer sachet • HI700663 electrode cleaning solution for soil deposits (1 sachet) • HI700664 electrode cleaning solution for humus deposits (1 sachet) • HI7051M soil preparation solution • HI721319 ground auger • 100 mL beaker (1 pc.) • Alkaline batteries: 1.5V AAA (3 pcs.) • Rugged carrying case • Calibration certificate of meter • Calibration certificate of probe • Instruction manual Warranty 2 years Recommended Probe HI12923 glass body, pre‑amplified pH electrode for soil measurement with internal temperature sensor, DIN connector and 1 m (3.3') cable (included)
Weight
199 g (6.91 oz.) with batteries Ordering Information Each meter is supplied complete with: • HI12923 pH/temperature probe • pH 4.01 & 7.01 Buffer sachet • HI700663 electrode cleaning solution for soil deposits (1 sachet) • HI700664 electrode cleaning solution for humus deposits (1 sachet) • HI7051M soil preparation solution • HI721319 ground auger • 100 mL beaker (1 pc.) • Alkaline batteries: 1.5V AAA (3 pcs.) • Rugged carrying case • Calibration certificate of meter • Calibration certificate of probe • Instruction manual Warranty 2 years Recommended Probe HI12923 glass body, pre‑amplified pH electrode for soil measurement with internal temperature sensor, DIN connector and 1 m (3.3') cable (included)
Warranty
2 years Recommended Probe HI12923 glass body, pre‑amplified pH electrode for soil measurement with internal temperature sensor, DIN connector and 1 m (3.3') cable (included)
MV Range
±825 mV (pH-mV) mV Resolution 4 mV mV Accuracy ±1 mV (pH-mV) Temperature Range -5.0 to 105.0 °C/23.0 to 221.0 °F Temperature Resolution 0.1 °C/0.1 °F Temperature Accuracy @ 25°C / 77°F ±0.5 °C up to 60 °C ±1.0 °C outside ±1.0 °F up to 140 °F ±2.0 °F outside Temperature Compensation Automatic -5.0 to 105.0 °C/23.0 to 221.0 °F Power Supply 1.5V AAA batteries (3 pcs.) Power Consumption approx. 1400 hours of continuous use Environment 0 to 50°C (32 to 122°F) RH max 100% Dimensions s 154 x 63 x 30 mm (6.1 x 2.5 x 1.2in.) Weight 199 g (6.91 oz.) with batteries Ordering Information Each meter is supplied complete with: • HI12923 pH/temperature probe • pH 4.01 & 7.01 Buffer sachet • HI700663 electrode cleaning solution for soil deposits (1 sachet) • HI700664 electrode cleaning solution for humus deposits (1 sachet) • HI7051M soil preparation solution • HI721319 ground auger • 100 mL beaker (1 pc.) • Alkaline batteries: 1.5V AAA (3 pcs.) • Rugged carrying case • Calibration certificate of meter • Calibration certificate of probe • Instruction manual Warranty 2 years Recommended Probe HI12923 glass body, pre‑amplified pH electrode for soil measurement with internal temperature sensor, DIN connector and 1 m (3.3') cable (included)
PH Range
-2.00 to 16.00 pH / -2.0 to 16.0 pH pH Resolution 0.01 pH / 0.1 pH pH Accuracy @ 25°C / 77°F ±0.02 pH / ±0.1 pH pH Calibration automatic, at one or two points with two sets of standard buffers (pH 4.01 / 7.01 / 10.01 or pH 4.01 / 6.86 / 9.18) mV Range ±825 mV (pH-mV) mV Resolution 4 mV mV Accuracy ±1 mV (pH-mV) Temperature Range -5.0 to 105.0 °C/23.0 to 221.0 °F Temperature Resolution 0.1 °C/0.1 °F Temperature Accuracy @ 25°C / 77°F ±0.5 °C up to 60 °C ±1.0 °C outside ±1.0 °F up to 140 °F ±2.0 °F outside Temperature Compensation Automatic -5.0 to 105.0 °C/23.0 to 221.0 °F Power Supply 1.5V AAA batteries (3 pcs.) Power Consumption approx. 1400 hours of continuous use Environment 0 to 50°C (32 to 122°F) RH max 100% Dimensions s 154 x 63 x 30 mm (6.1 x 2.5 x 1.2in.) Weight 199 g (6.91 oz.) with batteries Ordering Information Each meter is supplied complete with: • HI12923 pH/temperature probe • pH 4.01 & 7.01 Buffer sachet • HI700663 electrode cleaning solution for soil deposits (1 sachet) • HI700664 electrode cleaning solution for humus deposits (1 sachet) • HI7051M soil preparation solution • HI721319 ground auger • 100 mL beaker (1 pc.) • Alkaline batteries: 1.5V AAA (3 pcs.) • Rugged carrying case • Calibration certificate of meter • Calibration certificate of probe • Instruction manual Warranty 2 years Recommended Probe HI12923 glass body, pre‑amplified pH electrode for soil measurement with internal temperature sensor, DIN connector and 1 m (3.3') cable (included)
Dimensions
s 154 x 63 x 30 mm (6.1 x 2.5 x 1.2in.) Weight 199 g (6.91 oz.) with batteries Ordering Information Each meter is supplied complete with: • HI12923 pH/temperature probe • pH 4.01 & 7.01 Buffer sachet • HI700663 electrode cleaning solution for soil deposits (1 sachet) • HI700664 electrode cleaning solution for humus deposits (1 sachet) • HI7051M soil preparation solution • HI721319 ground auger • 100 mL beaker (1 pc.) • Alkaline batteries: 1.5V AAA (3 pcs.) • Rugged carrying case • Calibration certificate of meter • Calibration certificate of probe • Instruction manual Warranty 2 years Recommended Probe HI12923 glass body, pre‑amplified pH electrode for soil measurement with internal temperature sensor, DIN connector and 1 m (3.3') cable (included)
Environment
0 to 50°C (32 to 122°F) RH max 100% Dimensions s 154 x 63 x 30 mm (6.1 x 2.5 x 1.2in.) Weight 199 g (6.91 oz.) with batteries Ordering Information Each meter is supplied complete with: • HI12923 pH/temperature probe • pH 4.01 & 7.01 Buffer sachet • HI700663 electrode cleaning solution for soil deposits (1 sachet) • HI700664 electrode cleaning solution for humus deposits (1 sachet) • HI7051M soil preparation solution • HI721319 ground auger • 100 mL beaker (1 pc.) • Alkaline batteries: 1.5V AAA (3 pcs.) • Rugged carrying case • Calibration certificate of meter • Calibration certificate of probe • Instruction manual Warranty 2 years Recommended Probe HI12923 glass body, pre‑amplified pH electrode for soil measurement with internal temperature sensor, DIN connector and 1 m (3.3') cable (included)
MV Accuracy
±1 mV (pH-mV) Temperature Range -5.0 to 105.0 °C/23.0 to 221.0 °F Temperature Resolution 0.1 °C/0.1 °F Temperature Accuracy @ 25°C / 77°F ±0.5 °C up to 60 °C ±1.0 °C outside ±1.0 °F up to 140 °F ±2.0 °F outside Temperature Compensation Automatic -5.0 to 105.0 °C/23.0 to 221.0 °F Power Supply 1.5V AAA batteries (3 pcs.) Power Consumption approx. 1400 hours of continuous use Environment 0 to 50°C (32 to 122°F) RH max 100% Dimensions s 154 x 63 x 30 mm (6.1 x 2.5 x 1.2in.) Weight 199 g (6.91 oz.) with batteries Ordering Information Each meter is supplied complete with: • HI12923 pH/temperature probe • pH 4.01 & 7.01 Buffer sachet • HI700663 electrode cleaning solution for soil deposits (1 sachet) • HI700664 electrode cleaning solution for humus deposits (1 sachet) • HI7051M soil preparation solution • HI721319 ground auger • 100 mL beaker (1 pc.) • Alkaline batteries: 1.5V AAA (3 pcs.) • Rugged carrying case • Calibration certificate of meter • Calibration certificate of probe • Instruction manual Warranty 2 years Recommended Probe HI12923 glass body, pre‑amplified pH electrode for soil measurement with internal temperature sensor, DIN connector and 1 m (3.3') cable (included)
Power Supply
1.5V AAA batteries (3 pcs.) Power Consumption approx. 1400 hours of continuous use Environment 0 to 50°C (32 to 122°F) RH max 100% Dimensions s 154 x 63 x 30 mm (6.1 x 2.5 x 1.2in.) Weight 199 g (6.91 oz.) with batteries Ordering Information Each meter is supplied complete with: • HI12923 pH/temperature probe • pH 4.01 & 7.01 Buffer sachet • HI700663 electrode cleaning solution for soil deposits (1 sachet) • HI700664 electrode cleaning solution for humus deposits (1 sachet) • HI7051M soil preparation solution • HI721319 ground auger • 100 mL beaker (1 pc.) • Alkaline batteries: 1.5V AAA (3 pcs.) • Rugged carrying case • Calibration certificate of meter • Calibration certificate of probe • Instruction manual Warranty 2 years Recommended Probe HI12923 glass body, pre‑amplified pH electrode for soil measurement with internal temperature sensor, DIN connector and 1 m (3.3') cable (included)
MV Resolution
4 mV mV Accuracy ±1 mV (pH-mV) Temperature Range -5.0 to 105.0 °C/23.0 to 221.0 °F Temperature Resolution 0.1 °C/0.1 °F Temperature Accuracy @ 25°C / 77°F ±0.5 °C up to 60 °C ±1.0 °C outside ±1.0 °F up to 140 °F ±2.0 °F outside Temperature Compensation Automatic -5.0 to 105.0 °C/23.0 to 221.0 °F Power Supply 1.5V AAA batteries (3 pcs.) Power Consumption approx. 1400 hours of continuous use Environment 0 to 50°C (32 to 122°F) RH max 100% Dimensions s 154 x 63 x 30 mm (6.1 x 2.5 x 1.2in.) Weight 199 g (6.91 oz.) with batteries Ordering Information Each meter is supplied complete with: • HI12923 pH/temperature probe • pH 4.01 & 7.01 Buffer sachet • HI700663 electrode cleaning solution for soil deposits (1 sachet) • HI700664 electrode cleaning solution for humus deposits (1 sachet) • HI7051M soil preparation solution • HI721319 ground auger • 100 mL beaker (1 pc.) • Alkaline batteries: 1.5V AAA (3 pcs.) • Rugged carrying case • Calibration certificate of meter • Calibration certificate of probe • Instruction manual Warranty 2 years Recommended Probe HI12923 glass body, pre‑amplified pH electrode for soil measurement with internal temperature sensor, DIN connector and 1 m (3.3') cable (included)
PH Resolution
0.01 pH / 0.1 pH pH Accuracy @ 25°C / 77°F ±0.02 pH / ±0.1 pH pH Calibration automatic, at one or two points with two sets of standard buffers (pH 4.01 / 7.01 / 10.01 or pH 4.01 / 6.86 / 9.18) mV Range ±825 mV (pH-mV) mV Resolution 4 mV mV Accuracy ±1 mV (pH-mV) Temperature Range -5.0 to 105.0 °C/23.0 to 221.0 °F Temperature Resolution 0.1 °C/0.1 °F Temperature Accuracy @ 25°C / 77°F ±0.5 °C up to 60 °C ±1.0 °C outside ±1.0 °F up to 140 °F ±2.0 °F outside Temperature Compensation Automatic -5.0 to 105.0 °C/23.0 to 221.0 °F Power Supply 1.5V AAA batteries (3 pcs.) Power Consumption approx. 1400 hours of continuous use Environment 0 to 50°C (32 to 122°F) RH max 100% Dimensions s 154 x 63 x 30 mm (6.1 x 2.5 x 1.2in.) Weight 199 g (6.91 oz.) with batteries Ordering Information Each meter is supplied complete with: • HI12923 pH/temperature probe • pH 4.01 & 7.01 Buffer sachet • HI700663 electrode cleaning solution for soil deposits (1 sachet) • HI700664 electrode cleaning solution for humus deposits (1 sachet) • HI7051M soil preparation solution • HI721319 ground auger • 100 mL beaker (1 pc.) • Alkaline batteries: 1.5V AAA (3 pcs.) • Rugged carrying case • Calibration certificate of meter • Calibration certificate of probe • Instruction manual Warranty 2 years Recommended Probe HI12923 glass body, pre‑amplified pH electrode for soil measurement with internal temperature sensor, DIN connector and 1 m (3.3') cable (included)
PH Calibration
automatic, at one or two points with two sets of standard buffers (pH 4.01 / 7.01 / 10.01 or pH 4.01 / 6.86 / 9.18) mV Range ±825 mV (pH-mV) mV Resolution 4 mV mV Accuracy ±1 mV (pH-mV) Temperature Range -5.0 to 105.0 °C/23.0 to 221.0 °F Temperature Resolution 0.1 °C/0.1 °F Temperature Accuracy @ 25°C / 77°F ±0.5 °C up to 60 °C ±1.0 °C outside ±1.0 °F up to 140 °F ±2.0 °F outside Temperature Compensation Automatic -5.0 to 105.0 °C/23.0 to 221.0 °F Power Supply 1.5V AAA batteries (3 pcs.) Power Consumption approx. 1400 hours of continuous use Environment 0 to 50°C (32 to 122°F) RH max 100% Dimensions s 154 x 63 x 30 mm (6.1 x 2.5 x 1.2in.) Weight 199 g (6.91 oz.) with batteries Ordering Information Each meter is supplied complete with: • HI12923 pH/temperature probe • pH 4.01 & 7.01 Buffer sachet • HI700663 electrode cleaning solution for soil deposits (1 sachet) • HI700664 electrode cleaning solution for humus deposits (1 sachet) • HI7051M soil preparation solution • HI721319 ground auger • 100 mL beaker (1 pc.) • Alkaline batteries: 1.5V AAA (3 pcs.) • Rugged carrying case • Calibration certificate of meter • Calibration certificate of probe • Instruction manual Warranty 2 years Recommended Probe HI12923 glass body, pre‑amplified pH electrode for soil measurement with internal temperature sensor, DIN connector and 1 m (3.3') cable (included)
Power Consumption
approx. 1400 hours of continuous use Environment 0 to 50°C (32 to 122°F) RH max 100% Dimensions s 154 x 63 x 30 mm (6.1 x 2.5 x 1.2in.) Weight 199 g (6.91 oz.) with batteries Ordering Information Each meter is supplied complete with: • HI12923 pH/temperature probe • pH 4.01 & 7.01 Buffer sachet • HI700663 electrode cleaning solution for soil deposits (1 sachet) • HI700664 electrode cleaning solution for humus deposits (1 sachet) • HI7051M soil preparation solution • HI721319 ground auger • 100 mL beaker (1 pc.) • Alkaline batteries: 1.5V AAA (3 pcs.) • Rugged carrying case • Calibration certificate of meter • Calibration certificate of probe • Instruction manual Warranty 2 years Recommended Probe HI12923 glass body, pre‑amplified pH electrode for soil measurement with internal temperature sensor, DIN connector and 1 m (3.3') cable (included)
Recommended Probe
HI12923 glass body, pre‑amplified pH electrode for soil measurement with internal temperature sensor, DIN connector and 1 m (3.3') cable (included)
Temperature Range
-5.0 to 105.0 °C/23.0 to 221.0 °F Temperature Resolution 0.1 °C/0.1 °F Temperature Accuracy @ 25°C / 77°F ±0.5 °C up to 60 °C ±1.0 °C outside ±1.0 °F up to 140 °F ±2.0 °F outside Temperature Compensation Automatic -5.0 to 105.0 °C/23.0 to 221.0 °F Power Supply 1.5V AAA batteries (3 pcs.) Power Consumption approx. 1400 hours of continuous use Environment 0 to 50°C (32 to 122°F) RH max 100% Dimensions s 154 x 63 x 30 mm (6.1 x 2.5 x 1.2in.) Weight 199 g (6.91 oz.) with batteries Ordering Information Each meter is supplied complete with: • HI12923 pH/temperature probe • pH 4.01 & 7.01 Buffer sachet • HI700663 electrode cleaning solution for soil deposits (1 sachet) • HI700664 electrode cleaning solution for humus deposits (1 sachet) • HI7051M soil preparation solution • HI721319 ground auger • 100 mL beaker (1 pc.) • Alkaline batteries: 1.5V AAA (3 pcs.) • Rugged carrying case • Calibration certificate of meter • Calibration certificate of probe • Instruction manual Warranty 2 years Recommended Probe HI12923 glass body, pre‑amplified pH electrode for soil measurement with internal temperature sensor, DIN connector and 1 m (3.3') cable (included)
Ordering Information

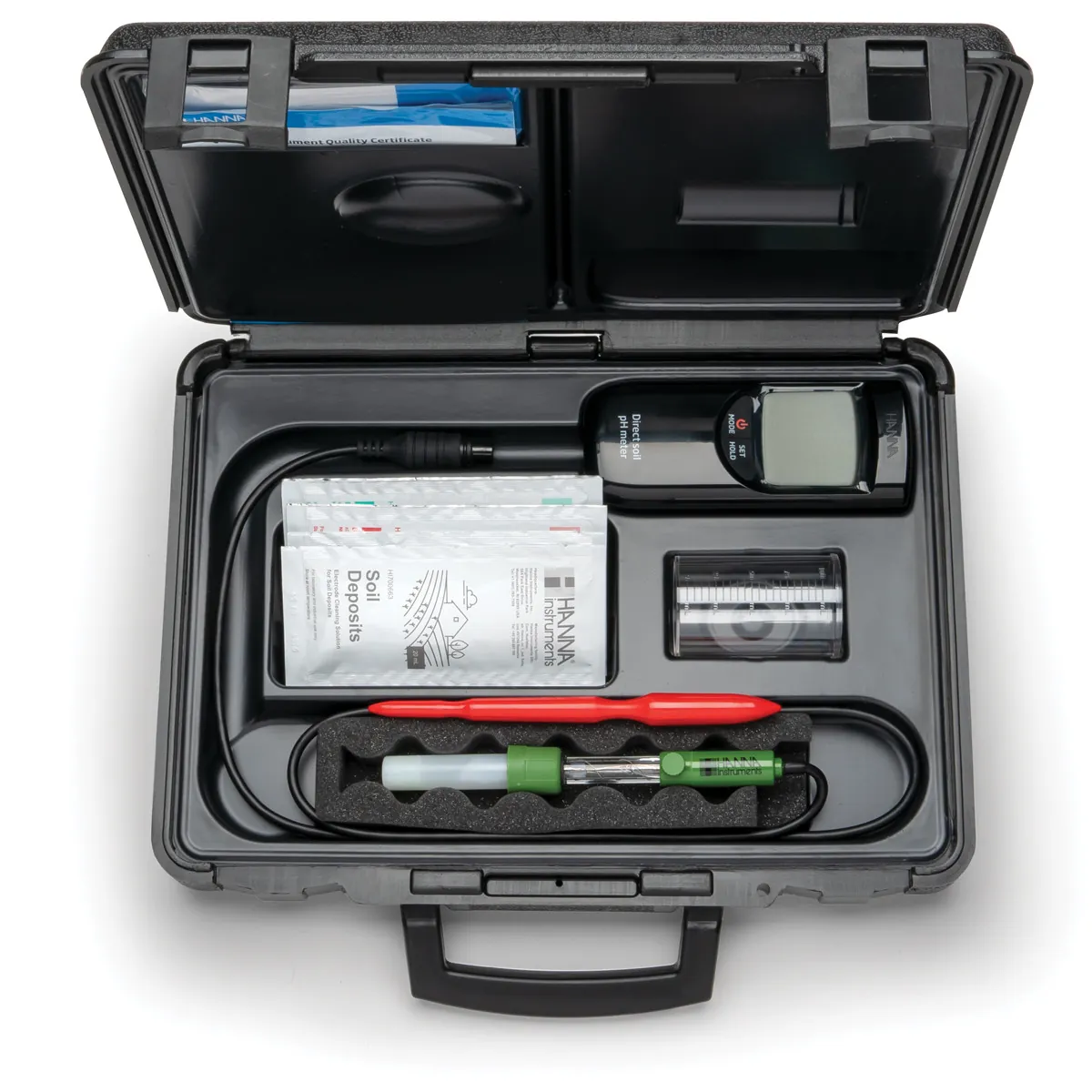

Each meter is supplied complete with: • HI12923 pH/temperature probe • pH 4.01 & 7.01 Buffer sachet • HI700663 electrode cleaning solution for soil deposits (1 sachet) • HI700664 electrode cleaning solution for humus deposits (1 sachet) • HI7051M soil preparation solution • HI721319 ground auger • 100 mL beaker (1 pc.) • Alkaline batteries: 1.5V AAA (3 pcs.) • Rugged carrying case • Calibration certificate of meter • Calibration certificate of probe • Instruction manual Warranty 2 years Recommended Probe HI12923 glass body, pre‑amplified pH electrode for soil measurement with internal temperature sensor, DIN connector and 1 m (3.3') cable (included)
Temperature Resolution
0.1 °C/0.1 °F Temperature Accuracy @ 25°C / 77°F ±0.5 °C up to 60 °C ±1.0 °C outside ±1.0 °F up to 140 °F ±2.0 °F outside Temperature Compensation Automatic -5.0 to 105.0 °C/23.0 to 221.0 °F Power Supply 1.5V AAA batteries (3 pcs.) Power Consumption approx. 1400 hours of continuous use Environment 0 to 50°C (32 to 122°F) RH max 100% Dimensions s 154 x 63 x 30 mm (6.1 x 2.5 x 1.2in.) Weight 199 g (6.91 oz.) with batteries Ordering Information Each meter is supplied complete with: • HI12923 pH/temperature probe • pH 4.01 & 7.01 Buffer sachet • HI700663 electrode cleaning solution for soil deposits (1 sachet) • HI700664 electrode cleaning solution for humus deposits (1 sachet) • HI7051M soil preparation solution • HI721319 ground auger • 100 mL beaker (1 pc.) • Alkaline batteries: 1.5V AAA (3 pcs.) • Rugged carrying case • Calibration certificate of meter • Calibration certificate of probe • Instruction manual Warranty 2 years Recommended Probe HI12923 glass body, pre‑amplified pH electrode for soil measurement with internal temperature sensor, DIN connector and 1 m (3.3') cable (included)
Temperature Compensation
Automatic -5.0 to 105.0 °C/23.0 to 221.0 °F Power Supply 1.5V AAA batteries (3 pcs.) Power Consumption approx. 1400 hours of continuous use Environment 0 to 50°C (32 to 122°F) RH max 100% Dimensions s 154 x 63 x 30 mm (6.1 x 2.5 x 1.2in.) Weight 199 g (6.91 oz.) with batteries Ordering Information Each meter is supplied complete with: • HI12923 pH/temperature probe • pH 4.01 & 7.01 Buffer sachet • HI700663 electrode cleaning solution for soil deposits (1 sachet) • HI700664 electrode cleaning solution for humus deposits (1 sachet) • HI7051M soil preparation solution • HI721319 ground auger • 100 mL beaker (1 pc.) • Alkaline batteries: 1.5V AAA (3 pcs.) • Rugged carrying case • Calibration certificate of meter • Calibration certificate of probe • Instruction manual Warranty 2 years Recommended Probe HI12923 glass body, pre‑amplified pH electrode for soil measurement with internal temperature sensor, DIN connector and 1 m (3.3') cable (included)
PH Accuracy @ 25°C / 77°F
±0.02 pH / ±0.1 pH pH Calibration automatic, at one or two points with two sets of standard buffers (pH 4.01 / 7.01 / 10.01 or pH 4.01 / 6.86 / 9.18) mV Range ±825 mV (pH-mV) mV Resolution 4 mV mV Accuracy ±1 mV (pH-mV) Temperature Range -5.0 to 105.0 °C/23.0 to 221.0 °F Temperature Resolution 0.1 °C/0.1 °F Temperature Accuracy @ 25°C / 77°F ±0.5 °C up to 60 °C ±1.0 °C outside ±1.0 °F up to 140 °F ±2.0 °F outside Temperature Compensation Automatic -5.0 to 105.0 °C/23.0 to 221.0 °F Power Supply 1.5V AAA batteries (3 pcs.) Power Consumption approx. 1400 hours of continuous use Environment 0 to 50°C (32 to 122°F) RH max 100% Dimensions s 154 x 63 x 30 mm (6.1 x 2.5 x 1.2in.) Weight 199 g (6.91 oz.) with batteries Ordering Information Each meter is supplied complete with: • HI12923 pH/temperature probe • pH 4.01 & 7.01 Buffer sachet • HI700663 electrode cleaning solution for soil deposits (1 sachet) • HI700664 electrode cleaning solution for humus deposits (1 sachet) • HI7051M soil preparation solution • HI721319 ground auger • 100 mL beaker (1 pc.) • Alkaline batteries: 1.5V AAA (3 pcs.) • Rugged carrying case • Calibration certificate of meter • Calibration certificate of probe • Instruction manual Warranty 2 years Recommended Probe HI12923 glass body, pre‑amplified pH electrode for soil measurement with internal temperature sensor, DIN connector and 1 m (3.3') cable (included)
Temperature Accuracy @ 25°C / 77°F
±0.5 °C up to 60 °C ±1.0 °C outside ±1.0 °F up to 140 °F ±2.0 °F outside Temperature Compensation Automatic -5.0 to 105.0 °C/23.0 to 221.0 °F Power Supply 1.5V AAA batteries (3 pcs.) Power Consumption approx. 1400 hours of continuous use Environment 0 to 50°C (32 to 122°F) RH max 100% Dimensions s 154 x 63 x 30 mm (6.1 x 2.5 x 1.2in.) Weight 199 g (6.91 oz.) with batteries Ordering Information Each meter is supplied complete with: • HI12923 pH/temperature probe • pH 4.01 & 7.01 Buffer sachet • HI700663 electrode cleaning solution for soil deposits (1 sachet) • HI700664 electrode cleaning solution for humus deposits (1 sachet) • HI7051M soil preparation solution • HI721319 ground auger • 100 mL beaker (1 pc.) • Alkaline batteries: 1.5V AAA (3 pcs.) • Rugged carrying case • Calibration certificate of meter • Calibration certificate of probe • Instruction manual Warranty 2 years Recommended Probe HI12923 glass body, pre‑amplified pH electrode for soil measurement with internal temperature sensor, DIN connector and 1 m (3.3') cable (included)
Couverture de service

AxiTech entretient, répare et fournit cet équipement pour les hôpitaux, les cliniques, les laboratoires et les centres d’imagerie.

Contrats de maintenance pour Direct Soil Measurement pH Portable Meter

AxiTech propose des contrats de maintenance préventive pour Direct Soil Measurement pH Portable Meter. Chaque contrat fixe un calendrier de visites planifiées au cours desquelles nos ingénieurs biomédicaux inspectent l’équipement, remplacent les pièces d’usure avant la panne et vérifient qu’il reste dans les tolérances du fabricant.

Chaque visite comprend l’étalonnage et la vérification des performances, et se conclut par un rapport de maintenance documenté que vous pouvez présenter lors d’un audit d’accréditation. La disponibilité des pièces de rechange et le délai d’intervention garanti sont inscrits au contrat : une panne ne laisse jamais un service sans réponse.

Les analyseurs de laboratoire sont habituellement entretenus tous les trois à six mois, avec étalonnage et vérification du contrôle qualité à chaque visite afin que les résultats restent traçables.

  • Visites de maintenance préventive planifiées à intervalle fixe
  • Étalonnage et vérification des performances selon les spécifications du fabricant
  • Un rapport de maintenance documenté après chaque intervention
  • Disponibilité garantie des pièces de rechange et des consommables
  • Un délai d’intervention contractuel en cas de panne

Découvrir nos contrats de maintenance

Maintenance préventive planifiée et étalonnage sous contrat

Dépannage et réparation de Direct Soil Measurement pH Portable Meter

En cas de panne de Direct Soil Measurement pH Portable Meter, nos ingénieurs commencent par un diagnostic structuré : codes d’erreur, contrôles électriques et mécaniques, puis test fonctionnel au regard des spécifications de l’équipement. Nous savons ainsi s’il s’agit d’un consommable, d’une pièce d’usure ou d’une défaillance de carte avant de commander la moindre pièce.

Les pannes simples sont réparées sur site afin de limiter l’immobilisation du service. Tout ce qui exige un établi, un démontage complet ou une pièce de rechange spécifique part à notre atelier et ne revient qu’après un test complet après réparation et, lorsque l’équipement l’impose, un réétalonnage.

Pannes les plus fréquentes sur ce type d’équipement

Sur les analyseurs, la majorité des pannes provient de la fluidique — aiguilles obstruées, pompes et tubulures usées, électrovannes qui fuient — puis de la dérive optique et des erreurs de gestion des réactifs.

Découvrir notre service de dépannage et réparation

Diagnostic, réparation curative et pièces de rechange en atelier
Dépannage

Comment dépanner Direct Soil Measurement pH Portable Meter

Déroulez ces vérifications avant toute escalade. C’est la séquence de premier niveau que nos ingénieurs biomédicaux appliquent à leur arrivée : soit elle lève la panne, soit elle la circonscrit suffisamment pour que l’intervention démarre avec la bonne pièce de rechange dans le véhicule.

  1. Documentez la panne avant toute manipulation : notez le code ou message d’erreur exact, le numéro de série figurant sur la plaque signalétique, ce que faisait l’opérateur, et si la panne disparaît après redémarrage.

  2. Reprenez l’historique de contrôle qualité et d’étalonnage. Un résultat qui dérive sur plusieurs séries oriente vers l’étalonnage ou les réactifs ; un décrochage brutal désigne presque toujours la fluidique.

  3. Inspectez le circuit fluidique — aiguille, tubulures, pompe, électrovannes et ligne de déchets — à la recherche d’une obstruction, d’une cristallisation ou d’une fuite, et vérifiez les niveaux de réactifs et de solution de lavage ainsi que leurs dates de péremption.

  4. Vérifiez les conditions ambiantes dont dépend la méthode : température de la paillasse, ventilation, plan de travail de niveau et exempt de vibrations, et alimentation secteur stable.

  5. Si la panne subsiste, escaladez avec les éléments recueillis. Transmettez à AxiTech le modèle, le numéro de série, le code d’erreur et les vérifications déjà effectuées : un ingénieur vous répondra avec un diagnostic, un devis de réparation et un délai d’approvisionnement des pièces pour Direct Soil Measurement pH Portable Meter.

À nous transmettre lors du signalement

  • Fabricant, modèle et numéro de série, relevés sur la plaque signalétique
  • Le code ou le message d’erreur exact, et l’écran sur lequel il apparaît
  • Depuis quand la panne survient, à quelle fréquence et ce qui la déclenche
  • Une photographie de l’écran ou de la panne, et le dernier rapport de maintenance

Si la panne persiste au terme des cinq étapes, cessez d’utiliser Direct Soil Measurement pH Portable Meter et ouvrez une demande de réparation. Faire tourner un appareil sur une panne qu’il ne peut pas lever transforme une défaillance de composant en défaillance de carte, et sur un équipement de diagnostic ou de thérapie cela met en cause le résultat — et le patient.

Découvrir notre service de dépannage et réparation

Achat et installation de Direct Soil Measurement pH Portable Meter

AxiTech fournit Direct Soil Measurement pH Portable Meter avec les accessoires et les consommables nécessaires à sa mise en service. Nous prenons en charge l’importation, la livraison et l’installation, puis la mise en service sur site afin que l’équipement soit vérifié au regard de ses spécifications avant le premier patient ou le premier échantillon.

L’installation est suivie de la formation des utilisateurs et de votre équipe biomédicale, de l’enregistrement de la garantie et, si vous le souhaitez, d’un contrat de maintenance qui prend le relais dès la fin de la garantie : l’équipement ne reste jamais sans entretien planifié.

Découvrir notre service de vente d’équipements

Livraison, installation, mise en service et formation des utilisateurs
Les questions qu’on nous pose

Questions fréquentes sur Hanna Instruments Direct Soil Measurement pH Portable Meter

Oui. AxiTech assure la maintenance de Direct Soil Measurement pH Portable Meter, dans le cadre d’un contrat de maintenance comme en intervention ponctuelle. Nos ingénieurs biomédicaux couvrent la maintenance préventive, l’étalonnage, la réparation corrective et la fourniture des pièces de rechange de cet équipement.
