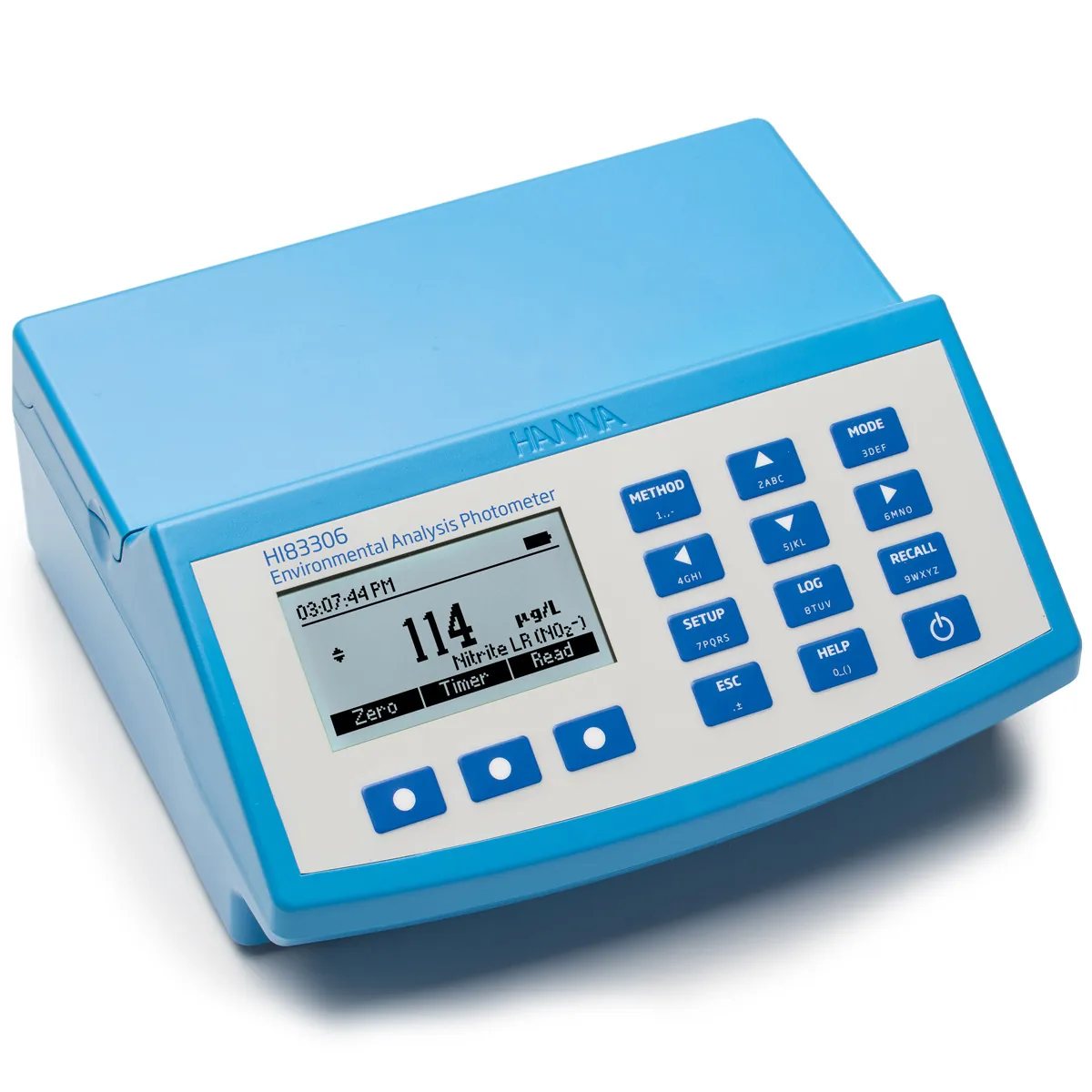

Environmental Analysis Photometer — photographie principale
Hanna InstrumentsDisponibilité: Fourni sur commande

Environmental Analysis Photometer

Référence HI83306-01

Appareil de mesure de laboratoire Environmental Analysis Photometer de Hanna Instruments. Nos techniciens assurent l'installation, l'étalonnage et la maintenance préventive, interviennent en dépannage sur site et prennent en charge la réparation en atelier ainsi que les pièces de rechange.

Demander une prestation pour cet équipement

Aucun paiement n’est effectué en ligne. Chaque demande est étudiée par un ingénieur AxiTech avant l’envoi du devis.

En un coup d’œil

Référence
HI83306-01
Catégorie
pH-mètres et analyse de l'eau
Famille d’équipements
Industry/Industrial, Industry/Industrial/Chemical manufacturing, Industry/Industrial/Water treatment, Industry/Water, Industry/Water/Aquaculture, Industry/Water/Wastewater, Industry/Water/Drinking wat

Présentation

HI83306 is a compact, multiparameter photometer for use in the environmental lab or in the field. The meter is one of the most advanced photometers available with a innovative optical design that utilizes a reference detector and focusing lens to eliminate errors from changes in the light source and from imperfections in the glass cuvette. This meter has 23 different programmed methods measuring 16 key water quality parameters and also offers an absorbance measurement mode for performance verification and for users that would like to develop their own concentration versus absorbance curves. Environmental-specific parameters include nitrate, phosphorous and dissolved oxygen. To save valuable laboratory benchtop space, the HI83306 doubles as a professional pH meter with its digital pH/temperature electrode input. Now one meter can be used for both photometric and pH measurements.

Maintenance contract — AxiTech provides planned preventive maintenance for Environmental Analysis Photometer from Hanna Instruments: scheduled visits, safety checks, periodic calibration and a documented service report, backed by a contractual response time.

Troubleshooting, repair and spare parts — our ph, conductivity & water analysis engineers diagnose and repair Environmental Analysis Photometer on site or in the workshop, fit genuine spare parts and recommission the equipment after performance verification.

Caractéristiques

  • Advanced optical system
  • Unparalleled performance from a benchtop photometer
  • Digital pH electrode input
  • Save valuable bench space with one meter that works both as a photometer and as a laboratory pH meter
  • Absorbance measuring mode

Spécifications techniques

Specifications
GLP
calibration data for connected pH electrode Display 128 x 64 pixel LCD with backlight Battery Type / Life 3.7 VDC Li-polymer rechargeable battery / &gt500 photometric measurements or 50 hours of continuous pH measurement Power Supply 5 VDC USB 2.0 power adapter with USB-A to micro-USB-B cable (included) Environment 0 to 50.0oC (32 to 122.0oF) 0 to 95% RH, non-condensing Dimensions 206 x 177 x 97 mm (8.1 x 7.0 x 3.8) Weight 1.0 kg (2.2 lbs.) Photometer/Colorimeter Light Detector silicon photodetector Cuvette Type round, 24.6 mm Number of Methods 128 max. Ordering Information Supplied with sample cuvettes and caps (4 ea.), cloth for wiping cuvettes, USB to micro USB cable connector, power adapter and instruction manual. Warranty 2 years Note *Reagents are not included.
Sku
HI83306-01 Wavelength Accuracy ±1 nm Light Source 4 LEDs with 420 nm, 525 nm, 575 nm, and 610 nm narrow band interference filters Spectral bandwidth 8 nm Input Channels 1 pH electrode input and 5 photometer wavelengths pH Electrode digital pH electrode (not included) Logging Type log on demand with user name and sample ID optional input Logging Memory 1000 readings Connectivity USB-A host for flash drive micro-USB-B for power and computer connectivity GLP calibration data for connected pH electrode Display 128 x 64 pixel LCD with backlight Battery Type / Life 3.7 VDC Li-polymer rechargeable battery / &gt500 photometric measurements or 50 hours of continuous pH measurement Power Supply 5 VDC USB 2.0 power adapter with USB-A to micro-USB-B cable (included) Environment 0 to 50.0oC (32 to 122.0oF) 0 to 95% RH, non-condensing Dimensions 206 x 177 x 97 mm (8.1 x 7.0 x 3.8) Weight 1.0 kg (2.2 lbs.) Photometer/Colorimeter Light Detector silicon photodetector Cuvette Type round, 24.6 mm Number of Methods 128 max. Ordering Information Supplied with sample cuvettes and caps (4 ea.), cloth for wiping cuvettes, USB to micro USB cable connector, power adapter and instruction manual. Warranty 2 years Note *Reagents are not included.
Note
*Reagents are not included.
Weight
1.0 kg (2.2 lbs.) Photometer/Colorimeter Light Detector silicon photodetector Cuvette Type round, 24.6 mm Number of Methods 128 max. Ordering Information Supplied with sample cuvettes and caps (4 ea.), cloth for wiping cuvettes, USB to micro USB cable connector, power adapter and instruction manual. Warranty 2 years Note *Reagents are not included.
Display
128 x 64 pixel LCD with backlight Battery Type / Life 3.7 VDC Li-polymer rechargeable battery / &gt500 photometric measurements or 50 hours of continuous pH measurement Power Supply 5 VDC USB 2.0 power adapter with USB-A to micro-USB-B cable (included) Environment 0 to 50.0oC (32 to 122.0oF) 0 to 95% RH, non-condensing Dimensions 206 x 177 x 97 mm (8.1 x 7.0 x 3.8) Weight 1.0 kg (2.2 lbs.) Photometer/Colorimeter Light Detector silicon photodetector Cuvette Type round, 24.6 mm Number of Methods 128 max. Ordering Information Supplied with sample cuvettes and caps (4 ea.), cloth for wiping cuvettes, USB to micro USB cable connector, power adapter and instruction manual. Warranty 2 years Note *Reagents are not included.
Warranty
2 years Note *Reagents are not included.
Dimensions
206 x 177 x 97 mm (8.1 x 7.0 x 3.8) Weight 1.0 kg (2.2 lbs.) Photometer/Colorimeter Light Detector silicon photodetector Cuvette Type round, 24.6 mm Number of Methods 128 max. Ordering Information Supplied with sample cuvettes and caps (4 ea.), cloth for wiping cuvettes, USB to micro USB cable connector, power adapter and instruction manual. Warranty 2 years Note *Reagents are not included.
Environment
0 to 50.0oC (32 to 122.0oF) 0 to 95% RH, non-condensing Dimensions 206 x 177 x 97 mm (8.1 x 7.0 x 3.8) Weight 1.0 kg (2.2 lbs.) Photometer/Colorimeter Light Detector silicon photodetector Cuvette Type round, 24.6 mm Number of Methods 128 max. Ordering Information Supplied with sample cuvettes and caps (4 ea.), cloth for wiping cuvettes, USB to micro USB cable connector, power adapter and instruction manual. Warranty 2 years Note *Reagents are not included.
Connectivity
USB-A host for flash drive micro-USB-B for power and computer connectivity GLP calibration data for connected pH electrode Display 128 x 64 pixel LCD with backlight Battery Type / Life 3.7 VDC Li-polymer rechargeable battery / &gt500 photometric measurements or 50 hours of continuous pH measurement Power Supply 5 VDC USB 2.0 power adapter with USB-A to micro-USB-B cable (included) Environment 0 to 50.0oC (32 to 122.0oF) 0 to 95% RH, non-condensing Dimensions 206 x 177 x 97 mm (8.1 x 7.0 x 3.8) Weight 1.0 kg (2.2 lbs.) Photometer/Colorimeter Light Detector silicon photodetector Cuvette Type round, 24.6 mm Number of Methods 128 max. Ordering Information Supplied with sample cuvettes and caps (4 ea.), cloth for wiping cuvettes, USB to micro USB cable connector, power adapter and instruction manual. Warranty 2 years Note *Reagents are not included.
Cuvette Type
round, 24.6 mm Number of Methods 128 max. Ordering Information Supplied with sample cuvettes and caps (4 ea.), cloth for wiping cuvettes, USB to micro USB cable connector, power adapter and instruction manual. Warranty 2 years Note *Reagents are not included.
Light Source
4 LEDs with 420 nm, 525 nm, 575 nm, and 610 nm narrow band interference filters Spectral bandwidth 8 nm Input Channels 1 pH electrode input and 5 photometer wavelengths pH Electrode digital pH electrode (not included) Logging Type log on demand with user name and sample ID optional input Logging Memory 1000 readings Connectivity USB-A host for flash drive micro-USB-B for power and computer connectivity GLP calibration data for connected pH electrode Display 128 x 64 pixel LCD with backlight Battery Type / Life 3.7 VDC Li-polymer rechargeable battery / &gt500 photometric measurements or 50 hours of continuous pH measurement Power Supply 5 VDC USB 2.0 power adapter with USB-A to micro-USB-B cable (included) Environment 0 to 50.0oC (32 to 122.0oF) 0 to 95% RH, non-condensing Dimensions 206 x 177 x 97 mm (8.1 x 7.0 x 3.8) Weight 1.0 kg (2.2 lbs.) Photometer/Colorimeter Light Detector silicon photodetector Cuvette Type round, 24.6 mm Number of Methods 128 max. Ordering Information Supplied with sample cuvettes and caps (4 ea.), cloth for wiping cuvettes, USB to micro USB cable connector, power adapter and instruction manual. Warranty 2 years Note *Reagents are not included.
Logging Type
log on demand with user name and sample ID optional input Logging Memory 1000 readings Connectivity USB-A host for flash drive micro-USB-B for power and computer connectivity GLP calibration data for connected pH electrode Display 128 x 64 pixel LCD with backlight Battery Type / Life 3.7 VDC Li-polymer rechargeable battery / &gt500 photometric measurements or 50 hours of continuous pH measurement Power Supply 5 VDC USB 2.0 power adapter with USB-A to micro-USB-B cable (included) Environment 0 to 50.0oC (32 to 122.0oF) 0 to 95% RH, non-condensing Dimensions 206 x 177 x 97 mm (8.1 x 7.0 x 3.8) Weight 1.0 kg (2.2 lbs.) Photometer/Colorimeter Light Detector silicon photodetector Cuvette Type round, 24.6 mm Number of Methods 128 max. Ordering Information Supplied with sample cuvettes and caps (4 ea.), cloth for wiping cuvettes, USB to micro USB cable connector, power adapter and instruction manual. Warranty 2 years Note *Reagents are not included.
Power Supply
5 VDC USB 2.0 power adapter with USB-A to micro-USB-B cable (included) Environment 0 to 50.0oC (32 to 122.0oF) 0 to 95% RH, non-condensing Dimensions 206 x 177 x 97 mm (8.1 x 7.0 x 3.8) Weight 1.0 kg (2.2 lbs.) Photometer/Colorimeter Light Detector silicon photodetector Cuvette Type round, 24.6 mm Number of Methods 128 max. Ordering Information Supplied with sample cuvettes and caps (4 ea.), cloth for wiping cuvettes, USB to micro USB cable connector, power adapter and instruction manual. Warranty 2 years Note *Reagents are not included.
PH Electrode
digital pH electrode (not included) Logging Type log on demand with user name and sample ID optional input Logging Memory 1000 readings Connectivity USB-A host for flash drive micro-USB-B for power and computer connectivity GLP calibration data for connected pH electrode Display 128 x 64 pixel LCD with backlight Battery Type / Life 3.7 VDC Li-polymer rechargeable battery / &gt500 photometric measurements or 50 hours of continuous pH measurement Power Supply 5 VDC USB 2.0 power adapter with USB-A to micro-USB-B cable (included) Environment 0 to 50.0oC (32 to 122.0oF) 0 to 95% RH, non-condensing Dimensions 206 x 177 x 97 mm (8.1 x 7.0 x 3.8) Weight 1.0 kg (2.2 lbs.) Photometer/Colorimeter Light Detector silicon photodetector Cuvette Type round, 24.6 mm Number of Methods 128 max. Ordering Information Supplied with sample cuvettes and caps (4 ea.), cloth for wiping cuvettes, USB to micro USB cable connector, power adapter and instruction manual. Warranty 2 years Note *Reagents are not included.
Input Channels
1 pH electrode input and 5 photometer wavelengths pH Electrode digital pH electrode (not included) Logging Type log on demand with user name and sample ID optional input Logging Memory 1000 readings Connectivity USB-A host for flash drive micro-USB-B for power and computer connectivity GLP calibration data for connected pH electrode Display 128 x 64 pixel LCD with backlight Battery Type / Life 3.7 VDC Li-polymer rechargeable battery / &gt500 photometric measurements or 50 hours of continuous pH measurement Power Supply 5 VDC USB 2.0 power adapter with USB-A to micro-USB-B cable (included) Environment 0 to 50.0oC (32 to 122.0oF) 0 to 95% RH, non-condensing Dimensions 206 x 177 x 97 mm (8.1 x 7.0 x 3.8) Weight 1.0 kg (2.2 lbs.) Photometer/Colorimeter Light Detector silicon photodetector Cuvette Type round, 24.6 mm Number of Methods 128 max. Ordering Information Supplied with sample cuvettes and caps (4 ea.), cloth for wiping cuvettes, USB to micro USB cable connector, power adapter and instruction manual. Warranty 2 years Note *Reagents are not included.
Logging Memory
1000 readings Connectivity USB-A host for flash drive micro-USB-B for power and computer connectivity GLP calibration data for connected pH electrode Display 128 x 64 pixel LCD with backlight Battery Type / Life 3.7 VDC Li-polymer rechargeable battery / &gt500 photometric measurements or 50 hours of continuous pH measurement Power Supply 5 VDC USB 2.0 power adapter with USB-A to micro-USB-B cable (included) Environment 0 to 50.0oC (32 to 122.0oF) 0 to 95% RH, non-condensing Dimensions 206 x 177 x 97 mm (8.1 x 7.0 x 3.8) Weight 1.0 kg (2.2 lbs.) Photometer/Colorimeter Light Detector silicon photodetector Cuvette Type round, 24.6 mm Number of Methods 128 max. Ordering Information Supplied with sample cuvettes and caps (4 ea.), cloth for wiping cuvettes, USB to micro USB cable connector, power adapter and instruction manual. Warranty 2 years Note *Reagents are not included.
Number of Methods
128 max. Ordering Information Supplied with sample cuvettes and caps (4 ea.), cloth for wiping cuvettes, USB to micro USB cable connector, power adapter and instruction manual. Warranty 2 years Note *Reagents are not included.
Spectral bandwidth
8 nm Input Channels 1 pH electrode input and 5 photometer wavelengths pH Electrode digital pH electrode (not included) Logging Type log on demand with user name and sample ID optional input Logging Memory 1000 readings Connectivity USB-A host for flash drive micro-USB-B for power and computer connectivity GLP calibration data for connected pH electrode Display 128 x 64 pixel LCD with backlight Battery Type / Life 3.7 VDC Li-polymer rechargeable battery / &gt500 photometric measurements or 50 hours of continuous pH measurement Power Supply 5 VDC USB 2.0 power adapter with USB-A to micro-USB-B cable (included) Environment 0 to 50.0oC (32 to 122.0oF) 0 to 95% RH, non-condensing Dimensions 206 x 177 x 97 mm (8.1 x 7.0 x 3.8) Weight 1.0 kg (2.2 lbs.) Photometer/Colorimeter Light Detector silicon photodetector Cuvette Type round, 24.6 mm Number of Methods 128 max. Ordering Information Supplied with sample cuvettes and caps (4 ea.), cloth for wiping cuvettes, USB to micro USB cable connector, power adapter and instruction manual. Warranty 2 years Note *Reagents are not included.
Battery Type / Life
3.7 VDC Li-polymer rechargeable battery / &gt500 photometric measurements or 50 hours of continuous pH measurement Power Supply 5 VDC USB 2.0 power adapter with USB-A to micro-USB-B cable (included) Environment 0 to 50.0oC (32 to 122.0oF) 0 to 95% RH, non-condensing Dimensions 206 x 177 x 97 mm (8.1 x 7.0 x 3.8) Weight 1.0 kg (2.2 lbs.) Photometer/Colorimeter Light Detector silicon photodetector Cuvette Type round, 24.6 mm Number of Methods 128 max. Ordering Information Supplied with sample cuvettes and caps (4 ea.), cloth for wiping cuvettes, USB to micro USB cable connector, power adapter and instruction manual. Warranty 2 years Note *Reagents are not included.
Wavelength Accuracy
±1 nm Light Source 4 LEDs with 420 nm, 525 nm, 575 nm, and 610 nm narrow band interference filters Spectral bandwidth 8 nm Input Channels 1 pH electrode input and 5 photometer wavelengths pH Electrode digital pH electrode (not included) Logging Type log on demand with user name and sample ID optional input Logging Memory 1000 readings Connectivity USB-A host for flash drive micro-USB-B for power and computer connectivity GLP calibration data for connected pH electrode Display 128 x 64 pixel LCD with backlight Battery Type / Life 3.7 VDC Li-polymer rechargeable battery / &gt500 photometric measurements or 50 hours of continuous pH measurement Power Supply 5 VDC USB 2.0 power adapter with USB-A to micro-USB-B cable (included) Environment 0 to 50.0oC (32 to 122.0oF) 0 to 95% RH, non-condensing Dimensions 206 x 177 x 97 mm (8.1 x 7.0 x 3.8) Weight 1.0 kg (2.2 lbs.) Photometer/Colorimeter Light Detector silicon photodetector Cuvette Type round, 24.6 mm Number of Methods 128 max. Ordering Information Supplied with sample cuvettes and caps (4 ea.), cloth for wiping cuvettes, USB to micro USB cable connector, power adapter and instruction manual. Warranty 2 years Note *Reagents are not included.
Ordering Information
Supplied with sample cuvettes and caps (4 ea.), cloth for wiping cuvettes, USB to micro USB cable connector, power adapter and instruction manual. Warranty 2 years Note *Reagents are not included.
Photometer/Colorimeter Light Detector
silicon photodetector Cuvette Type round, 24.6 mm Number of Methods 128 max. Ordering Information Supplied with sample cuvettes and caps (4 ea.), cloth for wiping cuvettes, USB to micro USB cable connector, power adapter and instruction manual. Warranty 2 years Note *Reagents are not included.
Couverture de service

AxiTech entretient, répare et fournit cet équipement pour les hôpitaux, les cliniques, les laboratoires et les centres d’imagerie.

Contrats de maintenance pour Environmental Analysis Photometer

AxiTech propose des contrats de maintenance préventive pour Environmental Analysis Photometer. Chaque contrat fixe un calendrier de visites planifiées au cours desquelles nos ingénieurs biomédicaux inspectent l’équipement, remplacent les pièces d’usure avant la panne et vérifient qu’il reste dans les tolérances du fabricant.

Chaque visite comprend l’étalonnage et la vérification des performances, et se conclut par un rapport de maintenance documenté que vous pouvez présenter lors d’un audit d’accréditation. La disponibilité des pièces de rechange et le délai d’intervention garanti sont inscrits au contrat : une panne ne laisse jamais un service sans réponse.

Prévoyez au moins une visite de maintenance préventive par an, et une seconde visite pour les équipements en usage continu ou critique.

  • Visites de maintenance préventive planifiées à intervalle fixe
  • Étalonnage et vérification des performances selon les spécifications du fabricant
  • Un rapport de maintenance documenté après chaque intervention
  • Disponibilité garantie des pièces de rechange et des consommables
  • Un délai d’intervention contractuel en cas de panne

Découvrir nos contrats de maintenance

Maintenance préventive planifiée et étalonnage sous contrat

Dépannage et réparation de Environmental Analysis Photometer

En cas de panne de Environmental Analysis Photometer, nos ingénieurs commencent par un diagnostic structuré : codes d’erreur, contrôles électriques et mécaniques, puis test fonctionnel au regard des spécifications de l’équipement. Nous savons ainsi s’il s’agit d’un consommable, d’une pièce d’usure ou d’une défaillance de carte avant de commander la moindre pièce.

Les pannes simples sont réparées sur site afin de limiter l’immobilisation du service. Tout ce qui exige un établi, un démontage complet ou une pièce de rechange spécifique part à notre atelier et ne revient qu’après un test complet après réparation et, lorsque l’équipement l’impose, un réétalonnage.

Pannes les plus fréquentes sur ce type d’équipement

Les pannes les plus fréquentes concernent les pièces mobiles usées, les alimentations et les cartes de commande, les capteurs sortis de tolérance, ainsi que les circuits de fluide ou d’air obstrués ou contaminés.

Découvrir notre service de dépannage et réparation

Diagnostic, réparation curative et pièces de rechange en atelier
Dépannage

Comment dépanner Environmental Analysis Photometer

Déroulez ces vérifications avant toute escalade. C’est la séquence de premier niveau que nos ingénieurs biomédicaux appliquent à leur arrivée : soit elle lève la panne, soit elle la circonscrit suffisamment pour que l’intervention démarre avec la bonne pièce de rechange dans le véhicule.

  1. Documentez la panne avant toute manipulation : notez le code ou message d’erreur exact, le numéro de série figurant sur la plaque signalétique, ce que faisait l’opérateur, et si la panne disparaît après redémarrage.

  2. Contrôlez l’alimentation de bout en bout : prise murale, cordon secteur, fusible et tout onduleur ou stabilisateur intercalé. Un appareil qui s’éteint par intermittence présente bien plus souvent un défaut d’alimentation qu’une panne interne.

  3. Vérifiez les consommables et les pièces d’usure — filtres, joints, tubulures, sondes, batteries — et relevez leur dernière date de remplacement. Tout élément au-delà de son intervalle d’entretien est le premier suspect.

  4. Reproduisez la panne une fois, délibérément, et consignez la séquence : action de l’opérateur, affichage de l’appareil, et disparition ou non du défaut après une coupure complète de l’alimentation.

  5. Si la panne subsiste, escaladez avec les éléments recueillis. Transmettez à AxiTech le modèle, le numéro de série, le code d’erreur et les vérifications déjà effectuées : un ingénieur vous répondra avec un diagnostic, un devis de réparation et un délai d’approvisionnement des pièces pour Environmental Analysis Photometer.

À nous transmettre lors du signalement

  • Fabricant, modèle et numéro de série, relevés sur la plaque signalétique
  • Le code ou le message d’erreur exact, et l’écran sur lequel il apparaît
  • Depuis quand la panne survient, à quelle fréquence et ce qui la déclenche
  • Une photographie de l’écran ou de la panne, et le dernier rapport de maintenance

Si la panne persiste au terme des cinq étapes, cessez d’utiliser Environmental Analysis Photometer et ouvrez une demande de réparation. Faire tourner un appareil sur une panne qu’il ne peut pas lever transforme une défaillance de composant en défaillance de carte, et sur un équipement de diagnostic ou de thérapie cela met en cause le résultat — et le patient.

Découvrir notre service de dépannage et réparation

Achat et installation de Environmental Analysis Photometer

AxiTech fournit Environmental Analysis Photometer avec les accessoires et les consommables nécessaires à sa mise en service. Nous prenons en charge l’importation, la livraison et l’installation, puis la mise en service sur site afin que l’équipement soit vérifié au regard de ses spécifications avant le premier patient ou le premier échantillon.

L’installation est suivie de la formation des utilisateurs et de votre équipe biomédicale, de l’enregistrement de la garantie et, si vous le souhaitez, d’un contrat de maintenance qui prend le relais dès la fin de la garantie : l’équipement ne reste jamais sans entretien planifié.

Découvrir notre service de vente d’équipements

Livraison, installation, mise en service et formation des utilisateurs
Les questions qu’on nous pose

Questions fréquentes sur Hanna Instruments Environmental Analysis Photometer

Oui. AxiTech assure la maintenance de Environmental Analysis Photometer, dans le cadre d’un contrat de maintenance comme en intervention ponctuelle. Nos ingénieurs biomédicaux couvrent la maintenance préventive, l’étalonnage, la réparation corrective et la fourniture des pièces de rechange de cet équipement.
