AxiTech — Le cœur de la précision
HALO2 Wireless Refillable pH Tester for Lab — photographie principale
Hanna InstrumentsDisponibilité: Fourni sur commande

HALO2 Wireless Refillable pH Tester for Lab

Référence HI9810402

Appareil de mesure de laboratoire HALO2 Wireless Refillable pH Tester for Lab de Hanna Instruments — AxiTech en assure la vente, l'installation et la mise en service, ainsi que la maintenance préventive, l'étalonnage, le dépannage et la réparation, avec fourniture de pièces de rechange.

Demander une prestation pour cet équipement

Aucun paiement n’est effectué en ligne. Chaque demande est étudiée par un ingénieur AxiTech avant l’envoi du devis.

En un coup d’œil

Référence
HI9810402
Catégorie
pH-mètres et analyse de l'eau
Famille d’équipements
Industry/Laboratory, Industry/Laboratory/Research, Industry/Laboratory/Education, Parameters/P - Z/pH, Product/Testers, Industry/Food/Maple and honey, Parameters/G - O/ORP, Brands/HALO2, Hanna best se

Présentation

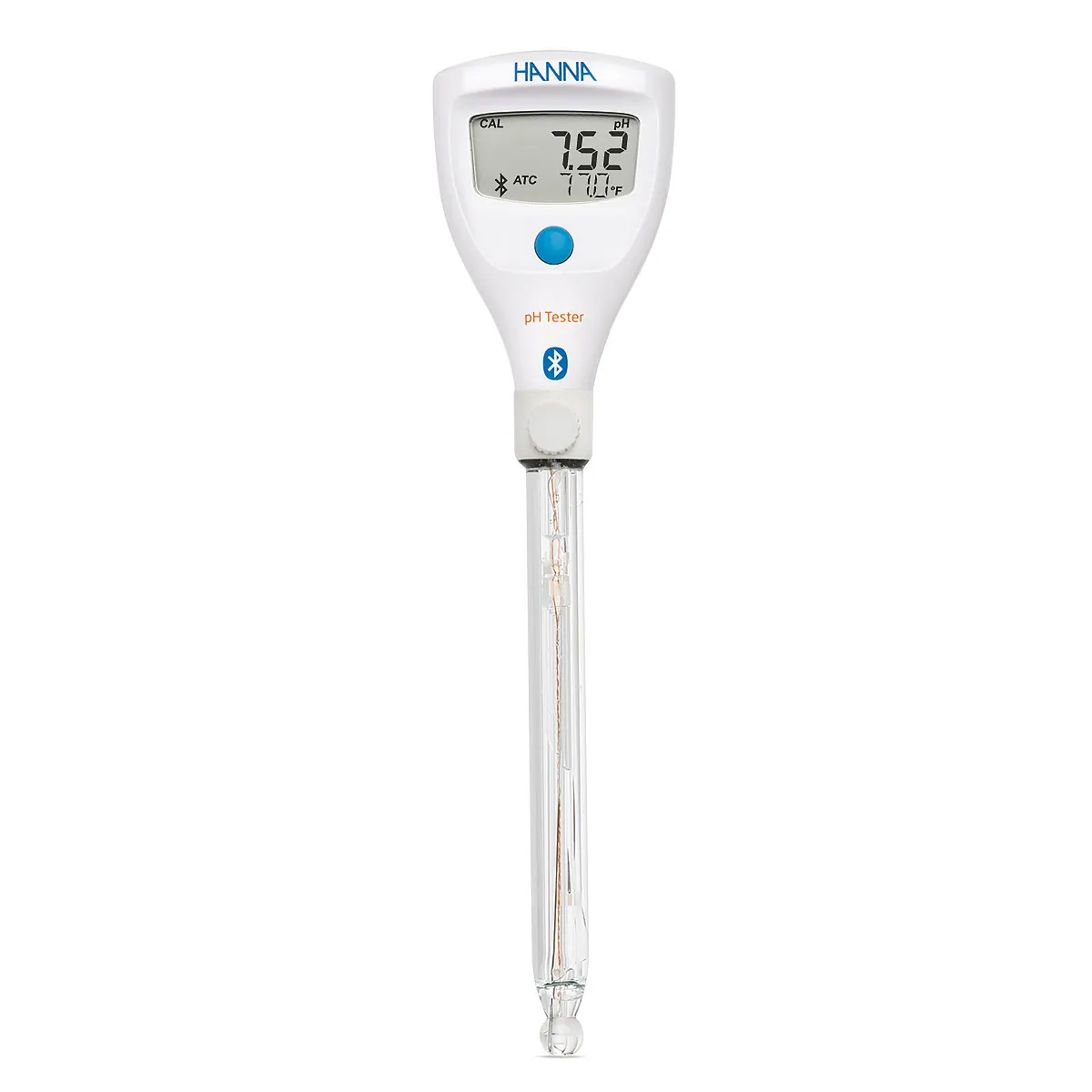

Our HALO2 Wireless Lab pH Tester has a refillable glass body and spherical glass sensing bulb made for everyday laboratory use.

Maintenance contract — AxiTech provides planned preventive maintenance for HALO2 Wireless Refillable pH Tester for Lab from Hanna Instruments: scheduled visits, safety checks, periodic calibration and a documented service report, backed by a contractual response time.

Troubleshooting, repair and spare parts — our ph, conductivity & water analysis engineers diagnose and repair HALO2 Wireless Refillable pH Tester for Lab on site or in the workshop, fit genuine spare parts and recommission the equipment after performance verification.

Caractéristiques

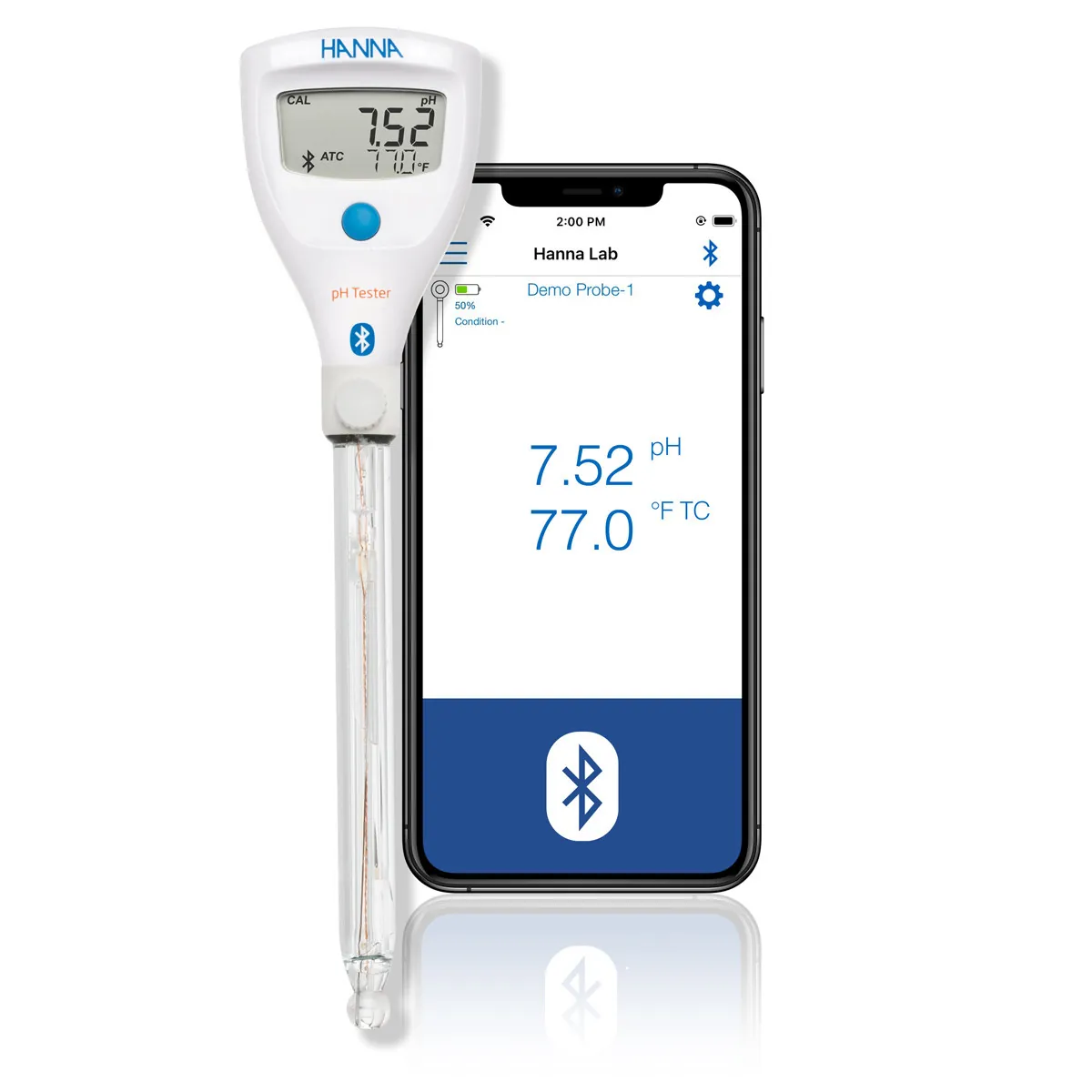

  • Open-source Bluetooth allows easy integration into current data logging systems
  • IP65 water resistant protection
  • Specialized general purpose electrode
  • Equipped with everything you need for successful testing right out of the box

Spécifications techniques

Specifications
Sku
HI9810402 pH Range 0.00 to 14.00 pH pH Resolution 0.01 or 0.1 pH pH Accuracy ±0.02 pH mV Range pH/mV conversion mV Resolution 0.1 or 1 mV Temperature Range –5.0 to 80.0 °C (23.0 to 176.0 °F) Temperature Resolution 0.1 °C 0.1 °F Temperature Accuracy ±0.5 °C ±0.9 °F Calibration Up to three points or five points * Automatic buffer recognition with Standard buffers Hanna (pH 1.68 *, 4.01, 7.01, 10.01, 12.45 *) or NIST (pH 1.68 *, 4.01, 6.86, 9.18, 12.45 *) Temperature compensation Automatic (ATC) or Manual (MTC) * Electrode Body material - Glass Glass - High Temperature (HT) Junction - Ceramic Reference cell - Double, Ag/AgCl Electrolyte - 3.5M KCl (refillable) Tip / Shape - Spheric, Ø 9 mm (Ø 0.35in.) Outer diameter - 12 mm (0.47in.) Length - 120 mm (4.7in.) Battery type 3V Lithium – CR2032 Battery life Approximately 1000 hours (500 hours with Bluetooth enabled) Environment 0 to 50 °C (32 to 122 °F) Casing IP65 ingress protection Dimensions 51 x 206 x 21 mm (2.0 x 8.1 x 0.8in.) Weight 60 g (2.1 oz.) Supplied with pH 4.01 buffer solution, 20 mL sachet (2 pcs.), pH 7.01 buffer solution, 20 mL sachet (2 pcs.), Electrode cleaning solution, 20 mL sachet (2 pcs.), Electrode storage solution, 13 mL dropper bottle (1 pc.), Electrolyte refill solution, 30 mL, Pipette, 3V Lithium battery – CR2032 & Instrument quality certificate and Instruction manua Notes * Available with Hanna Lab App ** Measuring outside the recommended operating temperature range may damage the gel electrolyte and void product warranty. Note: The tester can display measurements from –2.00 to 16.00 pH. Measurements outside of the pH range will flash. In this case assess the integrity of the tester and the type of measured sample.
Notes
* Available with Hanna Lab App ** Measuring outside the recommended operating temperature range may damage the gel electrolyte and void product warranty. Note: The tester can display measurements from –2.00 to 16.00 pH. Measurements outside of the pH range will flash. In this case assess the integrity of the tester and the type of measured sample.
Casing
IP65 ingress protection Dimensions 51 x 206 x 21 mm (2.0 x 8.1 x 0.8in.) Weight 60 g (2.1 oz.) Supplied with pH 4.01 buffer solution, 20 mL sachet (2 pcs.), pH 7.01 buffer solution, 20 mL sachet (2 pcs.), Electrode cleaning solution, 20 mL sachet (2 pcs.), Electrode storage solution, 13 mL dropper bottle (1 pc.), Electrolyte refill solution, 30 mL, Pipette, 3V Lithium battery – CR2032 & Instrument quality certificate and Instruction manua Notes * Available with Hanna Lab App ** Measuring outside the recommended operating temperature range may damage the gel electrolyte and void product warranty. Note: The tester can display measurements from –2.00 to 16.00 pH. Measurements outside of the pH range will flash. In this case assess the integrity of the tester and the type of measured sample.
Weight
60 g (2.1 oz.) Supplied with pH 4.01 buffer solution, 20 mL sachet (2 pcs.), pH 7.01 buffer solution, 20 mL sachet (2 pcs.), Electrode cleaning solution, 20 mL sachet (2 pcs.), Electrode storage solution, 13 mL dropper bottle (1 pc.), Electrolyte refill solution, 30 mL, Pipette, 3V Lithium battery – CR2032 & Instrument quality certificate and Instruction manua Notes * Available with Hanna Lab App ** Measuring outside the recommended operating temperature range may damage the gel electrolyte and void product warranty. Note: The tester can display measurements from –2.00 to 16.00 pH. Measurements outside of the pH range will flash. In this case assess the integrity of the tester and the type of measured sample.
MV Range
pH/mV conversion mV Resolution 0.1 or 1 mV Temperature Range –5.0 to 80.0 °C (23.0 to 176.0 °F) Temperature Resolution 0.1 °C 0.1 °F Temperature Accuracy ±0.5 °C ±0.9 °F Calibration Up to three points or five points * Automatic buffer recognition with Standard buffers Hanna (pH 1.68 *, 4.01, 7.01, 10.01, 12.45 *) or NIST (pH 1.68 *, 4.01, 6.86, 9.18, 12.45 *) Temperature compensation Automatic (ATC) or Manual (MTC) * Electrode Body material - Glass Glass - High Temperature (HT) Junction - Ceramic Reference cell - Double, Ag/AgCl Electrolyte - 3.5M KCl (refillable) Tip / Shape - Spheric, Ø 9 mm (Ø 0.35in.) Outer diameter - 12 mm (0.47in.) Length - 120 mm (4.7in.) Battery type 3V Lithium – CR2032 Battery life Approximately 1000 hours (500 hours with Bluetooth enabled) Environment 0 to 50 °C (32 to 122 °F) Casing IP65 ingress protection Dimensions 51 x 206 x 21 mm (2.0 x 8.1 x 0.8in.) Weight 60 g (2.1 oz.) Supplied with pH 4.01 buffer solution, 20 mL sachet (2 pcs.), pH 7.01 buffer solution, 20 mL sachet (2 pcs.), Electrode cleaning solution, 20 mL sachet (2 pcs.), Electrode storage solution, 13 mL dropper bottle (1 pc.), Electrolyte refill solution, 30 mL, Pipette, 3V Lithium battery – CR2032 & Instrument quality certificate and Instruction manua Notes * Available with Hanna Lab App ** Measuring outside the recommended operating temperature range may damage the gel electrolyte and void product warranty. Note: The tester can display measurements from –2.00 to 16.00 pH. Measurements outside of the pH range will flash. In this case assess the integrity of the tester and the type of measured sample.
PH Range
0.00 to 14.00 pH pH Resolution 0.01 or 0.1 pH pH Accuracy ±0.02 pH mV Range pH/mV conversion mV Resolution 0.1 or 1 mV Temperature Range –5.0 to 80.0 °C (23.0 to 176.0 °F) Temperature Resolution 0.1 °C 0.1 °F Temperature Accuracy ±0.5 °C ±0.9 °F Calibration Up to three points or five points * Automatic buffer recognition with Standard buffers Hanna (pH 1.68 *, 4.01, 7.01, 10.01, 12.45 *) or NIST (pH 1.68 *, 4.01, 6.86, 9.18, 12.45 *) Temperature compensation Automatic (ATC) or Manual (MTC) * Electrode Body material - Glass Glass - High Temperature (HT) Junction - Ceramic Reference cell - Double, Ag/AgCl Electrolyte - 3.5M KCl (refillable) Tip / Shape - Spheric, Ø 9 mm (Ø 0.35in.) Outer diameter - 12 mm (0.47in.) Length - 120 mm (4.7in.) Battery type 3V Lithium – CR2032 Battery life Approximately 1000 hours (500 hours with Bluetooth enabled) Environment 0 to 50 °C (32 to 122 °F) Casing IP65 ingress protection Dimensions 51 x 206 x 21 mm (2.0 x 8.1 x 0.8in.) Weight 60 g (2.1 oz.) Supplied with pH 4.01 buffer solution, 20 mL sachet (2 pcs.), pH 7.01 buffer solution, 20 mL sachet (2 pcs.), Electrode cleaning solution, 20 mL sachet (2 pcs.), Electrode storage solution, 13 mL dropper bottle (1 pc.), Electrolyte refill solution, 30 mL, Pipette, 3V Lithium battery – CR2032 & Instrument quality certificate and Instruction manua Notes * Available with Hanna Lab App ** Measuring outside the recommended operating temperature range may damage the gel electrolyte and void product warranty. Note: The tester can display measurements from –2.00 to 16.00 pH. Measurements outside of the pH range will flash. In this case assess the integrity of the tester and the type of measured sample.
Electrode

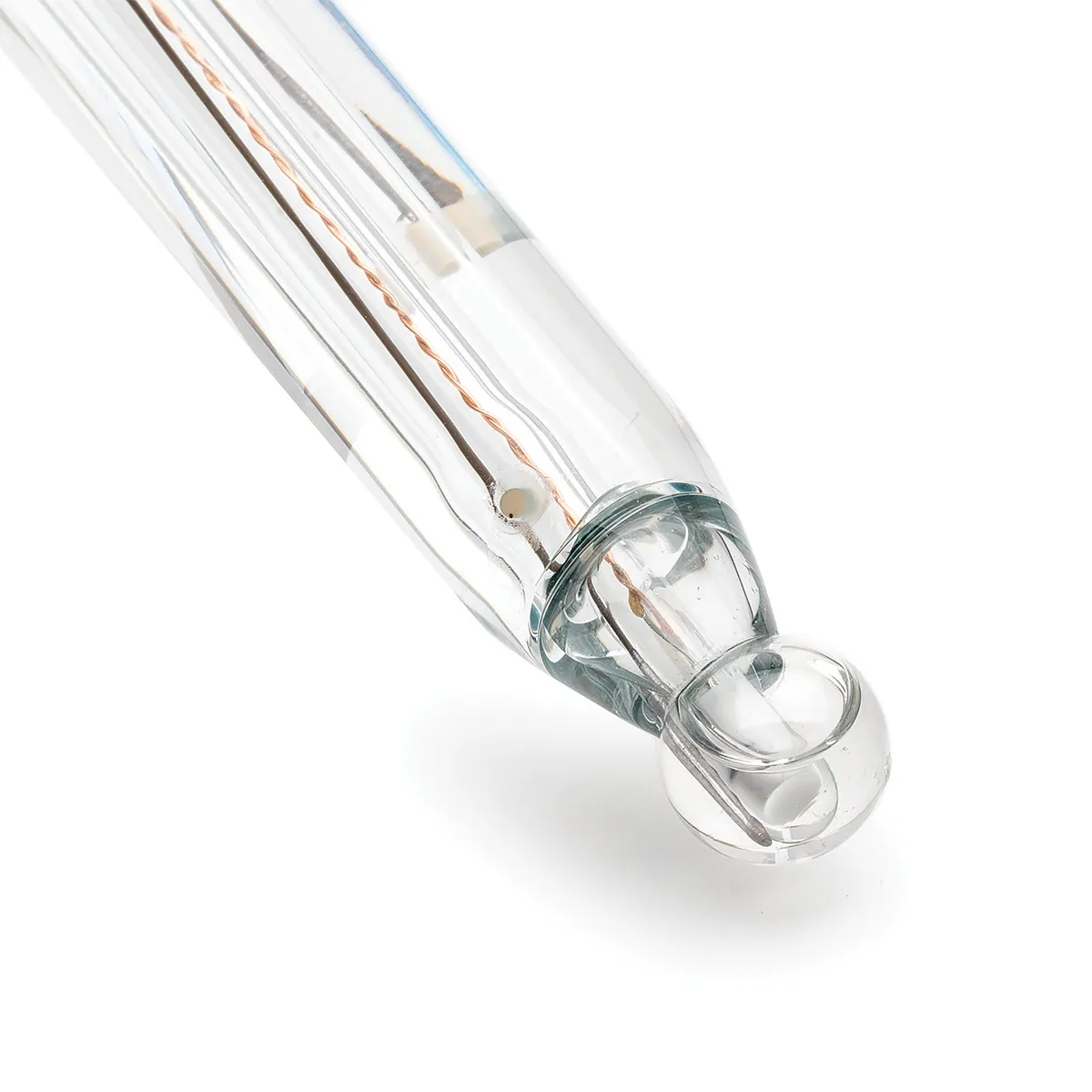

Body material - Glass Glass - High Temperature (HT) Junction - Ceramic Reference cell - Double, Ag/AgCl Electrolyte - 3.5M KCl (refillable) Tip / Shape - Spheric, Ø 9 mm (Ø 0.35in.) Outer diameter - 12 mm (0.47in.) Length - 120 mm (4.7in.) Battery type 3V Lithium – CR2032 Battery life Approximately 1000 hours (500 hours with Bluetooth enabled) Environment 0 to 50 °C (32 to 122 °F) Casing IP65 ingress protection Dimensions 51 x 206 x 21 mm (2.0 x 8.1 x 0.8in.) Weight 60 g (2.1 oz.) Supplied with pH 4.01 buffer solution, 20 mL sachet (2 pcs.), pH 7.01 buffer solution, 20 mL sachet (2 pcs.), Electrode cleaning solution, 20 mL sachet (2 pcs.), Electrode storage solution, 13 mL dropper bottle (1 pc.), Electrolyte refill solution, 30 mL, Pipette, 3V Lithium battery – CR2032 & Instrument quality certificate and Instruction manua Notes * Available with Hanna Lab App ** Measuring outside the recommended operating temperature range may damage the gel electrolyte and void product warranty. Note: The tester can display measurements from –2.00 to 16.00 pH. Measurements outside of the pH range will flash. In this case assess the integrity of the tester and the type of measured sample.
Dimensions
51 x 206 x 21 mm (2.0 x 8.1 x 0.8in.) Weight 60 g (2.1 oz.) Supplied with pH 4.01 buffer solution, 20 mL sachet (2 pcs.), pH 7.01 buffer solution, 20 mL sachet (2 pcs.), Electrode cleaning solution, 20 mL sachet (2 pcs.), Electrode storage solution, 13 mL dropper bottle (1 pc.), Electrolyte refill solution, 30 mL, Pipette, 3V Lithium battery – CR2032 & Instrument quality certificate and Instruction manua Notes * Available with Hanna Lab App ** Measuring outside the recommended operating temperature range may damage the gel electrolyte and void product warranty. Note: The tester can display measurements from –2.00 to 16.00 pH. Measurements outside of the pH range will flash. In this case assess the integrity of the tester and the type of measured sample.
Calibration
Up to three points or five points * Automatic buffer recognition with Standard buffers Hanna (pH 1.68 *, 4.01, 7.01, 10.01, 12.45 *) or NIST (pH 1.68 *, 4.01, 6.86, 9.18, 12.45 *) Temperature compensation Automatic (ATC) or Manual (MTC) * Electrode Body material - Glass Glass - High Temperature (HT) Junction - Ceramic Reference cell - Double, Ag/AgCl Electrolyte - 3.5M KCl (refillable) Tip / Shape - Spheric, Ø 9 mm (Ø 0.35in.) Outer diameter - 12 mm (0.47in.) Length - 120 mm (4.7in.) Battery type 3V Lithium – CR2032 Battery life Approximately 1000 hours (500 hours with Bluetooth enabled) Environment 0 to 50 °C (32 to 122 °F) Casing IP65 ingress protection Dimensions 51 x 206 x 21 mm (2.0 x 8.1 x 0.8in.) Weight 60 g (2.1 oz.) Supplied with pH 4.01 buffer solution, 20 mL sachet (2 pcs.), pH 7.01 buffer solution, 20 mL sachet (2 pcs.), Electrode cleaning solution, 20 mL sachet (2 pcs.), Electrode storage solution, 13 mL dropper bottle (1 pc.), Electrolyte refill solution, 30 mL, Pipette, 3V Lithium battery – CR2032 & Instrument quality certificate and Instruction manua Notes * Available with Hanna Lab App ** Measuring outside the recommended operating temperature range may damage the gel electrolyte and void product warranty. Note: The tester can display measurements from –2.00 to 16.00 pH. Measurements outside of the pH range will flash. In this case assess the integrity of the tester and the type of measured sample.
Environment
0 to 50 °C (32 to 122 °F) Casing IP65 ingress protection Dimensions 51 x 206 x 21 mm (2.0 x 8.1 x 0.8in.) Weight 60 g (2.1 oz.) Supplied with pH 4.01 buffer solution, 20 mL sachet (2 pcs.), pH 7.01 buffer solution, 20 mL sachet (2 pcs.), Electrode cleaning solution, 20 mL sachet (2 pcs.), Electrode storage solution, 13 mL dropper bottle (1 pc.), Electrolyte refill solution, 30 mL, Pipette, 3V Lithium battery – CR2032 & Instrument quality certificate and Instruction manua Notes * Available with Hanna Lab App ** Measuring outside the recommended operating temperature range may damage the gel electrolyte and void product warranty. Note: The tester can display measurements from –2.00 to 16.00 pH. Measurements outside of the pH range will flash. In this case assess the integrity of the tester and the type of measured sample.
PH Accuracy
±0.02 pH mV Range pH/mV conversion mV Resolution 0.1 or 1 mV Temperature Range –5.0 to 80.0 °C (23.0 to 176.0 °F) Temperature Resolution 0.1 °C 0.1 °F Temperature Accuracy ±0.5 °C ±0.9 °F Calibration Up to three points or five points * Automatic buffer recognition with Standard buffers Hanna (pH 1.68 *, 4.01, 7.01, 10.01, 12.45 *) or NIST (pH 1.68 *, 4.01, 6.86, 9.18, 12.45 *) Temperature compensation Automatic (ATC) or Manual (MTC) * Electrode Body material - Glass Glass - High Temperature (HT) Junction - Ceramic Reference cell - Double, Ag/AgCl Electrolyte - 3.5M KCl (refillable) Tip / Shape - Spheric, Ø 9 mm (Ø 0.35in.) Outer diameter - 12 mm (0.47in.) Length - 120 mm (4.7in.) Battery type 3V Lithium – CR2032 Battery life Approximately 1000 hours (500 hours with Bluetooth enabled) Environment 0 to 50 °C (32 to 122 °F) Casing IP65 ingress protection Dimensions 51 x 206 x 21 mm (2.0 x 8.1 x 0.8in.) Weight 60 g (2.1 oz.) Supplied with pH 4.01 buffer solution, 20 mL sachet (2 pcs.), pH 7.01 buffer solution, 20 mL sachet (2 pcs.), Electrode cleaning solution, 20 mL sachet (2 pcs.), Electrode storage solution, 13 mL dropper bottle (1 pc.), Electrolyte refill solution, 30 mL, Pipette, 3V Lithium battery – CR2032 & Instrument quality certificate and Instruction manua Notes * Available with Hanna Lab App ** Measuring outside the recommended operating temperature range may damage the gel electrolyte and void product warranty. Note: The tester can display measurements from –2.00 to 16.00 pH. Measurements outside of the pH range will flash. In this case assess the integrity of the tester and the type of measured sample.
Battery life
Approximately 1000 hours (500 hours with Bluetooth enabled) Environment 0 to 50 °C (32 to 122 °F) Casing IP65 ingress protection Dimensions 51 x 206 x 21 mm (2.0 x 8.1 x 0.8in.) Weight 60 g (2.1 oz.) Supplied with pH 4.01 buffer solution, 20 mL sachet (2 pcs.), pH 7.01 buffer solution, 20 mL sachet (2 pcs.), Electrode cleaning solution, 20 mL sachet (2 pcs.), Electrode storage solution, 13 mL dropper bottle (1 pc.), Electrolyte refill solution, 30 mL, Pipette, 3V Lithium battery – CR2032 & Instrument quality certificate and Instruction manua Notes * Available with Hanna Lab App ** Measuring outside the recommended operating temperature range may damage the gel electrolyte and void product warranty. Note: The tester can display measurements from –2.00 to 16.00 pH. Measurements outside of the pH range will flash. In this case assess the integrity of the tester and the type of measured sample.
Battery type
3V Lithium – CR2032 Battery life Approximately 1000 hours (500 hours with Bluetooth enabled) Environment 0 to 50 °C (32 to 122 °F) Casing IP65 ingress protection Dimensions 51 x 206 x 21 mm (2.0 x 8.1 x 0.8in.) Weight 60 g (2.1 oz.) Supplied with pH 4.01 buffer solution, 20 mL sachet (2 pcs.), pH 7.01 buffer solution, 20 mL sachet (2 pcs.), Electrode cleaning solution, 20 mL sachet (2 pcs.), Electrode storage solution, 13 mL dropper bottle (1 pc.), Electrolyte refill solution, 30 mL, Pipette, 3V Lithium battery – CR2032 & Instrument quality certificate and Instruction manua Notes * Available with Hanna Lab App ** Measuring outside the recommended operating temperature range may damage the gel electrolyte and void product warranty. Note: The tester can display measurements from –2.00 to 16.00 pH. Measurements outside of the pH range will flash. In this case assess the integrity of the tester and the type of measured sample.
Supplied with

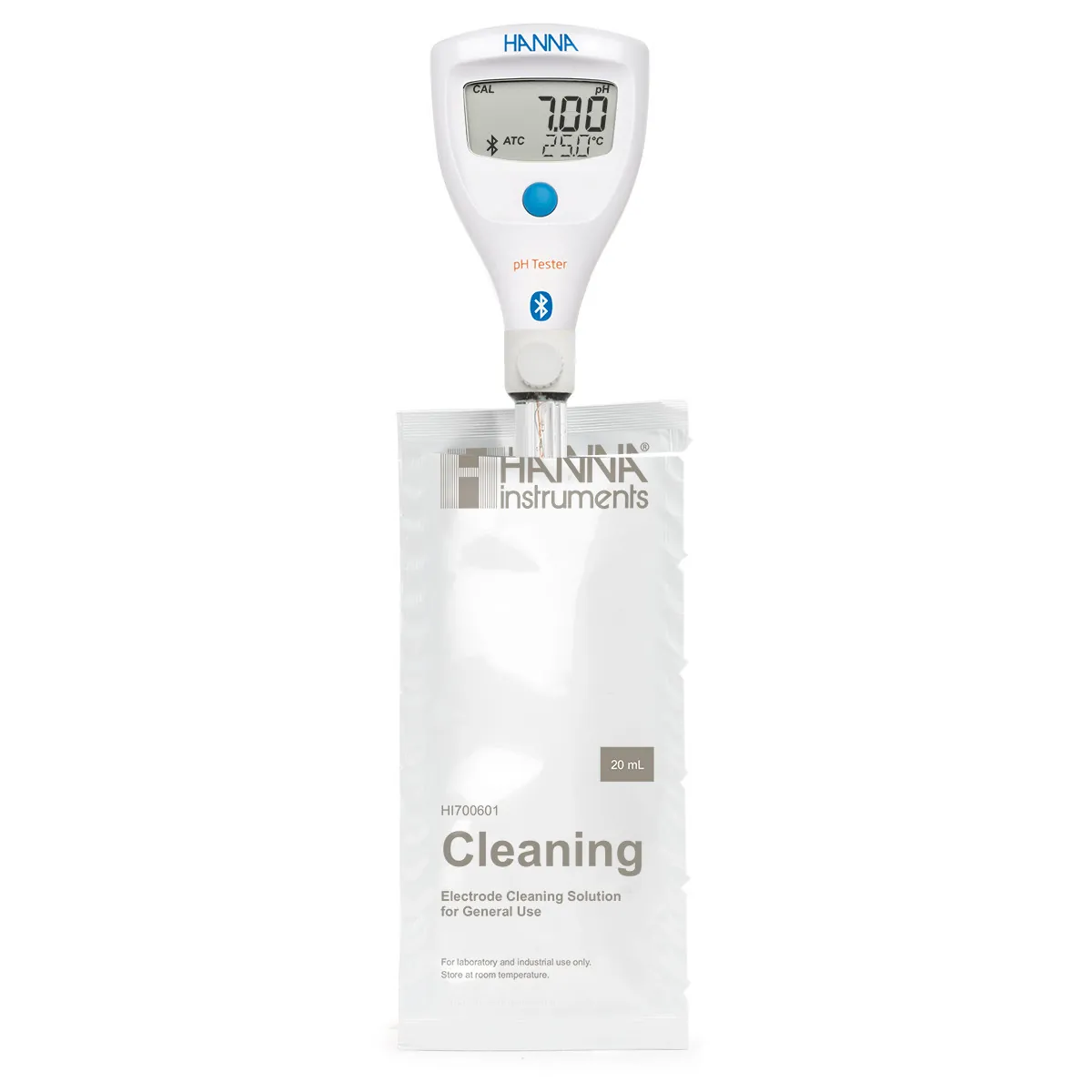

pH 4.01 buffer solution, 20 mL sachet (2 pcs.), pH 7.01 buffer solution, 20 mL sachet (2 pcs.), Electrode cleaning solution, 20 mL sachet (2 pcs.), Electrode storage solution, 13 mL dropper bottle (1 pc.), Electrolyte refill solution, 30 mL, Pipette, 3V Lithium battery – CR2032 & Instrument quality certificate and Instruction manua Notes * Available with Hanna Lab App ** Measuring outside the recommended operating temperature range may damage the gel electrolyte and void product warranty. Note: The tester can display measurements from –2.00 to 16.00 pH. Measurements outside of the pH range will flash. In this case assess the integrity of the tester and the type of measured sample.
MV Resolution
0.1 or 1 mV Temperature Range –5.0 to 80.0 °C (23.0 to 176.0 °F) Temperature Resolution 0.1 °C 0.1 °F Temperature Accuracy ±0.5 °C ±0.9 °F Calibration Up to three points or five points * Automatic buffer recognition with Standard buffers Hanna (pH 1.68 *, 4.01, 7.01, 10.01, 12.45 *) or NIST (pH 1.68 *, 4.01, 6.86, 9.18, 12.45 *) Temperature compensation Automatic (ATC) or Manual (MTC) * Electrode Body material - Glass Glass - High Temperature (HT) Junction - Ceramic Reference cell - Double, Ag/AgCl Electrolyte - 3.5M KCl (refillable) Tip / Shape - Spheric, Ø 9 mm (Ø 0.35in.) Outer diameter - 12 mm (0.47in.) Length - 120 mm (4.7in.) Battery type 3V Lithium – CR2032 Battery life Approximately 1000 hours (500 hours with Bluetooth enabled) Environment 0 to 50 °C (32 to 122 °F) Casing IP65 ingress protection Dimensions 51 x 206 x 21 mm (2.0 x 8.1 x 0.8in.) Weight 60 g (2.1 oz.) Supplied with pH 4.01 buffer solution, 20 mL sachet (2 pcs.), pH 7.01 buffer solution, 20 mL sachet (2 pcs.), Electrode cleaning solution, 20 mL sachet (2 pcs.), Electrode storage solution, 13 mL dropper bottle (1 pc.), Electrolyte refill solution, 30 mL, Pipette, 3V Lithium battery – CR2032 & Instrument quality certificate and Instruction manua Notes * Available with Hanna Lab App ** Measuring outside the recommended operating temperature range may damage the gel electrolyte and void product warranty. Note: The tester can display measurements from –2.00 to 16.00 pH. Measurements outside of the pH range will flash. In this case assess the integrity of the tester and the type of measured sample.
PH Resolution
0.01 or 0.1 pH pH Accuracy ±0.02 pH mV Range pH/mV conversion mV Resolution 0.1 or 1 mV Temperature Range –5.0 to 80.0 °C (23.0 to 176.0 °F) Temperature Resolution 0.1 °C 0.1 °F Temperature Accuracy ±0.5 °C ±0.9 °F Calibration Up to three points or five points * Automatic buffer recognition with Standard buffers Hanna (pH 1.68 *, 4.01, 7.01, 10.01, 12.45 *) or NIST (pH 1.68 *, 4.01, 6.86, 9.18, 12.45 *) Temperature compensation Automatic (ATC) or Manual (MTC) * Electrode Body material - Glass Glass - High Temperature (HT) Junction - Ceramic Reference cell - Double, Ag/AgCl Electrolyte - 3.5M KCl (refillable) Tip / Shape - Spheric, Ø 9 mm (Ø 0.35in.) Outer diameter - 12 mm (0.47in.) Length - 120 mm (4.7in.) Battery type 3V Lithium – CR2032 Battery life Approximately 1000 hours (500 hours with Bluetooth enabled) Environment 0 to 50 °C (32 to 122 °F) Casing IP65 ingress protection Dimensions 51 x 206 x 21 mm (2.0 x 8.1 x 0.8in.) Weight 60 g (2.1 oz.) Supplied with pH 4.01 buffer solution, 20 mL sachet (2 pcs.), pH 7.01 buffer solution, 20 mL sachet (2 pcs.), Electrode cleaning solution, 20 mL sachet (2 pcs.), Electrode storage solution, 13 mL dropper bottle (1 pc.), Electrolyte refill solution, 30 mL, Pipette, 3V Lithium battery – CR2032 & Instrument quality certificate and Instruction manua Notes * Available with Hanna Lab App ** Measuring outside the recommended operating temperature range may damage the gel electrolyte and void product warranty. Note: The tester can display measurements from –2.00 to 16.00 pH. Measurements outside of the pH range will flash. In this case assess the integrity of the tester and the type of measured sample.
Temperature Range
–5.0 to 80.0 °C (23.0 to 176.0 °F) Temperature Resolution 0.1 °C 0.1 °F Temperature Accuracy ±0.5 °C ±0.9 °F Calibration Up to three points or five points * Automatic buffer recognition with Standard buffers Hanna (pH 1.68 *, 4.01, 7.01, 10.01, 12.45 *) or NIST (pH 1.68 *, 4.01, 6.86, 9.18, 12.45 *) Temperature compensation Automatic (ATC) or Manual (MTC) * Electrode Body material - Glass Glass - High Temperature (HT) Junction - Ceramic Reference cell - Double, Ag/AgCl Electrolyte - 3.5M KCl (refillable) Tip / Shape - Spheric, Ø 9 mm (Ø 0.35in.) Outer diameter - 12 mm (0.47in.) Length - 120 mm (4.7in.) Battery type 3V Lithium – CR2032 Battery life Approximately 1000 hours (500 hours with Bluetooth enabled) Environment 0 to 50 °C (32 to 122 °F) Casing IP65 ingress protection Dimensions 51 x 206 x 21 mm (2.0 x 8.1 x 0.8in.) Weight 60 g (2.1 oz.) Supplied with pH 4.01 buffer solution, 20 mL sachet (2 pcs.), pH 7.01 buffer solution, 20 mL sachet (2 pcs.), Electrode cleaning solution, 20 mL sachet (2 pcs.), Electrode storage solution, 13 mL dropper bottle (1 pc.), Electrolyte refill solution, 30 mL, Pipette, 3V Lithium battery – CR2032 & Instrument quality certificate and Instruction manua Notes * Available with Hanna Lab App ** Measuring outside the recommended operating temperature range may damage the gel electrolyte and void product warranty. Note: The tester can display measurements from –2.00 to 16.00 pH. Measurements outside of the pH range will flash. In this case assess the integrity of the tester and the type of measured sample.
Temperature Accuracy
±0.5 °C ±0.9 °F Calibration Up to three points or five points * Automatic buffer recognition with Standard buffers Hanna (pH 1.68 *, 4.01, 7.01, 10.01, 12.45 *) or NIST (pH 1.68 *, 4.01, 6.86, 9.18, 12.45 *) Temperature compensation Automatic (ATC) or Manual (MTC) * Electrode Body material - Glass Glass - High Temperature (HT) Junction - Ceramic Reference cell - Double, Ag/AgCl Electrolyte - 3.5M KCl (refillable) Tip / Shape - Spheric, Ø 9 mm (Ø 0.35in.) Outer diameter - 12 mm (0.47in.) Length - 120 mm (4.7in.) Battery type 3V Lithium – CR2032 Battery life Approximately 1000 hours (500 hours with Bluetooth enabled) Environment 0 to 50 °C (32 to 122 °F) Casing IP65 ingress protection Dimensions 51 x 206 x 21 mm (2.0 x 8.1 x 0.8in.) Weight 60 g (2.1 oz.) Supplied with pH 4.01 buffer solution, 20 mL sachet (2 pcs.), pH 7.01 buffer solution, 20 mL sachet (2 pcs.), Electrode cleaning solution, 20 mL sachet (2 pcs.), Electrode storage solution, 13 mL dropper bottle (1 pc.), Electrolyte refill solution, 30 mL, Pipette, 3V Lithium battery – CR2032 & Instrument quality certificate and Instruction manua Notes * Available with Hanna Lab App ** Measuring outside the recommended operating temperature range may damage the gel electrolyte and void product warranty. Note: The tester can display measurements from –2.00 to 16.00 pH. Measurements outside of the pH range will flash. In this case assess the integrity of the tester and the type of measured sample.
Temperature Resolution
0.1 °C 0.1 °F Temperature Accuracy ±0.5 °C ±0.9 °F Calibration Up to three points or five points * Automatic buffer recognition with Standard buffers Hanna (pH 1.68 *, 4.01, 7.01, 10.01, 12.45 *) or NIST (pH 1.68 *, 4.01, 6.86, 9.18, 12.45 *) Temperature compensation Automatic (ATC) or Manual (MTC) * Electrode Body material - Glass Glass - High Temperature (HT) Junction - Ceramic Reference cell - Double, Ag/AgCl Electrolyte - 3.5M KCl (refillable) Tip / Shape - Spheric, Ø 9 mm (Ø 0.35in.) Outer diameter - 12 mm (0.47in.) Length - 120 mm (4.7in.) Battery type 3V Lithium – CR2032 Battery life Approximately 1000 hours (500 hours with Bluetooth enabled) Environment 0 to 50 °C (32 to 122 °F) Casing IP65 ingress protection Dimensions 51 x 206 x 21 mm (2.0 x 8.1 x 0.8in.) Weight 60 g (2.1 oz.) Supplied with pH 4.01 buffer solution, 20 mL sachet (2 pcs.), pH 7.01 buffer solution, 20 mL sachet (2 pcs.), Electrode cleaning solution, 20 mL sachet (2 pcs.), Electrode storage solution, 13 mL dropper bottle (1 pc.), Electrolyte refill solution, 30 mL, Pipette, 3V Lithium battery – CR2032 & Instrument quality certificate and Instruction manua Notes * Available with Hanna Lab App ** Measuring outside the recommended operating temperature range may damage the gel electrolyte and void product warranty. Note: The tester can display measurements from –2.00 to 16.00 pH. Measurements outside of the pH range will flash. In this case assess the integrity of the tester and the type of measured sample.
Temperature compensation
Automatic (ATC) or Manual (MTC) * Electrode Body material - Glass Glass - High Temperature (HT) Junction - Ceramic Reference cell - Double, Ag/AgCl Electrolyte - 3.5M KCl (refillable) Tip / Shape - Spheric, Ø 9 mm (Ø 0.35in.) Outer diameter - 12 mm (0.47in.) Length - 120 mm (4.7in.) Battery type 3V Lithium – CR2032 Battery life Approximately 1000 hours (500 hours with Bluetooth enabled) Environment 0 to 50 °C (32 to 122 °F) Casing IP65 ingress protection Dimensions 51 x 206 x 21 mm (2.0 x 8.1 x 0.8in.) Weight 60 g (2.1 oz.) Supplied with pH 4.01 buffer solution, 20 mL sachet (2 pcs.), pH 7.01 buffer solution, 20 mL sachet (2 pcs.), Electrode cleaning solution, 20 mL sachet (2 pcs.), Electrode storage solution, 13 mL dropper bottle (1 pc.), Electrolyte refill solution, 30 mL, Pipette, 3V Lithium battery – CR2032 & Instrument quality certificate and Instruction manua Notes * Available with Hanna Lab App ** Measuring outside the recommended operating temperature range may damage the gel electrolyte and void product warranty. Note: The tester can display measurements from –2.00 to 16.00 pH. Measurements outside of the pH range will flash. In this case assess the integrity of the tester and the type of measured sample.
Couverture de service

AxiTech entretient, répare et fournit cet équipement pour les hôpitaux, les cliniques, les laboratoires et les centres d’imagerie.

Contrats de maintenance pour HALO2 Wireless Refillable pH Tester for Lab

AxiTech propose des contrats de maintenance préventive pour HALO2 Wireless Refillable pH Tester for Lab. Chaque contrat fixe un calendrier de visites planifiées au cours desquelles nos ingénieurs biomédicaux inspectent l’équipement, remplacent les pièces d’usure avant la panne et vérifient qu’il reste dans les tolérances du fabricant.

Chaque visite comprend l’étalonnage et la vérification des performances, et se conclut par un rapport de maintenance documenté que vous pouvez présenter lors d’un audit d’accréditation. La disponibilité des pièces de rechange et le délai d’intervention garanti sont inscrits au contrat : une panne ne laisse jamais un service sans réponse.

Les analyseurs de laboratoire sont habituellement entretenus tous les trois à six mois, avec étalonnage et vérification du contrôle qualité à chaque visite afin que les résultats restent traçables.

  • Visites de maintenance préventive planifiées à intervalle fixe
  • Étalonnage et vérification des performances selon les spécifications du fabricant
  • Un rapport de maintenance documenté après chaque intervention
  • Disponibilité garantie des pièces de rechange et des consommables
  • Un délai d’intervention contractuel en cas de panne

Découvrir nos contrats de maintenance

Maintenance préventive planifiée et étalonnage sous contrat

Dépannage et réparation de HALO2 Wireless Refillable pH Tester for Lab

En cas de panne de HALO2 Wireless Refillable pH Tester for Lab, nos ingénieurs commencent par un diagnostic structuré : codes d’erreur, contrôles électriques et mécaniques, puis test fonctionnel au regard des spécifications de l’équipement. Nous savons ainsi s’il s’agit d’un consommable, d’une pièce d’usure ou d’une défaillance de carte avant de commander la moindre pièce.

Les pannes simples sont réparées sur site afin de limiter l’immobilisation du service. Tout ce qui exige un établi, un démontage complet ou une pièce de rechange spécifique part à notre atelier et ne revient qu’après un test complet après réparation et, lorsque l’équipement l’impose, un réétalonnage.

Pannes les plus fréquentes sur ce type d’équipement

Sur les analyseurs, la majorité des pannes provient de la fluidique — aiguilles obstruées, pompes et tubulures usées, électrovannes qui fuient — puis de la dérive optique et des erreurs de gestion des réactifs.

Découvrir notre service de dépannage et réparation

Diagnostic, réparation curative et pièces de rechange en atelier
Dépannage

Comment dépanner HALO2 Wireless Refillable pH Tester for Lab

Déroulez ces vérifications avant toute escalade. C’est la séquence de premier niveau que nos ingénieurs biomédicaux appliquent à leur arrivée : soit elle lève la panne, soit elle la circonscrit suffisamment pour que l’intervention démarre avec la bonne pièce de rechange dans le véhicule.

  1. Documentez la panne avant toute manipulation : notez le code ou message d’erreur exact, le numéro de série figurant sur la plaque signalétique, ce que faisait l’opérateur, et si la panne disparaît après redémarrage.

  2. Reprenez l’historique de contrôle qualité et d’étalonnage. Un résultat qui dérive sur plusieurs séries oriente vers l’étalonnage ou les réactifs ; un décrochage brutal désigne presque toujours la fluidique.

  3. Inspectez le circuit fluidique — aiguille, tubulures, pompe, électrovannes et ligne de déchets — à la recherche d’une obstruction, d’une cristallisation ou d’une fuite, et vérifiez les niveaux de réactifs et de solution de lavage ainsi que leurs dates de péremption.

  4. Vérifiez les conditions ambiantes dont dépend la méthode : température de la paillasse, ventilation, plan de travail de niveau et exempt de vibrations, et alimentation secteur stable.

  5. Si la panne subsiste, escaladez avec les éléments recueillis. Transmettez à AxiTech le modèle, le numéro de série, le code d’erreur et les vérifications déjà effectuées : un ingénieur vous répondra avec un diagnostic, un devis de réparation et un délai d’approvisionnement des pièces pour HALO2 Wireless Refillable pH Tester for Lab.

À nous transmettre lors du signalement

  • Fabricant, modèle et numéro de série, relevés sur la plaque signalétique
  • Le code ou le message d’erreur exact, et l’écran sur lequel il apparaît
  • Depuis quand la panne survient, à quelle fréquence et ce qui la déclenche
  • Une photographie de l’écran ou de la panne, et le dernier rapport de maintenance

Si la panne persiste au terme des cinq étapes, cessez d’utiliser HALO2 Wireless Refillable pH Tester for Lab et ouvrez une demande de réparation. Faire tourner un appareil sur une panne qu’il ne peut pas lever transforme une défaillance de composant en défaillance de carte, et sur un équipement de diagnostic ou de thérapie cela met en cause le résultat — et le patient.

Découvrir notre service de dépannage et réparation

Achat et installation de HALO2 Wireless Refillable pH Tester for Lab

AxiTech fournit HALO2 Wireless Refillable pH Tester for Lab avec les accessoires et les consommables nécessaires à sa mise en service. Nous prenons en charge l’importation, la livraison et l’installation, puis la mise en service sur site afin que l’équipement soit vérifié au regard de ses spécifications avant le premier patient ou le premier échantillon.

L’installation est suivie de la formation des utilisateurs et de votre équipe biomédicale, de l’enregistrement de la garantie et, si vous le souhaitez, d’un contrat de maintenance qui prend le relais dès la fin de la garantie : l’équipement ne reste jamais sans entretien planifié.

Découvrir notre service de vente d’équipements

Livraison, installation, mise en service et formation des utilisateurs
Les questions qu’on nous pose

Questions fréquentes sur Hanna Instruments HALO2 Wireless Refillable pH Tester for Lab

Oui. AxiTech assure la maintenance de HALO2 Wireless Refillable pH Tester for Lab, dans le cadre d’un contrat de maintenance comme en intervention ponctuelle. Nos ingénieurs biomédicaux couvrent la maintenance préventive, l’étalonnage, la réparation corrective et la fourniture des pièces de rechange de cet équipement.
