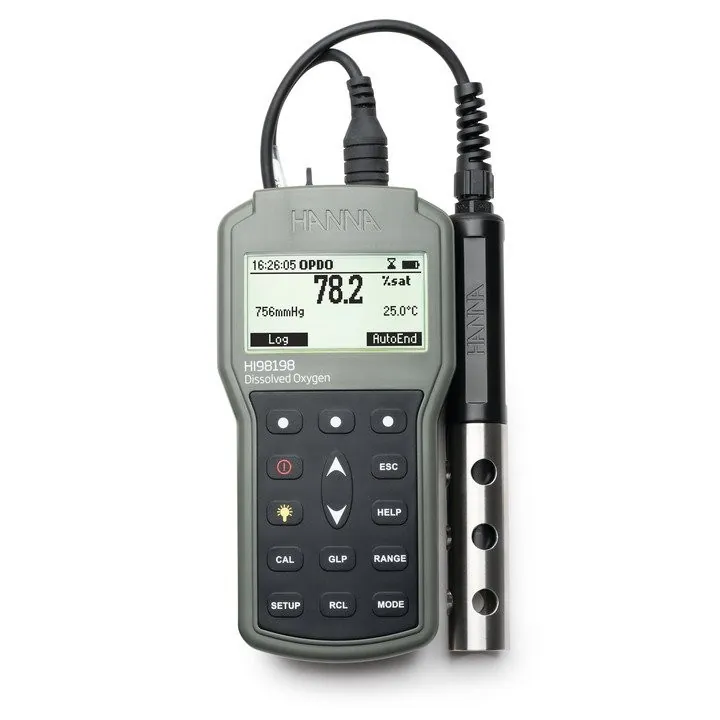

Optical Dissolved Oxygen Meter — photographie principale
Hanna InstrumentsDisponibilité: Fourni sur commande

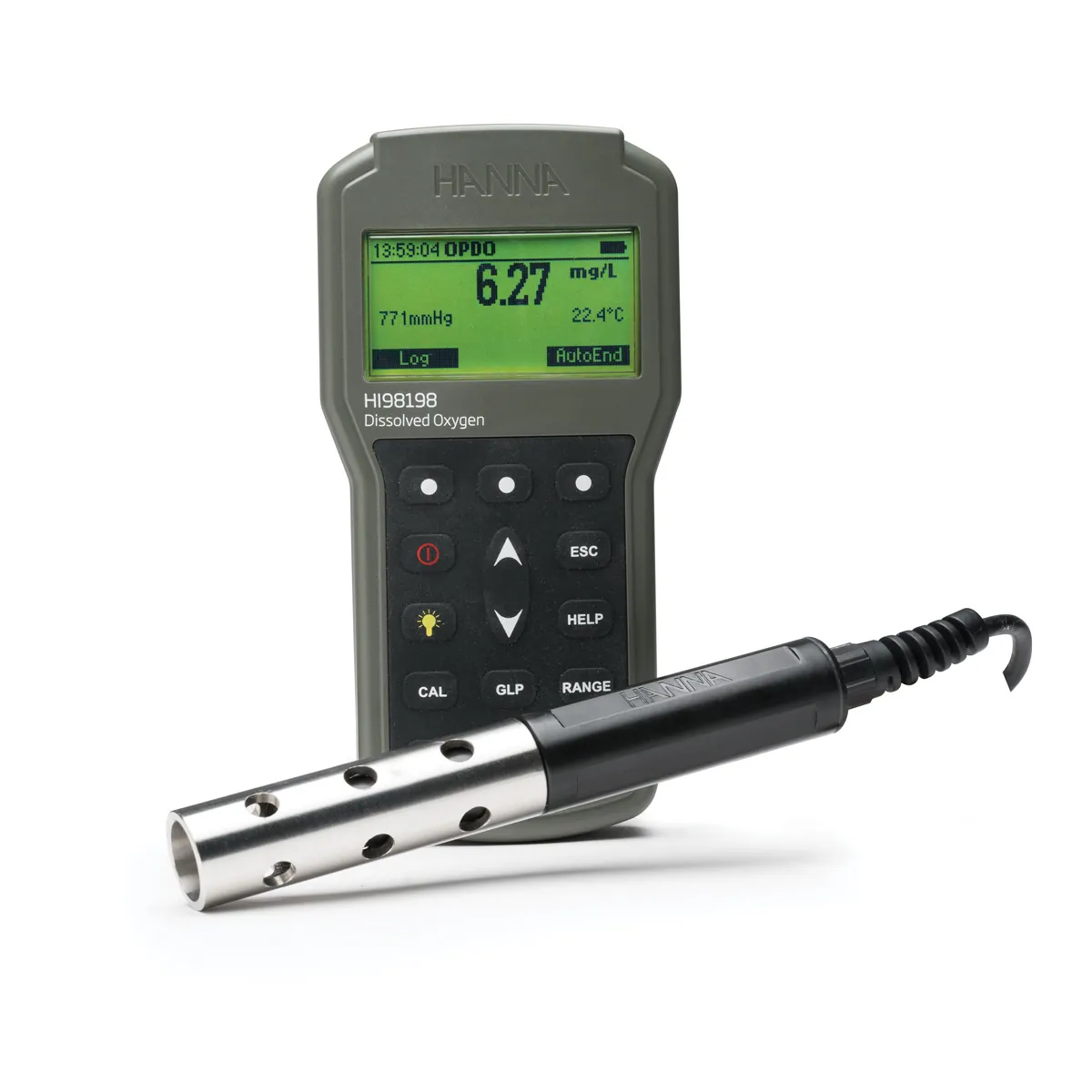

Optical Dissolved Oxygen Meter

Référence HI98198

Appareil de mesure de laboratoire Optical Dissolved Oxygen Meter de Hanna Instruments — AxiTech accompagne les hôpitaux, cliniques et laboratoires sur tout le cycle de vie de cet équipement : vente, installation, mise en service, contrat de maintenance, étalonnage, dépannage et réparation.

Demander une prestation pour cet équipement

Aucun paiement n’est effectué en ligne. Chaque demande est étudiée par un ingénieur AxiTech avant l’envoi du devis.

En un coup d’œil

Référence
HI98198
Catégorie
pH-mètres et analyse de l'eau
Famille d’équipements
Industry/Industrial, Industry/Industrial/Chemical manufacturing, Industry/Industrial/Water treatment, Industry/Water, Industry/Water/Aquaculture, Industry/Water/Wastewater, Industry/Water/Drinking wat

Présentation

The HI98198 Optical Dissolved Oxygen Meter makes measuring the concentration of dissolved oxygen hassle-free. Optical DO technology doesn't require a minimum flow rate, so there is less drift in your readings. Perfect for the field or for the laboratory, the Quick Connect probe requires no membranes, no filling solution, and no warm-up time so you can measure without hesitation. Your meter comes complete in a rugged, custom carrying case for easy transportation.

Maintenance contract — AxiTech provides planned preventive maintenance for Optical Dissolved Oxygen Meter from Hanna Instruments: scheduled visits, safety checks, periodic calibration and a documented service report, backed by a contractual response time.

Troubleshooting, repair and spare parts — our ph, conductivity & water analysis engineers diagnose and repair Optical Dissolved Oxygen Meter on site or in the workshop, fit genuine spare parts and recommission the equipment after performance verification.

Caractéristiques

  • Optical DO technology for fast and stable readings, even in tough environments.
  • Digital probe with Smart Cap Technology eliminates costly, tiresome membranes and solutions.
  • An IP67-rated waterproof, rugged body makes this portable meter ideal for field use.

Spécifications techniques

Specifications
GLP
Yes- includes last 5 calibrations Power Supply 1.5V AA batteries (4 pcs.) approx. Power Consumption 200 hours of continuous use without backlight (50 hours with backlight) Environment 0 to 50 °C (32 to 122 °F) max. RH 100% Dimensions 185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.) Weight (with batteries) 450 g (15.9 oz) Ordering Information Each meter is supplied with: • HI764113 Optical DO probe with built‑in temperature sensor, protective shield and 4 m (13'4) cable, HI764113‑1 Smart Cap™ with o‑ring, HI7040 Bicomponent Zero Oxygen Solution, Calibration/storage vessel, 100 mL plastic beaker (2 pcs.), 1 syringe with silicon grease, 1 lens wipe, 1.5V AA batteries (4 pcs.), Instruction manual, Meter quality certificate, Probe quality certificate, Cap quality certificate, USB Type A to C cable. Warranty 2 years Recommended Probe HI764113
Sku
HI98198 Temperature Range -5.0 to 50.0 °C (23 to 122 °F) Temperature Resolution 0.1 °C (0.1 °F) Temperature Accuracy @ 25°C / 77°F ±0.3 °C (±0.4 °F) Do Range 0.00 to 50.00 mg/L / 0.0 to 500.0% saturation DO Accuracy (@25°C/77°F) 1.5% of reading ± 0.01mg/L for 0.00-20.00mg/L 5% of reading for 20.00-50.00mg/L 1.5% of reading ±0.1% for 00-200.0% 5% of reading for 200.0-500.0% Barometric Pressure Range 420 to 850 mmHg Barometric Pressure Resolution 1 mmHg Barometric Accuracy ±3 mmHg within ±15% from the calibration point Barometric Pressure Compensation Single point anywhere within pressure range Salinity Compensation Automatic from 0 to 70 PSU (manually set) Altitude Compensation Automatic from 420 to 850 mmHg Temperature Compensation Automatic from -5.0 to 50.0 °C (23.0 to 122.0 °F) Calibration • One or two points automatic calibration at 100% (8.26 mg/L) and 0% (0 mg/L). • Single point manual using a value entered by the user in % saturation or mg/L. Log Feature On demand with 4000 records capability Connectivity USB-C GLP Yes- includes last 5 calibrations Power Supply 1.5V AA batteries (4 pcs.) approx. Power Consumption 200 hours of continuous use without backlight (50 hours with backlight) Environment 0 to 50 °C (32 to 122 °F) max. RH 100% Dimensions 185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.) Weight (with batteries) 450 g (15.9 oz) Ordering Information Each meter is supplied with: • HI764113 Optical DO probe with built‑in temperature sensor, protective shield and 4 m (13'4) cable, HI764113‑1 Smart Cap™ with o‑ring, HI7040 Bicomponent Zero Oxygen Solution, Calibration/storage vessel, 100 mL plastic beaker (2 pcs.), 1 syringe with silicon grease, 1 lens wipe, 1.5V AA batteries (4 pcs.), Instruction manual, Meter quality certificate, Probe quality certificate, Cap quality certificate, USB Type A to C cable. Warranty 2 years Recommended Probe HI764113
Weight
(with batteries) 450 g (15.9 oz) Ordering Information Each meter is supplied with: • HI764113 Optical DO probe with built‑in temperature sensor, protective shield and 4 m (13'4) cable, HI764113‑1 Smart Cap™ with o‑ring, HI7040 Bicomponent Zero Oxygen Solution, Calibration/storage vessel, 100 mL plastic beaker (2 pcs.), 1 syringe with silicon grease, 1 lens wipe, 1.5V AA batteries (4 pcs.), Instruction manual, Meter quality certificate, Probe quality certificate, Cap quality certificate, USB Type A to C cable. Warranty 2 years Recommended Probe HI764113
Do Range
0.00 to 50.00 mg/L / 0.0 to 500.0% saturation DO Accuracy (@25°C/77°F) 1.5% of reading ± 0.01mg/L for 0.00-20.00mg/L 5% of reading for 20.00-50.00mg/L 1.5% of reading ±0.1% for 00-200.0% 5% of reading for 200.0-500.0% Barometric Pressure Range 420 to 850 mmHg Barometric Pressure Resolution 1 mmHg Barometric Accuracy ±3 mmHg within ±15% from the calibration point Barometric Pressure Compensation Single point anywhere within pressure range Salinity Compensation Automatic from 0 to 70 PSU (manually set) Altitude Compensation Automatic from 420 to 850 mmHg Temperature Compensation Automatic from -5.0 to 50.0 °C (23.0 to 122.0 °F) Calibration • One or two points automatic calibration at 100% (8.26 mg/L) and 0% (0 mg/L). • Single point manual using a value entered by the user in % saturation or mg/L. Log Feature On demand with 4000 records capability Connectivity USB-C GLP Yes- includes last 5 calibrations Power Supply 1.5V AA batteries (4 pcs.) approx. Power Consumption 200 hours of continuous use without backlight (50 hours with backlight) Environment 0 to 50 °C (32 to 122 °F) max. RH 100% Dimensions 185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.) Weight (with batteries) 450 g (15.9 oz) Ordering Information Each meter is supplied with: • HI764113 Optical DO probe with built‑in temperature sensor, protective shield and 4 m (13'4) cable, HI764113‑1 Smart Cap™ with o‑ring, HI7040 Bicomponent Zero Oxygen Solution, Calibration/storage vessel, 100 mL plastic beaker (2 pcs.), 1 syringe with silicon grease, 1 lens wipe, 1.5V AA batteries (4 pcs.), Instruction manual, Meter quality certificate, Probe quality certificate, Cap quality certificate, USB Type A to C cable. Warranty 2 years Recommended Probe HI764113
Warranty
2 years Recommended Probe HI764113
Dimensions
185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.) Weight (with batteries) 450 g (15.9 oz) Ordering Information Each meter is supplied with: • HI764113 Optical DO probe with built‑in temperature sensor, protective shield and 4 m (13'4) cable, HI764113‑1 Smart Cap™ with o‑ring, HI7040 Bicomponent Zero Oxygen Solution, Calibration/storage vessel, 100 mL plastic beaker (2 pcs.), 1 syringe with silicon grease, 1 lens wipe, 1.5V AA batteries (4 pcs.), Instruction manual, Meter quality certificate, Probe quality certificate, Cap quality certificate, USB Type A to C cable. Warranty 2 years Recommended Probe HI764113
Calibration
• One or two points automatic calibration at 100% (8.26 mg/L) and 0% (0 mg/L). • Single point manual using a value entered by the user in % saturation or mg/L. Log Feature On demand with 4000 records capability Connectivity USB-C GLP Yes- includes last 5 calibrations Power Supply 1.5V AA batteries (4 pcs.) approx. Power Consumption 200 hours of continuous use without backlight (50 hours with backlight) Environment 0 to 50 °C (32 to 122 °F) max. RH 100% Dimensions 185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.) Weight (with batteries) 450 g (15.9 oz) Ordering Information Each meter is supplied with: • HI764113 Optical DO probe with built‑in temperature sensor, protective shield and 4 m (13'4) cable, HI764113‑1 Smart Cap™ with o‑ring, HI7040 Bicomponent Zero Oxygen Solution, Calibration/storage vessel, 100 mL plastic beaker (2 pcs.), 1 syringe with silicon grease, 1 lens wipe, 1.5V AA batteries (4 pcs.), Instruction manual, Meter quality certificate, Probe quality certificate, Cap quality certificate, USB Type A to C cable. Warranty 2 years Recommended Probe HI764113
Environment
0 to 50 °C (32 to 122 °F) max. RH 100% Dimensions 185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.) Weight (with batteries) 450 g (15.9 oz) Ordering Information Each meter is supplied with: • HI764113 Optical DO probe with built‑in temperature sensor, protective shield and 4 m (13'4) cable, HI764113‑1 Smart Cap™ with o‑ring, HI7040 Bicomponent Zero Oxygen Solution, Calibration/storage vessel, 100 mL plastic beaker (2 pcs.), 1 syringe with silicon grease, 1 lens wipe, 1.5V AA batteries (4 pcs.), Instruction manual, Meter quality certificate, Probe quality certificate, Cap quality certificate, USB Type A to C cable. Warranty 2 years Recommended Probe HI764113
Log Feature
On demand with 4000 records capability Connectivity USB-C GLP Yes- includes last 5 calibrations Power Supply 1.5V AA batteries (4 pcs.) approx. Power Consumption 200 hours of continuous use without backlight (50 hours with backlight) Environment 0 to 50 °C (32 to 122 °F) max. RH 100% Dimensions 185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.) Weight (with batteries) 450 g (15.9 oz) Ordering Information Each meter is supplied with: • HI764113 Optical DO probe with built‑in temperature sensor, protective shield and 4 m (13'4) cable, HI764113‑1 Smart Cap™ with o‑ring, HI7040 Bicomponent Zero Oxygen Solution, Calibration/storage vessel, 100 mL plastic beaker (2 pcs.), 1 syringe with silicon grease, 1 lens wipe, 1.5V AA batteries (4 pcs.), Instruction manual, Meter quality certificate, Probe quality certificate, Cap quality certificate, USB Type A to C cable. Warranty 2 years Recommended Probe HI764113
Connectivity
USB-C GLP Yes- includes last 5 calibrations Power Supply 1.5V AA batteries (4 pcs.) approx. Power Consumption 200 hours of continuous use without backlight (50 hours with backlight) Environment 0 to 50 °C (32 to 122 °F) max. RH 100% Dimensions 185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.) Weight (with batteries) 450 g (15.9 oz) Ordering Information Each meter is supplied with: • HI764113 Optical DO probe with built‑in temperature sensor, protective shield and 4 m (13'4) cable, HI764113‑1 Smart Cap™ with o‑ring, HI7040 Bicomponent Zero Oxygen Solution, Calibration/storage vessel, 100 mL plastic beaker (2 pcs.), 1 syringe with silicon grease, 1 lens wipe, 1.5V AA batteries (4 pcs.), Instruction manual, Meter quality certificate, Probe quality certificate, Cap quality certificate, USB Type A to C cable. Warranty 2 years Recommended Probe HI764113
Power Supply
1.5V AA batteries (4 pcs.) approx. Power Consumption 200 hours of continuous use without backlight (50 hours with backlight) Environment 0 to 50 °C (32 to 122 °F) max. RH 100% Dimensions 185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.) Weight (with batteries) 450 g (15.9 oz) Ordering Information Each meter is supplied with: • HI764113 Optical DO probe with built‑in temperature sensor, protective shield and 4 m (13'4) cable, HI764113‑1 Smart Cap™ with o‑ring, HI7040 Bicomponent Zero Oxygen Solution, Calibration/storage vessel, 100 mL plastic beaker (2 pcs.), 1 syringe with silicon grease, 1 lens wipe, 1.5V AA batteries (4 pcs.), Instruction manual, Meter quality certificate, Probe quality certificate, Cap quality certificate, USB Type A to C cable. Warranty 2 years Recommended Probe HI764113
Power Consumption
200 hours of continuous use without backlight (50 hours with backlight) Environment 0 to 50 °C (32 to 122 °F) max. RH 100% Dimensions 185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.) Weight (with batteries) 450 g (15.9 oz) Ordering Information Each meter is supplied with: • HI764113 Optical DO probe with built‑in temperature sensor, protective shield and 4 m (13'4) cable, HI764113‑1 Smart Cap™ with o‑ring, HI7040 Bicomponent Zero Oxygen Solution, Calibration/storage vessel, 100 mL plastic beaker (2 pcs.), 1 syringe with silicon grease, 1 lens wipe, 1.5V AA batteries (4 pcs.), Instruction manual, Meter quality certificate, Probe quality certificate, Cap quality certificate, USB Type A to C cable. Warranty 2 years Recommended Probe HI764113
Recommended Probe
HI764113
Temperature Range
-5.0 to 50.0 °C (23 to 122 °F) Temperature Resolution 0.1 °C (0.1 °F) Temperature Accuracy @ 25°C / 77°F ±0.3 °C (±0.4 °F) Do Range 0.00 to 50.00 mg/L / 0.0 to 500.0% saturation DO Accuracy (@25°C/77°F) 1.5% of reading ± 0.01mg/L for 0.00-20.00mg/L 5% of reading for 20.00-50.00mg/L 1.5% of reading ±0.1% for 00-200.0% 5% of reading for 200.0-500.0% Barometric Pressure Range 420 to 850 mmHg Barometric Pressure Resolution 1 mmHg Barometric Accuracy ±3 mmHg within ±15% from the calibration point Barometric Pressure Compensation Single point anywhere within pressure range Salinity Compensation Automatic from 0 to 70 PSU (manually set) Altitude Compensation Automatic from 420 to 850 mmHg Temperature Compensation Automatic from -5.0 to 50.0 °C (23.0 to 122.0 °F) Calibration • One or two points automatic calibration at 100% (8.26 mg/L) and 0% (0 mg/L). • Single point manual using a value entered by the user in % saturation or mg/L. Log Feature On demand with 4000 records capability Connectivity USB-C GLP Yes- includes last 5 calibrations Power Supply 1.5V AA batteries (4 pcs.) approx. Power Consumption 200 hours of continuous use without backlight (50 hours with backlight) Environment 0 to 50 °C (32 to 122 °F) max. RH 100% Dimensions 185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.) Weight (with batteries) 450 g (15.9 oz) Ordering Information Each meter is supplied with: • HI764113 Optical DO probe with built‑in temperature sensor, protective shield and 4 m (13'4) cable, HI764113‑1 Smart Cap™ with o‑ring, HI7040 Bicomponent Zero Oxygen Solution, Calibration/storage vessel, 100 mL plastic beaker (2 pcs.), 1 syringe with silicon grease, 1 lens wipe, 1.5V AA batteries (4 pcs.), Instruction manual, Meter quality certificate, Probe quality certificate, Cap quality certificate, USB Type A to C cable. Warranty 2 years Recommended Probe HI764113
Barometric Accuracy
±3 mmHg within ±15% from the calibration point Barometric Pressure Compensation Single point anywhere within pressure range Salinity Compensation Automatic from 0 to 70 PSU (manually set) Altitude Compensation Automatic from 420 to 850 mmHg Temperature Compensation Automatic from -5.0 to 50.0 °C (23.0 to 122.0 °F) Calibration • One or two points automatic calibration at 100% (8.26 mg/L) and 0% (0 mg/L). • Single point manual using a value entered by the user in % saturation or mg/L. Log Feature On demand with 4000 records capability Connectivity USB-C GLP Yes- includes last 5 calibrations Power Supply 1.5V AA batteries (4 pcs.) approx. Power Consumption 200 hours of continuous use without backlight (50 hours with backlight) Environment 0 to 50 °C (32 to 122 °F) max. RH 100% Dimensions 185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.) Weight (with batteries) 450 g (15.9 oz) Ordering Information Each meter is supplied with: • HI764113 Optical DO probe with built‑in temperature sensor, protective shield and 4 m (13'4) cable, HI764113‑1 Smart Cap™ with o‑ring, HI7040 Bicomponent Zero Oxygen Solution, Calibration/storage vessel, 100 mL plastic beaker (2 pcs.), 1 syringe with silicon grease, 1 lens wipe, 1.5V AA batteries (4 pcs.), Instruction manual, Meter quality certificate, Probe quality certificate, Cap quality certificate, USB Type A to C cable. Warranty 2 years Recommended Probe HI764113
Ordering Information

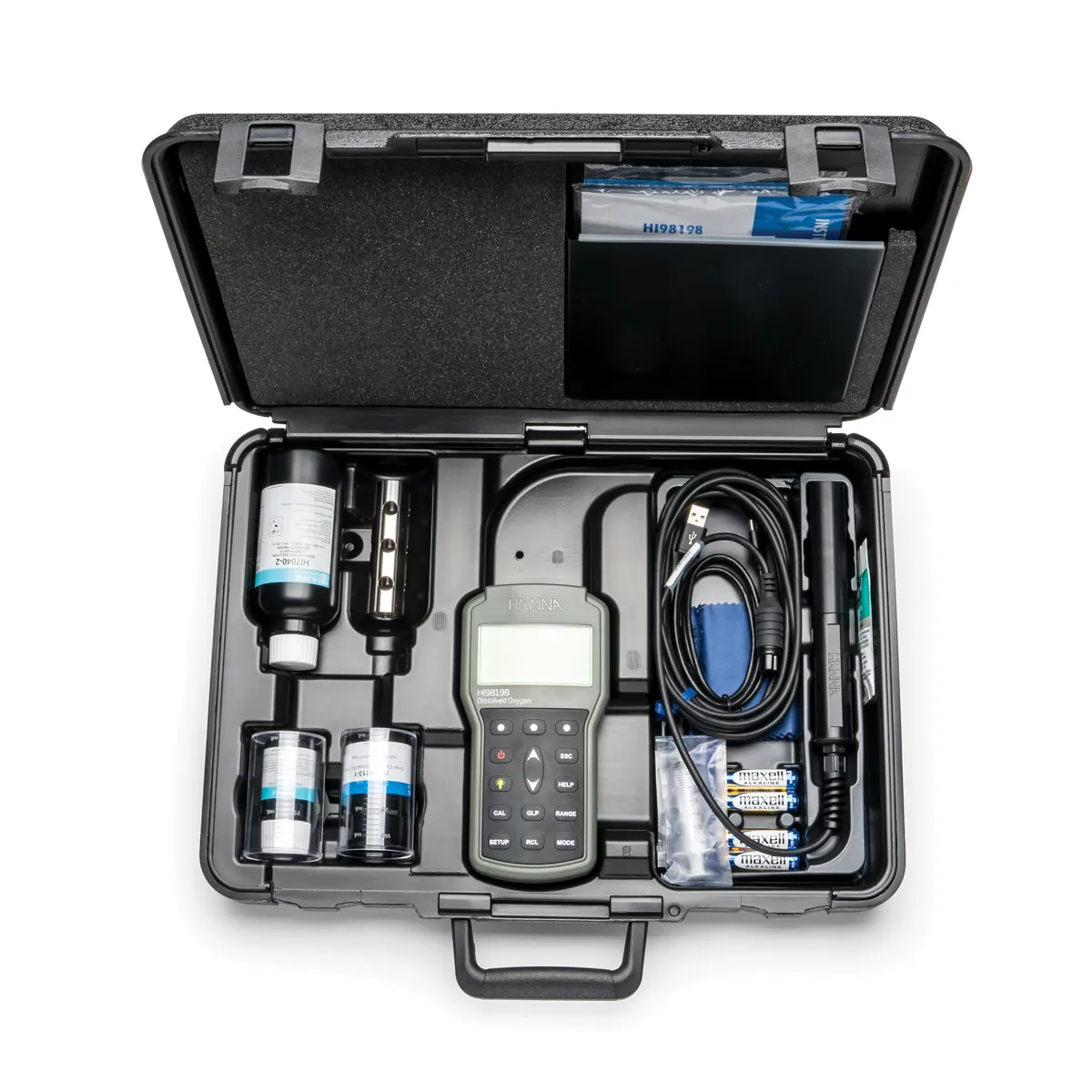

Each meter is supplied with: • HI764113 Optical DO probe with built‑in temperature sensor, protective shield and 4 m (13'4) cable, HI764113‑1 Smart Cap™ with o‑ring, HI7040 Bicomponent Zero Oxygen Solution, Calibration/storage vessel, 100 mL plastic beaker (2 pcs.), 1 syringe with silicon grease, 1 lens wipe, 1.5V AA batteries (4 pcs.), Instruction manual, Meter quality certificate, Probe quality certificate, Cap quality certificate, USB Type A to C cable. Warranty 2 years Recommended Probe HI764113
Altitude Compensation
Automatic from 420 to 850 mmHg Temperature Compensation Automatic from -5.0 to 50.0 °C (23.0 to 122.0 °F) Calibration • One or two points automatic calibration at 100% (8.26 mg/L) and 0% (0 mg/L). • Single point manual using a value entered by the user in % saturation or mg/L. Log Feature On demand with 4000 records capability Connectivity USB-C GLP Yes- includes last 5 calibrations Power Supply 1.5V AA batteries (4 pcs.) approx. Power Consumption 200 hours of continuous use without backlight (50 hours with backlight) Environment 0 to 50 °C (32 to 122 °F) max. RH 100% Dimensions 185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.) Weight (with batteries) 450 g (15.9 oz) Ordering Information Each meter is supplied with: • HI764113 Optical DO probe with built‑in temperature sensor, protective shield and 4 m (13'4) cable, HI764113‑1 Smart Cap™ with o‑ring, HI7040 Bicomponent Zero Oxygen Solution, Calibration/storage vessel, 100 mL plastic beaker (2 pcs.), 1 syringe with silicon grease, 1 lens wipe, 1.5V AA batteries (4 pcs.), Instruction manual, Meter quality certificate, Probe quality certificate, Cap quality certificate, USB Type A to C cable. Warranty 2 years Recommended Probe HI764113
Salinity Compensation
Automatic from 0 to 70 PSU (manually set) Altitude Compensation Automatic from 420 to 850 mmHg Temperature Compensation Automatic from -5.0 to 50.0 °C (23.0 to 122.0 °F) Calibration • One or two points automatic calibration at 100% (8.26 mg/L) and 0% (0 mg/L). • Single point manual using a value entered by the user in % saturation or mg/L. Log Feature On demand with 4000 records capability Connectivity USB-C GLP Yes- includes last 5 calibrations Power Supply 1.5V AA batteries (4 pcs.) approx. Power Consumption 200 hours of continuous use without backlight (50 hours with backlight) Environment 0 to 50 °C (32 to 122 °F) max. RH 100% Dimensions 185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.) Weight (with batteries) 450 g (15.9 oz) Ordering Information Each meter is supplied with: • HI764113 Optical DO probe with built‑in temperature sensor, protective shield and 4 m (13'4) cable, HI764113‑1 Smart Cap™ with o‑ring, HI7040 Bicomponent Zero Oxygen Solution, Calibration/storage vessel, 100 mL plastic beaker (2 pcs.), 1 syringe with silicon grease, 1 lens wipe, 1.5V AA batteries (4 pcs.), Instruction manual, Meter quality certificate, Probe quality certificate, Cap quality certificate, USB Type A to C cable. Warranty 2 years Recommended Probe HI764113
Temperature Resolution
0.1 °C (0.1 °F) Temperature Accuracy @ 25°C / 77°F ±0.3 °C (±0.4 °F) Do Range 0.00 to 50.00 mg/L / 0.0 to 500.0% saturation DO Accuracy (@25°C/77°F) 1.5% of reading ± 0.01mg/L for 0.00-20.00mg/L 5% of reading for 20.00-50.00mg/L 1.5% of reading ±0.1% for 00-200.0% 5% of reading for 200.0-500.0% Barometric Pressure Range 420 to 850 mmHg Barometric Pressure Resolution 1 mmHg Barometric Accuracy ±3 mmHg within ±15% from the calibration point Barometric Pressure Compensation Single point anywhere within pressure range Salinity Compensation Automatic from 0 to 70 PSU (manually set) Altitude Compensation Automatic from 420 to 850 mmHg Temperature Compensation Automatic from -5.0 to 50.0 °C (23.0 to 122.0 °F) Calibration • One or two points automatic calibration at 100% (8.26 mg/L) and 0% (0 mg/L). • Single point manual using a value entered by the user in % saturation or mg/L. Log Feature On demand with 4000 records capability Connectivity USB-C GLP Yes- includes last 5 calibrations Power Supply 1.5V AA batteries (4 pcs.) approx. Power Consumption 200 hours of continuous use without backlight (50 hours with backlight) Environment 0 to 50 °C (32 to 122 °F) max. RH 100% Dimensions 185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.) Weight (with batteries) 450 g (15.9 oz) Ordering Information Each meter is supplied with: • HI764113 Optical DO probe with built‑in temperature sensor, protective shield and 4 m (13'4) cable, HI764113‑1 Smart Cap™ with o‑ring, HI7040 Bicomponent Zero Oxygen Solution, Calibration/storage vessel, 100 mL plastic beaker (2 pcs.), 1 syringe with silicon grease, 1 lens wipe, 1.5V AA batteries (4 pcs.), Instruction manual, Meter quality certificate, Probe quality certificate, Cap quality certificate, USB Type A to C cable. Warranty 2 years Recommended Probe HI764113
Temperature Compensation
Automatic from -5.0 to 50.0 °C (23.0 to 122.0 °F) Calibration • One or two points automatic calibration at 100% (8.26 mg/L) and 0% (0 mg/L). • Single point manual using a value entered by the user in % saturation or mg/L. Log Feature On demand with 4000 records capability Connectivity USB-C GLP Yes- includes last 5 calibrations Power Supply 1.5V AA batteries (4 pcs.) approx. Power Consumption 200 hours of continuous use without backlight (50 hours with backlight) Environment 0 to 50 °C (32 to 122 °F) max. RH 100% Dimensions 185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.) Weight (with batteries) 450 g (15.9 oz) Ordering Information Each meter is supplied with: • HI764113 Optical DO probe with built‑in temperature sensor, protective shield and 4 m (13'4) cable, HI764113‑1 Smart Cap™ with o‑ring, HI7040 Bicomponent Zero Oxygen Solution, Calibration/storage vessel, 100 mL plastic beaker (2 pcs.), 1 syringe with silicon grease, 1 lens wipe, 1.5V AA batteries (4 pcs.), Instruction manual, Meter quality certificate, Probe quality certificate, Cap quality certificate, USB Type A to C cable. Warranty 2 years Recommended Probe HI764113
Barometric Pressure Range
420 to 850 mmHg Barometric Pressure Resolution 1 mmHg Barometric Accuracy ±3 mmHg within ±15% from the calibration point Barometric Pressure Compensation Single point anywhere within pressure range Salinity Compensation Automatic from 0 to 70 PSU (manually set) Altitude Compensation Automatic from 420 to 850 mmHg Temperature Compensation Automatic from -5.0 to 50.0 °C (23.0 to 122.0 °F) Calibration • One or two points automatic calibration at 100% (8.26 mg/L) and 0% (0 mg/L). • Single point manual using a value entered by the user in % saturation or mg/L. Log Feature On demand with 4000 records capability Connectivity USB-C GLP Yes- includes last 5 calibrations Power Supply 1.5V AA batteries (4 pcs.) approx. Power Consumption 200 hours of continuous use without backlight (50 hours with backlight) Environment 0 to 50 °C (32 to 122 °F) max. RH 100% Dimensions 185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.) Weight (with batteries) 450 g (15.9 oz) Ordering Information Each meter is supplied with: • HI764113 Optical DO probe with built‑in temperature sensor, protective shield and 4 m (13'4) cable, HI764113‑1 Smart Cap™ with o‑ring, HI7040 Bicomponent Zero Oxygen Solution, Calibration/storage vessel, 100 mL plastic beaker (2 pcs.), 1 syringe with silicon grease, 1 lens wipe, 1.5V AA batteries (4 pcs.), Instruction manual, Meter quality certificate, Probe quality certificate, Cap quality certificate, USB Type A to C cable. Warranty 2 years Recommended Probe HI764113
DO Accuracy (@25°C/77°F)
1.5% of reading ± 0.01mg/L for 0.00-20.00mg/L 5% of reading for 20.00-50.00mg/L 1.5% of reading ±0.1% for 00-200.0% 5% of reading for 200.0-500.0% Barometric Pressure Range 420 to 850 mmHg Barometric Pressure Resolution 1 mmHg Barometric Accuracy ±3 mmHg within ±15% from the calibration point Barometric Pressure Compensation Single point anywhere within pressure range Salinity Compensation Automatic from 0 to 70 PSU (manually set) Altitude Compensation Automatic from 420 to 850 mmHg Temperature Compensation Automatic from -5.0 to 50.0 °C (23.0 to 122.0 °F) Calibration • One or two points automatic calibration at 100% (8.26 mg/L) and 0% (0 mg/L). • Single point manual using a value entered by the user in % saturation or mg/L. Log Feature On demand with 4000 records capability Connectivity USB-C GLP Yes- includes last 5 calibrations Power Supply 1.5V AA batteries (4 pcs.) approx. Power Consumption 200 hours of continuous use without backlight (50 hours with backlight) Environment 0 to 50 °C (32 to 122 °F) max. RH 100% Dimensions 185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.) Weight (with batteries) 450 g (15.9 oz) Ordering Information Each meter is supplied with: • HI764113 Optical DO probe with built‑in temperature sensor, protective shield and 4 m (13'4) cable, HI764113‑1 Smart Cap™ with o‑ring, HI7040 Bicomponent Zero Oxygen Solution, Calibration/storage vessel, 100 mL plastic beaker (2 pcs.), 1 syringe with silicon grease, 1 lens wipe, 1.5V AA batteries (4 pcs.), Instruction manual, Meter quality certificate, Probe quality certificate, Cap quality certificate, USB Type A to C cable. Warranty 2 years Recommended Probe HI764113
Barometric Pressure Resolution
1 mmHg Barometric Accuracy ±3 mmHg within ±15% from the calibration point Barometric Pressure Compensation Single point anywhere within pressure range Salinity Compensation Automatic from 0 to 70 PSU (manually set) Altitude Compensation Automatic from 420 to 850 mmHg Temperature Compensation Automatic from -5.0 to 50.0 °C (23.0 to 122.0 °F) Calibration • One or two points automatic calibration at 100% (8.26 mg/L) and 0% (0 mg/L). • Single point manual using a value entered by the user in % saturation or mg/L. Log Feature On demand with 4000 records capability Connectivity USB-C GLP Yes- includes last 5 calibrations Power Supply 1.5V AA batteries (4 pcs.) approx. Power Consumption 200 hours of continuous use without backlight (50 hours with backlight) Environment 0 to 50 °C (32 to 122 °F) max. RH 100% Dimensions 185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.) Weight (with batteries) 450 g (15.9 oz) Ordering Information Each meter is supplied with: • HI764113 Optical DO probe with built‑in temperature sensor, protective shield and 4 m (13'4) cable, HI764113‑1 Smart Cap™ with o‑ring, HI7040 Bicomponent Zero Oxygen Solution, Calibration/storage vessel, 100 mL plastic beaker (2 pcs.), 1 syringe with silicon grease, 1 lens wipe, 1.5V AA batteries (4 pcs.), Instruction manual, Meter quality certificate, Probe quality certificate, Cap quality certificate, USB Type A to C cable. Warranty 2 years Recommended Probe HI764113
Barometric Pressure Compensation
Single point anywhere within pressure range Salinity Compensation Automatic from 0 to 70 PSU (manually set) Altitude Compensation Automatic from 420 to 850 mmHg Temperature Compensation Automatic from -5.0 to 50.0 °C (23.0 to 122.0 °F) Calibration • One or two points automatic calibration at 100% (8.26 mg/L) and 0% (0 mg/L). • Single point manual using a value entered by the user in % saturation or mg/L. Log Feature On demand with 4000 records capability Connectivity USB-C GLP Yes- includes last 5 calibrations Power Supply 1.5V AA batteries (4 pcs.) approx. Power Consumption 200 hours of continuous use without backlight (50 hours with backlight) Environment 0 to 50 °C (32 to 122 °F) max. RH 100% Dimensions 185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.) Weight (with batteries) 450 g (15.9 oz) Ordering Information Each meter is supplied with: • HI764113 Optical DO probe with built‑in temperature sensor, protective shield and 4 m (13'4) cable, HI764113‑1 Smart Cap™ with o‑ring, HI7040 Bicomponent Zero Oxygen Solution, Calibration/storage vessel, 100 mL plastic beaker (2 pcs.), 1 syringe with silicon grease, 1 lens wipe, 1.5V AA batteries (4 pcs.), Instruction manual, Meter quality certificate, Probe quality certificate, Cap quality certificate, USB Type A to C cable. Warranty 2 years Recommended Probe HI764113
Temperature Accuracy @ 25°C / 77°F
±0.3 °C (±0.4 °F) Do Range 0.00 to 50.00 mg/L / 0.0 to 500.0% saturation DO Accuracy (@25°C/77°F) 1.5% of reading ± 0.01mg/L for 0.00-20.00mg/L 5% of reading for 20.00-50.00mg/L 1.5% of reading ±0.1% for 00-200.0% 5% of reading for 200.0-500.0% Barometric Pressure Range 420 to 850 mmHg Barometric Pressure Resolution 1 mmHg Barometric Accuracy ±3 mmHg within ±15% from the calibration point Barometric Pressure Compensation Single point anywhere within pressure range Salinity Compensation Automatic from 0 to 70 PSU (manually set) Altitude Compensation Automatic from 420 to 850 mmHg Temperature Compensation Automatic from -5.0 to 50.0 °C (23.0 to 122.0 °F) Calibration • One or two points automatic calibration at 100% (8.26 mg/L) and 0% (0 mg/L). • Single point manual using a value entered by the user in % saturation or mg/L. Log Feature On demand with 4000 records capability Connectivity USB-C GLP Yes- includes last 5 calibrations Power Supply 1.5V AA batteries (4 pcs.) approx. Power Consumption 200 hours of continuous use without backlight (50 hours with backlight) Environment 0 to 50 °C (32 to 122 °F) max. RH 100% Dimensions 185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.) Weight (with batteries) 450 g (15.9 oz) Ordering Information Each meter is supplied with: • HI764113 Optical DO probe with built‑in temperature sensor, protective shield and 4 m (13'4) cable, HI764113‑1 Smart Cap™ with o‑ring, HI7040 Bicomponent Zero Oxygen Solution, Calibration/storage vessel, 100 mL plastic beaker (2 pcs.), 1 syringe with silicon grease, 1 lens wipe, 1.5V AA batteries (4 pcs.), Instruction manual, Meter quality certificate, Probe quality certificate, Cap quality certificate, USB Type A to C cable. Warranty 2 years Recommended Probe HI764113
Couverture de service

AxiTech entretient, répare et fournit cet équipement pour les hôpitaux, les cliniques, les laboratoires et les centres d’imagerie.

Contrats de maintenance pour Optical Dissolved Oxygen Meter

AxiTech propose des contrats de maintenance préventive pour Optical Dissolved Oxygen Meter. Chaque contrat fixe un calendrier de visites planifiées au cours desquelles nos ingénieurs biomédicaux inspectent l’équipement, remplacent les pièces d’usure avant la panne et vérifient qu’il reste dans les tolérances du fabricant.

Chaque visite comprend l’étalonnage et la vérification des performances, et se conclut par un rapport de maintenance documenté que vous pouvez présenter lors d’un audit d’accréditation. La disponibilité des pièces de rechange et le délai d’intervention garanti sont inscrits au contrat : une panne ne laisse jamais un service sans réponse.

Prévoyez au moins une visite de maintenance préventive par an, et une seconde visite pour les équipements en usage continu ou critique.

  • Visites de maintenance préventive planifiées à intervalle fixe
  • Étalonnage et vérification des performances selon les spécifications du fabricant
  • Un rapport de maintenance documenté après chaque intervention
  • Disponibilité garantie des pièces de rechange et des consommables
  • Un délai d’intervention contractuel en cas de panne

Découvrir nos contrats de maintenance

Maintenance préventive planifiée et étalonnage sous contrat

Dépannage et réparation de Optical Dissolved Oxygen Meter

En cas de panne de Optical Dissolved Oxygen Meter, nos ingénieurs commencent par un diagnostic structuré : codes d’erreur, contrôles électriques et mécaniques, puis test fonctionnel au regard des spécifications de l’équipement. Nous savons ainsi s’il s’agit d’un consommable, d’une pièce d’usure ou d’une défaillance de carte avant de commander la moindre pièce.

Les pannes simples sont réparées sur site afin de limiter l’immobilisation du service. Tout ce qui exige un établi, un démontage complet ou une pièce de rechange spécifique part à notre atelier et ne revient qu’après un test complet après réparation et, lorsque l’équipement l’impose, un réétalonnage.

Pannes les plus fréquentes sur ce type d’équipement

Les pannes les plus fréquentes concernent les pièces mobiles usées, les alimentations et les cartes de commande, les capteurs sortis de tolérance, ainsi que les circuits de fluide ou d’air obstrués ou contaminés.

Découvrir notre service de dépannage et réparation

Diagnostic, réparation curative et pièces de rechange en atelier
Dépannage

Comment dépanner Optical Dissolved Oxygen Meter

Déroulez ces vérifications avant toute escalade. C’est la séquence de premier niveau que nos ingénieurs biomédicaux appliquent à leur arrivée : soit elle lève la panne, soit elle la circonscrit suffisamment pour que l’intervention démarre avec la bonne pièce de rechange dans le véhicule.

  1. Documentez la panne avant toute manipulation : notez le code ou message d’erreur exact, le numéro de série figurant sur la plaque signalétique, ce que faisait l’opérateur, et si la panne disparaît après redémarrage.

  2. Contrôlez l’alimentation de bout en bout : prise murale, cordon secteur, fusible et tout onduleur ou stabilisateur intercalé. Un appareil qui s’éteint par intermittence présente bien plus souvent un défaut d’alimentation qu’une panne interne.

  3. Vérifiez les consommables et les pièces d’usure — filtres, joints, tubulures, sondes, batteries — et relevez leur dernière date de remplacement. Tout élément au-delà de son intervalle d’entretien est le premier suspect.

  4. Reproduisez la panne une fois, délibérément, et consignez la séquence : action de l’opérateur, affichage de l’appareil, et disparition ou non du défaut après une coupure complète de l’alimentation.

  5. Si la panne subsiste, escaladez avec les éléments recueillis. Transmettez à AxiTech le modèle, le numéro de série, le code d’erreur et les vérifications déjà effectuées : un ingénieur vous répondra avec un diagnostic, un devis de réparation et un délai d’approvisionnement des pièces pour Optical Dissolved Oxygen Meter.

À nous transmettre lors du signalement

  • Fabricant, modèle et numéro de série, relevés sur la plaque signalétique
  • Le code ou le message d’erreur exact, et l’écran sur lequel il apparaît
  • Depuis quand la panne survient, à quelle fréquence et ce qui la déclenche
  • Une photographie de l’écran ou de la panne, et le dernier rapport de maintenance

Si la panne persiste au terme des cinq étapes, cessez d’utiliser Optical Dissolved Oxygen Meter et ouvrez une demande de réparation. Faire tourner un appareil sur une panne qu’il ne peut pas lever transforme une défaillance de composant en défaillance de carte, et sur un équipement de diagnostic ou de thérapie cela met en cause le résultat — et le patient.

Découvrir notre service de dépannage et réparation

Achat et installation de Optical Dissolved Oxygen Meter

AxiTech fournit Optical Dissolved Oxygen Meter avec les accessoires et les consommables nécessaires à sa mise en service. Nous prenons en charge l’importation, la livraison et l’installation, puis la mise en service sur site afin que l’équipement soit vérifié au regard de ses spécifications avant le premier patient ou le premier échantillon.

L’installation est suivie de la formation des utilisateurs et de votre équipe biomédicale, de l’enregistrement de la garantie et, si vous le souhaitez, d’un contrat de maintenance qui prend le relais dès la fin de la garantie : l’équipement ne reste jamais sans entretien planifié.

Découvrir notre service de vente d’équipements

Livraison, installation, mise en service et formation des utilisateurs
Les questions qu’on nous pose

Questions fréquentes sur Hanna Instruments Optical Dissolved Oxygen Meter

Oui. AxiTech assure la maintenance de Optical Dissolved Oxygen Meter, dans le cadre d’un contrat de maintenance comme en intervention ponctuelle. Nos ingénieurs biomédicaux couvrent la maintenance préventive, l’étalonnage, la réparation corrective et la fourniture des pièces de rechange de cet équipement.
