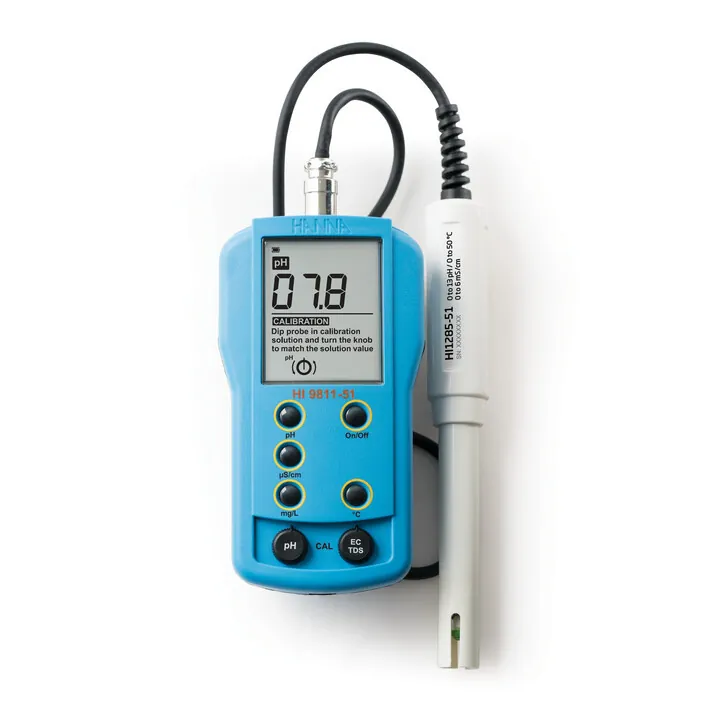

pH/EC/TDS/Temperature meter with HI1285-51 electrode; EC range: 0 to 6000 µS/cm, TDS range: 0 to 3000 ppm (mg/L) — photographie principale
Hanna InstrumentsDisponibilité: Fourni sur commande

pH/EC/TDS/Temperature meter with HI1285-51 electrode; EC range: 0 to 6000 µS/cm, TDS range: 0 to 3000 ppm (mg/L)

Référence HI9811-51

Appareil de mesure de laboratoire pH/EC/TDS/Temperature meter with HI1285-51 electrode; EC range: 0 to 6000 µS/cm, TDS range: 0 to 3000 ppm (mg/L) de Hanna Instruments — AxiTech en assure la vente, l'installation et la mise en service, ainsi que la maintenance préventive, l'étalonnage, le dépannage et la réparation, avec fourniture de pièces de rechange.

Demander une prestation pour cet équipement

Aucun paiement n’est effectué en ligne. Chaque demande est étudiée par un ingénieur AxiTech avant l’envoi du devis.

En un coup d’œil

Référence
HI9811-51
Catégorie
pH-mètres et analyse de l'eau
Famille d’équipements
Industry/Industrial, Industry/Industrial/Chemical manufacturing, Industry/Industrial/Water treatment, Industry/Water, Industry/Water/Aquaculture, Industry/Water/Wastewater, Industry/Water/Drinking wat

Présentation

The HI9811-51 is a portable, water resistant meter designed to be paired with HI1285-51 pH /EC/TDS/Temperature multiparameter probe. The meter is easy to use, with dedicated keys for measurement modes that are clearly displayed on the LCD, and knobs for 1-point calibration of pH and EC. On-screen tutorial messages guide the user through calibration and measurement.

Maintenance contract — AxiTech provides planned preventive maintenance for pH/EC/TDS/Temperature meter with HI1285-51 electrode; EC range: 0 to 6000 µS/cm, TDS range: 0 to 3000 ppm (mg/L) from Hanna Instruments: scheduled visits, safety checks, periodic calibration and a documented service report, backed by a contractual response time.

Troubleshooting, repair and spare parts — our ph, conductivity & water analysis engineers diagnose and repair pH/EC/TDS/Temperature meter with HI1285-51 electrode; EC range: 0 to 6000 µS/cm, TDS range: 0 to 3000 ppm (mg/L) on site or in the workshop, fit genuine spare parts and recommission the equipment after performance verification.

Caractéristiques

  • 3-in-1 combination probe with pH, EC /TDS, and temperature sensors
  • Best for agriculture, greenhouse, and hydroponics applications

Spécifications techniques

Specifications
Sku
HI9811-51 pH Range 0.0 to 14.0 pH pH Resolution 0.1 pH pH Accuracy @ 25°C / 77°F ±0.1 pH pH Calibration manual, 1-point through offset trimmer Temperature Range 0.0 to 70.0 °C Temperature Resolution 0.1°C Temperature Accuracy @ 25°C / 77°F ±0.5°C Temperature Calibration Automatic, from 0 to 70°C with ß=2% / °C EC Range 0 to 6000 µS/cm EC Resolution 10 µS/cm EC Accuracy @25°C/77°F ±2% F.S. EC Calibration manual, 1-point through slope trimmer TDS Range 0 to 3000 ppm (mg/L) TDS Resolution 10 ppm (mg/L) TDS Accuracy @ 25°C / 77°F ±2% F.S. TDS Conversion Factor 0.5 ppm (mg/L) = 1 µS/cm TDS Calibration manual, 1-point through slope trimmer Power Supply 9V / approximately 450 hours of continuous use Environment 0 to 50°C (32 to 122°F) RH max 100% Dimensions 145 x 80 x 36 mm (5.7 x 3.1 x 1.4in.) Weight 230 g (8.1 oz.) Ordering Information HI9811-51 is supplied with HI1285-51 multiparameter probe, HI70007 pH 7.01 calibration solution sachet, HI70032 1382 ppm (mg/L) calibration solution sachet, HI70031 1413 µS/cm calibration solution sachet, HI700661 electrode cleaning solution sachets (2), 9v battery (1), instructions and rugged carrying case. Warranty 2 years Recommended Probe HI1285-51 polypropylene body, pre-amplified multiparameter probe with internal temperature sensor, 8-pin DIN connector and 1 m (3.3') cable
Weight
230 g (8.1 oz.) Ordering Information HI9811-51 is supplied with HI1285-51 multiparameter probe, HI70007 pH 7.01 calibration solution sachet, HI70032 1382 ppm (mg/L) calibration solution sachet, HI70031 1413 µS/cm calibration solution sachet, HI700661 electrode cleaning solution sachets (2), 9v battery (1), instructions and rugged carrying case. Warranty 2 years Recommended Probe HI1285-51 polypropylene body, pre-amplified multiparameter probe with internal temperature sensor, 8-pin DIN connector and 1 m (3.3') cable
EC Range
0 to 6000 µS/cm EC Resolution 10 µS/cm EC Accuracy @25°C/77°F ±2% F.S. EC Calibration manual, 1-point through slope trimmer TDS Range 0 to 3000 ppm (mg/L) TDS Resolution 10 ppm (mg/L) TDS Accuracy @ 25°C / 77°F ±2% F.S. TDS Conversion Factor 0.5 ppm (mg/L) = 1 µS/cm TDS Calibration manual, 1-point through slope trimmer Power Supply 9V / approximately 450 hours of continuous use Environment 0 to 50°C (32 to 122°F) RH max 100% Dimensions 145 x 80 x 36 mm (5.7 x 3.1 x 1.4in.) Weight 230 g (8.1 oz.) Ordering Information HI9811-51 is supplied with HI1285-51 multiparameter probe, HI70007 pH 7.01 calibration solution sachet, HI70032 1382 ppm (mg/L) calibration solution sachet, HI70031 1413 µS/cm calibration solution sachet, HI700661 electrode cleaning solution sachets (2), 9v battery (1), instructions and rugged carrying case. Warranty 2 years Recommended Probe HI1285-51 polypropylene body, pre-amplified multiparameter probe with internal temperature sensor, 8-pin DIN connector and 1 m (3.3') cable
Warranty
2 years Recommended Probe HI1285-51 polypropylene body, pre-amplified multiparameter probe with internal temperature sensor, 8-pin DIN connector and 1 m (3.3') cable
PH Range
0.0 to 14.0 pH pH Resolution 0.1 pH pH Accuracy @ 25°C / 77°F ±0.1 pH pH Calibration manual, 1-point through offset trimmer Temperature Range 0.0 to 70.0 °C Temperature Resolution 0.1°C Temperature Accuracy @ 25°C / 77°F ±0.5°C Temperature Calibration Automatic, from 0 to 70°C with ß=2% / °C EC Range 0 to 6000 µS/cm EC Resolution 10 µS/cm EC Accuracy @25°C/77°F ±2% F.S. EC Calibration manual, 1-point through slope trimmer TDS Range 0 to 3000 ppm (mg/L) TDS Resolution 10 ppm (mg/L) TDS Accuracy @ 25°C / 77°F ±2% F.S. TDS Conversion Factor 0.5 ppm (mg/L) = 1 µS/cm TDS Calibration manual, 1-point through slope trimmer Power Supply 9V / approximately 450 hours of continuous use Environment 0 to 50°C (32 to 122°F) RH max 100% Dimensions 145 x 80 x 36 mm (5.7 x 3.1 x 1.4in.) Weight 230 g (8.1 oz.) Ordering Information HI9811-51 is supplied with HI1285-51 multiparameter probe, HI70007 pH 7.01 calibration solution sachet, HI70032 1382 ppm (mg/L) calibration solution sachet, HI70031 1413 µS/cm calibration solution sachet, HI700661 electrode cleaning solution sachets (2), 9v battery (1), instructions and rugged carrying case. Warranty 2 years Recommended Probe HI1285-51 polypropylene body, pre-amplified multiparameter probe with internal temperature sensor, 8-pin DIN connector and 1 m (3.3') cable
TDS Range
0 to 3000 ppm (mg/L) TDS Resolution 10 ppm (mg/L) TDS Accuracy @ 25°C / 77°F ±2% F.S. TDS Conversion Factor 0.5 ppm (mg/L) = 1 µS/cm TDS Calibration manual, 1-point through slope trimmer Power Supply 9V / approximately 450 hours of continuous use Environment 0 to 50°C (32 to 122°F) RH max 100% Dimensions 145 x 80 x 36 mm (5.7 x 3.1 x 1.4in.) Weight 230 g (8.1 oz.) Ordering Information HI9811-51 is supplied with HI1285-51 multiparameter probe, HI70007 pH 7.01 calibration solution sachet, HI70032 1382 ppm (mg/L) calibration solution sachet, HI70031 1413 µS/cm calibration solution sachet, HI700661 electrode cleaning solution sachets (2), 9v battery (1), instructions and rugged carrying case. Warranty 2 years Recommended Probe HI1285-51 polypropylene body, pre-amplified multiparameter probe with internal temperature sensor, 8-pin DIN connector and 1 m (3.3') cable
Dimensions
145 x 80 x 36 mm (5.7 x 3.1 x 1.4in.) Weight 230 g (8.1 oz.) Ordering Information HI9811-51 is supplied with HI1285-51 multiparameter probe, HI70007 pH 7.01 calibration solution sachet, HI70032 1382 ppm (mg/L) calibration solution sachet, HI70031 1413 µS/cm calibration solution sachet, HI700661 electrode cleaning solution sachets (2), 9v battery (1), instructions and rugged carrying case. Warranty 2 years Recommended Probe HI1285-51 polypropylene body, pre-amplified multiparameter probe with internal temperature sensor, 8-pin DIN connector and 1 m (3.3') cable
Environment
0 to 50°C (32 to 122°F) RH max 100% Dimensions 145 x 80 x 36 mm (5.7 x 3.1 x 1.4in.) Weight 230 g (8.1 oz.) Ordering Information HI9811-51 is supplied with HI1285-51 multiparameter probe, HI70007 pH 7.01 calibration solution sachet, HI70032 1382 ppm (mg/L) calibration solution sachet, HI70031 1413 µS/cm calibration solution sachet, HI700661 electrode cleaning solution sachets (2), 9v battery (1), instructions and rugged carrying case. Warranty 2 years Recommended Probe HI1285-51 polypropylene body, pre-amplified multiparameter probe with internal temperature sensor, 8-pin DIN connector and 1 m (3.3') cable
Power Supply
9V / approximately 450 hours of continuous use Environment 0 to 50°C (32 to 122°F) RH max 100% Dimensions 145 x 80 x 36 mm (5.7 x 3.1 x 1.4in.) Weight 230 g (8.1 oz.) Ordering Information HI9811-51 is supplied with HI1285-51 multiparameter probe, HI70007 pH 7.01 calibration solution sachet, HI70032 1382 ppm (mg/L) calibration solution sachet, HI70031 1413 µS/cm calibration solution sachet, HI700661 electrode cleaning solution sachets (2), 9v battery (1), instructions and rugged carrying case. Warranty 2 years Recommended Probe HI1285-51 polypropylene body, pre-amplified multiparameter probe with internal temperature sensor, 8-pin DIN connector and 1 m (3.3') cable
EC Resolution
10 µS/cm EC Accuracy @25°C/77°F ±2% F.S. EC Calibration manual, 1-point through slope trimmer TDS Range 0 to 3000 ppm (mg/L) TDS Resolution 10 ppm (mg/L) TDS Accuracy @ 25°C / 77°F ±2% F.S. TDS Conversion Factor 0.5 ppm (mg/L) = 1 µS/cm TDS Calibration manual, 1-point through slope trimmer Power Supply 9V / approximately 450 hours of continuous use Environment 0 to 50°C (32 to 122°F) RH max 100% Dimensions 145 x 80 x 36 mm (5.7 x 3.1 x 1.4in.) Weight 230 g (8.1 oz.) Ordering Information HI9811-51 is supplied with HI1285-51 multiparameter probe, HI70007 pH 7.01 calibration solution sachet, HI70032 1382 ppm (mg/L) calibration solution sachet, HI70031 1413 µS/cm calibration solution sachet, HI700661 electrode cleaning solution sachets (2), 9v battery (1), instructions and rugged carrying case. Warranty 2 years Recommended Probe HI1285-51 polypropylene body, pre-amplified multiparameter probe with internal temperature sensor, 8-pin DIN connector and 1 m (3.3') cable
PH Resolution
0.1 pH pH Accuracy @ 25°C / 77°F ±0.1 pH pH Calibration manual, 1-point through offset trimmer Temperature Range 0.0 to 70.0 °C Temperature Resolution 0.1°C Temperature Accuracy @ 25°C / 77°F ±0.5°C Temperature Calibration Automatic, from 0 to 70°C with ß=2% / °C EC Range 0 to 6000 µS/cm EC Resolution 10 µS/cm EC Accuracy @25°C/77°F ±2% F.S. EC Calibration manual, 1-point through slope trimmer TDS Range 0 to 3000 ppm (mg/L) TDS Resolution 10 ppm (mg/L) TDS Accuracy @ 25°C / 77°F ±2% F.S. TDS Conversion Factor 0.5 ppm (mg/L) = 1 µS/cm TDS Calibration manual, 1-point through slope trimmer Power Supply 9V / approximately 450 hours of continuous use Environment 0 to 50°C (32 to 122°F) RH max 100% Dimensions 145 x 80 x 36 mm (5.7 x 3.1 x 1.4in.) Weight 230 g (8.1 oz.) Ordering Information HI9811-51 is supplied with HI1285-51 multiparameter probe, HI70007 pH 7.01 calibration solution sachet, HI70032 1382 ppm (mg/L) calibration solution sachet, HI70031 1413 µS/cm calibration solution sachet, HI700661 electrode cleaning solution sachets (2), 9v battery (1), instructions and rugged carrying case. Warranty 2 years Recommended Probe HI1285-51 polypropylene body, pre-amplified multiparameter probe with internal temperature sensor, 8-pin DIN connector and 1 m (3.3') cable
EC Calibration
manual, 1-point through slope trimmer TDS Range 0 to 3000 ppm (mg/L) TDS Resolution 10 ppm (mg/L) TDS Accuracy @ 25°C / 77°F ±2% F.S. TDS Conversion Factor 0.5 ppm (mg/L) = 1 µS/cm TDS Calibration manual, 1-point through slope trimmer Power Supply 9V / approximately 450 hours of continuous use Environment 0 to 50°C (32 to 122°F) RH max 100% Dimensions 145 x 80 x 36 mm (5.7 x 3.1 x 1.4in.) Weight 230 g (8.1 oz.) Ordering Information HI9811-51 is supplied with HI1285-51 multiparameter probe, HI70007 pH 7.01 calibration solution sachet, HI70032 1382 ppm (mg/L) calibration solution sachet, HI70031 1413 µS/cm calibration solution sachet, HI700661 electrode cleaning solution sachets (2), 9v battery (1), instructions and rugged carrying case. Warranty 2 years Recommended Probe HI1285-51 polypropylene body, pre-amplified multiparameter probe with internal temperature sensor, 8-pin DIN connector and 1 m (3.3') cable
TDS Resolution
10 ppm (mg/L) TDS Accuracy @ 25°C / 77°F ±2% F.S. TDS Conversion Factor 0.5 ppm (mg/L) = 1 µS/cm TDS Calibration manual, 1-point through slope trimmer Power Supply 9V / approximately 450 hours of continuous use Environment 0 to 50°C (32 to 122°F) RH max 100% Dimensions 145 x 80 x 36 mm (5.7 x 3.1 x 1.4in.) Weight 230 g (8.1 oz.) Ordering Information HI9811-51 is supplied with HI1285-51 multiparameter probe, HI70007 pH 7.01 calibration solution sachet, HI70032 1382 ppm (mg/L) calibration solution sachet, HI70031 1413 µS/cm calibration solution sachet, HI700661 electrode cleaning solution sachets (2), 9v battery (1), instructions and rugged carrying case. Warranty 2 years Recommended Probe HI1285-51 polypropylene body, pre-amplified multiparameter probe with internal temperature sensor, 8-pin DIN connector and 1 m (3.3') cable
PH Calibration
manual, 1-point through offset trimmer Temperature Range 0.0 to 70.0 °C Temperature Resolution 0.1°C Temperature Accuracy @ 25°C / 77°F ±0.5°C Temperature Calibration Automatic, from 0 to 70°C with ß=2% / °C EC Range 0 to 6000 µS/cm EC Resolution 10 µS/cm EC Accuracy @25°C/77°F ±2% F.S. EC Calibration manual, 1-point through slope trimmer TDS Range 0 to 3000 ppm (mg/L) TDS Resolution 10 ppm (mg/L) TDS Accuracy @ 25°C / 77°F ±2% F.S. TDS Conversion Factor 0.5 ppm (mg/L) = 1 µS/cm TDS Calibration manual, 1-point through slope trimmer Power Supply 9V / approximately 450 hours of continuous use Environment 0 to 50°C (32 to 122°F) RH max 100% Dimensions 145 x 80 x 36 mm (5.7 x 3.1 x 1.4in.) Weight 230 g (8.1 oz.) Ordering Information HI9811-51 is supplied with HI1285-51 multiparameter probe, HI70007 pH 7.01 calibration solution sachet, HI70032 1382 ppm (mg/L) calibration solution sachet, HI70031 1413 µS/cm calibration solution sachet, HI700661 electrode cleaning solution sachets (2), 9v battery (1), instructions and rugged carrying case. Warranty 2 years Recommended Probe HI1285-51 polypropylene body, pre-amplified multiparameter probe with internal temperature sensor, 8-pin DIN connector and 1 m (3.3') cable
TDS Calibration
manual, 1-point through slope trimmer Power Supply 9V / approximately 450 hours of continuous use Environment 0 to 50°C (32 to 122°F) RH max 100% Dimensions 145 x 80 x 36 mm (5.7 x 3.1 x 1.4in.) Weight 230 g (8.1 oz.) Ordering Information HI9811-51 is supplied with HI1285-51 multiparameter probe, HI70007 pH 7.01 calibration solution sachet, HI70032 1382 ppm (mg/L) calibration solution sachet, HI70031 1413 µS/cm calibration solution sachet, HI700661 electrode cleaning solution sachets (2), 9v battery (1), instructions and rugged carrying case. Warranty 2 years Recommended Probe HI1285-51 polypropylene body, pre-amplified multiparameter probe with internal temperature sensor, 8-pin DIN connector and 1 m (3.3') cable
Recommended Probe
HI1285-51 polypropylene body, pre-amplified multiparameter probe with internal temperature sensor, 8-pin DIN connector and 1 m (3.3') cable
Temperature Range
0.0 to 70.0 °C Temperature Resolution 0.1°C Temperature Accuracy @ 25°C / 77°F ±0.5°C Temperature Calibration Automatic, from 0 to 70°C with ß=2% / °C EC Range 0 to 6000 µS/cm EC Resolution 10 µS/cm EC Accuracy @25°C/77°F ±2% F.S. EC Calibration manual, 1-point through slope trimmer TDS Range 0 to 3000 ppm (mg/L) TDS Resolution 10 ppm (mg/L) TDS Accuracy @ 25°C / 77°F ±2% F.S. TDS Conversion Factor 0.5 ppm (mg/L) = 1 µS/cm TDS Calibration manual, 1-point through slope trimmer Power Supply 9V / approximately 450 hours of continuous use Environment 0 to 50°C (32 to 122°F) RH max 100% Dimensions 145 x 80 x 36 mm (5.7 x 3.1 x 1.4in.) Weight 230 g (8.1 oz.) Ordering Information HI9811-51 is supplied with HI1285-51 multiparameter probe, HI70007 pH 7.01 calibration solution sachet, HI70032 1382 ppm (mg/L) calibration solution sachet, HI70031 1413 µS/cm calibration solution sachet, HI700661 electrode cleaning solution sachets (2), 9v battery (1), instructions and rugged carrying case. Warranty 2 years Recommended Probe HI1285-51 polypropylene body, pre-amplified multiparameter probe with internal temperature sensor, 8-pin DIN connector and 1 m (3.3') cable
Ordering Information
HI9811-51 is supplied with HI1285-51 multiparameter probe, HI70007 pH 7.01 calibration solution sachet, HI70032 1382 ppm (mg/L) calibration solution sachet, HI70031 1413 µS/cm calibration solution sachet, HI700661 electrode cleaning solution sachets (2), 9v battery (1), instructions and rugged carrying case. Warranty 2 years Recommended Probe HI1285-51 polypropylene body, pre-amplified multiparameter probe with internal temperature sensor, 8-pin DIN connector and 1 m (3.3') cable
TDS Conversion Factor
0.5 ppm (mg/L) = 1 µS/cm TDS Calibration manual, 1-point through slope trimmer Power Supply 9V / approximately 450 hours of continuous use Environment 0 to 50°C (32 to 122°F) RH max 100% Dimensions 145 x 80 x 36 mm (5.7 x 3.1 x 1.4in.) Weight 230 g (8.1 oz.) Ordering Information HI9811-51 is supplied with HI1285-51 multiparameter probe, HI70007 pH 7.01 calibration solution sachet, HI70032 1382 ppm (mg/L) calibration solution sachet, HI70031 1413 µS/cm calibration solution sachet, HI700661 electrode cleaning solution sachets (2), 9v battery (1), instructions and rugged carrying case. Warranty 2 years Recommended Probe HI1285-51 polypropylene body, pre-amplified multiparameter probe with internal temperature sensor, 8-pin DIN connector and 1 m (3.3') cable
Temperature Resolution
0.1°C Temperature Accuracy @ 25°C / 77°F ±0.5°C Temperature Calibration Automatic, from 0 to 70°C with ß=2% / °C EC Range 0 to 6000 µS/cm EC Resolution 10 µS/cm EC Accuracy @25°C/77°F ±2% F.S. EC Calibration manual, 1-point through slope trimmer TDS Range 0 to 3000 ppm (mg/L) TDS Resolution 10 ppm (mg/L) TDS Accuracy @ 25°C / 77°F ±2% F.S. TDS Conversion Factor 0.5 ppm (mg/L) = 1 µS/cm TDS Calibration manual, 1-point through slope trimmer Power Supply 9V / approximately 450 hours of continuous use Environment 0 to 50°C (32 to 122°F) RH max 100% Dimensions 145 x 80 x 36 mm (5.7 x 3.1 x 1.4in.) Weight 230 g (8.1 oz.) Ordering Information HI9811-51 is supplied with HI1285-51 multiparameter probe, HI70007 pH 7.01 calibration solution sachet, HI70032 1382 ppm (mg/L) calibration solution sachet, HI70031 1413 µS/cm calibration solution sachet, HI700661 electrode cleaning solution sachets (2), 9v battery (1), instructions and rugged carrying case. Warranty 2 years Recommended Probe HI1285-51 polypropylene body, pre-amplified multiparameter probe with internal temperature sensor, 8-pin DIN connector and 1 m (3.3') cable
Temperature Calibration
Automatic, from 0 to 70°C with ß=2% / °C EC Range 0 to 6000 µS/cm EC Resolution 10 µS/cm EC Accuracy @25°C/77°F ±2% F.S. EC Calibration manual, 1-point through slope trimmer TDS Range 0 to 3000 ppm (mg/L) TDS Resolution 10 ppm (mg/L) TDS Accuracy @ 25°C / 77°F ±2% F.S. TDS Conversion Factor 0.5 ppm (mg/L) = 1 µS/cm TDS Calibration manual, 1-point through slope trimmer Power Supply 9V / approximately 450 hours of continuous use Environment 0 to 50°C (32 to 122°F) RH max 100% Dimensions 145 x 80 x 36 mm (5.7 x 3.1 x 1.4in.) Weight 230 g (8.1 oz.) Ordering Information HI9811-51 is supplied with HI1285-51 multiparameter probe, HI70007 pH 7.01 calibration solution sachet, HI70032 1382 ppm (mg/L) calibration solution sachet, HI70031 1413 µS/cm calibration solution sachet, HI700661 electrode cleaning solution sachets (2), 9v battery (1), instructions and rugged carrying case. Warranty 2 years Recommended Probe HI1285-51 polypropylene body, pre-amplified multiparameter probe with internal temperature sensor, 8-pin DIN connector and 1 m (3.3') cable
EC Accuracy @25°C/77°F
±2% F.S. EC Calibration manual, 1-point through slope trimmer TDS Range 0 to 3000 ppm (mg/L) TDS Resolution 10 ppm (mg/L) TDS Accuracy @ 25°C / 77°F ±2% F.S. TDS Conversion Factor 0.5 ppm (mg/L) = 1 µS/cm TDS Calibration manual, 1-point through slope trimmer Power Supply 9V / approximately 450 hours of continuous use Environment 0 to 50°C (32 to 122°F) RH max 100% Dimensions 145 x 80 x 36 mm (5.7 x 3.1 x 1.4in.) Weight 230 g (8.1 oz.) Ordering Information HI9811-51 is supplied with HI1285-51 multiparameter probe, HI70007 pH 7.01 calibration solution sachet, HI70032 1382 ppm (mg/L) calibration solution sachet, HI70031 1413 µS/cm calibration solution sachet, HI700661 electrode cleaning solution sachets (2), 9v battery (1), instructions and rugged carrying case. Warranty 2 years Recommended Probe HI1285-51 polypropylene body, pre-amplified multiparameter probe with internal temperature sensor, 8-pin DIN connector and 1 m (3.3') cable
PH Accuracy @ 25°C / 77°F
±0.1 pH pH Calibration manual, 1-point through offset trimmer Temperature Range 0.0 to 70.0 °C Temperature Resolution 0.1°C Temperature Accuracy @ 25°C / 77°F ±0.5°C Temperature Calibration Automatic, from 0 to 70°C with ß=2% / °C EC Range 0 to 6000 µS/cm EC Resolution 10 µS/cm EC Accuracy @25°C/77°F ±2% F.S. EC Calibration manual, 1-point through slope trimmer TDS Range 0 to 3000 ppm (mg/L) TDS Resolution 10 ppm (mg/L) TDS Accuracy @ 25°C / 77°F ±2% F.S. TDS Conversion Factor 0.5 ppm (mg/L) = 1 µS/cm TDS Calibration manual, 1-point through slope trimmer Power Supply 9V / approximately 450 hours of continuous use Environment 0 to 50°C (32 to 122°F) RH max 100% Dimensions 145 x 80 x 36 mm (5.7 x 3.1 x 1.4in.) Weight 230 g (8.1 oz.) Ordering Information HI9811-51 is supplied with HI1285-51 multiparameter probe, HI70007 pH 7.01 calibration solution sachet, HI70032 1382 ppm (mg/L) calibration solution sachet, HI70031 1413 µS/cm calibration solution sachet, HI700661 electrode cleaning solution sachets (2), 9v battery (1), instructions and rugged carrying case. Warranty 2 years Recommended Probe HI1285-51 polypropylene body, pre-amplified multiparameter probe with internal temperature sensor, 8-pin DIN connector and 1 m (3.3') cable
TDS Accuracy @ 25°C / 77°F
±2% F.S. TDS Conversion Factor 0.5 ppm (mg/L) = 1 µS/cm TDS Calibration manual, 1-point through slope trimmer Power Supply 9V / approximately 450 hours of continuous use Environment 0 to 50°C (32 to 122°F) RH max 100% Dimensions 145 x 80 x 36 mm (5.7 x 3.1 x 1.4in.) Weight 230 g (8.1 oz.) Ordering Information HI9811-51 is supplied with HI1285-51 multiparameter probe, HI70007 pH 7.01 calibration solution sachet, HI70032 1382 ppm (mg/L) calibration solution sachet, HI70031 1413 µS/cm calibration solution sachet, HI700661 electrode cleaning solution sachets (2), 9v battery (1), instructions and rugged carrying case. Warranty 2 years Recommended Probe HI1285-51 polypropylene body, pre-amplified multiparameter probe with internal temperature sensor, 8-pin DIN connector and 1 m (3.3') cable
Temperature Accuracy @ 25°C / 77°F
±0.5°C Temperature Calibration Automatic, from 0 to 70°C with ß=2% / °C EC Range 0 to 6000 µS/cm EC Resolution 10 µS/cm EC Accuracy @25°C/77°F ±2% F.S. EC Calibration manual, 1-point through slope trimmer TDS Range 0 to 3000 ppm (mg/L) TDS Resolution 10 ppm (mg/L) TDS Accuracy @ 25°C / 77°F ±2% F.S. TDS Conversion Factor 0.5 ppm (mg/L) = 1 µS/cm TDS Calibration manual, 1-point through slope trimmer Power Supply 9V / approximately 450 hours of continuous use Environment 0 to 50°C (32 to 122°F) RH max 100% Dimensions 145 x 80 x 36 mm (5.7 x 3.1 x 1.4in.) Weight 230 g (8.1 oz.) Ordering Information HI9811-51 is supplied with HI1285-51 multiparameter probe, HI70007 pH 7.01 calibration solution sachet, HI70032 1382 ppm (mg/L) calibration solution sachet, HI70031 1413 µS/cm calibration solution sachet, HI700661 electrode cleaning solution sachets (2), 9v battery (1), instructions and rugged carrying case. Warranty 2 years Recommended Probe HI1285-51 polypropylene body, pre-amplified multiparameter probe with internal temperature sensor, 8-pin DIN connector and 1 m (3.3') cable
Couverture de service

AxiTech entretient, répare et fournit cet équipement pour les hôpitaux, les cliniques, les laboratoires et les centres d’imagerie.

Contrats de maintenance pour pH/EC/TDS/Temperature meter with HI1285-51 electrode; EC range: 0 to 6000 µS/cm, TDS range: 0 to 3000 ppm (mg/L)

AxiTech propose des contrats de maintenance préventive pour pH/EC/TDS/Temperature meter with HI1285-51 electrode; EC range: 0 to 6000 µS/cm, TDS range: 0 to 3000 ppm (mg/L). Chaque contrat fixe un calendrier de visites planifiées au cours desquelles nos ingénieurs biomédicaux inspectent l’équipement, remplacent les pièces d’usure avant la panne et vérifient qu’il reste dans les tolérances du fabricant.

Chaque visite comprend l’étalonnage et la vérification des performances, et se conclut par un rapport de maintenance documenté que vous pouvez présenter lors d’un audit d’accréditation. La disponibilité des pièces de rechange et le délai d’intervention garanti sont inscrits au contrat : une panne ne laisse jamais un service sans réponse.

Prévoyez au moins une visite de maintenance préventive par an, et une seconde visite pour les équipements en usage continu ou critique.

  • Visites de maintenance préventive planifiées à intervalle fixe
  • Étalonnage et vérification des performances selon les spécifications du fabricant
  • Un rapport de maintenance documenté après chaque intervention
  • Disponibilité garantie des pièces de rechange et des consommables
  • Un délai d’intervention contractuel en cas de panne

Découvrir nos contrats de maintenance

Maintenance préventive planifiée et étalonnage sous contrat

Dépannage et réparation de pH/EC/TDS/Temperature meter with HI1285-51 electrode; EC range: 0 to 6000 µS/cm, TDS range: 0 to 3000 ppm (mg/L)

En cas de panne de pH/EC/TDS/Temperature meter with HI1285-51 electrode; EC range: 0 to 6000 µS/cm, TDS range: 0 to 3000 ppm (mg/L), nos ingénieurs commencent par un diagnostic structuré : codes d’erreur, contrôles électriques et mécaniques, puis test fonctionnel au regard des spécifications de l’équipement. Nous savons ainsi s’il s’agit d’un consommable, d’une pièce d’usure ou d’une défaillance de carte avant de commander la moindre pièce.

Les pannes simples sont réparées sur site afin de limiter l’immobilisation du service. Tout ce qui exige un établi, un démontage complet ou une pièce de rechange spécifique part à notre atelier et ne revient qu’après un test complet après réparation et, lorsque l’équipement l’impose, un réétalonnage.

Pannes les plus fréquentes sur ce type d’équipement

Les pannes les plus fréquentes concernent les pièces mobiles usées, les alimentations et les cartes de commande, les capteurs sortis de tolérance, ainsi que les circuits de fluide ou d’air obstrués ou contaminés.

Découvrir notre service de dépannage et réparation

Diagnostic, réparation curative et pièces de rechange en atelier
Dépannage

Comment dépanner pH/EC/TDS/Temperature meter with HI1285-51 electrode; EC range: 0 to 6000 µS/cm, TDS range: 0 to 3000 ppm (mg/L)

Déroulez ces vérifications avant toute escalade. C’est la séquence de premier niveau que nos ingénieurs biomédicaux appliquent à leur arrivée : soit elle lève la panne, soit elle la circonscrit suffisamment pour que l’intervention démarre avec la bonne pièce de rechange dans le véhicule.

  1. Documentez la panne avant toute manipulation : notez le code ou message d’erreur exact, le numéro de série figurant sur la plaque signalétique, ce que faisait l’opérateur, et si la panne disparaît après redémarrage.

  2. Contrôlez l’alimentation de bout en bout : prise murale, cordon secteur, fusible et tout onduleur ou stabilisateur intercalé. Un appareil qui s’éteint par intermittence présente bien plus souvent un défaut d’alimentation qu’une panne interne.

  3. Vérifiez les consommables et les pièces d’usure — filtres, joints, tubulures, sondes, batteries — et relevez leur dernière date de remplacement. Tout élément au-delà de son intervalle d’entretien est le premier suspect.

  4. Reproduisez la panne une fois, délibérément, et consignez la séquence : action de l’opérateur, affichage de l’appareil, et disparition ou non du défaut après une coupure complète de l’alimentation.

  5. Si la panne subsiste, escaladez avec les éléments recueillis. Transmettez à AxiTech le modèle, le numéro de série, le code d’erreur et les vérifications déjà effectuées : un ingénieur vous répondra avec un diagnostic, un devis de réparation et un délai d’approvisionnement des pièces pour pH/EC/TDS/Temperature meter with HI1285-51 electrode; EC range: 0 to 6000 µS/cm, TDS range: 0 to 3000 ppm (mg/L).

À nous transmettre lors du signalement

  • Fabricant, modèle et numéro de série, relevés sur la plaque signalétique
  • Le code ou le message d’erreur exact, et l’écran sur lequel il apparaît
  • Depuis quand la panne survient, à quelle fréquence et ce qui la déclenche
  • Une photographie de l’écran ou de la panne, et le dernier rapport de maintenance

Si la panne persiste au terme des cinq étapes, cessez d’utiliser pH/EC/TDS/Temperature meter with HI1285-51 electrode; EC range: 0 to 6000 µS/cm, TDS range: 0 to 3000 ppm (mg/L) et ouvrez une demande de réparation. Faire tourner un appareil sur une panne qu’il ne peut pas lever transforme une défaillance de composant en défaillance de carte, et sur un équipement de diagnostic ou de thérapie cela met en cause le résultat — et le patient.

Découvrir notre service de dépannage et réparation

Achat et installation de pH/EC/TDS/Temperature meter with HI1285-51 electrode; EC range: 0 to 6000 µS/cm, TDS range: 0 to 3000 ppm (mg/L)

AxiTech fournit pH/EC/TDS/Temperature meter with HI1285-51 electrode; EC range: 0 to 6000 µS/cm, TDS range: 0 to 3000 ppm (mg/L) avec les accessoires et les consommables nécessaires à sa mise en service. Nous prenons en charge l’importation, la livraison et l’installation, puis la mise en service sur site afin que l’équipement soit vérifié au regard de ses spécifications avant le premier patient ou le premier échantillon.

L’installation est suivie de la formation des utilisateurs et de votre équipe biomédicale, de l’enregistrement de la garantie et, si vous le souhaitez, d’un contrat de maintenance qui prend le relais dès la fin de la garantie : l’équipement ne reste jamais sans entretien planifié.

Découvrir notre service de vente d’équipements

Livraison, installation, mise en service et formation des utilisateurs
Les questions qu’on nous pose

Questions fréquentes sur Hanna Instruments pH/EC/TDS/Temperature meter with HI1285-51 electrode; EC range: 0 to 6000 µS/cm, TDS range: 0 to 3000 ppm (mg/L)

Oui. AxiTech assure la maintenance de pH/EC/TDS/Temperature meter with HI1285-51 electrode; EC range: 0 to 6000 µS/cm, TDS range: 0 to 3000 ppm (mg/L), dans le cadre d’un contrat de maintenance comme en intervention ponctuelle. Nos ingénieurs biomédicaux couvrent la maintenance préventive, l’étalonnage, la réparation corrective et la fourniture des pièces de rechange de cet équipement.
