AxiTech — Le cœur de la précision

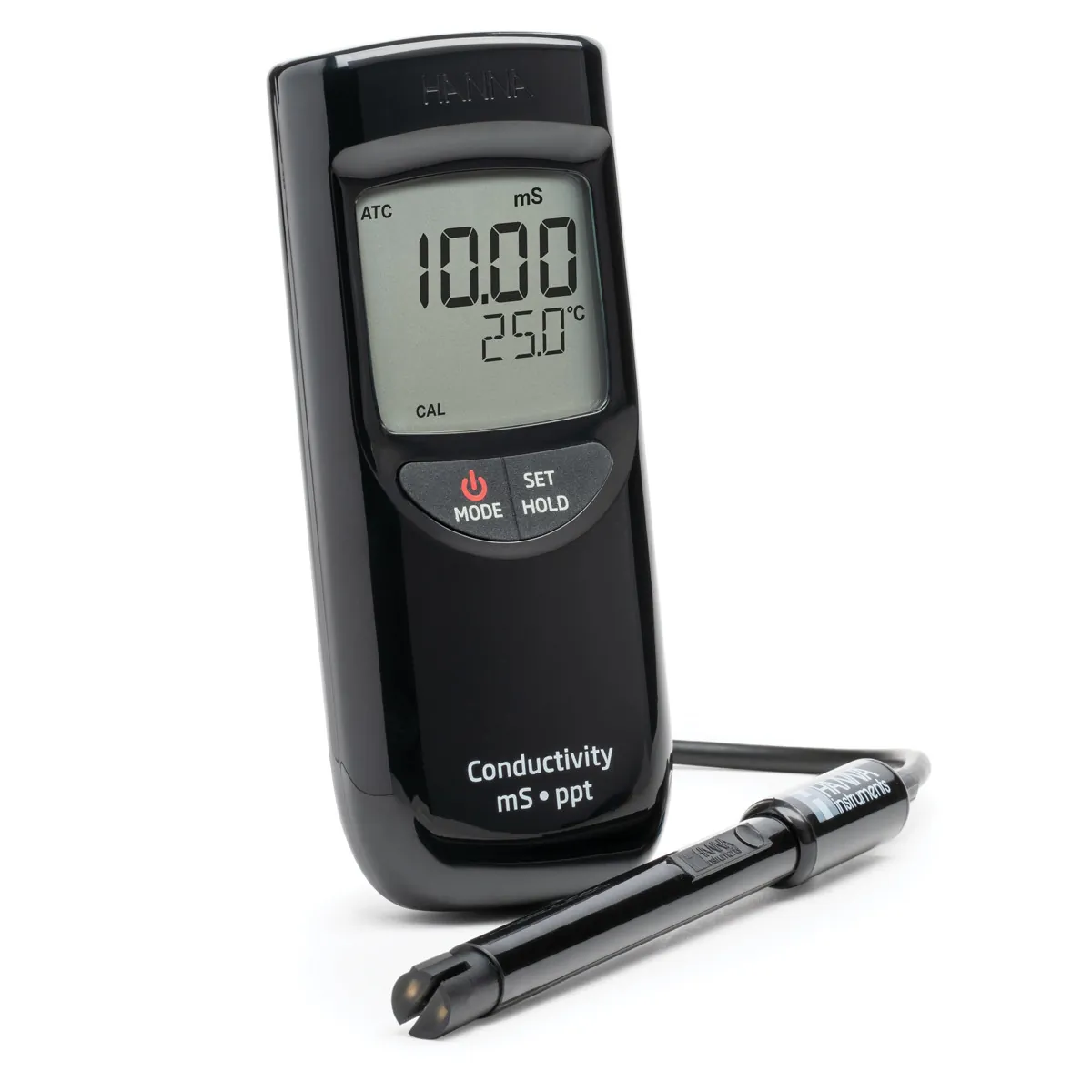

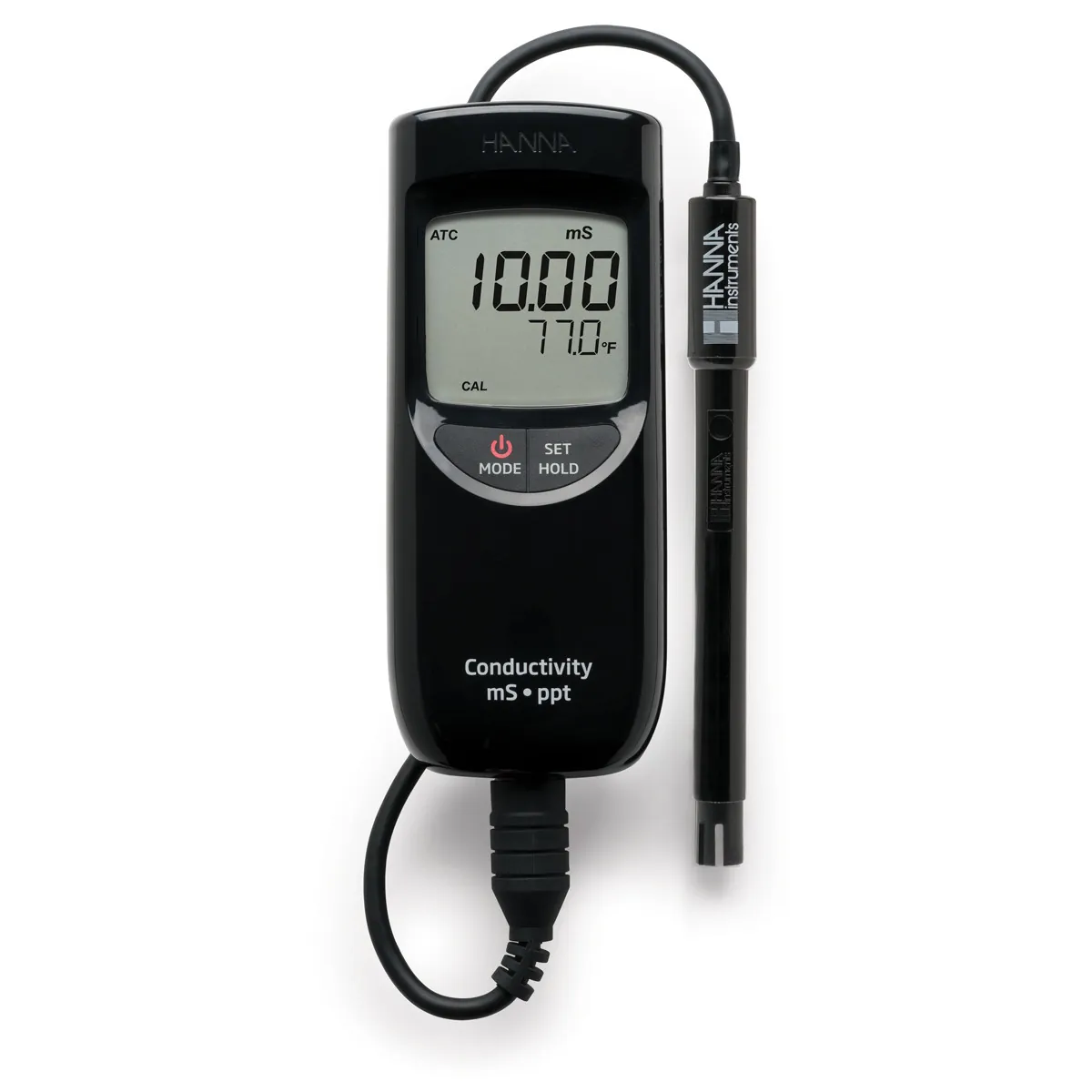

Portable High Range EC/TDS Meter — photographie principale
Hanna InstrumentsDisponibilité: Fourni sur commande

Portable High Range EC/TDS Meter

Référence HI99301

Appareil de mesure de laboratoire Portable High Range EC/TDS Meter de Hanna Instruments — AxiTech en assure la vente, l'installation et la mise en service, ainsi que la maintenance préventive, l'étalonnage, le dépannage et la réparation, avec fourniture de pièces de rechange.

Demander une prestation pour cet équipement

Aucun paiement n’est effectué en ligne. Chaque demande est étudiée par un ingénieur AxiTech avant l’envoi du devis.

En un coup d’œil

Référence
HI99301
Catégorie
pH-mètres et analyse de l'eau
Famille d’équipements
Industry/Industrial, Industry/Industrial/Chemical manufacturing, Industry/Industrial/Water treatment, Industry/Water, Industry/Water/Aquaculture, Industry/Water/Wastewater, Industry/Water/Drinking wat

Présentation

Designed to bring simplicity to testing in manufacturing and environmental industries, the HI99301 High Range EC/TDS Meter is designed for measurements in brackish and high ionic strength water applications. The specialized HI763063 probe features EC/TDS and temperature in one convenient, rugged probe for high range EC measurements from 0.00 to 20.00 mS/cm and TDS measurements from 0.00 to 10.00 ppt.

Maintenance contract — AxiTech provides planned preventive maintenance for Portable High Range EC/TDS Meter from Hanna Instruments: scheduled visits, safety checks, periodic calibration and a documented service report, backed by a contractual response time.

Troubleshooting, repair and spare parts — our ph, conductivity & water analysis engineers diagnose and repair Portable High Range EC/TDS Meter on site or in the workshop, fit genuine spare parts and recommission the equipment after performance verification.

Caractéristiques

  • ±2% EC/TDS Accuracy
  • Comes with all the necessary solutions and batteries- everything you need to get started measuring right away.
  • Perfect for water quality testing in manufacturing and environmental industries.

Spécifications techniques

Specifications
Sku
HI99301 Temperature Range -5.0 to 105.0 °C / 23.0 to 221.0 °F Temperature Resolution 0.1 °C / 0.1 °F Temperature Accuracy @ 25°C / 77°F ±0.5 °C / ±1.0 °F Temperature EC Range 0.00 to 20.00 mS/ cm* EC Resolution 0.01 mS/cm EC Accuracy @25°C/77°F ±2% F.S. (EC/TDS) EC Calibration Automatic, one-point at 12.88 mS/cm TDS Range 0.00 to 10.00 ppt TDS Resolution 0.01 ppt (g/L) TDS Accuracy @ 25°C / 77°F ±2% F.S. (EC/TDS) TDS Conversion Factor Selectable from 0.45 to 1.00 with 0.01 increments TDS Calibration Automatic, at one-point at 6.44 ppt (CONV=0.5) or 9.02 ppt (CONV=0.7) Temperature Compensation Automatic, with β selectable from 0.0 to 2.4 %/ °C with 0.1 increments Power Supply 1.5V AAA batteries (3 pcs.) Power Consumption approx. 500 hours of continuous use Environment 0 to 50 °C (32 to 122 °F) RH max. 100% Dimensions 154 x 63 x 30 mm (6.1 x 2.5 x 1.2in.) Weight 196 g (6.91 oz.) with batteries Ordering Information Each meter is supplied complete with: • HI763063 pH/EC/TDS probe with built‑in temperature sensor, DIN connector and 1m (3.3') cable • HI70030 12880 μS/cm and HI70038 6.44 ppt 1 sachet each for HI99301 • 100 mL beaker (1 pcs.) • Alkaline batteries: 1.5V AAA (3 pcs.) • Rugged carrying case • Calibration certificate of meter • Calibration certificate of probe • Instruction manual Warranty 2 years Recommended Probe HI763063 EC/TDS/temperature sensor, DIN connector and 1 m (3.3') cable (included)
Weight
196 g (6.91 oz.) with batteries Ordering Information Each meter is supplied complete with: • HI763063 pH/EC/TDS probe with built‑in temperature sensor, DIN connector and 1m (3.3') cable • HI70030 12880 μS/cm and HI70038 6.44 ppt 1 sachet each for HI99301 • 100 mL beaker (1 pcs.) • Alkaline batteries: 1.5V AAA (3 pcs.) • Rugged carrying case • Calibration certificate of meter • Calibration certificate of probe • Instruction manual Warranty 2 years Recommended Probe HI763063 EC/TDS/temperature sensor, DIN connector and 1 m (3.3') cable (included)
EC Range
0.00 to 20.00 mS/ cm* EC Resolution 0.01 mS/cm EC Accuracy @25°C/77°F ±2% F.S. (EC/TDS) EC Calibration Automatic, one-point at 12.88 mS/cm TDS Range 0.00 to 10.00 ppt TDS Resolution 0.01 ppt (g/L) TDS Accuracy @ 25°C / 77°F ±2% F.S. (EC/TDS) TDS Conversion Factor Selectable from 0.45 to 1.00 with 0.01 increments TDS Calibration Automatic, at one-point at 6.44 ppt (CONV=0.5) or 9.02 ppt (CONV=0.7) Temperature Compensation Automatic, with β selectable from 0.0 to 2.4 %/ °C with 0.1 increments Power Supply 1.5V AAA batteries (3 pcs.) Power Consumption approx. 500 hours of continuous use Environment 0 to 50 °C (32 to 122 °F) RH max. 100% Dimensions 154 x 63 x 30 mm (6.1 x 2.5 x 1.2in.) Weight 196 g (6.91 oz.) with batteries Ordering Information Each meter is supplied complete with: • HI763063 pH/EC/TDS probe with built‑in temperature sensor, DIN connector and 1m (3.3') cable • HI70030 12880 μS/cm and HI70038 6.44 ppt 1 sachet each for HI99301 • 100 mL beaker (1 pcs.) • Alkaline batteries: 1.5V AAA (3 pcs.) • Rugged carrying case • Calibration certificate of meter • Calibration certificate of probe • Instruction manual Warranty 2 years Recommended Probe HI763063 EC/TDS/temperature sensor, DIN connector and 1 m (3.3') cable (included)
Warranty
2 years Recommended Probe HI763063 EC/TDS/temperature sensor, DIN connector and 1 m (3.3') cable (included)
TDS Range
0.00 to 10.00 ppt TDS Resolution 0.01 ppt (g/L) TDS Accuracy @ 25°C / 77°F ±2% F.S. (EC/TDS) TDS Conversion Factor Selectable from 0.45 to 1.00 with 0.01 increments TDS Calibration Automatic, at one-point at 6.44 ppt (CONV=0.5) or 9.02 ppt (CONV=0.7) Temperature Compensation Automatic, with β selectable from 0.0 to 2.4 %/ °C with 0.1 increments Power Supply 1.5V AAA batteries (3 pcs.) Power Consumption approx. 500 hours of continuous use Environment 0 to 50 °C (32 to 122 °F) RH max. 100% Dimensions 154 x 63 x 30 mm (6.1 x 2.5 x 1.2in.) Weight 196 g (6.91 oz.) with batteries Ordering Information Each meter is supplied complete with: • HI763063 pH/EC/TDS probe with built‑in temperature sensor, DIN connector and 1m (3.3') cable • HI70030 12880 μS/cm and HI70038 6.44 ppt 1 sachet each for HI99301 • 100 mL beaker (1 pcs.) • Alkaline batteries: 1.5V AAA (3 pcs.) • Rugged carrying case • Calibration certificate of meter • Calibration certificate of probe • Instruction manual Warranty 2 years Recommended Probe HI763063 EC/TDS/temperature sensor, DIN connector and 1 m (3.3') cable (included)
Dimensions
154 x 63 x 30 mm (6.1 x 2.5 x 1.2in.) Weight 196 g (6.91 oz.) with batteries Ordering Information Each meter is supplied complete with: • HI763063 pH/EC/TDS probe with built‑in temperature sensor, DIN connector and 1m (3.3') cable • HI70030 12880 μS/cm and HI70038 6.44 ppt 1 sachet each for HI99301 • 100 mL beaker (1 pcs.) • Alkaline batteries: 1.5V AAA (3 pcs.) • Rugged carrying case • Calibration certificate of meter • Calibration certificate of probe • Instruction manual Warranty 2 years Recommended Probe HI763063 EC/TDS/temperature sensor, DIN connector and 1 m (3.3') cable (included)
Environment
0 to 50 °C (32 to 122 °F) RH max. 100% Dimensions 154 x 63 x 30 mm (6.1 x 2.5 x 1.2in.) Weight 196 g (6.91 oz.) with batteries Ordering Information Each meter is supplied complete with: • HI763063 pH/EC/TDS probe with built‑in temperature sensor, DIN connector and 1m (3.3') cable • HI70030 12880 μS/cm and HI70038 6.44 ppt 1 sachet each for HI99301 • 100 mL beaker (1 pcs.) • Alkaline batteries: 1.5V AAA (3 pcs.) • Rugged carrying case • Calibration certificate of meter • Calibration certificate of probe • Instruction manual Warranty 2 years Recommended Probe HI763063 EC/TDS/temperature sensor, DIN connector and 1 m (3.3') cable (included)
Power Supply
1.5V AAA batteries (3 pcs.) Power Consumption approx. 500 hours of continuous use Environment 0 to 50 °C (32 to 122 °F) RH max. 100% Dimensions 154 x 63 x 30 mm (6.1 x 2.5 x 1.2in.) Weight 196 g (6.91 oz.) with batteries Ordering Information Each meter is supplied complete with: • HI763063 pH/EC/TDS probe with built‑in temperature sensor, DIN connector and 1m (3.3') cable • HI70030 12880 μS/cm and HI70038 6.44 ppt 1 sachet each for HI99301 • 100 mL beaker (1 pcs.) • Alkaline batteries: 1.5V AAA (3 pcs.) • Rugged carrying case • Calibration certificate of meter • Calibration certificate of probe • Instruction manual Warranty 2 years Recommended Probe HI763063 EC/TDS/temperature sensor, DIN connector and 1 m (3.3') cable (included)
EC Resolution
0.01 mS/cm EC Accuracy @25°C/77°F ±2% F.S. (EC/TDS) EC Calibration Automatic, one-point at 12.88 mS/cm TDS Range 0.00 to 10.00 ppt TDS Resolution 0.01 ppt (g/L) TDS Accuracy @ 25°C / 77°F ±2% F.S. (EC/TDS) TDS Conversion Factor Selectable from 0.45 to 1.00 with 0.01 increments TDS Calibration Automatic, at one-point at 6.44 ppt (CONV=0.5) or 9.02 ppt (CONV=0.7) Temperature Compensation Automatic, with β selectable from 0.0 to 2.4 %/ °C with 0.1 increments Power Supply 1.5V AAA batteries (3 pcs.) Power Consumption approx. 500 hours of continuous use Environment 0 to 50 °C (32 to 122 °F) RH max. 100% Dimensions 154 x 63 x 30 mm (6.1 x 2.5 x 1.2in.) Weight 196 g (6.91 oz.) with batteries Ordering Information Each meter is supplied complete with: • HI763063 pH/EC/TDS probe with built‑in temperature sensor, DIN connector and 1m (3.3') cable • HI70030 12880 μS/cm and HI70038 6.44 ppt 1 sachet each for HI99301 • 100 mL beaker (1 pcs.) • Alkaline batteries: 1.5V AAA (3 pcs.) • Rugged carrying case • Calibration certificate of meter • Calibration certificate of probe • Instruction manual Warranty 2 years Recommended Probe HI763063 EC/TDS/temperature sensor, DIN connector and 1 m (3.3') cable (included)
EC Calibration
Automatic, one-point at 12.88 mS/cm TDS Range 0.00 to 10.00 ppt TDS Resolution 0.01 ppt (g/L) TDS Accuracy @ 25°C / 77°F ±2% F.S. (EC/TDS) TDS Conversion Factor Selectable from 0.45 to 1.00 with 0.01 increments TDS Calibration Automatic, at one-point at 6.44 ppt (CONV=0.5) or 9.02 ppt (CONV=0.7) Temperature Compensation Automatic, with β selectable from 0.0 to 2.4 %/ °C with 0.1 increments Power Supply 1.5V AAA batteries (3 pcs.) Power Consumption approx. 500 hours of continuous use Environment 0 to 50 °C (32 to 122 °F) RH max. 100% Dimensions 154 x 63 x 30 mm (6.1 x 2.5 x 1.2in.) Weight 196 g (6.91 oz.) with batteries Ordering Information Each meter is supplied complete with: • HI763063 pH/EC/TDS probe with built‑in temperature sensor, DIN connector and 1m (3.3') cable • HI70030 12880 μS/cm and HI70038 6.44 ppt 1 sachet each for HI99301 • 100 mL beaker (1 pcs.) • Alkaline batteries: 1.5V AAA (3 pcs.) • Rugged carrying case • Calibration certificate of meter • Calibration certificate of probe • Instruction manual Warranty 2 years Recommended Probe HI763063 EC/TDS/temperature sensor, DIN connector and 1 m (3.3') cable (included)
TDS Resolution
0.01 ppt (g/L) TDS Accuracy @ 25°C / 77°F ±2% F.S. (EC/TDS) TDS Conversion Factor Selectable from 0.45 to 1.00 with 0.01 increments TDS Calibration Automatic, at one-point at 6.44 ppt (CONV=0.5) or 9.02 ppt (CONV=0.7) Temperature Compensation Automatic, with β selectable from 0.0 to 2.4 %/ °C with 0.1 increments Power Supply 1.5V AAA batteries (3 pcs.) Power Consumption approx. 500 hours of continuous use Environment 0 to 50 °C (32 to 122 °F) RH max. 100% Dimensions 154 x 63 x 30 mm (6.1 x 2.5 x 1.2in.) Weight 196 g (6.91 oz.) with batteries Ordering Information Each meter is supplied complete with: • HI763063 pH/EC/TDS probe with built‑in temperature sensor, DIN connector and 1m (3.3') cable • HI70030 12880 μS/cm and HI70038 6.44 ppt 1 sachet each for HI99301 • 100 mL beaker (1 pcs.) • Alkaline batteries: 1.5V AAA (3 pcs.) • Rugged carrying case • Calibration certificate of meter • Calibration certificate of probe • Instruction manual Warranty 2 years Recommended Probe HI763063 EC/TDS/temperature sensor, DIN connector and 1 m (3.3') cable (included)
TDS Calibration
Automatic, at one-point at 6.44 ppt (CONV=0.5) or 9.02 ppt (CONV=0.7) Temperature Compensation Automatic, with β selectable from 0.0 to 2.4 %/ °C with 0.1 increments Power Supply 1.5V AAA batteries (3 pcs.) Power Consumption approx. 500 hours of continuous use Environment 0 to 50 °C (32 to 122 °F) RH max. 100% Dimensions 154 x 63 x 30 mm (6.1 x 2.5 x 1.2in.) Weight 196 g (6.91 oz.) with batteries Ordering Information Each meter is supplied complete with: • HI763063 pH/EC/TDS probe with built‑in temperature sensor, DIN connector and 1m (3.3') cable • HI70030 12880 μS/cm and HI70038 6.44 ppt 1 sachet each for HI99301 • 100 mL beaker (1 pcs.) • Alkaline batteries: 1.5V AAA (3 pcs.) • Rugged carrying case • Calibration certificate of meter • Calibration certificate of probe • Instruction manual Warranty 2 years Recommended Probe HI763063 EC/TDS/temperature sensor, DIN connector and 1 m (3.3') cable (included)
Power Consumption
approx. 500 hours of continuous use Environment 0 to 50 °C (32 to 122 °F) RH max. 100% Dimensions 154 x 63 x 30 mm (6.1 x 2.5 x 1.2in.) Weight 196 g (6.91 oz.) with batteries Ordering Information Each meter is supplied complete with: • HI763063 pH/EC/TDS probe with built‑in temperature sensor, DIN connector and 1m (3.3') cable • HI70030 12880 μS/cm and HI70038 6.44 ppt 1 sachet each for HI99301 • 100 mL beaker (1 pcs.) • Alkaline batteries: 1.5V AAA (3 pcs.) • Rugged carrying case • Calibration certificate of meter • Calibration certificate of probe • Instruction manual Warranty 2 years Recommended Probe HI763063 EC/TDS/temperature sensor, DIN connector and 1 m (3.3') cable (included)
Recommended Probe
HI763063 EC/TDS/temperature sensor, DIN connector and 1 m (3.3') cable (included)
Temperature Range
-5.0 to 105.0 °C / 23.0 to 221.0 °F Temperature Resolution 0.1 °C / 0.1 °F Temperature Accuracy @ 25°C / 77°F ±0.5 °C / ±1.0 °F Temperature EC Range 0.00 to 20.00 mS/ cm* EC Resolution 0.01 mS/cm EC Accuracy @25°C/77°F ±2% F.S. (EC/TDS) EC Calibration Automatic, one-point at 12.88 mS/cm TDS Range 0.00 to 10.00 ppt TDS Resolution 0.01 ppt (g/L) TDS Accuracy @ 25°C / 77°F ±2% F.S. (EC/TDS) TDS Conversion Factor Selectable from 0.45 to 1.00 with 0.01 increments TDS Calibration Automatic, at one-point at 6.44 ppt (CONV=0.5) or 9.02 ppt (CONV=0.7) Temperature Compensation Automatic, with β selectable from 0.0 to 2.4 %/ °C with 0.1 increments Power Supply 1.5V AAA batteries (3 pcs.) Power Consumption approx. 500 hours of continuous use Environment 0 to 50 °C (32 to 122 °F) RH max. 100% Dimensions 154 x 63 x 30 mm (6.1 x 2.5 x 1.2in.) Weight 196 g (6.91 oz.) with batteries Ordering Information Each meter is supplied complete with: • HI763063 pH/EC/TDS probe with built‑in temperature sensor, DIN connector and 1m (3.3') cable • HI70030 12880 μS/cm and HI70038 6.44 ppt 1 sachet each for HI99301 • 100 mL beaker (1 pcs.) • Alkaline batteries: 1.5V AAA (3 pcs.) • Rugged carrying case • Calibration certificate of meter • Calibration certificate of probe • Instruction manual Warranty 2 years Recommended Probe HI763063 EC/TDS/temperature sensor, DIN connector and 1 m (3.3') cable (included)
Ordering Information

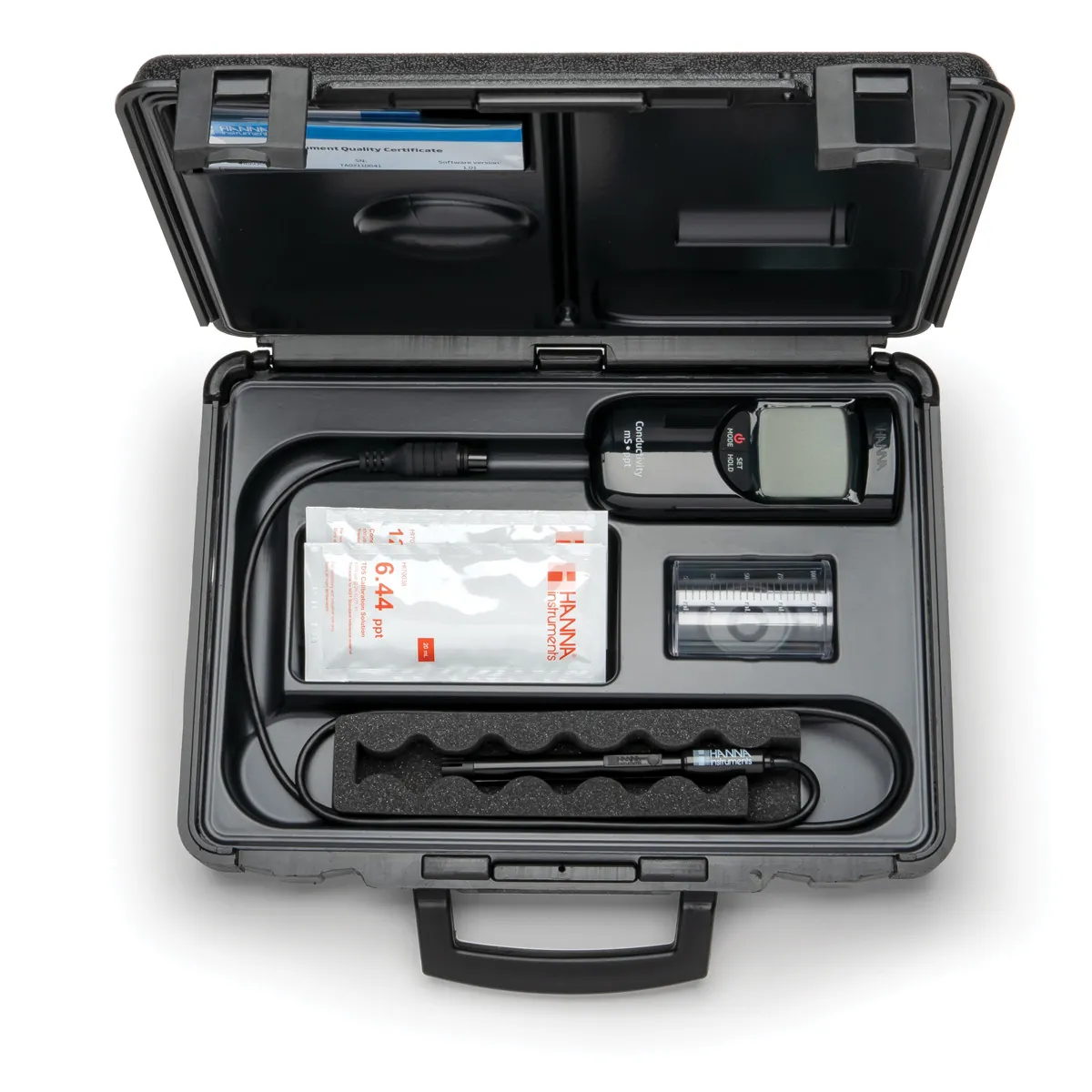

Each meter is supplied complete with: • HI763063 pH/EC/TDS probe with built‑in temperature sensor, DIN connector and 1m (3.3') cable • HI70030 12880 μS/cm and HI70038 6.44 ppt 1 sachet each for HI99301 • 100 mL beaker (1 pcs.) • Alkaline batteries: 1.5V AAA (3 pcs.) • Rugged carrying case • Calibration certificate of meter • Calibration certificate of probe • Instruction manual Warranty 2 years Recommended Probe HI763063 EC/TDS/temperature sensor, DIN connector and 1 m (3.3') cable (included)
TDS Conversion Factor
Selectable from 0.45 to 1.00 with 0.01 increments TDS Calibration Automatic, at one-point at 6.44 ppt (CONV=0.5) or 9.02 ppt (CONV=0.7) Temperature Compensation Automatic, with β selectable from 0.0 to 2.4 %/ °C with 0.1 increments Power Supply 1.5V AAA batteries (3 pcs.) Power Consumption approx. 500 hours of continuous use Environment 0 to 50 °C (32 to 122 °F) RH max. 100% Dimensions 154 x 63 x 30 mm (6.1 x 2.5 x 1.2in.) Weight 196 g (6.91 oz.) with batteries Ordering Information Each meter is supplied complete with: • HI763063 pH/EC/TDS probe with built‑in temperature sensor, DIN connector and 1m (3.3') cable • HI70030 12880 μS/cm and HI70038 6.44 ppt 1 sachet each for HI99301 • 100 mL beaker (1 pcs.) • Alkaline batteries: 1.5V AAA (3 pcs.) • Rugged carrying case • Calibration certificate of meter • Calibration certificate of probe • Instruction manual Warranty 2 years Recommended Probe HI763063 EC/TDS/temperature sensor, DIN connector and 1 m (3.3') cable (included)
Temperature Resolution
0.1 °C / 0.1 °F Temperature Accuracy @ 25°C / 77°F ±0.5 °C / ±1.0 °F Temperature EC Range 0.00 to 20.00 mS/ cm* EC Resolution 0.01 mS/cm EC Accuracy @25°C/77°F ±2% F.S. (EC/TDS) EC Calibration Automatic, one-point at 12.88 mS/cm TDS Range 0.00 to 10.00 ppt TDS Resolution 0.01 ppt (g/L) TDS Accuracy @ 25°C / 77°F ±2% F.S. (EC/TDS) TDS Conversion Factor Selectable from 0.45 to 1.00 with 0.01 increments TDS Calibration Automatic, at one-point at 6.44 ppt (CONV=0.5) or 9.02 ppt (CONV=0.7) Temperature Compensation Automatic, with β selectable from 0.0 to 2.4 %/ °C with 0.1 increments Power Supply 1.5V AAA batteries (3 pcs.) Power Consumption approx. 500 hours of continuous use Environment 0 to 50 °C (32 to 122 °F) RH max. 100% Dimensions 154 x 63 x 30 mm (6.1 x 2.5 x 1.2in.) Weight 196 g (6.91 oz.) with batteries Ordering Information Each meter is supplied complete with: • HI763063 pH/EC/TDS probe with built‑in temperature sensor, DIN connector and 1m (3.3') cable • HI70030 12880 μS/cm and HI70038 6.44 ppt 1 sachet each for HI99301 • 100 mL beaker (1 pcs.) • Alkaline batteries: 1.5V AAA (3 pcs.) • Rugged carrying case • Calibration certificate of meter • Calibration certificate of probe • Instruction manual Warranty 2 years Recommended Probe HI763063 EC/TDS/temperature sensor, DIN connector and 1 m (3.3') cable (included)
EC Accuracy @25°C/77°F
±2% F.S. (EC/TDS) EC Calibration Automatic, one-point at 12.88 mS/cm TDS Range 0.00 to 10.00 ppt TDS Resolution 0.01 ppt (g/L) TDS Accuracy @ 25°C / 77°F ±2% F.S. (EC/TDS) TDS Conversion Factor Selectable from 0.45 to 1.00 with 0.01 increments TDS Calibration Automatic, at one-point at 6.44 ppt (CONV=0.5) or 9.02 ppt (CONV=0.7) Temperature Compensation Automatic, with β selectable from 0.0 to 2.4 %/ °C with 0.1 increments Power Supply 1.5V AAA batteries (3 pcs.) Power Consumption approx. 500 hours of continuous use Environment 0 to 50 °C (32 to 122 °F) RH max. 100% Dimensions 154 x 63 x 30 mm (6.1 x 2.5 x 1.2in.) Weight 196 g (6.91 oz.) with batteries Ordering Information Each meter is supplied complete with: • HI763063 pH/EC/TDS probe with built‑in temperature sensor, DIN connector and 1m (3.3') cable • HI70030 12880 μS/cm and HI70038 6.44 ppt 1 sachet each for HI99301 • 100 mL beaker (1 pcs.) • Alkaline batteries: 1.5V AAA (3 pcs.) • Rugged carrying case • Calibration certificate of meter • Calibration certificate of probe • Instruction manual Warranty 2 years Recommended Probe HI763063 EC/TDS/temperature sensor, DIN connector and 1 m (3.3') cable (included)
Temperature Compensation
Automatic, with β selectable from 0.0 to 2.4 %/ °C with 0.1 increments Power Supply 1.5V AAA batteries (3 pcs.) Power Consumption approx. 500 hours of continuous use Environment 0 to 50 °C (32 to 122 °F) RH max. 100% Dimensions 154 x 63 x 30 mm (6.1 x 2.5 x 1.2in.) Weight 196 g (6.91 oz.) with batteries Ordering Information Each meter is supplied complete with: • HI763063 pH/EC/TDS probe with built‑in temperature sensor, DIN connector and 1m (3.3') cable • HI70030 12880 μS/cm and HI70038 6.44 ppt 1 sachet each for HI99301 • 100 mL beaker (1 pcs.) • Alkaline batteries: 1.5V AAA (3 pcs.) • Rugged carrying case • Calibration certificate of meter • Calibration certificate of probe • Instruction manual Warranty 2 years Recommended Probe HI763063 EC/TDS/temperature sensor, DIN connector and 1 m (3.3') cable (included)
TDS Accuracy @ 25°C / 77°F
±2% F.S. (EC/TDS) TDS Conversion Factor Selectable from 0.45 to 1.00 with 0.01 increments TDS Calibration Automatic, at one-point at 6.44 ppt (CONV=0.5) or 9.02 ppt (CONV=0.7) Temperature Compensation Automatic, with β selectable from 0.0 to 2.4 %/ °C with 0.1 increments Power Supply 1.5V AAA batteries (3 pcs.) Power Consumption approx. 500 hours of continuous use Environment 0 to 50 °C (32 to 122 °F) RH max. 100% Dimensions 154 x 63 x 30 mm (6.1 x 2.5 x 1.2in.) Weight 196 g (6.91 oz.) with batteries Ordering Information Each meter is supplied complete with: • HI763063 pH/EC/TDS probe with built‑in temperature sensor, DIN connector and 1m (3.3') cable • HI70030 12880 μS/cm and HI70038 6.44 ppt 1 sachet each for HI99301 • 100 mL beaker (1 pcs.) • Alkaline batteries: 1.5V AAA (3 pcs.) • Rugged carrying case • Calibration certificate of meter • Calibration certificate of probe • Instruction manual Warranty 2 years Recommended Probe HI763063 EC/TDS/temperature sensor, DIN connector and 1 m (3.3') cable (included)
Temperature Accuracy @ 25°C / 77°F
±0.5 °C / ±1.0 °F Temperature EC Range 0.00 to 20.00 mS/ cm* EC Resolution 0.01 mS/cm EC Accuracy @25°C/77°F ±2% F.S. (EC/TDS) EC Calibration Automatic, one-point at 12.88 mS/cm TDS Range 0.00 to 10.00 ppt TDS Resolution 0.01 ppt (g/L) TDS Accuracy @ 25°C / 77°F ±2% F.S. (EC/TDS) TDS Conversion Factor Selectable from 0.45 to 1.00 with 0.01 increments TDS Calibration Automatic, at one-point at 6.44 ppt (CONV=0.5) or 9.02 ppt (CONV=0.7) Temperature Compensation Automatic, with β selectable from 0.0 to 2.4 %/ °C with 0.1 increments Power Supply 1.5V AAA batteries (3 pcs.) Power Consumption approx. 500 hours of continuous use Environment 0 to 50 °C (32 to 122 °F) RH max. 100% Dimensions 154 x 63 x 30 mm (6.1 x 2.5 x 1.2in.) Weight 196 g (6.91 oz.) with batteries Ordering Information Each meter is supplied complete with: • HI763063 pH/EC/TDS probe with built‑in temperature sensor, DIN connector and 1m (3.3') cable • HI70030 12880 μS/cm and HI70038 6.44 ppt 1 sachet each for HI99301 • 100 mL beaker (1 pcs.) • Alkaline batteries: 1.5V AAA (3 pcs.) • Rugged carrying case • Calibration certificate of meter • Calibration certificate of probe • Instruction manual Warranty 2 years Recommended Probe HI763063 EC/TDS/temperature sensor, DIN connector and 1 m (3.3') cable (included)
Couverture de service

AxiTech entretient, répare et fournit cet équipement pour les hôpitaux, les cliniques, les laboratoires et les centres d’imagerie.

Contrats de maintenance pour Portable High Range EC/TDS Meter

AxiTech propose des contrats de maintenance préventive pour Portable High Range EC/TDS Meter. Chaque contrat fixe un calendrier de visites planifiées au cours desquelles nos ingénieurs biomédicaux inspectent l’équipement, remplacent les pièces d’usure avant la panne et vérifient qu’il reste dans les tolérances du fabricant.

Chaque visite comprend l’étalonnage et la vérification des performances, et se conclut par un rapport de maintenance documenté que vous pouvez présenter lors d’un audit d’accréditation. La disponibilité des pièces de rechange et le délai d’intervention garanti sont inscrits au contrat : une panne ne laisse jamais un service sans réponse.

Prévoyez au moins une visite de maintenance préventive par an, et une seconde visite pour les équipements en usage continu ou critique.

  • Visites de maintenance préventive planifiées à intervalle fixe
  • Étalonnage et vérification des performances selon les spécifications du fabricant
  • Un rapport de maintenance documenté après chaque intervention
  • Disponibilité garantie des pièces de rechange et des consommables
  • Un délai d’intervention contractuel en cas de panne

Découvrir nos contrats de maintenance

Maintenance préventive planifiée et étalonnage sous contrat

Dépannage et réparation de Portable High Range EC/TDS Meter

En cas de panne de Portable High Range EC/TDS Meter, nos ingénieurs commencent par un diagnostic structuré : codes d’erreur, contrôles électriques et mécaniques, puis test fonctionnel au regard des spécifications de l’équipement. Nous savons ainsi s’il s’agit d’un consommable, d’une pièce d’usure ou d’une défaillance de carte avant de commander la moindre pièce.

Les pannes simples sont réparées sur site afin de limiter l’immobilisation du service. Tout ce qui exige un établi, un démontage complet ou une pièce de rechange spécifique part à notre atelier et ne revient qu’après un test complet après réparation et, lorsque l’équipement l’impose, un réétalonnage.

Pannes les plus fréquentes sur ce type d’équipement

Les pannes les plus fréquentes concernent les pièces mobiles usées, les alimentations et les cartes de commande, les capteurs sortis de tolérance, ainsi que les circuits de fluide ou d’air obstrués ou contaminés.

Découvrir notre service de dépannage et réparation

Diagnostic, réparation curative et pièces de rechange en atelier
Dépannage

Comment dépanner Portable High Range EC/TDS Meter

Déroulez ces vérifications avant toute escalade. C’est la séquence de premier niveau que nos ingénieurs biomédicaux appliquent à leur arrivée : soit elle lève la panne, soit elle la circonscrit suffisamment pour que l’intervention démarre avec la bonne pièce de rechange dans le véhicule.

  1. Documentez la panne avant toute manipulation : notez le code ou message d’erreur exact, le numéro de série figurant sur la plaque signalétique, ce que faisait l’opérateur, et si la panne disparaît après redémarrage.

  2. Contrôlez l’alimentation de bout en bout : prise murale, cordon secteur, fusible et tout onduleur ou stabilisateur intercalé. Un appareil qui s’éteint par intermittence présente bien plus souvent un défaut d’alimentation qu’une panne interne.

  3. Vérifiez les consommables et les pièces d’usure — filtres, joints, tubulures, sondes, batteries — et relevez leur dernière date de remplacement. Tout élément au-delà de son intervalle d’entretien est le premier suspect.

  4. Reproduisez la panne une fois, délibérément, et consignez la séquence : action de l’opérateur, affichage de l’appareil, et disparition ou non du défaut après une coupure complète de l’alimentation.

  5. Si la panne subsiste, escaladez avec les éléments recueillis. Transmettez à AxiTech le modèle, le numéro de série, le code d’erreur et les vérifications déjà effectuées : un ingénieur vous répondra avec un diagnostic, un devis de réparation et un délai d’approvisionnement des pièces pour Portable High Range EC/TDS Meter.

À nous transmettre lors du signalement

  • Fabricant, modèle et numéro de série, relevés sur la plaque signalétique
  • Le code ou le message d’erreur exact, et l’écran sur lequel il apparaît
  • Depuis quand la panne survient, à quelle fréquence et ce qui la déclenche
  • Une photographie de l’écran ou de la panne, et le dernier rapport de maintenance

Si la panne persiste au terme des cinq étapes, cessez d’utiliser Portable High Range EC/TDS Meter et ouvrez une demande de réparation. Faire tourner un appareil sur une panne qu’il ne peut pas lever transforme une défaillance de composant en défaillance de carte, et sur un équipement de diagnostic ou de thérapie cela met en cause le résultat — et le patient.

Découvrir notre service de dépannage et réparation

Achat et installation de Portable High Range EC/TDS Meter

AxiTech fournit Portable High Range EC/TDS Meter avec les accessoires et les consommables nécessaires à sa mise en service. Nous prenons en charge l’importation, la livraison et l’installation, puis la mise en service sur site afin que l’équipement soit vérifié au regard de ses spécifications avant le premier patient ou le premier échantillon.

L’installation est suivie de la formation des utilisateurs et de votre équipe biomédicale, de l’enregistrement de la garantie et, si vous le souhaitez, d’un contrat de maintenance qui prend le relais dès la fin de la garantie : l’équipement ne reste jamais sans entretien planifié.

Découvrir notre service de vente d’équipements

Livraison, installation, mise en service et formation des utilisateurs
Les questions qu’on nous pose

Questions fréquentes sur Hanna Instruments Portable High Range EC/TDS Meter

Oui. AxiTech assure la maintenance de Portable High Range EC/TDS Meter, dans le cadre d’un contrat de maintenance comme en intervention ponctuelle. Nos ingénieurs biomédicaux couvrent la maintenance préventive, l’étalonnage, la réparation corrective et la fourniture des pièces de rechange de cet équipement.
