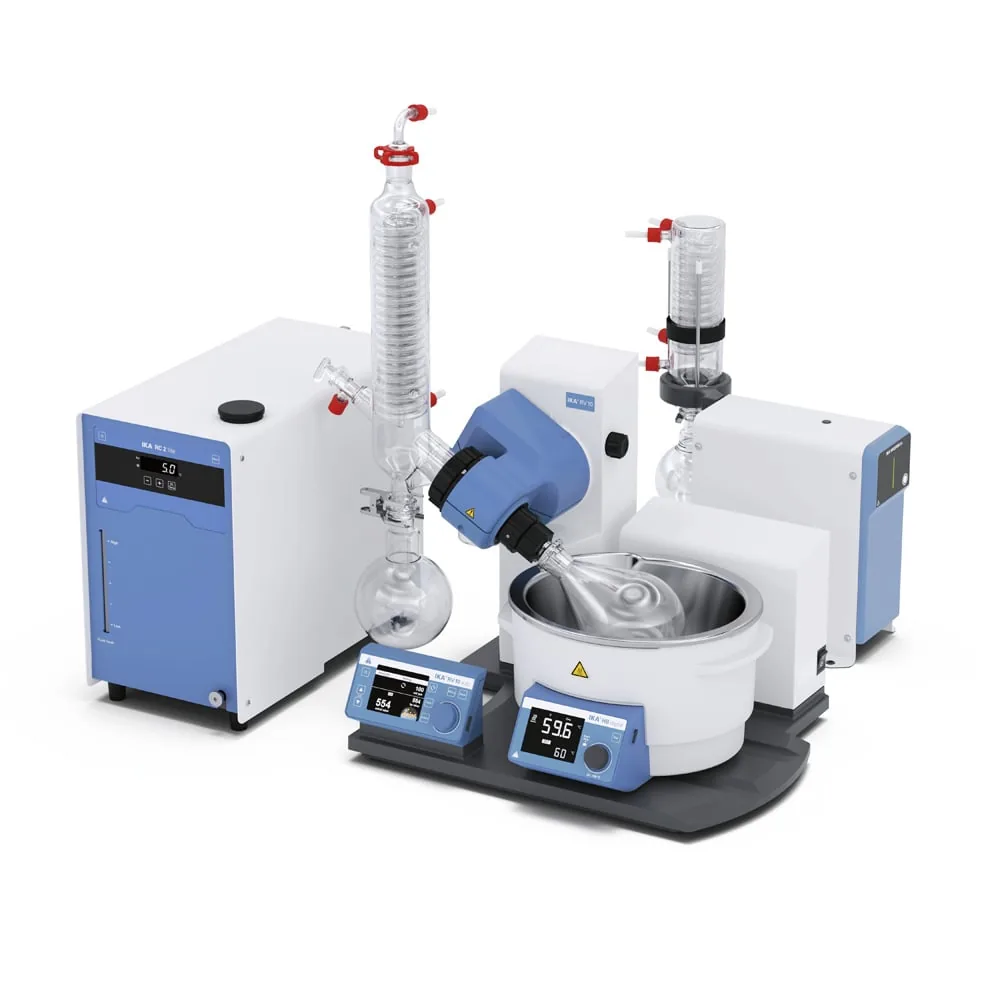

RV 10 auto V Starter Solution — photographie principale
IKADisponibilité: Fourni sur commande

RV 10 auto V Starter Solution

Référence 0010014909

Agitateur de laboratoire RV 10 auto V Starter Solution d'IKA — AxiTech accompagne les hôpitaux, cliniques et laboratoires sur tout le cycle de vie de cet équipement : vente, installation, mise en service, contrat de maintenance, étalonnage, dépannage et réparation.

Commander cet article

Aucun paiement n’est effectué en ligne. Chaque demande est étudiée par un ingénieur AxiTech avant l’envoi du devis.

En un coup d’œil

Référence
0010014909
Catégorie
Agitateurs et mélangeurs

Présentation

RV 10 auto V Starter Solution The RV 10 auto Starter Solution is the cost-effective complete package for your rotary evaporator setup. In addition to the rotary evaporator RV 10 auto, the package includes the heating bath HB digital with a capacity of 4 liters and a heating temperature range of RT to 180 °C, the vacuum pump VACSTAR lite and the recirculating chiller RC 2 lite. All components and connections required for operation are included. The RV 10 auto is the flagship of the IKA rotary evaporator product line. Among other features, it impresses with its innovative and intuitive operation via a brilliant TFT color graphic display, an integrated vacuum controller, cooling water monitoring and sophisticated safety standards. The RV 10 auto offers all characteristics for efficient, safe and economical operation. This includes the automatic regulation of the vacuum and the amount of cooling water. The individually adjustable cleaning cycle of the vacuum controller reduces the maintenance interval and at the same time extends the service life of the system. Thanks to specially designed glass guides, the transparently coated vertical condensor with 3 cooling coils uses the cooling s

Maintenance contract — AxiTech provides planned preventive maintenance for RV 10 auto V Starter Solution from IKA: scheduled visits, safety checks, periodic calibration and a documented service report, backed by a contractual response time.

Troubleshooting, repair and spare parts — our shakers, stirrers & mixers engineers diagnose and repair RV 10 auto V Starter Solution on site or in the workshop, fit genuine spare parts and recommission the equipment after performance verification.

Caractéristiques

  • RV 10 auto V Starter Solution
  • H 11 Mains cable Euro plug
  • VACSTAR lite
  • H.SI.8 Tube
  • VSE 1
  • RV 10.1 Glassware vertical
  • RV 10.70 Vapor tube (NS 29/32)
  • RC 2 lite

Spécifications techniques

Specifications
Lift
Motor
Timer
yes
Stroke
140 mm
Weight
18.6 kg
Voltage
100 - 240 V
Frequency
50/60 Hz
Heat output
1350 W
Power input
100 W
Speed range
5 - 300 rpm
Vacuum pump
VACSTAR lite
Analog output
yes
USB interface
Micro-USB
Final pressure
9 mbar
Cooling surface
1500 cm2
Type of cooling
Vertical condenser
RS 232 interface
yes
Filling volume max.
4 l
Power input standby
3.3 W
Dimensions (W x H x D)
500 x 430 x 440 mm
Pump rate max. (50/60Hz)
16.7 l/min
Heating temperature range
room temp. - 180 °C
Set temperature resolution
1 K
Vacuum controller integrated
yes
Permissible relative humidity
80 %
Permissible ambient temperature
5 - 40 °C
Reversible direction of rotation
yes
Protection class according to DIN EN 60529
IP 20
Speed tolerance set rotation speed < 100rpm
±1 rpm
Speed tolerance set rotation speed > 100rpm
±1 %
Fourniture et réapprovisionnement

AxiTech fournit RV 10 auto V Starter Solution en même temps que les instruments qui l’utilisent, afin qu’un étalonnage ou une intervention ne soit jamais retardé par un consommable manquant.

Commander RV 10 auto V Starter Solution

Indiquez-nous la référence et la quantité : nous vous adressons un prix, un délai et la documentation de lot. Les consommables commandés dans le cadre d’un contrat de maintenance sont planifiés avec la visite et arrivent donc avec l’ingénieur, et non après lui.

  • Documentation de lot et date de péremption fournies à chaque livraison
  • Devis assorti d’un délai, et pas seulement d’un prix
  • Planifié avec votre visite de maintenance si vous êtes sous contrat
  • Commandes ouvertes pour les articles consommés à rythme régulier
Les questions qu’on nous pose

Questions fréquentes sur IKA RV 10 auto V Starter Solution

Oui. AxiTech fournit RV 10 auto V Starter Solution aux hôpitaux, cliniques et laboratoires, en commande ponctuelle ou selon un calendrier récurrent. Transmettez-nous la référence et la quantité : nous vous adressons un prix et un délai.
