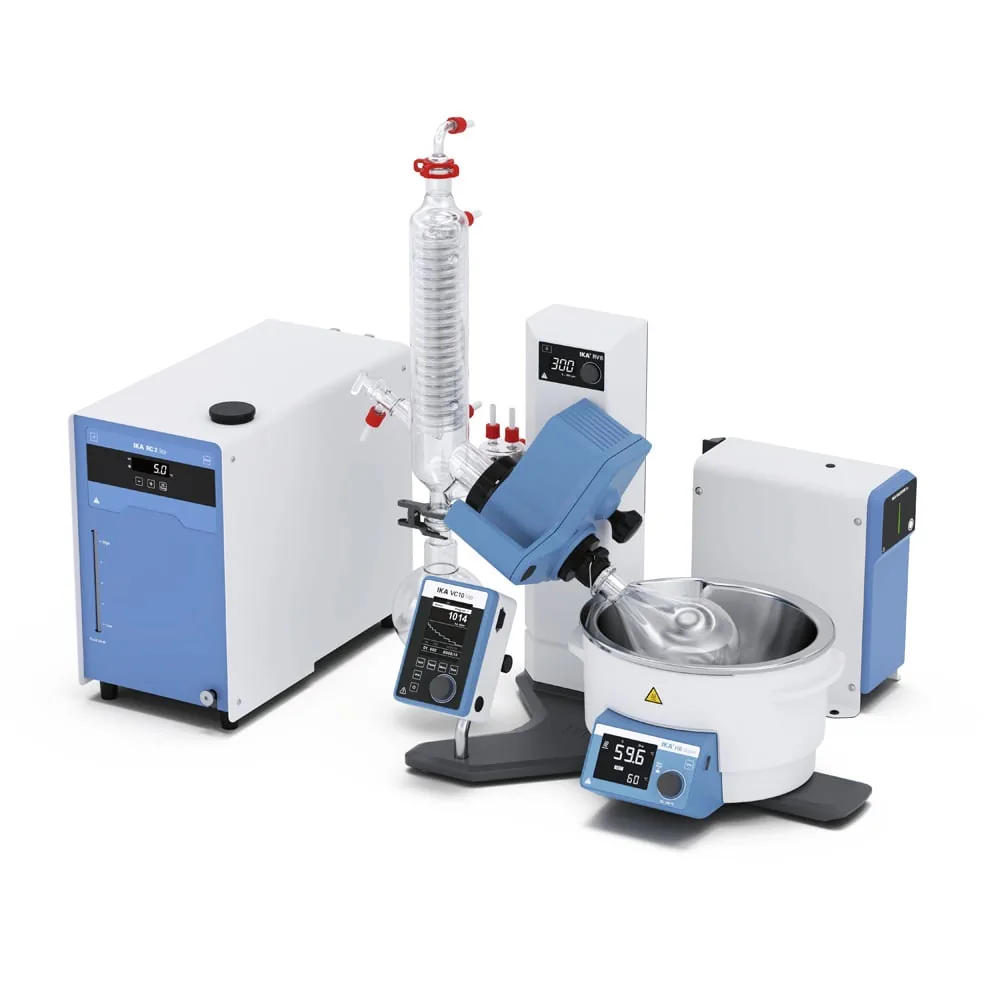

RV 8 V Starter Solution — photographie principale
IKADisponibilité: Fourni sur commande

RV 8 V Starter Solution

Référence 0010013946

Agitateur de laboratoire RV 8 V Starter Solution d'IKA. Nos techniciens assurent l'installation, l'étalonnage et la maintenance préventive, interviennent en dépannage sur site et prennent en charge la réparation en atelier ainsi que les pièces de rechange.

Commander cet article

Aucun paiement n’est effectué en ligne. Chaque demande est étudiée par un ingénieur AxiTech avant l’envoi du devis.

En un coup d’œil

Référence
0010013946
Catégorie
Agitateurs et mélangeurs

Présentation

RV 8 V Starter Solution The RV 8 Starter Solution is the cost-effective complete package for your rotary evaporator setup. In addition to the RV 8 V rotary evaporator, the package includes the HB digital heating bath with a capacity of 4 liters and a heating temperature range of RT to 180 °C, , a highly efficient vertical glass condenser set with 1L receiver and evaporator flask, as well as the the VACSTAR lite vacuum pump with VC 10 lite vacuum controller and the RC 2 lite recirculating chiller. All components and connections required for operation are included. The RV 8 is the manual basic model in the family of IKA rotary evaporators. It finds a multitude of uses in the chemical, pharmaceutical, and biotechnology industries, in research and development, in manufacturing and quality assurance, in laboratories, and in plant construction. Thanks to specially designed glass guides, the vertical condenser makes extremely efficient use of the 1500 cm² cooling surface. Digital displays for speed and heating bath temperature enable optimum control of all distillation processes. The included VACSTAR lite vacuum pump is extremely space-saving and achieves a minimum vacuum of 9 mbar. It is

Maintenance contract — AxiTech provides planned preventive maintenance for RV 8 V Starter Solution from IKA: scheduled visits, safety checks, periodic calibration and a documented service report, backed by a contractual response time.

Troubleshooting, repair and spare parts — our shakers, stirrers & mixers engineers diagnose and repair RV 8 V Starter Solution on site or in the workshop, fit genuine spare parts and recommission the equipment after performance verification.

Caractéristiques

  • RV 8 FLEX
  • RV 10.1 Glassware vertical
  • VC 10 lite
  • RV 8.3 Stand pole
  • VACSTAR lite
  • RC 2 lite
  • RV 10.5005 Set of hoses
  • PC 1.3 Cable

Spécifications techniques

Specifications
Lift
manual
Stroke
120 mm
Weight
25.76 kg
Voltage
100 - 240 V
Frequency
50/60 Hz
DC Voltage
24 V=
Heat output
1400 W
Power input
1500 W
Speed range
5 - 300 rpm
Cooling surface
1500 cm2
Motor principle
DC
Type of cooling
vertical
Filling volume max.
4 l
Dimensions (W x H x D)
510 x 490 x 345 mm
Heating temperature range
room temp. - 180 °C
Set temperature resolution
1 K
Permissible relative humidity
80 %
Permissible ambient temperature
5 - 40 °C
Protection class according to DIN EN 60529
IP 20
Speed tolerance set rotation speed < 100rpm
±1 rpm
Speed tolerance set rotation speed > 100rpm
±1 %
Fourniture et réapprovisionnement

AxiTech fournit RV 8 V Starter Solution en même temps que les instruments qui l’utilisent, afin qu’un étalonnage ou une intervention ne soit jamais retardé par un consommable manquant.

Commander RV 8 V Starter Solution

Indiquez-nous la référence et la quantité : nous vous adressons un prix, un délai et la documentation de lot. Les consommables commandés dans le cadre d’un contrat de maintenance sont planifiés avec la visite et arrivent donc avec l’ingénieur, et non après lui.

  • Documentation de lot et date de péremption fournies à chaque livraison
  • Devis assorti d’un délai, et pas seulement d’un prix
  • Planifié avec votre visite de maintenance si vous êtes sous contrat
  • Commandes ouvertes pour les articles consommés à rythme régulier
Les questions qu’on nous pose

Questions fréquentes sur IKA RV 8 V Starter Solution

Oui. AxiTech fournit RV 8 V Starter Solution aux hôpitaux, cliniques et laboratoires, en commande ponctuelle ou selon un calendrier récurrent. Transmettez-nous la référence et la quantité : nous vous adressons un prix et un délai.
