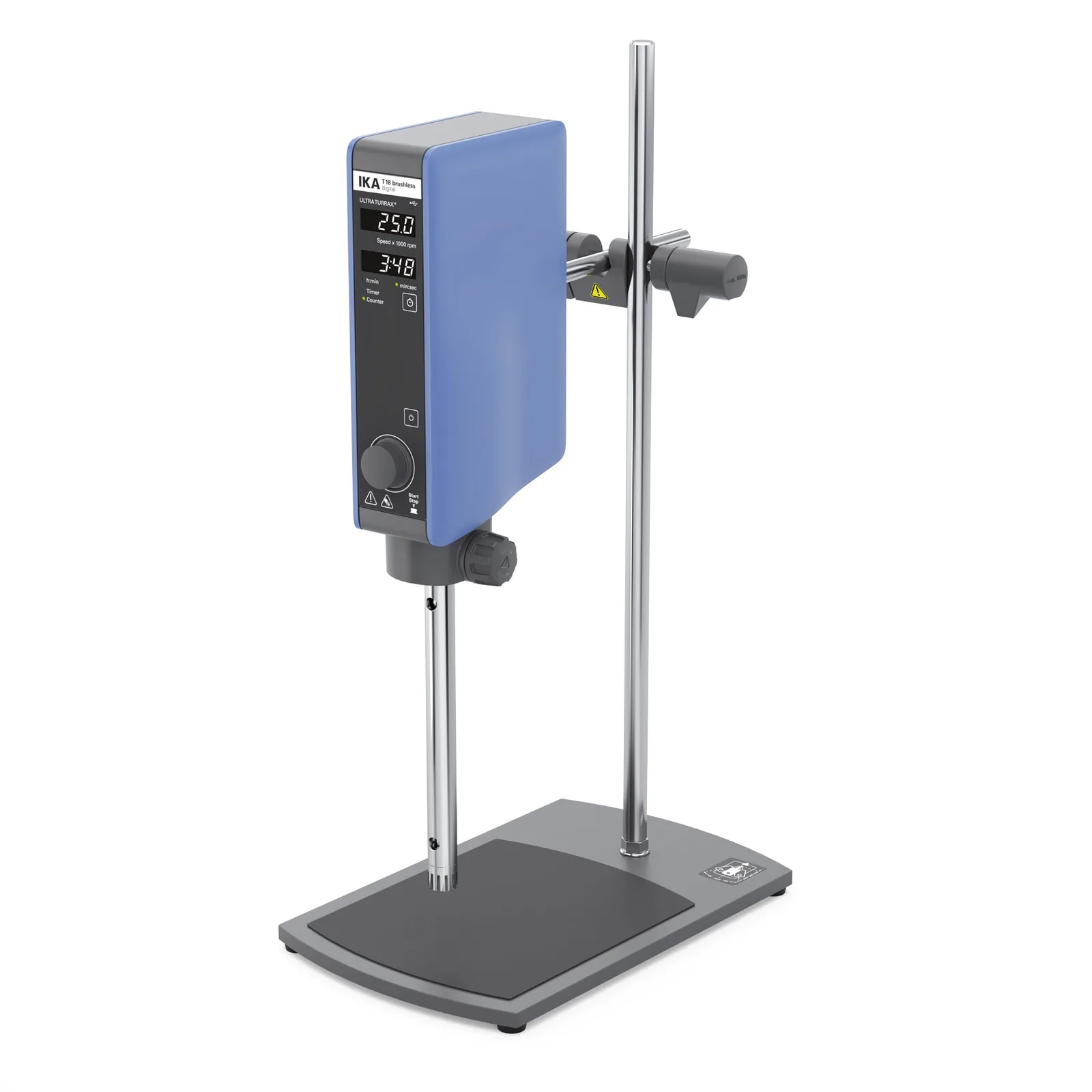

T 18 brushless digital Solution — photographie principale
IKADisponibilité: Fourni sur commande

T 18 brushless digital Solution

Référence 0010015148

Agitateur de laboratoire T 18 brushless digital Solution d'IKA. Nos techniciens assurent l'installation, l'étalonnage et la maintenance préventive, interviennent en dépannage sur site et prennent en charge la réparation en atelier ainsi que les pièces de rechange.

Commander cet article

Aucun paiement n’est effectué en ligne. Chaque demande est étudiée par un ingénieur AxiTech avant l’envoi du devis.

En un coup d’œil

Référence
0010015148
Catégorie
Agitateurs et mélangeurs

Présentation

T 18 brushless digital Solution The T 18 brushless digital is an economical high performance dispersing instrument with a wide speed range of 3000 - 25 000 rpm for working volumes of up to 1.500 ml (H2O). It enables users to work at high circumferential speeds even with small rotor diameters. A broad choice of dispersing elements guarantee a wide range of applications for efficient emulsification, homogenization, dispersing and suspending and a reduction of particle sizes to the micrometer range. With the following features, this disperser meets the needs of a modern laboratory: Brushless motor for improved motor life, quieter operation and hygienic applications Digital speed display and setting Timer function for unattended operation Quick coupling for easy and fast exchange of dispersing elements for cleaning and maintenance USB interface for remote control and parameter documentation with the laboratory software labworldsoft® Wide range of dispersing tools available; stainless steel with high chemical resistance or disposable plastic tools The T 18 brushless digital Solution provides a complete starter solution to start your homogenisation journey, complete with a dispersing too

Maintenance contract — AxiTech provides planned preventive maintenance for T 18 brushless digital Solution from IKA: scheduled visits, safety checks, periodic calibration and a documented service report, backed by a contractual response time.

Troubleshooting, repair and spare parts — our shakers, stirrers & mixers engineers diagnose and repair T 18 brushless digital Solution on site or in the workshop, fit genuine spare parts and recommission the equipment after performance verification.

Caractéristiques

  • Brushless motor for improved motor life, quieter operation and hygienic applications
  • Digital speed display and setting
  • Timer function for unattended operation
  • Quick coupling for easy and fast exchange of dispersing elements for cleaning and maintenance
  • USB interface for remote control and parameter documentation with the laboratory software labworldsoft®
  • Wide range of dispersing tools available; stainless steel with high chemical resistance or disposable plastic tools
  • T 18 brushless digital ULTRA-TURRAX®
  • S 18 N - 19 G Dispersing tool
  • R 1826 Plate stand
  • R 182 Boss head clamp

Spécifications techniques

Specifications
Timer
yes
Weight
3 kg
Voltage
220 - 240 V
Frequency
50/60 Hz
Power input
400 W
Speed range
3000 - 25000 rpm
Process type
batch
Speed display
LED
Timer display
LED
USB interface
Micro-USB
Viscosity max.
5000 mPas
Motor principle
Brushless DC
Speed deviation
2 %
Speed adjustment
stepless
Motor rating input
400 W
Volume range (H2O)
0.001 - 1.5 l
Motor rating output
300 W
Permissible ON time
100 %
Extension arm length
160 mm
Noise without element
70 dB(A)
Dimensions (W x H x D)
89 x 270 x 161 mm
Extension arm diameter
13 mm
Permissible relative humidity
80 %
Permissible ambient temperature
5 - 40 °C
Protection class according to DIN EN 60529
IP 30
Fourniture et réapprovisionnement

AxiTech fournit T 18 brushless digital Solution en même temps que les instruments qui l’utilisent, afin qu’un étalonnage ou une intervention ne soit jamais retardé par un consommable manquant.

Commander T 18 brushless digital Solution

Indiquez-nous la référence et la quantité : nous vous adressons un prix, un délai et la documentation de lot. Les consommables commandés dans le cadre d’un contrat de maintenance sont planifiés avec la visite et arrivent donc avec l’ingénieur, et non après lui.

  • Documentation de lot et date de péremption fournies à chaque livraison
  • Devis assorti d’un délai, et pas seulement d’un prix
  • Planifié avec votre visite de maintenance si vous êtes sous contrat
  • Commandes ouvertes pour les articles consommés à rythme régulier
Les questions qu’on nous pose

Questions fréquentes sur IKA T 18 brushless digital Solution

Oui. AxiTech fournit T 18 brushless digital Solution aux hôpitaux, cliniques et laboratoires, en commande ponctuelle ou selon un calendrier récurrent. Transmettez-nous la référence et la quantité : nous vous adressons un prix et un délai.
