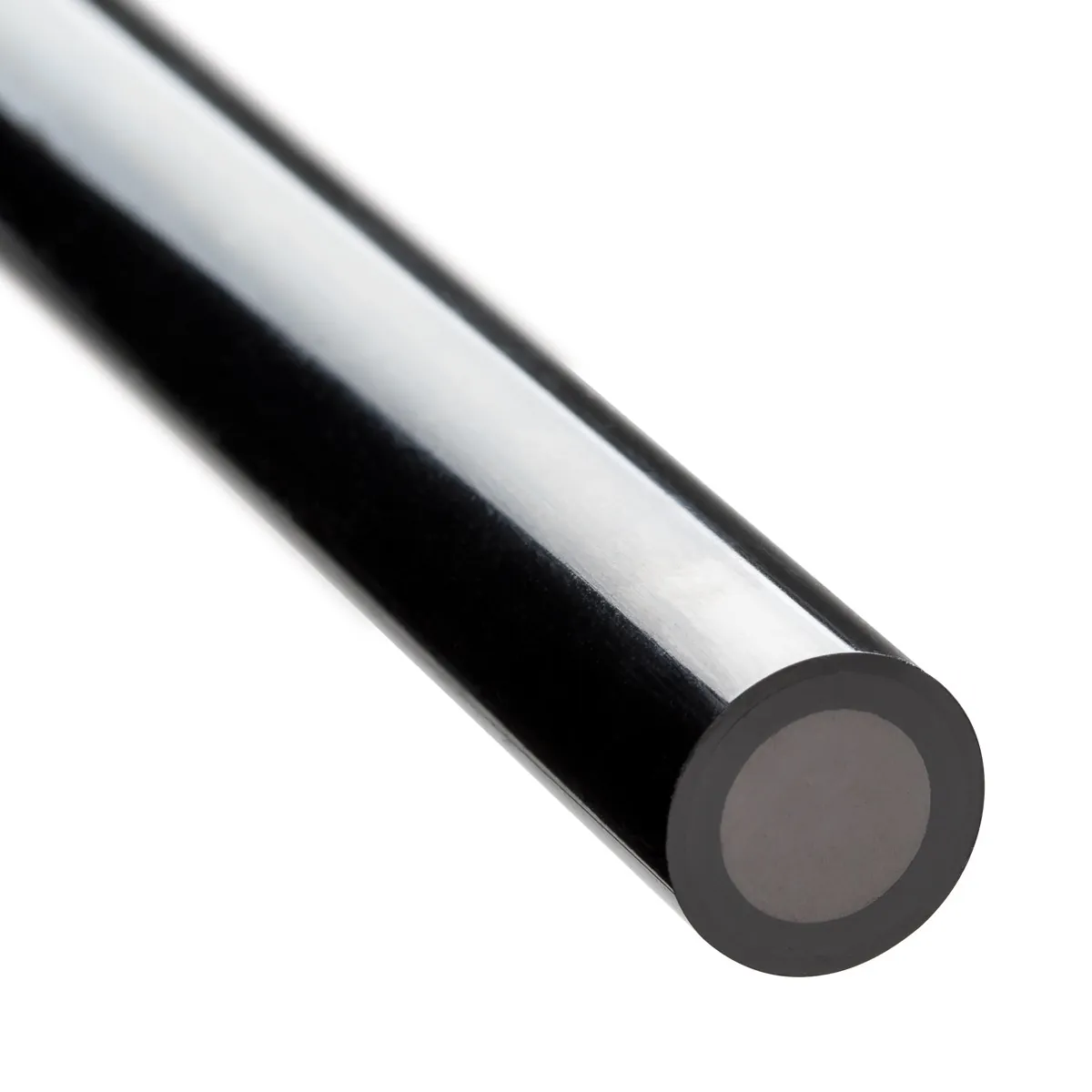

Copper Half-Cell Ion Selective Electrode (ISE)

Reference HI4008

The HI4008 is a solid state, half-cell ion selective electrode (ISE) for the determination of cupric ions (Cu2+) in solution. The mixed cupric sulfide/silver sulfide sensing pellet produces a potential change due to the cupric ion exchange between the inorganic pellet membrane and the sample. The internal sensing elements are housed within a durable epoxy body.The HI4008 is ideal for a variety of applications in plating, wastewater, and industrial processes.

Order this item

Nothing is charged online. Every request is reviewed by an AxiTech engineer before you receive a quotation.

At a glance

Reference: HI4008
Category: pH, Conductivity & Water Analysis
Equipment family: Industry/Industrial, Industry/Water, Industry/Laboratory, Product/Accessories, Product/Accessories/Electrodes and probes, Product/Accessories/Electrodes and probes/Electrodes, Parameters/A - F/EC/TDS,

Overview

The HI4008 is a solid state, half-cell ion selective electrode (ISE) for the determination of cupric ions (Cu2+) in solution. The mixed cupric sulfide/silver sulfide sensing pellet produces a potential change due to the cupric ion exchange between the inorganic pellet membrane and the sample. The internal sensing elements are housed within a durable epoxy body.The HI4008 is ideal for a variety of applications in plating, wastewater, and industrial processes.

Maintenance contract — AxiTech provides planned preventive maintenance for Copper Half-Cell Ion Selective Electrode (ISE) from Hanna Instruments: scheduled visits, safety checks, periodic calibration and a documented service report, backed by a contractual response time.

Troubleshooting, repair and spare parts — our ph, conductivity & water analysis engineers diagnose and repair Copper Half-Cell Ion Selective Electrode (ISE) on site or in the workshop, fit genuine spare parts and recommission the equipment after performance verification.

Features

Solid state sensor
Detection from 0.065 to 6,355 mg/L Cu2+
For use with HI5315 reference half-cell

Technical specifications

Specifications

SKU: HI4008 Type solid state half-cell Measurement Range 0.1M to 1•10-6M 6355 to 0.06 mg/L (ppm) Optimum pH Range 3 to 7 Temperature Range 0 to 80°C Diameter 12 mm Length 120 mm Body Material epoxy Cable 1 m coaxial Common Applications used as an indicator for titrations using chelates Connection BNC Warranty 6 months
Type: solid state half-cell Measurement Range 0.1M to 1•10-6M 6355 to 0.06 mg/L (ppm) Optimum pH Range 3 to 7 Temperature Range 0 to 80°C Diameter 12 mm Length 120 mm Body Material epoxy Cable 1 m coaxial Common Applications used as an indicator for titrations using chelates Connection BNC Warranty 6 months
Cable: 1 m coaxial Common Applications used as an indicator for titrations using chelates Connection BNC Warranty 6 months
Length: 120 mm Body Material epoxy Cable 1 m coaxial Common Applications used as an indicator for titrations using chelates Connection BNC Warranty 6 months
Diameter: 12 mm Length 120 mm Body Material epoxy Cable 1 m coaxial Common Applications used as an indicator for titrations using chelates Connection BNC Warranty 6 months
Warranty: 6 months
Connection: BNC Warranty 6 months
Body Material: epoxy Cable 1 m coaxial Common Applications used as an indicator for titrations using chelates Connection BNC Warranty 6 months
Optimum pH Range: 3 to 7 Temperature Range 0 to 80°C Diameter 12 mm Length 120 mm Body Material epoxy Cable 1 m coaxial Common Applications used as an indicator for titrations using chelates Connection BNC Warranty 6 months
Measurement Range: 0.1M to 1•10-6M 6355 to 0.06 mg/L (ppm) Optimum pH Range 3 to 7 Temperature Range 0 to 80°C Diameter 12 mm Length 120 mm Body Material epoxy Cable 1 m coaxial Common Applications used as an indicator for titrations using chelates Connection BNC Warranty 6 months
Temperature Range: 0 to 80°C Diameter 12 mm Length 120 mm Body Material epoxy Cable 1 m coaxial Common Applications used as an indicator for titrations using chelates Connection BNC Warranty 6 months
Common Applications: used as an indicator for titrations using chelates Connection BNC Warranty 6 months
