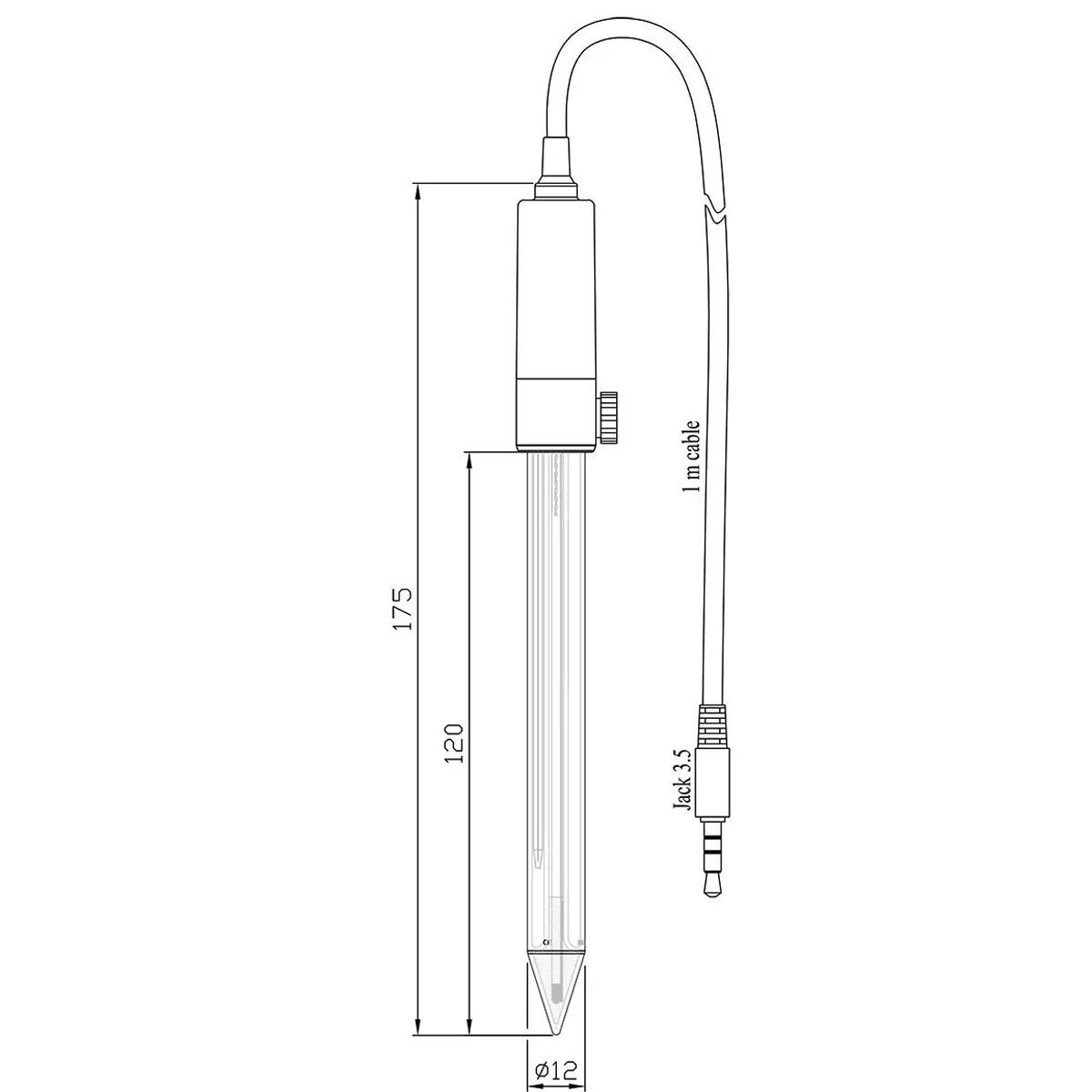

Digital Glass Body pH Electrode for Semi-Solids and Emulsions — main photograph
Hanna InstrumentsAvailability: Supplied to order

Digital Glass Body pH Electrode for Semi-Solids and Emulsions

Reference HI10530

The HI10530 is a digital glass body, refillable, double junction pH electrode that has a built-in temperature sensor. This probe features a 3.5 mm connector designed exclusively to be used with Hanna Instruments edge® Tablet Meters. The HI10530 electrode features a built-in microchip that stores sensor type, serial number, and calibration information. It also features a triple ceramic junction in the outer junction and the conical pH sensing portion is made with low temperature glass. This design consideration is ideal for emulsions, fats and creams, soil and semi-solid samples, low conductivity solutions, and for measuring samples at cold temperatures.

Order this item

Nothing is charged online. Every request is reviewed by an AxiTech engineer before you receive a quotation.

At a glance

Reference
HI10530
Category
pH, Conductivity & Water Analysis
Equipment family
Industry/Industrial, Industry/Industrial/Plating, Industry/Laboratory, Industry/Laboratory/Research, Industry/Laboratory/Education, Industry/Industrial/Petrochemical, Product/Accessories, Product/Acce

Overview

The HI10530 is a digital glass body, refillable, double junction pH electrode that has a built-in temperature sensor. This probe features a 3.5 mm connector designed exclusively to be used with Hanna Instruments edge® Tablet Meters. The HI10530 electrode features a built-in microchip that stores sensor type, serial number, and calibration information. It also features a triple ceramic junction in the outer junction and the conical pH sensing portion is made with low temperature glass. This design consideration is ideal for emulsions, fats and creams, soil and semi-solid samples, low conductivity solutions, and for measuring samples at cold temperatures.

Maintenance contract — AxiTech provides planned preventive maintenance for Digital Glass Body pH Electrode for Semi-Solids and Emulsions from Hanna Instruments: scheduled visits, safety checks, periodic calibration and a documented service report, backed by a contractual response time.

Troubleshooting, repair and spare parts — our ph, conductivity & water analysis engineers diagnose and repair Digital Glass Body pH Electrode for Semi-Solids and Emulsions on site or in the workshop, fit genuine spare parts and recommission the equipment after performance verification.

Features

  • Built-In Temperature Sensor
  • Triple Ceramic Junction
  • 3.5 mm Connector

Technical specifications

Specifications
SKU
HI10530 Description refillable, combination, digital pH electrode with conical tip Reference double, Ag/AgCl Junction / Flow Rate ceramic, triple / 40-50 µL/h Electrolyte KCl 3.5M Max Pressure 0.1 bar Range pH: 0 to 12 Recommended Operating Temperature -5 to 70°C (23 to 158°F) - LT Tip / Shape conic (12 x 12 mm) Temperature Sensor yes Matching Pin no Amplifier yes Body Material glass Cable 1 m (3.3') Recommended Use fats and creams, high purity water, soil samples, potable water, semi-solid products, low conductivity solutions, emulsions Connection 3.5 mm connector H
Cable
1 m (3.3') Recommended Use fats and creams, high purity water, soil samples, potable water, semi-solid products, low conductivity solutions, emulsions Connection 3.5 mm connector H
Range
pH: 0 to 12 Recommended Operating Temperature -5 to 70°C (23 to 158°F) - LT Tip / Shape conic (12 x 12 mm) Temperature Sensor yes Matching Pin no Amplifier yes Body Material glass Cable 1 m (3.3') Recommended Use fats and creams, high purity water, soil samples, potable water, semi-solid products, low conductivity solutions, emulsions Connection 3.5 mm connector H
Amplifier
yes Body Material glass Cable 1 m (3.3') Recommended Use fats and creams, high purity water, soil samples, potable water, semi-solid products, low conductivity solutions, emulsions Connection 3.5 mm connector H
Reference
double, Ag/AgCl Junction / Flow Rate ceramic, triple / 40-50 µL/h Electrolyte KCl 3.5M Max Pressure 0.1 bar Range pH: 0 to 12 Recommended Operating Temperature -5 to 70°C (23 to 158°F) - LT Tip / Shape conic (12 x 12 mm) Temperature Sensor yes Matching Pin no Amplifier yes Body Material glass Cable 1 m (3.3') Recommended Use fats and creams, high purity water, soil samples, potable water, semi-solid products, low conductivity solutions, emulsions Connection 3.5 mm connector H
Connection
3.5 mm connector H
Description
refillable, combination, digital pH electrode with conical tip Reference double, Ag/AgCl Junction / Flow Rate ceramic, triple / 40-50 µL/h Electrolyte KCl 3.5M Max Pressure 0.1 bar Range pH: 0 to 12 Recommended Operating Temperature -5 to 70°C (23 to 158°F) - LT Tip / Shape conic (12 x 12 mm) Temperature Sensor yes Matching Pin no Amplifier yes Body Material glass Cable 1 m (3.3') Recommended Use fats and creams, high purity water, soil samples, potable water, semi-solid products, low conductivity solutions, emulsions Connection 3.5 mm connector H
Electrolyte
KCl 3.5M Max Pressure 0.1 bar Range pH: 0 to 12 Recommended Operating Temperature -5 to 70°C (23 to 158°F) - LT Tip / Shape conic (12 x 12 mm) Temperature Sensor yes Matching Pin no Amplifier yes Body Material glass Cable 1 m (3.3') Recommended Use fats and creams, high purity water, soil samples, potable water, semi-solid products, low conductivity solutions, emulsions Connection 3.5 mm connector H
Tip / Shape
conic (12 x 12 mm) Temperature Sensor yes Matching Pin no Amplifier yes Body Material glass Cable 1 m (3.3') Recommended Use fats and creams, high purity water, soil samples, potable water, semi-solid products, low conductivity solutions, emulsions Connection 3.5 mm connector H
Matching Pin
no Amplifier yes Body Material glass Cable 1 m (3.3') Recommended Use fats and creams, high purity water, soil samples, potable water, semi-solid products, low conductivity solutions, emulsions Connection 3.5 mm connector H
Max Pressure
0.1 bar Range pH: 0 to 12 Recommended Operating Temperature -5 to 70°C (23 to 158°F) - LT Tip / Shape conic (12 x 12 mm) Temperature Sensor yes Matching Pin no Amplifier yes Body Material glass Cable 1 m (3.3') Recommended Use fats and creams, high purity water, soil samples, potable water, semi-solid products, low conductivity solutions, emulsions Connection 3.5 mm connector H
Body Material
glass Cable 1 m (3.3') Recommended Use fats and creams, high purity water, soil samples, potable water, semi-solid products, low conductivity solutions, emulsions Connection 3.5 mm connector H
Recommended Use
fats and creams, high purity water, soil samples, potable water, semi-solid products, low conductivity solutions, emulsions Connection 3.5 mm connector H
Temperature Sensor
yes Matching Pin no Amplifier yes Body Material glass Cable 1 m (3.3') Recommended Use fats and creams, high purity water, soil samples, potable water, semi-solid products, low conductivity solutions, emulsions Connection 3.5 mm connector H
Junction / Flow Rate
ceramic, triple / 40-50 µL/h Electrolyte KCl 3.5M Max Pressure 0.1 bar Range pH: 0 to 12 Recommended Operating Temperature -5 to 70°C (23 to 158°F) - LT Tip / Shape conic (12 x 12 mm) Temperature Sensor yes Matching Pin no Amplifier yes Body Material glass Cable 1 m (3.3') Recommended Use fats and creams, high purity water, soil samples, potable water, semi-solid products, low conductivity solutions, emulsions Connection 3.5 mm connector H
Recommended Operating Temperature
-5 to 70°C (23 to 158°F) - LT Tip / Shape conic (12 x 12 mm) Temperature Sensor yes Matching Pin no Amplifier yes Body Material glass Cable 1 m (3.3') Recommended Use fats and creams, high purity water, soil samples, potable water, semi-solid products, low conductivity solutions, emulsions Connection 3.5 mm connector H
Supply and reordering

AxiTech supplies Digital Glass Body pH Electrode for Semi-Solids and Emulsions as a spare, so a worn part is replaced during the same visit rather than becoming a second call-out.

Ordering Digital Glass Body pH Electrode for Semi-Solids and Emulsions

Tell us the reference, or the model and serial number of the instrument it belongs to, and we confirm the correct part, its price and its lead time. Parts ordered against a maintenance contract are carried on the visit.

  • Compatibility confirmed against your instrument before despatch
  • Quoted with a lead time, not just a price
  • Scheduled with your maintenance visit when you hold a contract
  • Standing orders for items you consume on a predictable cycle

The instrument it belongs to

AxiTech maintains, calibrates and repairs the Hanna Instruments equipment that Digital Glass Body pH Electrode for Semi-Solids and Emulsions is used with. If you operate it, we can put it under a preventive maintenance contract and supply this item as part of the schedule.
