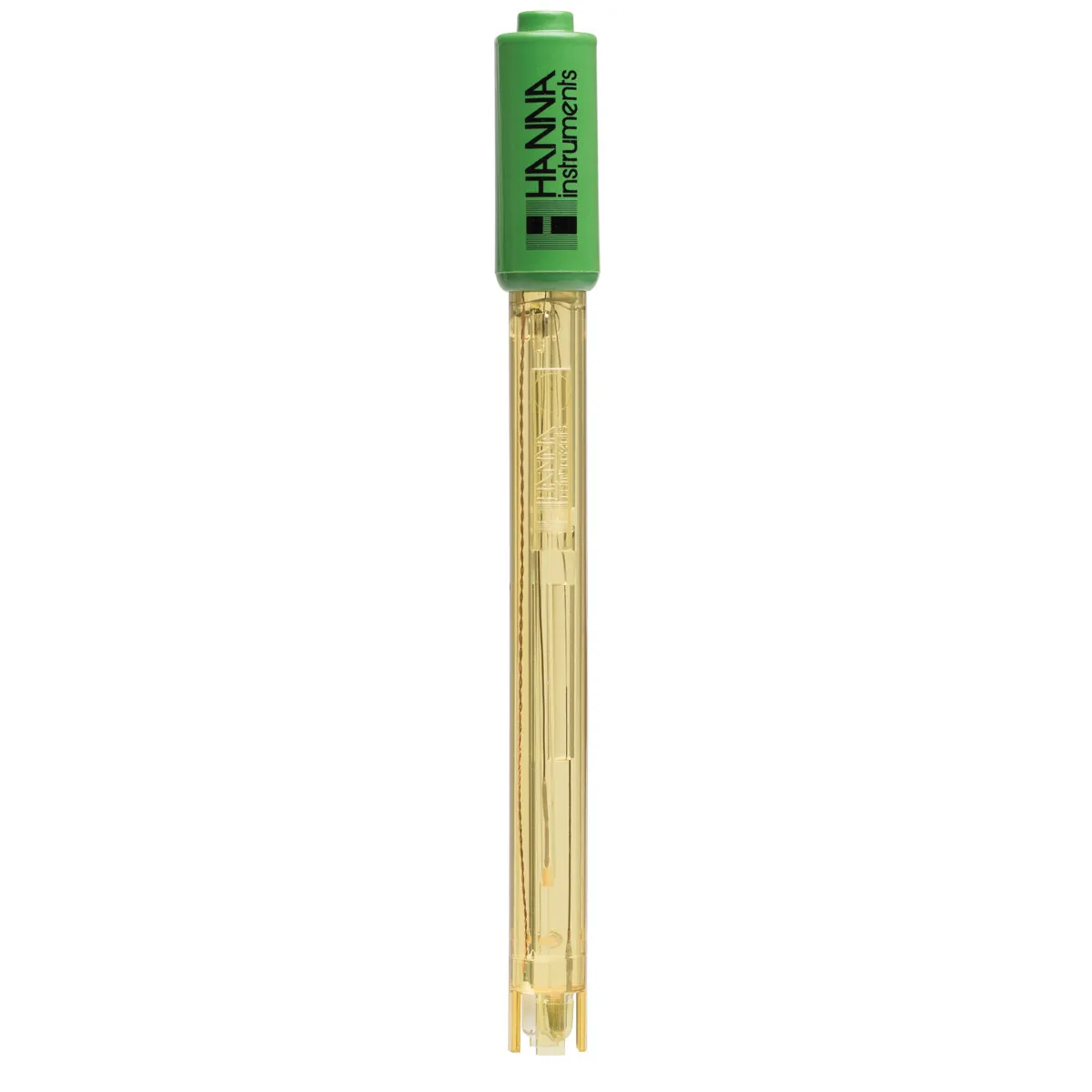

Gel Filled PEI Body pH Electrode with Quick Connect DIN Connector — main photograph
Hanna InstrumentsAvailability: Supplied to order

Gel Filled PEI Body pH Electrode with Quick Connect DIN Connector

Reference HI12303

The HI12303 is a Polyetherimide (PEI) body, double junction pH electrode with a built-in temperature sensor and connects to the meter that has a Quick Connect DIN connector. This type of connector is proprietary to specific meters such as the HI98190. The HI12303 pH electrode has a single ceramic junction in the outer reference cell and the spherical pH sensing portion is made with general purpose glass and is protected by the fins of the durable PEI body. This design consideration excels in measurements with portable meters due to the durability and that the probe does not require maintenance other than cleaning and calibration.

Order this item

Nothing is charged online. Every request is reviewed by an AxiTech engineer before you receive a quotation.

At a glance

Reference
HI12303
Category
pH, Conductivity & Water Analysis
Equipment family
Industry/Industrial, Industry/Water, Industry/Laboratory, Industry/Food, Industry/Beverage, Parameters/P - Z/pH, Product/Accessories, Product/Accessories/Electrodes and probes, Product/Accessories/Ele

Overview

The HI12303 is a Polyetherimide (PEI) body, double junction pH electrode with a built-in temperature sensor and connects to the meter that has a Quick Connect DIN connector. This type of connector is proprietary to specific meters such as the HI98190. The HI12303 pH electrode has a single ceramic junction in the outer reference cell and the spherical pH sensing portion is made with general purpose glass and is protected by the fins of the durable PEI body. This design consideration excels in measurements with portable meters due to the durability and that the probe does not require maintenance other than cleaning and calibration.

Maintenance contract — AxiTech provides planned preventive maintenance for Gel Filled PEI Body pH Electrode with Quick Connect DIN Connector from Hanna Instruments: scheduled visits, safety checks, periodic calibration and a documented service report, backed by a contractual response time.

Troubleshooting, repair and spare parts — our ph, conductivity & water analysis engineers diagnose and repair Gel Filled PEI Body pH Electrode with Quick Connect DIN Connector on site or in the workshop, fit genuine spare parts and recommission the equipment after performance verification.

Features

  • Chemically-Resistant PEI Body
  • Double Junction Reference
  • General Purpose (GP) Glass

Technical specifications

Specifications
SKU
HI12303 Description combination pH electrode Reference double, Ag/AgCl Junction / Flow Rate ceramic, single / 15-20 µL/h Electrolyte gel Max Pressure 2 bar Range pH: 0 to 12 Recommended Operating Temperature -5 to 70˚C (23 to 158˚F) Tip / Shape spheric (dia: 7.5 mm) Temperature Sensor DIN model only Amplifier DIN model only Body Material PEI Cable coaxial 1 m (3.3') Recommended Use field applications, soil solution, photographic chemicals, laboratory (general use) Connection Quick Connect DIN
Cable
coaxial 1 m (3.3') Recommended Use field applications, soil solution, photographic chemicals, laboratory (general use) Connection Quick Connect DIN
Range
pH: 0 to 12 Recommended Operating Temperature -5 to 70˚C (23 to 158˚F) Tip / Shape spheric (dia: 7.5 mm) Temperature Sensor DIN model only Amplifier DIN model only Body Material PEI Cable coaxial 1 m (3.3') Recommended Use field applications, soil solution, photographic chemicals, laboratory (general use) Connection Quick Connect DIN
Amplifier
DIN model only Body Material PEI Cable coaxial 1 m (3.3') Recommended Use field applications, soil solution, photographic chemicals, laboratory (general use) Connection Quick Connect DIN
Reference
double, Ag/AgCl Junction / Flow Rate ceramic, single / 15-20 µL/h Electrolyte gel Max Pressure 2 bar Range pH: 0 to 12 Recommended Operating Temperature -5 to 70˚C (23 to 158˚F) Tip / Shape spheric (dia: 7.5 mm) Temperature Sensor DIN model only Amplifier DIN model only Body Material PEI Cable coaxial 1 m (3.3') Recommended Use field applications, soil solution, photographic chemicals, laboratory (general use) Connection Quick Connect DIN
Connection
Quick Connect DIN
Description
combination pH electrode Reference double, Ag/AgCl Junction / Flow Rate ceramic, single / 15-20 µL/h Electrolyte gel Max Pressure 2 bar Range pH: 0 to 12 Recommended Operating Temperature -5 to 70˚C (23 to 158˚F) Tip / Shape spheric (dia: 7.5 mm) Temperature Sensor DIN model only Amplifier DIN model only Body Material PEI Cable coaxial 1 m (3.3') Recommended Use field applications, soil solution, photographic chemicals, laboratory (general use) Connection Quick Connect DIN
Electrolyte
gel Max Pressure 2 bar Range pH: 0 to 12 Recommended Operating Temperature -5 to 70˚C (23 to 158˚F) Tip / Shape spheric (dia: 7.5 mm) Temperature Sensor DIN model only Amplifier DIN model only Body Material PEI Cable coaxial 1 m (3.3') Recommended Use field applications, soil solution, photographic chemicals, laboratory (general use) Connection Quick Connect DIN
Tip / Shape
spheric (dia: 7.5 mm) Temperature Sensor DIN model only Amplifier DIN model only Body Material PEI Cable coaxial 1 m (3.3') Recommended Use field applications, soil solution, photographic chemicals, laboratory (general use) Connection Quick Connect DIN
Max Pressure
2 bar Range pH: 0 to 12 Recommended Operating Temperature -5 to 70˚C (23 to 158˚F) Tip / Shape spheric (dia: 7.5 mm) Temperature Sensor DIN model only Amplifier DIN model only Body Material PEI Cable coaxial 1 m (3.3') Recommended Use field applications, soil solution, photographic chemicals, laboratory (general use) Connection Quick Connect DIN
Body Material
PEI Cable coaxial 1 m (3.3') Recommended Use field applications, soil solution, photographic chemicals, laboratory (general use) Connection Quick Connect DIN
Recommended Use
field applications, soil solution, photographic chemicals, laboratory (general use) Connection Quick Connect DIN
Temperature Sensor
DIN model only Amplifier DIN model only Body Material PEI Cable coaxial 1 m (3.3') Recommended Use field applications, soil solution, photographic chemicals, laboratory (general use) Connection Quick Connect DIN
Junction / Flow Rate
ceramic, single / 15-20 µL/h Electrolyte gel Max Pressure 2 bar Range pH: 0 to 12 Recommended Operating Temperature -5 to 70˚C (23 to 158˚F) Tip / Shape spheric (dia: 7.5 mm) Temperature Sensor DIN model only Amplifier DIN model only Body Material PEI Cable coaxial 1 m (3.3') Recommended Use field applications, soil solution, photographic chemicals, laboratory (general use) Connection Quick Connect DIN
Recommended Operating Temperature
-5 to 70˚C (23 to 158˚F) Tip / Shape spheric (dia: 7.5 mm) Temperature Sensor DIN model only Amplifier DIN model only Body Material PEI Cable coaxial 1 m (3.3') Recommended Use field applications, soil solution, photographic chemicals, laboratory (general use) Connection Quick Connect DIN
Supply and reordering

AxiTech supplies Gel Filled PEI Body pH Electrode with Quick Connect DIN Connector as a spare, so a worn part is replaced during the same visit rather than becoming a second call-out.

Ordering Gel Filled PEI Body pH Electrode with Quick Connect DIN Connector

Tell us the reference, or the model and serial number of the instrument it belongs to, and we confirm the correct part, its price and its lead time. Parts ordered against a maintenance contract are carried on the visit.

  • Compatibility confirmed against your instrument before despatch
  • Quoted with a lead time, not just a price
  • Scheduled with your maintenance visit when you hold a contract
  • Standing orders for items you consume on a predictable cycle

The instrument it belongs to

AxiTech maintains, calibrates and repairs the Hanna Instruments equipment that Gel Filled PEI Body pH Electrode with Quick Connect DIN Connector is used with. If you operate it, we can put it under a preventive maintenance contract and supply this item as part of the schedule.

Discover our maintenance contractsBrowse the equipment catalogue

Questions we are asked

Frequently asked questions about Hanna Instruments Gel Filled PEI Body pH Electrode with Quick Connect DIN Connector

Yes. AxiTech supplies Gel Filled PEI Body pH Electrode with Quick Connect DIN Connector to hospitals, clinics and laboratories, either as a one-off order or on a standing schedule. Send us the reference and the quantity and we come back with a price and a lead time.
