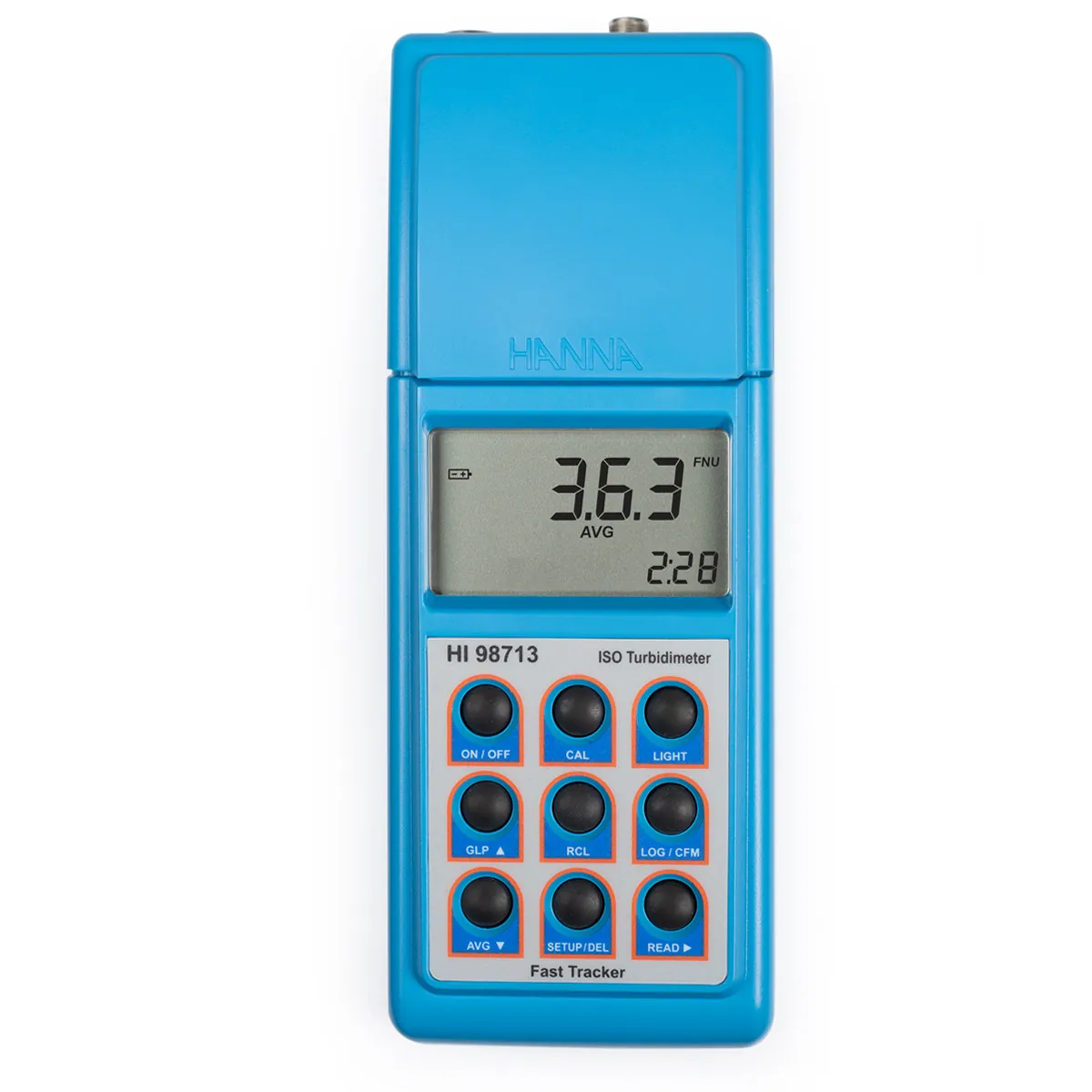

ISO Turbidity Portable Meter — main photograph
Hanna InstrumentsAvailability: Supplied to order

ISO Turbidity Portable Meter

Reference HI98713-01

The HI98713 is a high accuracy portable turbidity meter. The meter is supplied complete with AMCO-AEPA-1 primary turbidity standards used for calibration and performance verification. The HI98713 meets and exceeds the requirements of the ISO 7027 Method for turbidimetric measurements.

Request a service for this equipment

Nothing is charged online. Every request is reviewed by an AxiTech engineer before you receive a quotation.

At a glance

Reference
HI98713-01
Category
pH, Conductivity & Water Analysis
Equipment family
Industry/Industrial, Industry/Industrial/Chemical manufacturing, Industry/Industrial/Water treatment, Industry/Water, Industry/Water/Aquaculture, Industry/Water/Wastewater, Industry/Water/Drinking wat

Overview

The HI98713 is a high accuracy portable turbidity meter. The meter is supplied complete with AMCO-AEPA-1 primary turbidity standards used for calibration and performance verification. The HI98713 meets and exceeds the requirements of the ISO 7027 Method for turbidimetric measurements.

Maintenance contract — AxiTech provides planned preventive maintenance for ISO Turbidity Portable Meter from Hanna Instruments: scheduled visits, safety checks, periodic calibration and a documented service report, backed by a contractual response time.

Troubleshooting, repair and spare parts — our ph, conductivity & water analysis engineers diagnose and repair ISO Turbidity Portable Meter on site or in the workshop, fit genuine spare parts and recommission the equipment after performance verification.

Features

  • USB for data transfer
  • Up to four-point calibration
  • Operates on batteries or line voltage

Technical specifications

Specifications
Sku
HI98713-01 FNU Range 0.00 to 9.99 FNU 10.0 to 99.9 FNU 100 to 1000 FNU FNU Resolution 0.01 FNU from 0.00 to 9.99 FNU 0.1 FNU from 10.0 to 99.9 FNU 1 FNU from 100 to 1000 FNU FNU Accuracy ±2% of reading plus 0.1 FNU Range Selection Automatic Turbidity Repeatability ±1% of reading or 0.01 FNU, whichever is greater Stray Light < 0.1 FNU Typical EMC Deviation ±0.05 FNU Turbidity Light Detector 860 nm infrared LED IR Detector Silicon Photocell Turbidity Method Adaptation of ISO 7027, ratio method with 90° and 180° detector. Turbidity Standards < 0.1, 15, 100 and 750 FNU Calibration Two, three or four point calibration Display 60 x 90 mm LCD with backlight LOG Memory 200 records Serial Interface RS232 and USB 1.1 Environment 0 to 50°C (32 to 122°F) max 95% RH non-condensing Power Supply 4 x 1.5V AA alkaline batteries or AC adapter Auto Shut-Off After 15 minutes of non-use Dimensions 224 x 87 x 77 mm (8.8 x 3.4 x 3.0in.) Weight 512 g (18 oz.) Warranty 2 years
Weight
512 g (18 oz.) Warranty 2 years
Display
60 x 90 mm LCD with backlight LOG Memory 200 records Serial Interface RS232 and USB 1.1 Environment 0 to 50°C (32 to 122°F) max 95% RH non-condensing Power Supply 4 x 1.5V AA alkaline batteries or AC adapter Auto Shut-Off After 15 minutes of non-use Dimensions 224 x 87 x 77 mm (8.8 x 3.4 x 3.0in.) Weight 512 g (18 oz.) Warranty 2 years
Warranty
2 years
FNU Range
0.00 to 9.99 FNU 10.0 to 99.9 FNU 100 to 1000 FNU FNU Resolution 0.01 FNU from 0.00 to 9.99 FNU 0.1 FNU from 10.0 to 99.9 FNU 1 FNU from 100 to 1000 FNU FNU Accuracy ±2% of reading plus 0.1 FNU Range Selection Automatic Turbidity Repeatability ±1% of reading or 0.01 FNU, whichever is greater Stray Light < 0.1 FNU Typical EMC Deviation ±0.05 FNU Turbidity Light Detector 860 nm infrared LED IR Detector Silicon Photocell Turbidity Method Adaptation of ISO 7027, ratio method with 90° and 180° detector. Turbidity Standards < 0.1, 15, 100 and 750 FNU Calibration Two, three or four point calibration Display 60 x 90 mm LCD with backlight LOG Memory 200 records Serial Interface RS232 and USB 1.1 Environment 0 to 50°C (32 to 122°F) max 95% RH non-condensing Power Supply 4 x 1.5V AA alkaline batteries or AC adapter Auto Shut-Off After 15 minutes of non-use Dimensions 224 x 87 x 77 mm (8.8 x 3.4 x 3.0in.) Weight 512 g (18 oz.) Warranty 2 years
Dimensions
224 x 87 x 77 mm (8.8 x 3.4 x 3.0in.) Weight 512 g (18 oz.) Warranty 2 years
LOG Memory
200 records Serial Interface RS232 and USB 1.1 Environment 0 to 50°C (32 to 122°F) max 95% RH non-condensing Power Supply 4 x 1.5V AA alkaline batteries or AC adapter Auto Shut-Off After 15 minutes of non-use Dimensions 224 x 87 x 77 mm (8.8 x 3.4 x 3.0in.) Weight 512 g (18 oz.) Warranty 2 years
Calibration
Two, three or four point calibration Display 60 x 90 mm LCD with backlight LOG Memory 200 records Serial Interface RS232 and USB 1.1 Environment 0 to 50°C (32 to 122°F) max 95% RH non-condensing Power Supply 4 x 1.5V AA alkaline batteries or AC adapter Auto Shut-Off After 15 minutes of non-use Dimensions 224 x 87 x 77 mm (8.8 x 3.4 x 3.0in.) Weight 512 g (18 oz.) Warranty 2 years
Environment
0 to 50°C (32 to 122°F) max 95% RH non-condensing Power Supply 4 x 1.5V AA alkaline batteries or AC adapter Auto Shut-Off After 15 minutes of non-use Dimensions 224 x 87 x 77 mm (8.8 x 3.4 x 3.0in.) Weight 512 g (18 oz.) Warranty 2 years
IR Detector
Silicon Photocell Turbidity Method Adaptation of ISO 7027, ratio method with 90° and 180° detector. Turbidity Standards < 0.1, 15, 100 and 750 FNU Calibration Two, three or four point calibration Display 60 x 90 mm LCD with backlight LOG Memory 200 records Serial Interface RS232 and USB 1.1 Environment 0 to 50°C (32 to 122°F) max 95% RH non-condensing Power Supply 4 x 1.5V AA alkaline batteries or AC adapter Auto Shut-Off After 15 minutes of non-use Dimensions 224 x 87 x 77 mm (8.8 x 3.4 x 3.0in.) Weight 512 g (18 oz.) Warranty 2 years
Stray Light
< 0.1 FNU Typical EMC Deviation ±0.05 FNU Turbidity Light Detector 860 nm infrared LED IR Detector Silicon Photocell Turbidity Method Adaptation of ISO 7027, ratio method with 90° and 180° detector. Turbidity Standards < 0.1, 15, 100 and 750 FNU Calibration Two, three or four point calibration Display 60 x 90 mm LCD with backlight LOG Memory 200 records Serial Interface RS232 and USB 1.1 Environment 0 to 50°C (32 to 122°F) max 95% RH non-condensing Power Supply 4 x 1.5V AA alkaline batteries or AC adapter Auto Shut-Off After 15 minutes of non-use Dimensions 224 x 87 x 77 mm (8.8 x 3.4 x 3.0in.) Weight 512 g (18 oz.) Warranty 2 years
FNU Accuracy
±2% of reading plus 0.1 FNU Range Selection Automatic Turbidity Repeatability ±1% of reading or 0.01 FNU, whichever is greater Stray Light < 0.1 FNU Typical EMC Deviation ±0.05 FNU Turbidity Light Detector 860 nm infrared LED IR Detector Silicon Photocell Turbidity Method Adaptation of ISO 7027, ratio method with 90° and 180° detector. Turbidity Standards < 0.1, 15, 100 and 750 FNU Calibration Two, three or four point calibration Display 60 x 90 mm LCD with backlight LOG Memory 200 records Serial Interface RS232 and USB 1.1 Environment 0 to 50°C (32 to 122°F) max 95% RH non-condensing Power Supply 4 x 1.5V AA alkaline batteries or AC adapter Auto Shut-Off After 15 minutes of non-use Dimensions 224 x 87 x 77 mm (8.8 x 3.4 x 3.0in.) Weight 512 g (18 oz.) Warranty 2 years
Power Supply
4 x 1.5V AA alkaline batteries or AC adapter Auto Shut-Off After 15 minutes of non-use Dimensions 224 x 87 x 77 mm (8.8 x 3.4 x 3.0in.) Weight 512 g (18 oz.) Warranty 2 years
Auto Shut Off
After 15 minutes of non-use Dimensions 224 x 87 x 77 mm (8.8 x 3.4 x 3.0in.) Weight 512 g (18 oz.) Warranty 2 years
FNU Resolution
0.01 FNU from 0.00 to 9.99 FNU 0.1 FNU from 10.0 to 99.9 FNU 1 FNU from 100 to 1000 FNU FNU Accuracy ±2% of reading plus 0.1 FNU Range Selection Automatic Turbidity Repeatability ±1% of reading or 0.01 FNU, whichever is greater Stray Light < 0.1 FNU Typical EMC Deviation ±0.05 FNU Turbidity Light Detector 860 nm infrared LED IR Detector Silicon Photocell Turbidity Method Adaptation of ISO 7027, ratio method with 90° and 180° detector. Turbidity Standards < 0.1, 15, 100 and 750 FNU Calibration Two, three or four point calibration Display 60 x 90 mm LCD with backlight LOG Memory 200 records Serial Interface RS232 and USB 1.1 Environment 0 to 50°C (32 to 122°F) max 95% RH non-condensing Power Supply 4 x 1.5V AA alkaline batteries or AC adapter Auto Shut-Off After 15 minutes of non-use Dimensions 224 x 87 x 77 mm (8.8 x 3.4 x 3.0in.) Weight 512 g (18 oz.) Warranty 2 years
Range Selection
Automatic Turbidity Repeatability ±1% of reading or 0.01 FNU, whichever is greater Stray Light < 0.1 FNU Typical EMC Deviation ±0.05 FNU Turbidity Light Detector 860 nm infrared LED IR Detector Silicon Photocell Turbidity Method Adaptation of ISO 7027, ratio method with 90° and 180° detector. Turbidity Standards < 0.1, 15, 100 and 750 FNU Calibration Two, three or four point calibration Display 60 x 90 mm LCD with backlight LOG Memory 200 records Serial Interface RS232 and USB 1.1 Environment 0 to 50°C (32 to 122°F) max 95% RH non-condensing Power Supply 4 x 1.5V AA alkaline batteries or AC adapter Auto Shut-Off After 15 minutes of non-use Dimensions 224 x 87 x 77 mm (8.8 x 3.4 x 3.0in.) Weight 512 g (18 oz.) Warranty 2 years
Serial Interface
RS232 and USB 1.1 Environment 0 to 50°C (32 to 122°F) max 95% RH non-condensing Power Supply 4 x 1.5V AA alkaline batteries or AC adapter Auto Shut-Off After 15 minutes of non-use Dimensions 224 x 87 x 77 mm (8.8 x 3.4 x 3.0in.) Weight 512 g (18 oz.) Warranty 2 years
Turbidity Method
Adaptation of ISO 7027, ratio method with 90° and 180° detector. Turbidity Standards < 0.1, 15, 100 and 750 FNU Calibration Two, three or four point calibration Display 60 x 90 mm LCD with backlight LOG Memory 200 records Serial Interface RS232 and USB 1.1 Environment 0 to 50°C (32 to 122°F) max 95% RH non-condensing Power Supply 4 x 1.5V AA alkaline batteries or AC adapter Auto Shut-Off After 15 minutes of non-use Dimensions 224 x 87 x 77 mm (8.8 x 3.4 x 3.0in.) Weight 512 g (18 oz.) Warranty 2 years
Turbidity Standards
< 0.1, 15, 100 and 750 FNU Calibration Two, three or four point calibration Display 60 x 90 mm LCD with backlight LOG Memory 200 records Serial Interface RS232 and USB 1.1 Environment 0 to 50°C (32 to 122°F) max 95% RH non-condensing Power Supply 4 x 1.5V AA alkaline batteries or AC adapter Auto Shut-Off After 15 minutes of non-use Dimensions 224 x 87 x 77 mm (8.8 x 3.4 x 3.0in.) Weight 512 g (18 oz.) Warranty 2 years
Typical EMC Deviation
±0.05 FNU Turbidity Light Detector 860 nm infrared LED IR Detector Silicon Photocell Turbidity Method Adaptation of ISO 7027, ratio method with 90° and 180° detector. Turbidity Standards < 0.1, 15, 100 and 750 FNU Calibration Two, three or four point calibration Display 60 x 90 mm LCD with backlight LOG Memory 200 records Serial Interface RS232 and USB 1.1 Environment 0 to 50°C (32 to 122°F) max 95% RH non-condensing Power Supply 4 x 1.5V AA alkaline batteries or AC adapter Auto Shut-Off After 15 minutes of non-use Dimensions 224 x 87 x 77 mm (8.8 x 3.4 x 3.0in.) Weight 512 g (18 oz.) Warranty 2 years
Turbidity Repeatability
±1% of reading or 0.01 FNU, whichever is greater Stray Light < 0.1 FNU Typical EMC Deviation ±0.05 FNU Turbidity Light Detector 860 nm infrared LED IR Detector Silicon Photocell Turbidity Method Adaptation of ISO 7027, ratio method with 90° and 180° detector. Turbidity Standards < 0.1, 15, 100 and 750 FNU Calibration Two, three or four point calibration Display 60 x 90 mm LCD with backlight LOG Memory 200 records Serial Interface RS232 and USB 1.1 Environment 0 to 50°C (32 to 122°F) max 95% RH non-condensing Power Supply 4 x 1.5V AA alkaline batteries or AC adapter Auto Shut-Off After 15 minutes of non-use Dimensions 224 x 87 x 77 mm (8.8 x 3.4 x 3.0in.) Weight 512 g (18 oz.) Warranty 2 years
Turbidity Light Detector
860 nm infrared LED IR Detector Silicon Photocell Turbidity Method Adaptation of ISO 7027, ratio method with 90° and 180° detector. Turbidity Standards < 0.1, 15, 100 and 750 FNU Calibration Two, three or four point calibration Display 60 x 90 mm LCD with backlight LOG Memory 200 records Serial Interface RS232 and USB 1.1 Environment 0 to 50°C (32 to 122°F) max 95% RH non-condensing Power Supply 4 x 1.5V AA alkaline batteries or AC adapter Auto Shut-Off After 15 minutes of non-use Dimensions 224 x 87 x 77 mm (8.8 x 3.4 x 3.0in.) Weight 512 g (18 oz.) Warranty 2 years
Service coverage

AxiTech maintains, repairs and supplies this equipment for hospitals, clinics, laboratories and imaging centres.

Maintenance contracts for ISO Turbidity Portable Meter

AxiTech provides preventive maintenance contracts for ISO Turbidity Portable Meter. Each contract fixes a schedule of planned visits in which our biomedical engineers inspect the equipment, replace wear parts before they fail, and verify that it still performs inside the manufacturer’s tolerances.

Every visit includes calibration and performance verification, and closes with a documented maintenance report you can present during an accreditation audit. Spare-parts availability and a guaranteed response time are written into the contract, so a breakdown never leaves a department waiting for an answer.

Plan at least one preventive maintenance visit per year, and a second visit for equipment in continuous or critical use.

  • Planned preventive maintenance visits at a fixed interval
  • Calibration and performance verification against the manufacturer’s specifications
  • A documented maintenance report after every intervention
  • Guaranteed availability of spare parts and consumables
  • A contractual response time when the equipment fails

Discover our maintenance contracts

Planned preventive maintenance and calibration under contract

Troubleshooting and repair for ISO Turbidity Portable Meter

When ISO Turbidity Portable Meter fails, our engineers start with a structured diagnostic: error codes, electrical and mechanical checks, and a functional test against the equipment’s own specification. That tells us whether the fault is a consumable, a worn part or a board-level failure before any part is ordered.

Straightforward faults are repaired on site so the department loses as little time as possible. Anything that needs a workbench, a full strip-down or a specialised spare part goes to our workshop and comes back only after a complete post-repair test and, where the equipment requires it, recalibration.

Faults we see most often on this type of equipment

The faults we see most often are worn moving parts, power-supply and control-board failures, sensors that have drifted out of tolerance, and fluid or air paths that have become blocked or contaminated.

Discover our troubleshooting and repair service

Diagnostics, corrective repair and spare parts in the workshop
Troubleshooting

How to troubleshoot ISO Turbidity Portable Meter

Work through these checks before you escalate. They are the same first-line sequence our biomedical engineers run on arrival, and they either clear the fault or narrow it down enough that the intervention starts with the right spare part in the van.

  1. Capture the fault before you touch anything: write down the exact error code or message, the serial number from the rating plate, what the operator was doing and whether the fault clears on a restart.

  2. Confirm the power supply end to end — wall outlet, mains lead, fuse and any UPS or stabiliser in between. A device that is intermittently dead has a supply fault far more often than an internal one.

  3. Check the consumables and wear parts — filters, seals, tubing, probes, batteries — and note when each was last replaced. Anything past its service interval is the first suspect.

  4. Reproduce the fault once, deliberately, and record the sequence: what the operator did, what the device displayed, and whether a full power cycle clears it.

  5. If the fault is still there, escalate with the evidence. Send AxiTech the model, serial number, error code and the checks you have already run, and an engineer will come back with a diagnosis, a repair quote and a spare-parts lead time for ISO Turbidity Portable Meter.

What to send us when you report the fault

  • Manufacturer, model and serial number, from the rating plate
  • The exact error code or message, and the screen it appears on
  • When the fault started, how often it occurs and what triggers it
  • A photograph of the display or of the fault, and the last maintenance report

If the fault survives all five steps, stop using ISO Turbidity Portable Meter and open a repair request. Continuing to run equipment through a fault it cannot clear turns a component failure into a board-level one, and on devices used for diagnosis or therapy it puts the result — and the patient — in doubt.

Discover our troubleshooting and repair service

Buying and installing ISO Turbidity Portable Meter

AxiTech supplies ISO Turbidity Portable Meter together with the accessories and consumables it needs to enter service. We handle importation, delivery and installation, then commission the equipment on site so that it is verified against its specification before the first patient or the first sample.

Installation is followed by training for the users and for your biomedical team, warranty registration, and — if you want it — a maintenance contract that takes over the day the warranty ends, so the equipment never spends a period without planned service.

Discover our equipment sales service

Delivery, installation, commissioning and user training
Questions we are asked

Frequently asked questions about Hanna Instruments ISO Turbidity Portable Meter

Yes. AxiTech services ISO Turbidity Portable Meter, either under a maintenance contract or as a one-off intervention. Our biomedical engineers cover preventive maintenance, calibration, corrective repair and spare-parts supply for this equipment.
