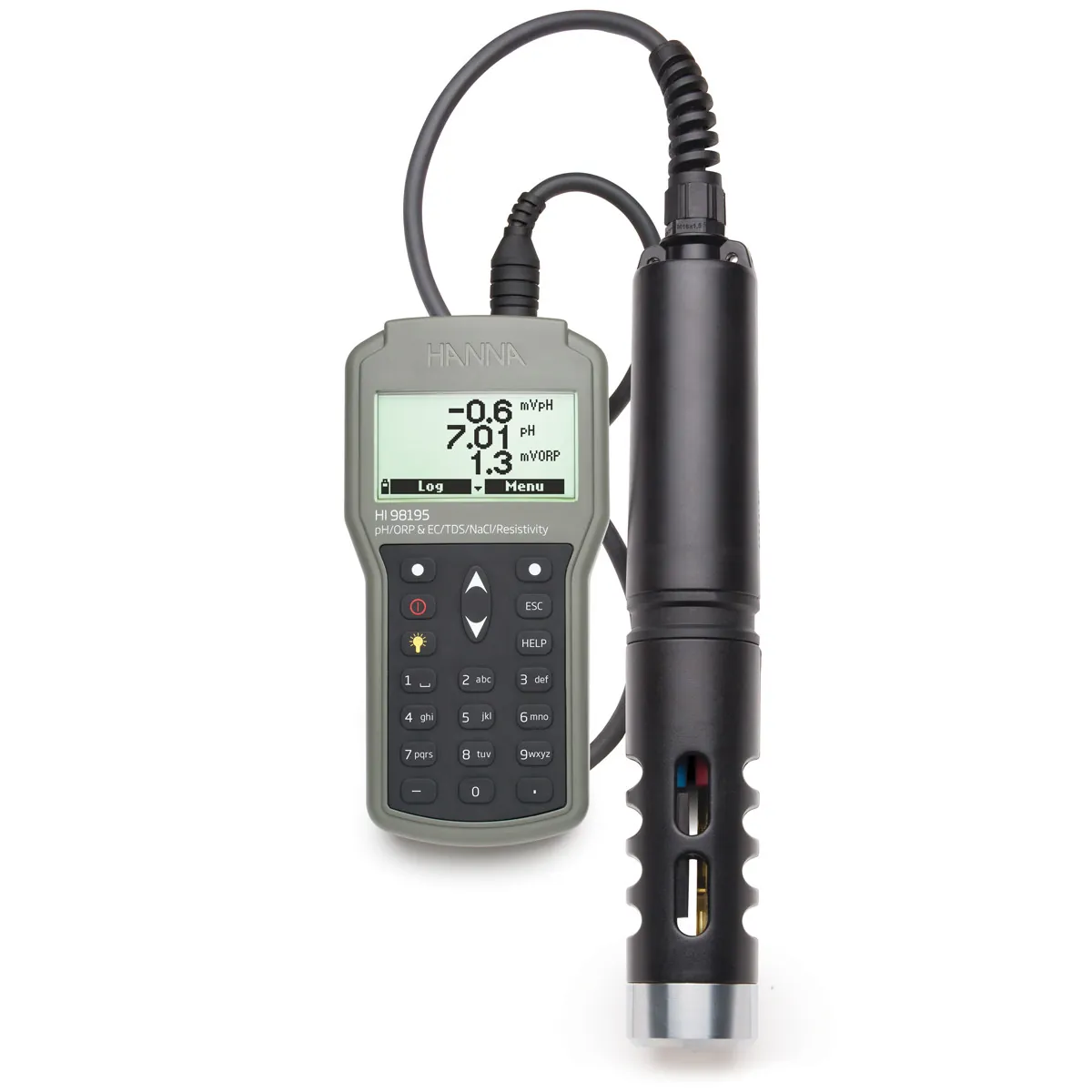

Multiparameter pH/ORP/EC/Pressure/Temperature Waterproof Meter — main photograph
Hanna InstrumentsAvailability: Supplied to order

Multiparameter pH/ORP/EC/Pressure/Temperature Waterproof Meter

Reference HI98195

The HI98195 is a waterproof portable logging multiparameter meter that monitors up to 10 different water quality parameters including 5 measured and 5 calculated. The microprocessor based multi-sensor probe allows for the measurement of key parameters including pH, ORP, conductivity, and temperature. The probe transmits readings digitally to the meter, where data points can be displayed and logged. The complete system is simple to setup and easy to use. The HI98195 is supplied with all necessary accessories and packaged in a durable carrying case.

Request a service for this equipment

Nothing is charged online. Every request is reviewed by an AxiTech engineer before you receive a quotation.

At a glance

Reference
HI98195
Category
pH, Conductivity & Water Analysis
Equipment family
Industry/Industrial, Industry/Industrial/Chemical manufacturing, Industry/Industrial/Water treatment, Industry/Water, Industry/Water/Aquaculture, Industry/Water/Wastewater, Industry/Water/Drinking wat

Overview

The HI98195 is a waterproof portable logging multiparameter meter that monitors up to 10 different water quality parameters including 5 measured and 5 calculated. The microprocessor based multi-sensor probe allows for the measurement of key parameters including pH, ORP, conductivity, and temperature. The probe transmits readings digitally to the meter, where data points can be displayed and logged. The complete system is simple to setup and easy to use. The HI98195 is supplied with all necessary accessories and packaged in a durable carrying case.

*Products classified as Dangerous Goods can only be shipped via ground.

Maintenance contract — AxiTech provides planned preventive maintenance for Multiparameter pH/ORP/EC/Pressure/Temperature Waterproof Meter from Hanna Instruments: scheduled visits, safety checks, periodic calibration and a documented service report, backed by a contractual response time.

Troubleshooting, repair and spare parts — our ph, conductivity & water analysis engineers diagnose and repair Multiparameter pH/ORP/EC/Pressure/Temperature Waterproof Meter on site or in the workshop, fit genuine spare parts and recommission the equipment after performance verification.

Features

  • Multi-Parameter Display
  • Multi-sensor Probe
  • USB Connection

Technical specifications

Specifications
GLP
Yes Power Supply 1.5V AA batteries (4) Power Consumption approximately 360 hours of continuous use without backlight (50 hours with backlight) Environment 1 to 50°C (32 to 122°F), RH 100% (IP67) Dimensions 186 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.) Weight 401 g (14.2 oz.) Order Information HI98195 is supplied with HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor, HI9298194 Hanna PC software, HI920015 micro USB cable, 1.5V AA batteries (4), instruction manual, quick start guide, quality c Warranty 2 years Recommended Probe HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor
Sku
HI98195-web pH Accuracy (@25°C/77°F) ± 0.02 pH mv Range ± 600.0 mV mv Accuracy ± 0.5 mV ORP Range ± 2000.0 mV ORP Accuracy (@25°C/77°F) ± 1.0 mV Temperature Range -5.00 to 55.00 °C, 23.00 to 131.00 °F, 268.15 to 328.15 K Temperature Resolution 0.01 °C, 0.01 °F, 0.01 K Temperature Accuracy (@25°C/77°F) ± 0.15 °C, ± 0.27 °F, ±0.15 K EC Resolution auto-ranging: 1 µS/cm from 0 to 9999 µS/cm, 0.01 mS/cm from 10.00 to 99.99 mS/cm, 0.1 mS/cm from 100.0 to 400.0 mS/cm, auto-ranging (fixed mS/cm): 0.001 mS/cm from 0.000 to 9.999 mS/cm, 0.01 from 100.0 to 400.0 mS/cm , manual: 1 µ EC Accuracy (@25°C/77°F) ±1% of reading or ±1 µS/cm whichever is greater TDS Range 0 to 9999 ppm (mg/L), 0.000 to 400.0 ppt (g/L) (maximum value depends on TDS factor) TDS Resolution manual: 1 ppm (mg/L), 0.001 ppt (g/L), 0.01 ppt (g/L), 0.1 ppt (g/L), 1 ppt (g/L), auto-ranging: 1 ppm (mg/L) from 0 to 9999 ppm (mg/L), 0.01 ppt (g/L) from 10.00 to 99.99 ppt (g/L), 0.1 ppt (g/L) from 100.0 to 400.0 ppt ( TDS Accuracy (@25°C/77°F) ±1% of reading or ±1 ppm (mg/L), whichever is greater Resistivity Range 0 to 999999 ©cm, 0 to 1000.0 k©cm, 0 to 1.0000 M©cm Resistivity Accuracy (@25°C/77°F) dependent on resistivity reading Salinity Accuracy (@25°C/77°F) ±2% of reading or ±0.01 PSU whichever is greater Log Feature 45, 000 records (continuous logging or log-on-demand of all parameters) Connectivity USB to PC with HI9298194 Hanna software installed GLP Yes Power Supply 1.5V AA batteries (4) Power Consumption approximately 360 hours of continuous use without backlight (50 hours with backlight) Environment 1 to 50°C (32 to 122°F), RH 100% (IP67) Dimensions 186 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.) Weight 401 g (14.2 oz.) Order Information HI98195 is supplied with HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor, HI9298194 Hanna PC software, HI920015 micro USB cable, 1.5V AA batteries (4), instruction manual, quick start guide, quality c Warranty 2 years Recommended Probe HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor
Weight
401 g (14.2 oz.) Order Information HI98195 is supplied with HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor, HI9298194 Hanna PC software, HI920015 micro USB cable, 1.5V AA batteries (4), instruction manual, quick start guide, quality c Warranty 2 years Recommended Probe HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor
Warranty
2 years Recommended Probe HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor
Mv Range
± 600.0 mV mv Accuracy ± 0.5 mV ORP Range ± 2000.0 mV ORP Accuracy (@25°C/77°F) ± 1.0 mV Temperature Range -5.00 to 55.00 °C, 23.00 to 131.00 °F, 268.15 to 328.15 K Temperature Resolution 0.01 °C, 0.01 °F, 0.01 K Temperature Accuracy (@25°C/77°F) ± 0.15 °C, ± 0.27 °F, ±0.15 K EC Resolution auto-ranging: 1 µS/cm from 0 to 9999 µS/cm, 0.01 mS/cm from 10.00 to 99.99 mS/cm, 0.1 mS/cm from 100.0 to 400.0 mS/cm, auto-ranging (fixed mS/cm): 0.001 mS/cm from 0.000 to 9.999 mS/cm, 0.01 from 100.0 to 400.0 mS/cm , manual: 1 µ EC Accuracy (@25°C/77°F) ±1% of reading or ±1 µS/cm whichever is greater TDS Range 0 to 9999 ppm (mg/L), 0.000 to 400.0 ppt (g/L) (maximum value depends on TDS factor) TDS Resolution manual: 1 ppm (mg/L), 0.001 ppt (g/L), 0.01 ppt (g/L), 0.1 ppt (g/L), 1 ppt (g/L), auto-ranging: 1 ppm (mg/L) from 0 to 9999 ppm (mg/L), 0.01 ppt (g/L) from 10.00 to 99.99 ppt (g/L), 0.1 ppt (g/L) from 100.0 to 400.0 ppt ( TDS Accuracy (@25°C/77°F) ±1% of reading or ±1 ppm (mg/L), whichever is greater Resistivity Range 0 to 999999 ©cm, 0 to 1000.0 k©cm, 0 to 1.0000 M©cm Resistivity Accuracy (@25°C/77°F) dependent on resistivity reading Salinity Accuracy (@25°C/77°F) ±2% of reading or ±0.01 PSU whichever is greater Log Feature 45, 000 records (continuous logging or log-on-demand of all parameters) Connectivity USB to PC with HI9298194 Hanna software installed GLP Yes Power Supply 1.5V AA batteries (4) Power Consumption approximately 360 hours of continuous use without backlight (50 hours with backlight) Environment 1 to 50°C (32 to 122°F), RH 100% (IP67) Dimensions 186 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.) Weight 401 g (14.2 oz.) Order Information HI98195 is supplied with HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor, HI9298194 Hanna PC software, HI920015 micro USB cable, 1.5V AA batteries (4), instruction manual, quick start guide, quality c Warranty 2 years Recommended Probe HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor
ORP Range
± 2000.0 mV ORP Accuracy (@25°C/77°F) ± 1.0 mV Temperature Range -5.00 to 55.00 °C, 23.00 to 131.00 °F, 268.15 to 328.15 K Temperature Resolution 0.01 °C, 0.01 °F, 0.01 K Temperature Accuracy (@25°C/77°F) ± 0.15 °C, ± 0.27 °F, ±0.15 K EC Resolution auto-ranging: 1 µS/cm from 0 to 9999 µS/cm, 0.01 mS/cm from 10.00 to 99.99 mS/cm, 0.1 mS/cm from 100.0 to 400.0 mS/cm, auto-ranging (fixed mS/cm): 0.001 mS/cm from 0.000 to 9.999 mS/cm, 0.01 from 100.0 to 400.0 mS/cm , manual: 1 µ EC Accuracy (@25°C/77°F) ±1% of reading or ±1 µS/cm whichever is greater TDS Range 0 to 9999 ppm (mg/L), 0.000 to 400.0 ppt (g/L) (maximum value depends on TDS factor) TDS Resolution manual: 1 ppm (mg/L), 0.001 ppt (g/L), 0.01 ppt (g/L), 0.1 ppt (g/L), 1 ppt (g/L), auto-ranging: 1 ppm (mg/L) from 0 to 9999 ppm (mg/L), 0.01 ppt (g/L) from 10.00 to 99.99 ppt (g/L), 0.1 ppt (g/L) from 100.0 to 400.0 ppt ( TDS Accuracy (@25°C/77°F) ±1% of reading or ±1 ppm (mg/L), whichever is greater Resistivity Range 0 to 999999 ©cm, 0 to 1000.0 k©cm, 0 to 1.0000 M©cm Resistivity Accuracy (@25°C/77°F) dependent on resistivity reading Salinity Accuracy (@25°C/77°F) ±2% of reading or ±0.01 PSU whichever is greater Log Feature 45, 000 records (continuous logging or log-on-demand of all parameters) Connectivity USB to PC with HI9298194 Hanna software installed GLP Yes Power Supply 1.5V AA batteries (4) Power Consumption approximately 360 hours of continuous use without backlight (50 hours with backlight) Environment 1 to 50°C (32 to 122°F), RH 100% (IP67) Dimensions 186 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.) Weight 401 g (14.2 oz.) Order Information HI98195 is supplied with HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor, HI9298194 Hanna PC software, HI920015 micro USB cable, 1.5V AA batteries (4), instruction manual, quick start guide, quality c Warranty 2 years Recommended Probe HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor
TDS Range
0 to 9999 ppm (mg/L), 0.000 to 400.0 ppt (g/L) (maximum value depends on TDS factor) TDS Resolution manual: 1 ppm (mg/L), 0.001 ppt (g/L), 0.01 ppt (g/L), 0.1 ppt (g/L), 1 ppt (g/L), auto-ranging: 1 ppm (mg/L) from 0 to 9999 ppm (mg/L), 0.01 ppt (g/L) from 10.00 to 99.99 ppt (g/L), 0.1 ppt (g/L) from 100.0 to 400.0 ppt ( TDS Accuracy (@25°C/77°F) ±1% of reading or ±1 ppm (mg/L), whichever is greater Resistivity Range 0 to 999999 ©cm, 0 to 1000.0 k©cm, 0 to 1.0000 M©cm Resistivity Accuracy (@25°C/77°F) dependent on resistivity reading Salinity Accuracy (@25°C/77°F) ±2% of reading or ±0.01 PSU whichever is greater Log Feature 45, 000 records (continuous logging or log-on-demand of all parameters) Connectivity USB to PC with HI9298194 Hanna software installed GLP Yes Power Supply 1.5V AA batteries (4) Power Consumption approximately 360 hours of continuous use without backlight (50 hours with backlight) Environment 1 to 50°C (32 to 122°F), RH 100% (IP67) Dimensions 186 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.) Weight 401 g (14.2 oz.) Order Information HI98195 is supplied with HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor, HI9298194 Hanna PC software, HI920015 micro USB cable, 1.5V AA batteries (4), instruction manual, quick start guide, quality c Warranty 2 years Recommended Probe HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor
Dimensions
186 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.) Weight 401 g (14.2 oz.) Order Information HI98195 is supplied with HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor, HI9298194 Hanna PC software, HI920015 micro USB cable, 1.5V AA batteries (4), instruction manual, quick start guide, quality c Warranty 2 years Recommended Probe HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor
Environment
1 to 50°C (32 to 122°F), RH 100% (IP67) Dimensions 186 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.) Weight 401 g (14.2 oz.) Order Information HI98195 is supplied with HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor, HI9298194 Hanna PC software, HI920015 micro USB cable, 1.5V AA batteries (4), instruction manual, quick start guide, quality c Warranty 2 years Recommended Probe HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor
Log Feature
45, 000 records (continuous logging or log-on-demand of all parameters) Connectivity USB to PC with HI9298194 Hanna software installed GLP Yes Power Supply 1.5V AA batteries (4) Power Consumption approximately 360 hours of continuous use without backlight (50 hours with backlight) Environment 1 to 50°C (32 to 122°F), RH 100% (IP67) Dimensions 186 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.) Weight 401 g (14.2 oz.) Order Information HI98195 is supplied with HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor, HI9298194 Hanna PC software, HI920015 micro USB cable, 1.5V AA batteries (4), instruction manual, quick start guide, quality c Warranty 2 years Recommended Probe HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor
Mv Accuracy
± 0.5 mV ORP Range ± 2000.0 mV ORP Accuracy (@25°C/77°F) ± 1.0 mV Temperature Range -5.00 to 55.00 °C, 23.00 to 131.00 °F, 268.15 to 328.15 K Temperature Resolution 0.01 °C, 0.01 °F, 0.01 K Temperature Accuracy (@25°C/77°F) ± 0.15 °C, ± 0.27 °F, ±0.15 K EC Resolution auto-ranging: 1 µS/cm from 0 to 9999 µS/cm, 0.01 mS/cm from 10.00 to 99.99 mS/cm, 0.1 mS/cm from 100.0 to 400.0 mS/cm, auto-ranging (fixed mS/cm): 0.001 mS/cm from 0.000 to 9.999 mS/cm, 0.01 from 100.0 to 400.0 mS/cm , manual: 1 µ EC Accuracy (@25°C/77°F) ±1% of reading or ±1 µS/cm whichever is greater TDS Range 0 to 9999 ppm (mg/L), 0.000 to 400.0 ppt (g/L) (maximum value depends on TDS factor) TDS Resolution manual: 1 ppm (mg/L), 0.001 ppt (g/L), 0.01 ppt (g/L), 0.1 ppt (g/L), 1 ppt (g/L), auto-ranging: 1 ppm (mg/L) from 0 to 9999 ppm (mg/L), 0.01 ppt (g/L) from 10.00 to 99.99 ppt (g/L), 0.1 ppt (g/L) from 100.0 to 400.0 ppt ( TDS Accuracy (@25°C/77°F) ±1% of reading or ±1 ppm (mg/L), whichever is greater Resistivity Range 0 to 999999 ©cm, 0 to 1000.0 k©cm, 0 to 1.0000 M©cm Resistivity Accuracy (@25°C/77°F) dependent on resistivity reading Salinity Accuracy (@25°C/77°F) ±2% of reading or ±0.01 PSU whichever is greater Log Feature 45, 000 records (continuous logging or log-on-demand of all parameters) Connectivity USB to PC with HI9298194 Hanna software installed GLP Yes Power Supply 1.5V AA batteries (4) Power Consumption approximately 360 hours of continuous use without backlight (50 hours with backlight) Environment 1 to 50°C (32 to 122°F), RH 100% (IP67) Dimensions 186 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.) Weight 401 g (14.2 oz.) Order Information HI98195 is supplied with HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor, HI9298194 Hanna PC software, HI920015 micro USB cable, 1.5V AA batteries (4), instruction manual, quick start guide, quality c Warranty 2 years Recommended Probe HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor
Connectivity
USB to PC with HI9298194 Hanna software installed GLP Yes Power Supply 1.5V AA batteries (4) Power Consumption approximately 360 hours of continuous use without backlight (50 hours with backlight) Environment 1 to 50°C (32 to 122°F), RH 100% (IP67) Dimensions 186 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.) Weight 401 g (14.2 oz.) Order Information HI98195 is supplied with HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor, HI9298194 Hanna PC software, HI920015 micro USB cable, 1.5V AA batteries (4), instruction manual, quick start guide, quality c Warranty 2 years Recommended Probe HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor
Power Supply
1.5V AA batteries (4) Power Consumption approximately 360 hours of continuous use without backlight (50 hours with backlight) Environment 1 to 50°C (32 to 122°F), RH 100% (IP67) Dimensions 186 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.) Weight 401 g (14.2 oz.) Order Information HI98195 is supplied with HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor, HI9298194 Hanna PC software, HI920015 micro USB cable, 1.5V AA batteries (4), instruction manual, quick start guide, quality c Warranty 2 years Recommended Probe HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor
EC Resolution
auto-ranging: 1 µS/cm from 0 to 9999 µS/cm, 0.01 mS/cm from 10.00 to 99.99 mS/cm, 0.1 mS/cm from 100.0 to 400.0 mS/cm, auto-ranging (fixed mS/cm): 0.001 mS/cm from 0.000 to 9.999 mS/cm, 0.01 from 100.0 to 400.0 mS/cm , manual: 1 µ EC Accuracy (@25°C/77°F) ±1% of reading or ±1 µS/cm whichever is greater TDS Range 0 to 9999 ppm (mg/L), 0.000 to 400.0 ppt (g/L) (maximum value depends on TDS factor) TDS Resolution manual: 1 ppm (mg/L), 0.001 ppt (g/L), 0.01 ppt (g/L), 0.1 ppt (g/L), 1 ppt (g/L), auto-ranging: 1 ppm (mg/L) from 0 to 9999 ppm (mg/L), 0.01 ppt (g/L) from 10.00 to 99.99 ppt (g/L), 0.1 ppt (g/L) from 100.0 to 400.0 ppt ( TDS Accuracy (@25°C/77°F) ±1% of reading or ±1 ppm (mg/L), whichever is greater Resistivity Range 0 to 999999 ©cm, 0 to 1000.0 k©cm, 0 to 1.0000 M©cm Resistivity Accuracy (@25°C/77°F) dependent on resistivity reading Salinity Accuracy (@25°C/77°F) ±2% of reading or ±0.01 PSU whichever is greater Log Feature 45, 000 records (continuous logging or log-on-demand of all parameters) Connectivity USB to PC with HI9298194 Hanna software installed GLP Yes Power Supply 1.5V AA batteries (4) Power Consumption approximately 360 hours of continuous use without backlight (50 hours with backlight) Environment 1 to 50°C (32 to 122°F), RH 100% (IP67) Dimensions 186 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.) Weight 401 g (14.2 oz.) Order Information HI98195 is supplied with HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor, HI9298194 Hanna PC software, HI920015 micro USB cable, 1.5V AA batteries (4), instruction manual, quick start guide, quality c Warranty 2 years Recommended Probe HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor
TDS Resolution
manual: 1 ppm (mg/L), 0.001 ppt (g/L), 0.01 ppt (g/L), 0.1 ppt (g/L), 1 ppt (g/L), auto-ranging: 1 ppm (mg/L) from 0 to 9999 ppm (mg/L), 0.01 ppt (g/L) from 10.00 to 99.99 ppt (g/L), 0.1 ppt (g/L) from 100.0 to 400.0 ppt ( TDS Accuracy (@25°C/77°F) ±1% of reading or ±1 ppm (mg/L), whichever is greater Resistivity Range 0 to 999999 ©cm, 0 to 1000.0 k©cm, 0 to 1.0000 M©cm Resistivity Accuracy (@25°C/77°F) dependent on resistivity reading Salinity Accuracy (@25°C/77°F) ±2% of reading or ±0.01 PSU whichever is greater Log Feature 45, 000 records (continuous logging or log-on-demand of all parameters) Connectivity USB to PC with HI9298194 Hanna software installed GLP Yes Power Supply 1.5V AA batteries (4) Power Consumption approximately 360 hours of continuous use without backlight (50 hours with backlight) Environment 1 to 50°C (32 to 122°F), RH 100% (IP67) Dimensions 186 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.) Weight 401 g (14.2 oz.) Order Information HI98195 is supplied with HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor, HI9298194 Hanna PC software, HI920015 micro USB cable, 1.5V AA batteries (4), instruction manual, quick start guide, quality c Warranty 2 years Recommended Probe HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor
Order Information

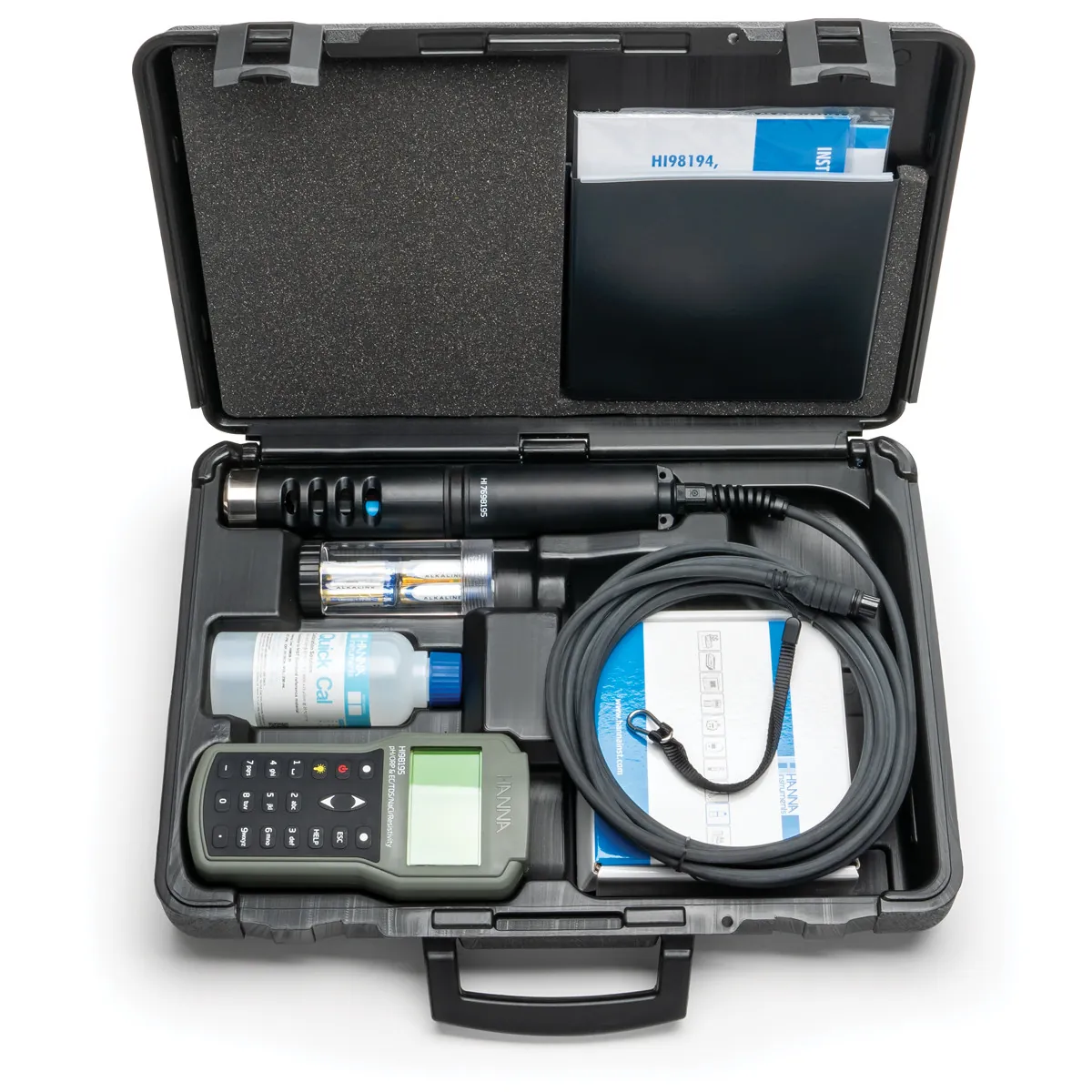

HI98195 is supplied with HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor, HI9298194 Hanna PC software, HI920015 micro USB cable, 1.5V AA batteries (4), instruction manual, quick start guide, quality c Warranty 2 years Recommended Probe HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor
Power Consumption
approximately 360 hours of continuous use without backlight (50 hours with backlight) Environment 1 to 50°C (32 to 122°F), RH 100% (IP67) Dimensions 186 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.) Weight 401 g (14.2 oz.) Order Information HI98195 is supplied with HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor, HI9298194 Hanna PC software, HI920015 micro USB cable, 1.5V AA batteries (4), instruction manual, quick start guide, quality c Warranty 2 years Recommended Probe HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor
Recommended Probe
HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor
Resistivity Range
0 to 999999 ©cm, 0 to 1000.0 k©cm, 0 to 1.0000 M©cm Resistivity Accuracy (@25°C/77°F) dependent on resistivity reading Salinity Accuracy (@25°C/77°F) ±2% of reading or ±0.01 PSU whichever is greater Log Feature 45, 000 records (continuous logging or log-on-demand of all parameters) Connectivity USB to PC with HI9298194 Hanna software installed GLP Yes Power Supply 1.5V AA batteries (4) Power Consumption approximately 360 hours of continuous use without backlight (50 hours with backlight) Environment 1 to 50°C (32 to 122°F), RH 100% (IP67) Dimensions 186 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.) Weight 401 g (14.2 oz.) Order Information HI98195 is supplied with HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor, HI9298194 Hanna PC software, HI920015 micro USB cable, 1.5V AA batteries (4), instruction manual, quick start guide, quality c Warranty 2 years Recommended Probe HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor
Temperature Range
-5.00 to 55.00 °C, 23.00 to 131.00 °F, 268.15 to 328.15 K Temperature Resolution 0.01 °C, 0.01 °F, 0.01 K Temperature Accuracy (@25°C/77°F) ± 0.15 °C, ± 0.27 °F, ±0.15 K EC Resolution auto-ranging: 1 µS/cm from 0 to 9999 µS/cm, 0.01 mS/cm from 10.00 to 99.99 mS/cm, 0.1 mS/cm from 100.0 to 400.0 mS/cm, auto-ranging (fixed mS/cm): 0.001 mS/cm from 0.000 to 9.999 mS/cm, 0.01 from 100.0 to 400.0 mS/cm , manual: 1 µ EC Accuracy (@25°C/77°F) ±1% of reading or ±1 µS/cm whichever is greater TDS Range 0 to 9999 ppm (mg/L), 0.000 to 400.0 ppt (g/L) (maximum value depends on TDS factor) TDS Resolution manual: 1 ppm (mg/L), 0.001 ppt (g/L), 0.01 ppt (g/L), 0.1 ppt (g/L), 1 ppt (g/L), auto-ranging: 1 ppm (mg/L) from 0 to 9999 ppm (mg/L), 0.01 ppt (g/L) from 10.00 to 99.99 ppt (g/L), 0.1 ppt (g/L) from 100.0 to 400.0 ppt ( TDS Accuracy (@25°C/77°F) ±1% of reading or ±1 ppm (mg/L), whichever is greater Resistivity Range 0 to 999999 ©cm, 0 to 1000.0 k©cm, 0 to 1.0000 M©cm Resistivity Accuracy (@25°C/77°F) dependent on resistivity reading Salinity Accuracy (@25°C/77°F) ±2% of reading or ±0.01 PSU whichever is greater Log Feature 45, 000 records (continuous logging or log-on-demand of all parameters) Connectivity USB to PC with HI9298194 Hanna software installed GLP Yes Power Supply 1.5V AA batteries (4) Power Consumption approximately 360 hours of continuous use without backlight (50 hours with backlight) Environment 1 to 50°C (32 to 122°F), RH 100% (IP67) Dimensions 186 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.) Weight 401 g (14.2 oz.) Order Information HI98195 is supplied with HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor, HI9298194 Hanna PC software, HI920015 micro USB cable, 1.5V AA batteries (4), instruction manual, quick start guide, quality c Warranty 2 years Recommended Probe HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor
Temperature Resolution
0.01 °C, 0.01 °F, 0.01 K Temperature Accuracy (@25°C/77°F) ± 0.15 °C, ± 0.27 °F, ±0.15 K EC Resolution auto-ranging: 1 µS/cm from 0 to 9999 µS/cm, 0.01 mS/cm from 10.00 to 99.99 mS/cm, 0.1 mS/cm from 100.0 to 400.0 mS/cm, auto-ranging (fixed mS/cm): 0.001 mS/cm from 0.000 to 9.999 mS/cm, 0.01 from 100.0 to 400.0 mS/cm , manual: 1 µ EC Accuracy (@25°C/77°F) ±1% of reading or ±1 µS/cm whichever is greater TDS Range 0 to 9999 ppm (mg/L), 0.000 to 400.0 ppt (g/L) (maximum value depends on TDS factor) TDS Resolution manual: 1 ppm (mg/L), 0.001 ppt (g/L), 0.01 ppt (g/L), 0.1 ppt (g/L), 1 ppt (g/L), auto-ranging: 1 ppm (mg/L) from 0 to 9999 ppm (mg/L), 0.01 ppt (g/L) from 10.00 to 99.99 ppt (g/L), 0.1 ppt (g/L) from 100.0 to 400.0 ppt ( TDS Accuracy (@25°C/77°F) ±1% of reading or ±1 ppm (mg/L), whichever is greater Resistivity Range 0 to 999999 ©cm, 0 to 1000.0 k©cm, 0 to 1.0000 M©cm Resistivity Accuracy (@25°C/77°F) dependent on resistivity reading Salinity Accuracy (@25°C/77°F) ±2% of reading or ±0.01 PSU whichever is greater Log Feature 45, 000 records (continuous logging or log-on-demand of all parameters) Connectivity USB to PC with HI9298194 Hanna software installed GLP Yes Power Supply 1.5V AA batteries (4) Power Consumption approximately 360 hours of continuous use without backlight (50 hours with backlight) Environment 1 to 50°C (32 to 122°F), RH 100% (IP67) Dimensions 186 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.) Weight 401 g (14.2 oz.) Order Information HI98195 is supplied with HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor, HI9298194 Hanna PC software, HI920015 micro USB cable, 1.5V AA batteries (4), instruction manual, quick start guide, quality c Warranty 2 years Recommended Probe HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor
EC Accuracy (@25°C/77°F)
±1% of reading or ±1 µS/cm whichever is greater TDS Range 0 to 9999 ppm (mg/L), 0.000 to 400.0 ppt (g/L) (maximum value depends on TDS factor) TDS Resolution manual: 1 ppm (mg/L), 0.001 ppt (g/L), 0.01 ppt (g/L), 0.1 ppt (g/L), 1 ppt (g/L), auto-ranging: 1 ppm (mg/L) from 0 to 9999 ppm (mg/L), 0.01 ppt (g/L) from 10.00 to 99.99 ppt (g/L), 0.1 ppt (g/L) from 100.0 to 400.0 ppt ( TDS Accuracy (@25°C/77°F) ±1% of reading or ±1 ppm (mg/L), whichever is greater Resistivity Range 0 to 999999 ©cm, 0 to 1000.0 k©cm, 0 to 1.0000 M©cm Resistivity Accuracy (@25°C/77°F) dependent on resistivity reading Salinity Accuracy (@25°C/77°F) ±2% of reading or ±0.01 PSU whichever is greater Log Feature 45, 000 records (continuous logging or log-on-demand of all parameters) Connectivity USB to PC with HI9298194 Hanna software installed GLP Yes Power Supply 1.5V AA batteries (4) Power Consumption approximately 360 hours of continuous use without backlight (50 hours with backlight) Environment 1 to 50°C (32 to 122°F), RH 100% (IP67) Dimensions 186 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.) Weight 401 g (14.2 oz.) Order Information HI98195 is supplied with HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor, HI9298194 Hanna PC software, HI920015 micro USB cable, 1.5V AA batteries (4), instruction manual, quick start guide, quality c Warranty 2 years Recommended Probe HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor
PH Accuracy (@25°C/77°F)
± 0.02 pH mv Range ± 600.0 mV mv Accuracy ± 0.5 mV ORP Range ± 2000.0 mV ORP Accuracy (@25°C/77°F) ± 1.0 mV Temperature Range -5.00 to 55.00 °C, 23.00 to 131.00 °F, 268.15 to 328.15 K Temperature Resolution 0.01 °C, 0.01 °F, 0.01 K Temperature Accuracy (@25°C/77°F) ± 0.15 °C, ± 0.27 °F, ±0.15 K EC Resolution auto-ranging: 1 µS/cm from 0 to 9999 µS/cm, 0.01 mS/cm from 10.00 to 99.99 mS/cm, 0.1 mS/cm from 100.0 to 400.0 mS/cm, auto-ranging (fixed mS/cm): 0.001 mS/cm from 0.000 to 9.999 mS/cm, 0.01 from 100.0 to 400.0 mS/cm , manual: 1 µ EC Accuracy (@25°C/77°F) ±1% of reading or ±1 µS/cm whichever is greater TDS Range 0 to 9999 ppm (mg/L), 0.000 to 400.0 ppt (g/L) (maximum value depends on TDS factor) TDS Resolution manual: 1 ppm (mg/L), 0.001 ppt (g/L), 0.01 ppt (g/L), 0.1 ppt (g/L), 1 ppt (g/L), auto-ranging: 1 ppm (mg/L) from 0 to 9999 ppm (mg/L), 0.01 ppt (g/L) from 10.00 to 99.99 ppt (g/L), 0.1 ppt (g/L) from 100.0 to 400.0 ppt ( TDS Accuracy (@25°C/77°F) ±1% of reading or ±1 ppm (mg/L), whichever is greater Resistivity Range 0 to 999999 ©cm, 0 to 1000.0 k©cm, 0 to 1.0000 M©cm Resistivity Accuracy (@25°C/77°F) dependent on resistivity reading Salinity Accuracy (@25°C/77°F) ±2% of reading or ±0.01 PSU whichever is greater Log Feature 45, 000 records (continuous logging or log-on-demand of all parameters) Connectivity USB to PC with HI9298194 Hanna software installed GLP Yes Power Supply 1.5V AA batteries (4) Power Consumption approximately 360 hours of continuous use without backlight (50 hours with backlight) Environment 1 to 50°C (32 to 122°F), RH 100% (IP67) Dimensions 186 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.) Weight 401 g (14.2 oz.) Order Information HI98195 is supplied with HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor, HI9298194 Hanna PC software, HI920015 micro USB cable, 1.5V AA batteries (4), instruction manual, quick start guide, quality c Warranty 2 years Recommended Probe HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor
ORP Accuracy (@25°C/77°F)
± 1.0 mV Temperature Range -5.00 to 55.00 °C, 23.00 to 131.00 °F, 268.15 to 328.15 K Temperature Resolution 0.01 °C, 0.01 °F, 0.01 K Temperature Accuracy (@25°C/77°F) ± 0.15 °C, ± 0.27 °F, ±0.15 K EC Resolution auto-ranging: 1 µS/cm from 0 to 9999 µS/cm, 0.01 mS/cm from 10.00 to 99.99 mS/cm, 0.1 mS/cm from 100.0 to 400.0 mS/cm, auto-ranging (fixed mS/cm): 0.001 mS/cm from 0.000 to 9.999 mS/cm, 0.01 from 100.0 to 400.0 mS/cm , manual: 1 µ EC Accuracy (@25°C/77°F) ±1% of reading or ±1 µS/cm whichever is greater TDS Range 0 to 9999 ppm (mg/L), 0.000 to 400.0 ppt (g/L) (maximum value depends on TDS factor) TDS Resolution manual: 1 ppm (mg/L), 0.001 ppt (g/L), 0.01 ppt (g/L), 0.1 ppt (g/L), 1 ppt (g/L), auto-ranging: 1 ppm (mg/L) from 0 to 9999 ppm (mg/L), 0.01 ppt (g/L) from 10.00 to 99.99 ppt (g/L), 0.1 ppt (g/L) from 100.0 to 400.0 ppt ( TDS Accuracy (@25°C/77°F) ±1% of reading or ±1 ppm (mg/L), whichever is greater Resistivity Range 0 to 999999 ©cm, 0 to 1000.0 k©cm, 0 to 1.0000 M©cm Resistivity Accuracy (@25°C/77°F) dependent on resistivity reading Salinity Accuracy (@25°C/77°F) ±2% of reading or ±0.01 PSU whichever is greater Log Feature 45, 000 records (continuous logging or log-on-demand of all parameters) Connectivity USB to PC with HI9298194 Hanna software installed GLP Yes Power Supply 1.5V AA batteries (4) Power Consumption approximately 360 hours of continuous use without backlight (50 hours with backlight) Environment 1 to 50°C (32 to 122°F), RH 100% (IP67) Dimensions 186 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.) Weight 401 g (14.2 oz.) Order Information HI98195 is supplied with HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor, HI9298194 Hanna PC software, HI920015 micro USB cable, 1.5V AA batteries (4), instruction manual, quick start guide, quality c Warranty 2 years Recommended Probe HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor
TDS Accuracy (@25°C/77°F)
±1% of reading or ±1 ppm (mg/L), whichever is greater Resistivity Range 0 to 999999 ©cm, 0 to 1000.0 k©cm, 0 to 1.0000 M©cm Resistivity Accuracy (@25°C/77°F) dependent on resistivity reading Salinity Accuracy (@25°C/77°F) ±2% of reading or ±0.01 PSU whichever is greater Log Feature 45, 000 records (continuous logging or log-on-demand of all parameters) Connectivity USB to PC with HI9298194 Hanna software installed GLP Yes Power Supply 1.5V AA batteries (4) Power Consumption approximately 360 hours of continuous use without backlight (50 hours with backlight) Environment 1 to 50°C (32 to 122°F), RH 100% (IP67) Dimensions 186 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.) Weight 401 g (14.2 oz.) Order Information HI98195 is supplied with HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor, HI9298194 Hanna PC software, HI920015 micro USB cable, 1.5V AA batteries (4), instruction manual, quick start guide, quality c Warranty 2 years Recommended Probe HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor
Salinity Accuracy (@25°C/77°F)
±2% of reading or ±0.01 PSU whichever is greater Log Feature 45, 000 records (continuous logging or log-on-demand of all parameters) Connectivity USB to PC with HI9298194 Hanna software installed GLP Yes Power Supply 1.5V AA batteries (4) Power Consumption approximately 360 hours of continuous use without backlight (50 hours with backlight) Environment 1 to 50°C (32 to 122°F), RH 100% (IP67) Dimensions 186 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.) Weight 401 g (14.2 oz.) Order Information HI98195 is supplied with HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor, HI9298194 Hanna PC software, HI920015 micro USB cable, 1.5V AA batteries (4), instruction manual, quick start guide, quality c Warranty 2 years Recommended Probe HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor
Resistivity Accuracy (@25°C/77°F)
dependent on resistivity reading Salinity Accuracy (@25°C/77°F) ±2% of reading or ±0.01 PSU whichever is greater Log Feature 45, 000 records (continuous logging or log-on-demand of all parameters) Connectivity USB to PC with HI9298194 Hanna software installed GLP Yes Power Supply 1.5V AA batteries (4) Power Consumption approximately 360 hours of continuous use without backlight (50 hours with backlight) Environment 1 to 50°C (32 to 122°F), RH 100% (IP67) Dimensions 186 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.) Weight 401 g (14.2 oz.) Order Information HI98195 is supplied with HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor, HI9298194 Hanna PC software, HI920015 micro USB cable, 1.5V AA batteries (4), instruction manual, quick start guide, quality c Warranty 2 years Recommended Probe HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor
Temperature Accuracy (@25°C/77°F)
± 0.15 °C, ± 0.27 °F, ±0.15 K EC Resolution auto-ranging: 1 µS/cm from 0 to 9999 µS/cm, 0.01 mS/cm from 10.00 to 99.99 mS/cm, 0.1 mS/cm from 100.0 to 400.0 mS/cm, auto-ranging (fixed mS/cm): 0.001 mS/cm from 0.000 to 9.999 mS/cm, 0.01 from 100.0 to 400.0 mS/cm , manual: 1 µ EC Accuracy (@25°C/77°F) ±1% of reading or ±1 µS/cm whichever is greater TDS Range 0 to 9999 ppm (mg/L), 0.000 to 400.0 ppt (g/L) (maximum value depends on TDS factor) TDS Resolution manual: 1 ppm (mg/L), 0.001 ppt (g/L), 0.01 ppt (g/L), 0.1 ppt (g/L), 1 ppt (g/L), auto-ranging: 1 ppm (mg/L) from 0 to 9999 ppm (mg/L), 0.01 ppt (g/L) from 10.00 to 99.99 ppt (g/L), 0.1 ppt (g/L) from 100.0 to 400.0 ppt ( TDS Accuracy (@25°C/77°F) ±1% of reading or ±1 ppm (mg/L), whichever is greater Resistivity Range 0 to 999999 ©cm, 0 to 1000.0 k©cm, 0 to 1.0000 M©cm Resistivity Accuracy (@25°C/77°F) dependent on resistivity reading Salinity Accuracy (@25°C/77°F) ±2% of reading or ±0.01 PSU whichever is greater Log Feature 45, 000 records (continuous logging or log-on-demand of all parameters) Connectivity USB to PC with HI9298194 Hanna software installed GLP Yes Power Supply 1.5V AA batteries (4) Power Consumption approximately 360 hours of continuous use without backlight (50 hours with backlight) Environment 1 to 50°C (32 to 122°F), RH 100% (IP67) Dimensions 186 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.) Weight 401 g (14.2 oz.) Order Information HI98195 is supplied with HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor, HI9298194 Hanna PC software, HI920015 micro USB cable, 1.5V AA batteries (4), instruction manual, quick start guide, quality c Warranty 2 years Recommended Probe HI7698195 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor
Service coverage

AxiTech maintains, repairs and supplies this equipment for hospitals, clinics, laboratories and imaging centres.

Maintenance contracts for Multiparameter pH/ORP/EC/Pressure/Temperature Waterproof Meter

AxiTech provides preventive maintenance contracts for Multiparameter pH/ORP/EC/Pressure/Temperature Waterproof Meter. Each contract fixes a schedule of planned visits in which our biomedical engineers inspect the equipment, replace wear parts before they fail, and verify that it still performs inside the manufacturer’s tolerances.

Every visit includes calibration and performance verification, and closes with a documented maintenance report you can present during an accreditation audit. Spare-parts availability and a guaranteed response time are written into the contract, so a breakdown never leaves a department waiting for an answer.

Plan at least one preventive maintenance visit per year, and a second visit for equipment in continuous or critical use.

  • Planned preventive maintenance visits at a fixed interval
  • Calibration and performance verification against the manufacturer’s specifications
  • A documented maintenance report after every intervention
  • Guaranteed availability of spare parts and consumables
  • A contractual response time when the equipment fails

Discover our maintenance contracts

Planned preventive maintenance and calibration under contract

Troubleshooting and repair for Multiparameter pH/ORP/EC/Pressure/Temperature Waterproof Meter

When Multiparameter pH/ORP/EC/Pressure/Temperature Waterproof Meter fails, our engineers start with a structured diagnostic: error codes, electrical and mechanical checks, and a functional test against the equipment’s own specification. That tells us whether the fault is a consumable, a worn part or a board-level failure before any part is ordered.

Straightforward faults are repaired on site so the department loses as little time as possible. Anything that needs a workbench, a full strip-down or a specialised spare part goes to our workshop and comes back only after a complete post-repair test and, where the equipment requires it, recalibration.

Faults we see most often on this type of equipment

The faults we see most often are worn moving parts, power-supply and control-board failures, sensors that have drifted out of tolerance, and fluid or air paths that have become blocked or contaminated.

Discover our troubleshooting and repair service

Diagnostics, corrective repair and spare parts in the workshop
Troubleshooting

How to troubleshoot Multiparameter pH/ORP/EC/Pressure/Temperature Waterproof Meter

Work through these checks before you escalate. They are the same first-line sequence our biomedical engineers run on arrival, and they either clear the fault or narrow it down enough that the intervention starts with the right spare part in the van.

  1. Capture the fault before you touch anything: write down the exact error code or message, the serial number from the rating plate, what the operator was doing and whether the fault clears on a restart.

  2. Confirm the power supply end to end — wall outlet, mains lead, fuse and any UPS or stabiliser in between. A device that is intermittently dead has a supply fault far more often than an internal one.

  3. Check the consumables and wear parts — filters, seals, tubing, probes, batteries — and note when each was last replaced. Anything past its service interval is the first suspect.

  4. Reproduce the fault once, deliberately, and record the sequence: what the operator did, what the device displayed, and whether a full power cycle clears it.

  5. If the fault is still there, escalate with the evidence. Send AxiTech the model, serial number, error code and the checks you have already run, and an engineer will come back with a diagnosis, a repair quote and a spare-parts lead time for Multiparameter pH/ORP/EC/Pressure/Temperature Waterproof Meter.

What to send us when you report the fault

  • Manufacturer, model and serial number, from the rating plate
  • The exact error code or message, and the screen it appears on
  • When the fault started, how often it occurs and what triggers it
  • A photograph of the display or of the fault, and the last maintenance report

If the fault survives all five steps, stop using Multiparameter pH/ORP/EC/Pressure/Temperature Waterproof Meter and open a repair request. Continuing to run equipment through a fault it cannot clear turns a component failure into a board-level one, and on devices used for diagnosis or therapy it puts the result — and the patient — in doubt.

Discover our troubleshooting and repair service

Buying and installing Multiparameter pH/ORP/EC/Pressure/Temperature Waterproof Meter

AxiTech supplies Multiparameter pH/ORP/EC/Pressure/Temperature Waterproof Meter together with the accessories and consumables it needs to enter service. We handle importation, delivery and installation, then commission the equipment on site so that it is verified against its specification before the first patient or the first sample.

Installation is followed by training for the users and for your biomedical team, warranty registration, and — if you want it — a maintenance contract that takes over the day the warranty ends, so the equipment never spends a period without planned service.

Discover our equipment sales service

Delivery, installation, commissioning and user training
Questions we are asked

Frequently asked questions about Hanna Instruments Multiparameter pH/ORP/EC/Pressure/Temperature Waterproof Meter

Yes. AxiTech services Multiparameter pH/ORP/EC/Pressure/Temperature Waterproof Meter, either under a maintenance contract or as a one-off intervention. Our biomedical engineers cover preventive maintenance, calibration, corrective repair and spare-parts supply for this equipment.
