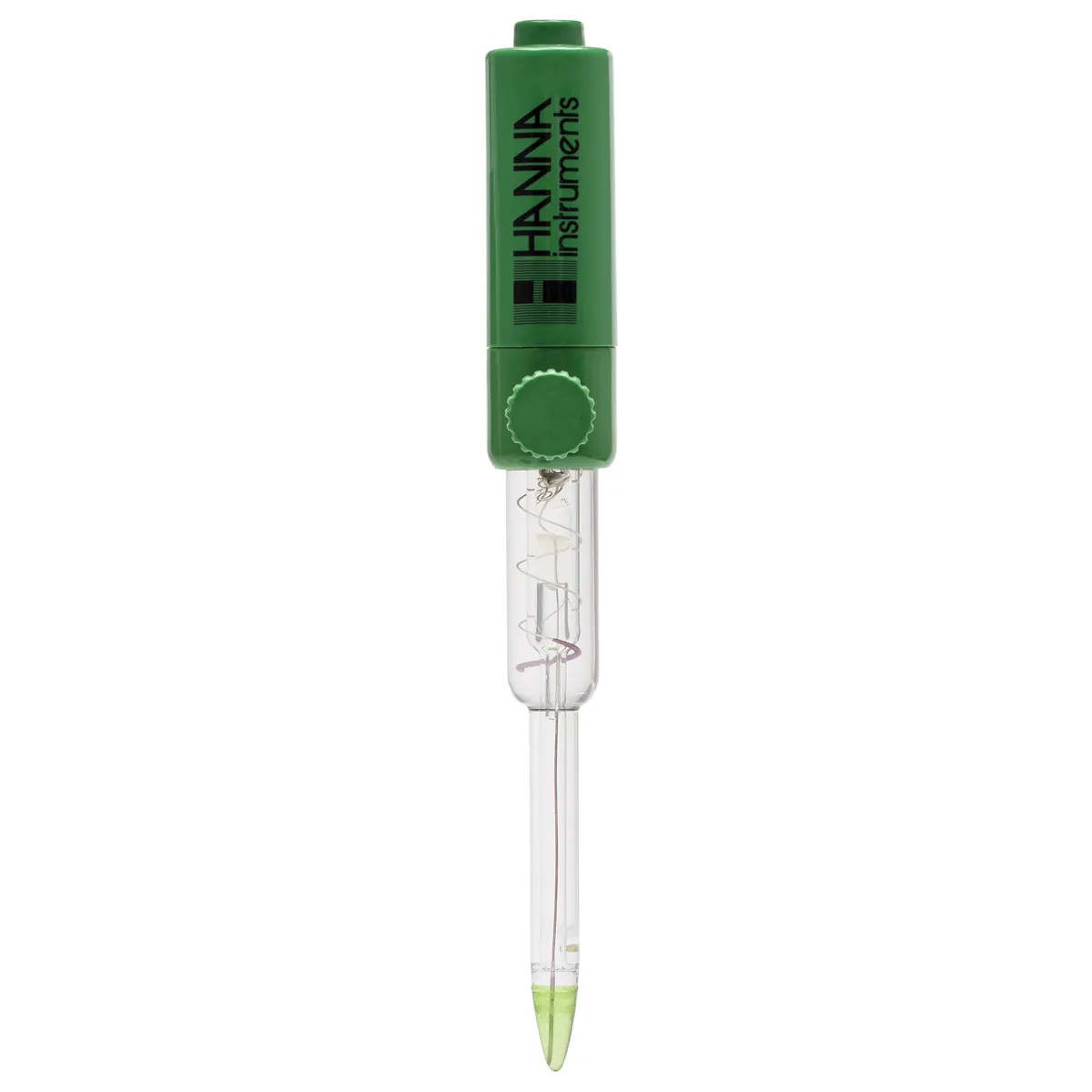

Spear Tip pH Electrode for Semi-Solid Samples with BNC Connector — main photograph
Hanna InstrumentsAvailability: Supplied to order

Spear Tip pH Electrode for Semi-Solid Samples with BNC Connector

Reference HI2031B

The HI2031B is a glass body, refillable, single junction pH electrode with a BNC connector. This electrode has a single ceramic junction in the outer reference cell and the conical pH sensing portion is made with low temperature glass. This design consideration is ideal for emulsions, dairy products, semi-solid samples, and for measuring samples at cooler temperatures.

Order this item

Nothing is charged online. Every request is reviewed by an AxiTech engineer before you receive a quotation.

At a glance

Reference
HI2031B
Category
pH, Conductivity & Water Analysis
Equipment family
Industry/Industrial, Industry/Water, Industry/Laboratory, Industry/Food, Industry/Beverage, Product/Accessories, Product/Accessories/Electrodes and probes, Product/Accessories/Electrodes and probes/El

Overview

The HI2031B is a glass body, refillable, single junction pH electrode with a BNC connector. This electrode has a single ceramic junction in the outer reference cell and the conical pH sensing portion is made with low temperature glass. This design consideration is ideal for emulsions, dairy products, semi-solid samples, and for measuring samples at cooler temperatures.

*Products classified as Dangerous Goods can only be shipped via ground.

Maintenance contract — AxiTech provides planned preventive maintenance for Spear Tip pH Electrode for Semi-Solid Samples with BNC Connector from Hanna Instruments: scheduled visits, safety checks, periodic calibration and a documented service report, backed by a contractual response time.

Troubleshooting, repair and spare parts — our ph, conductivity & water analysis engineers diagnose and repair Spear Tip pH Electrode for Semi-Solid Samples with BNC Connector on site or in the workshop, fit genuine spare parts and recommission the equipment after performance verification.

Features

  • Conical Tip
  • Low Temperature (LT) Glass
  • Refillable Electrode

Technical specifications

Specifications
SKU
HI2031B Description refillable, conical tip combination pH electrode Reference single, Ag/AgCl Junction / Flow Rate ceramic, single / 15-20 µL/h Electrolyte KCl 3.5M + AgCl Max Pressure 0.1 bar Range pH: 0 to 12 Recommended Operating Temperature -5 to 70°C (23 to 158°F) - LT Tip / Shape conic (6 x 10 mm) Temperature Sensor no Amplifier no Body Material glass Cable coaxial 1 m (3.3') Recommended Use dairy and semi-solid products Connection BNC
Cable
coaxial 1 m (3.3') Recommended Use dairy and semi-solid products Connection BNC
Range
pH: 0 to 12 Recommended Operating Temperature -5 to 70°C (23 to 158°F) - LT Tip / Shape conic (6 x 10 mm) Temperature Sensor no Amplifier no Body Material glass Cable coaxial 1 m (3.3') Recommended Use dairy and semi-solid products Connection BNC
Amplifier
no Body Material glass Cable coaxial 1 m (3.3') Recommended Use dairy and semi-solid products Connection BNC
Reference
single, Ag/AgCl Junction / Flow Rate ceramic, single / 15-20 µL/h Electrolyte KCl 3.5M + AgCl Max Pressure 0.1 bar Range pH: 0 to 12 Recommended Operating Temperature -5 to 70°C (23 to 158°F) - LT Tip / Shape conic (6 x 10 mm) Temperature Sensor no Amplifier no Body Material glass Cable coaxial 1 m (3.3') Recommended Use dairy and semi-solid products Connection BNC
Connection
BNC
Description
refillable, conical tip combination pH electrode Reference single, Ag/AgCl Junction / Flow Rate ceramic, single / 15-20 µL/h Electrolyte KCl 3.5M + AgCl Max Pressure 0.1 bar Range pH: 0 to 12 Recommended Operating Temperature -5 to 70°C (23 to 158°F) - LT Tip / Shape conic (6 x 10 mm) Temperature Sensor no Amplifier no Body Material glass Cable coaxial 1 m (3.3') Recommended Use dairy and semi-solid products Connection BNC
Electrolyte
KCl 3.5M + AgCl Max Pressure 0.1 bar Range pH: 0 to 12 Recommended Operating Temperature -5 to 70°C (23 to 158°F) - LT Tip / Shape conic (6 x 10 mm) Temperature Sensor no Amplifier no Body Material glass Cable coaxial 1 m (3.3') Recommended Use dairy and semi-solid products Connection BNC
Tip / Shape
conic (6 x 10 mm) Temperature Sensor no Amplifier no Body Material glass Cable coaxial 1 m (3.3') Recommended Use dairy and semi-solid products Connection BNC
Max Pressure
0.1 bar Range pH: 0 to 12 Recommended Operating Temperature -5 to 70°C (23 to 158°F) - LT Tip / Shape conic (6 x 10 mm) Temperature Sensor no Amplifier no Body Material glass Cable coaxial 1 m (3.3') Recommended Use dairy and semi-solid products Connection BNC
Body Material
glass Cable coaxial 1 m (3.3') Recommended Use dairy and semi-solid products Connection BNC
Recommended Use
dairy and semi-solid products Connection BNC
Temperature Sensor
no Amplifier no Body Material glass Cable coaxial 1 m (3.3') Recommended Use dairy and semi-solid products Connection BNC
Junction / Flow Rate
ceramic, single / 15-20 µL/h Electrolyte KCl 3.5M + AgCl Max Pressure 0.1 bar Range pH: 0 to 12 Recommended Operating Temperature -5 to 70°C (23 to 158°F) - LT Tip / Shape conic (6 x 10 mm) Temperature Sensor no Amplifier no Body Material glass Cable coaxial 1 m (3.3') Recommended Use dairy and semi-solid products Connection BNC
Recommended Operating Temperature
-5 to 70°C (23 to 158°F) - LT Tip / Shape conic (6 x 10 mm) Temperature Sensor no Amplifier no Body Material glass Cable coaxial 1 m (3.3') Recommended Use dairy and semi-solid products Connection BNC
Supply and reordering

AxiTech supplies Spear Tip pH Electrode for Semi-Solid Samples with BNC Connector as a spare, so a worn part is replaced during the same visit rather than becoming a second call-out.

Ordering Spear Tip pH Electrode for Semi-Solid Samples with BNC Connector

Tell us the reference, or the model and serial number of the instrument it belongs to, and we confirm the correct part, its price and its lead time. Parts ordered against a maintenance contract are carried on the visit.

  • Compatibility confirmed against your instrument before despatch
  • Quoted with a lead time, not just a price
  • Scheduled with your maintenance visit when you hold a contract
  • Standing orders for items you consume on a predictable cycle

The instrument it belongs to

AxiTech maintains, calibrates and repairs the Hanna Instruments instruments that Spear Tip pH Electrode for Semi-Solid Samples with BNC Connector is used with. If you operate one, we can put it under a preventive maintenance contract and supply this item as part of the schedule.
