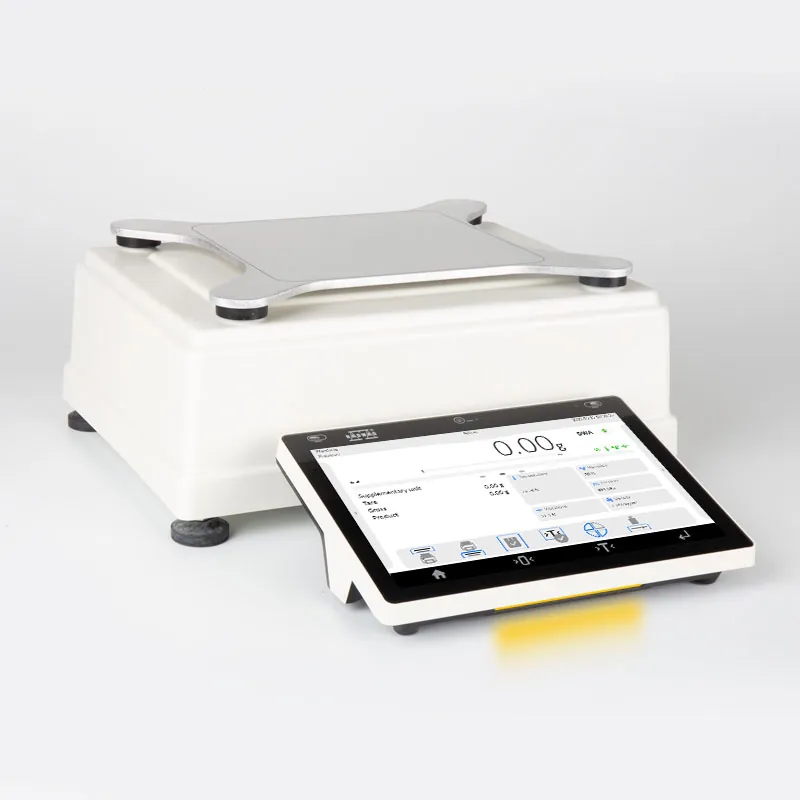

5Y.10.PM Precision Balance — main photograph
RadwagAvailability: Supplied to order

5Y.10.PM Precision Balance

Reference WL-224-0001

Laboratory Precision Under Industrial Conditions

Request a service for this equipment

Nothing is charged online. Every request is reviewed by an AxiTech engineer before you receive a quotation.

At a glance

Reference
WL-224-0001
Category
Laboratory Balances

Overview

The ability to weigh loads up to 120 kg on a large weighing pan with high accuracy and good repeatability, minimum eccentricity error over the entire range, quick and stable measurement (achievable within 1 second), parameter stability over time and during transport, robust design based on a larger and taller , built-in 4-point overload protection system, weighing pan dimensions adapted to the accuracy of the balance, internal adjustment, are the distinguishing features of RADWAG PM balances. All of this is possible thanks to the use of a cutting-edge measuring system based on enhanced MONO BLOCK ® technology. The change in the design of the MONO BLOCK ® has made it possible to work with a readability of 0.01 g at a maximum capacity of 20 kg and 0.2 g at a maximum capacity of 120 kg, with a repeatability of 0.01 g, and resistance to changes in ambient conditions.

10-inch touch screen, easy start-up, intuitive operation, and ergonomics, compliance with 21 CFR Part 11 , Digital Weighing Auditor, multi-step user verification, Ambient Light alerts, Hotspot, RFID, Live Note text notes, handy measurement history within the Handy Library, widgets.

Do you work in the pharmaceutical industry? Do you need a digital signature? We are offering the laboratory balance which as a standalone fully meets the requirements of 21 CFR Part 11/ EU GMP Annex 11 . - Full data security - Electronic signatures - Validations - Electronic records - Audit trails

is one of the most popular communication protocols in industrial automation. Implementing it in the 5Y balances and CY10 scales makes the devices of this series friendly to automation integrators. A balance or scale in a Modbus system is a slave device and performs tasks specified by the master device which is most often a PLC. Protocol Modbus TCP/IP in the 5Y balances and C10 scales enables, among other things, the realization of mass readout, zeroing and tare functions of the device, as well as tare settings and MIN and MAX thresholds .

Features

  • The ability to weigh loads up to 120 kg on a large weighing pan with high accuracy and good repeatability,
  • minimum eccentricity error over the entire range,
  • quick and stable measurement (achievable within 1 second),
  • parameter stability over time and during transport,
  • robust design based on a larger and taller ,
  • built-in 4-point overload protection system,
  • weighing pan dimensions adapted to the accuracy of the balance,
  • internal adjustment,
  • 10-inch touch screen,
  • easy start-up, intuitive operation, and ergonomics,
  • compliance with 21 CFR Part 11 ,
  • Digital Weighing Auditor,
  • multi-step user verification,
  • Ambient Light alerts,
  • Hotspot,
  • RFID,
  • Live Note text notes,

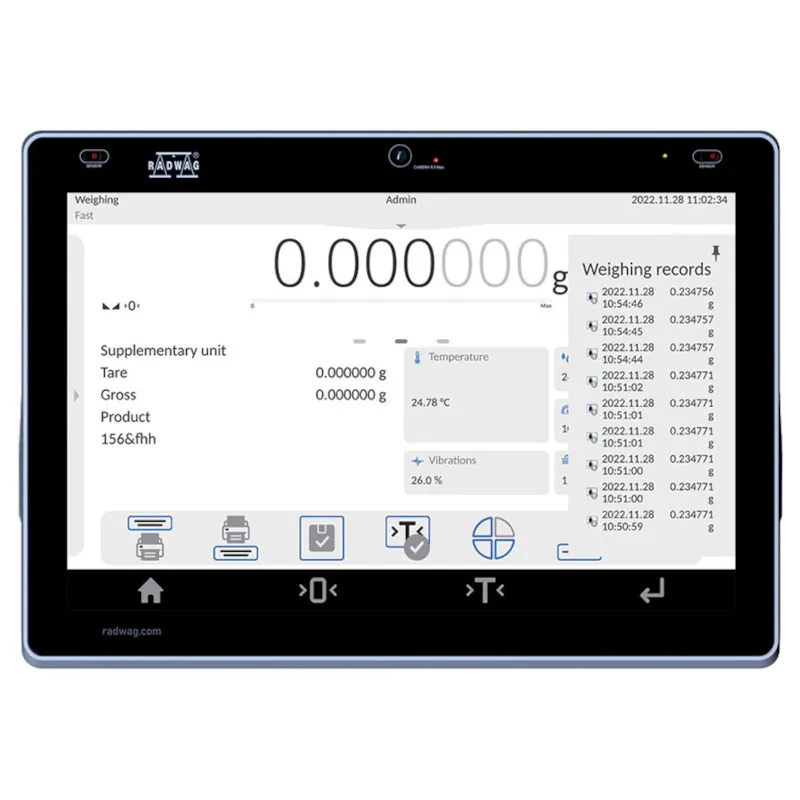

  • handy measurement history within the Handy Library,
  • widgets.
  • Autotest
  • Dosing
  • Percent Weighing
  • Parts counting
  • Peak hold
  • Formulation
  • Statistics
  • Checkweighing
  • IR sensors
  • Under-pan weighing
  • GLP Procedures
  • Animal weighing
  • Pipettes Calibration
  • Air density correction
  • Density determination
  • Differential weighing
  • Ambient conditions monitoring
  • Statistical Quality Control
  • Packaged Goods Control
  • ALIBI Memory
  • Wi-Fi ®

Technical specifications

Display
10″ graphic colour touchscreen
Linearity
±0,025 g
Adjustment
internal (automatic)
Net weight
12,96 kg
OIML Class
II
Tare range
-10 kg
Gross weight
14 kg
Minimum load
0,5 g
Show 17 more specifications
Power supply
Adapter: 100 – 240V AC 50/60Hz 1A Max; 15V DC 2,4A Balance: 12 – 15V DC 1,4A max; 9 – 17W*
Preload range
1 kg
Leveling system
semi-automatic – LevelSENSING
Readability [d]
0,01 g
Protection class
IP 43
Stabilization time
1 s
Delivery components
Precision Balance, weighing pan, fabric dust cover, power supply.
Minimum weight (USP)
8,2 g
Operating temperature
+10 – +40 °C
Verification unit [e]
0,1 g
Maximum capacity [Max]
10 kg
Communication interface
2×USB-A, USB-C, RS 232 (COM3), HDMI, Ethernet, Wi-Fi ® , Hotspot
Weighing pan dimensions
200×185 mm
Minimum weight (U=1%, k=2)
0,82 g
Standard repeatability [Max]
0,01 g
Packaging dimensions W x D x H
520×520×280 mm
Standard repeatability [5% Max]
0,0041 g
Service coverage

AxiTech maintains, repairs and supplies this equipment for hospitals, clinics, laboratories and imaging centres.

Maintenance contracts for Radwag 5Y.10.PM Precision Balance

A service visit on the Radwag 5Y.10.PM Precision Balance covers calibration with certified reference weights across its weighing range — linearity, repeatability and eccentricity — a check of its adjustment function, and levelling and siting advice.

Every visit includes calibration and performance verification, and closes with a documented maintenance report you can present during an accreditation audit. Spare-parts availability and a guaranteed response time are written into the contract, so a breakdown never leaves a department waiting for an answer.

Most laboratories have a balance like the Radwag 5Y.10.PM Precision Balance calibrated by a service engineer at least once a year and after every relocation, with routine checks against a test weight in between; the interval tightens where the weighing supports a GMP or accredited method.

  • Calibration with certified reference weights across the weighing range
  • Repeatability, linearity and eccentricity tests, recorded in the service report
  • Check of the internal or external adjustment function
  • Cleaning of the weighing chamber, pan and draught shield, and levelling

Discover our maintenance contracts

Planned preventive maintenance and calibration under contract

Troubleshooting and repair for Radwag 5Y.10.PM Precision Balance

When Radwag 5Y.10.PM Precision Balance fails, our engineers start with a structured diagnostic: error codes, electrical and mechanical checks, and a functional test against the equipment’s own specification. That tells us whether the fault is a consumable, a worn part or a board-level failure before any part is ordered.

Straightforward faults are repaired on site so the department loses as little time as possible. Anything that needs a workbench, a full strip-down or a specialised spare part goes to our workshop and comes back only after a complete post-repair test and, where the equipment requires it, recalibration.

Faults we see most often on this type of equipment

On balances the recurring faults are drifting or unstable readings caused by draughts, vibration or static, load cells damaged by overloading or impact, contamination under the pan, and adjustment mechanisms that no longer hold calibration.

Discover our troubleshooting and repair service

Diagnostics, corrective repair and spare parts in the workshop
Troubleshooting

How to troubleshoot Radwag 5Y.10.PM Precision Balance

Work through these checks before you escalate. They are the same first-line sequence our biomedical engineers run on arrival, and they either clear the fault or narrow it down enough that the intervention starts with the right spare part in the van.

  1. Capture the fault before you touch anything: write down the exact error code or message, the serial number from the rating plate, what the operator was doing and whether the fault clears on a restart.

  2. Confirm the balance is level with the bubble centred, on a stable and vibration-free bench, away from draughts, direct sunlight and air-conditioning outlets.

  3. Clean the pan and the space beneath it, check that nothing touches the load receptor, and let the balance warm up for the time given in its manual.

  4. Run the adjustment function, then weigh a known test weight: a stable but wrong reading points at calibration, a drifting reading at the environment or the load cell.

  5. If the fault is still there, escalate with the evidence. Send AxiTech the model, serial number, error code and the checks you have already run, and an engineer will come back with a diagnosis, a repair quote and a spare-parts lead time for Radwag 5Y.10.PM Precision Balance.

What to send us when you report the fault

  • Manufacturer, model and serial number, from the rating plate
  • The exact error code or message, and the screen it appears on
  • When the fault started, how often it occurs and what triggers it
  • A photograph of the display or of the fault, and the last maintenance report

If the fault survives all five steps, stop using Radwag 5Y.10.PM Precision Balance and open a repair request. Continuing to run equipment through a fault it cannot clear turns a component failure into a board-level one, and on devices used for diagnosis or therapy it puts the result — and the patient — in doubt.

Discover our troubleshooting and repair service

Buying and installing Radwag 5Y.10.PM Precision Balance

AxiTech supplies Radwag 5Y.10.PM Precision Balance together with the accessories and consumables it needs to enter service. We handle importation, delivery and installation, then commission the equipment on site so that it is verified against its specification before the first patient or the first sample.

Installation is followed by training for the users and for your biomedical team, warranty registration, and — if you want it — a maintenance contract that takes over the day the warranty ends, so the equipment never spends a period without planned service.

Discover our equipment sales service

Delivery, installation, commissioning and user training
Product FAQ

Questions about the Radwag 5Y.10.PM Precision Balance

Key specifications of the Radwag 5Y.10.PM Precision Balance, according to the manufacturer: maximum capacity 10 kg; readability 0,01 g; repeatability 0,0041 g; weighing pan 200×185 mm; display 10″ graphic colour touchscreen.
