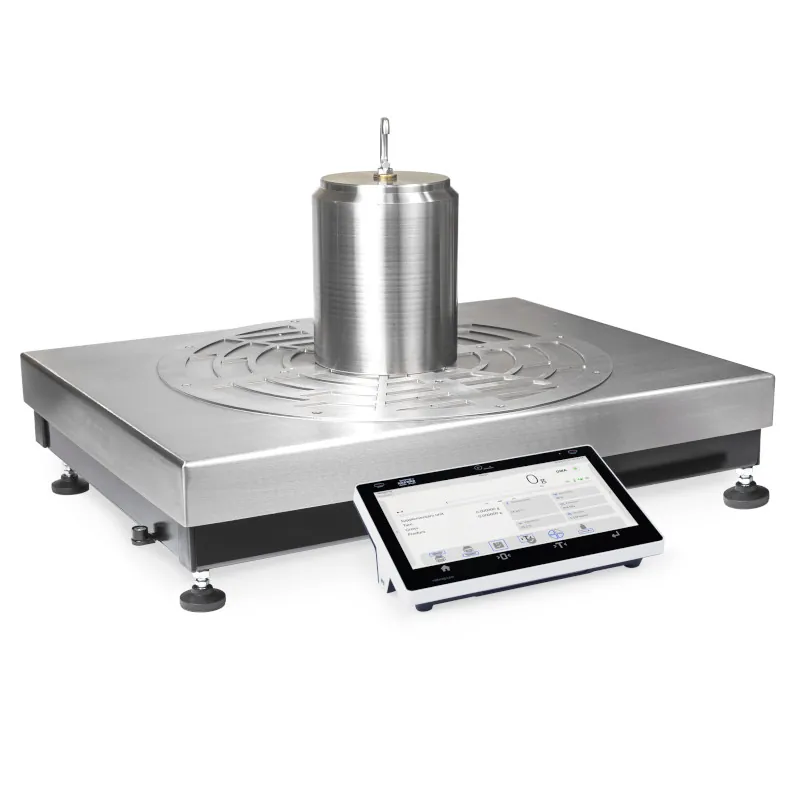

HRP 1000.5Y.KO Mass Comparator — main photograph
RadwagAvailability: Supplied to order

HRP 1000.5Y.KO Mass Comparator

Reference WL-414-0027

Mass comparators are used in calibration laboratories around the world. Their main task is to ensure the consistency of mass measurements and to verify weights according to the requirements of legal metrology. With the HRP 5Y.KO Manual Mass Comparator you can calibrate mass standards and weights according to OIML (R-111) recommendations for class F2 and lower classes. The HRP 5Y.KO mass comparators consist of a professional weighing platform and a 5Y weighing terminal. Inside the platform is an electromagnetic mechanism in a hermetic steel housing.

Request a service for this equipment

Nothing is charged online. Every request is reviewed by an AxiTech engineer before you receive a quotation.

At a glance

Reference
WL-414-0027
Category
Laboratory Balances

Overview

Mass comparators are used in calibration laboratories around the world. Their main task is to ensure the consistency of mass measurements and to verify weights according to the requirements of legal metrology. With the HRP 5Y.KO Manual Mass Comparator you can calibrate mass standards and weights according to OIML (R-111) recommendations for class F2 and lower classes. The HRP 5Y.KO mass comparators consist of a professional weighing platform and a 5Y weighing terminal. Inside the platform is an electromagnetic mechanism in a hermetic steel housing.

If you wish to minimise the effects of eccentricity on your measurement results, the self-centring pan is the answer. The use of the self-centring pan eliminates the error resulting from placing the weight “out of pan centre” . In addition, this solution allows the calibration of weights of different shapes and dimensions without the need to set the positioners for central loading of the mass standard each time. The purpose of the pan is therefore to stabilise and level non-centrally placed weights and to distribute several non-centrally placed weights as the resulting reference standard. The self-centring pan is fitted at the manufacturing stage of the unit, so it must be ordered together with thee mass comparator (we do not sell it as a separate product). This is an extra cost option. If you do not decide on the self-centring pan, you will receive a steel weighing pan featuring marks facilitating centric loading of mass standards.

The HRP 5Y.KO mass comparator head is an unparalleled 5Y weighing terminal that enables: Comfortable operation thanks to a 10-inch touchscreen display Digital weighing audit by DWA® Log-in via 4 secure methods (password, fingerprint, face recognition, RFID tags* and their combination) Communication via Ambient Light alerts Text Live Note creation Measurement history in the Handy Library Stunning selection of widgets.

The HRP 5Y.KO mass comparators have numerous communication interfaces: 2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi ® and hotspot, through which they connect to: Smartphone Tablet Laptop and computer Printer Barcode scanner Additional screen Keyboard Mouse Spreadsheet.

You will also find a wide range of devices, software and other accessories to extend the functionality of the HRP 5Y.KO mass comparators. These include: Receipt printers Barcode scanners Fingerprint reader Self-centring pan Stands, wall mounting kits and mounting brackets RFID* tags RAD KEY software RMCS System THBR 2.0 System – ambient sensors Additional modules (RES Radwag Extended SI Module and CFR 21 Part 11 Compliance Module) RS 232 and RS 485 cables Protective covers for the terminal.

Maintenance contract — AxiTech provides planned preventive maintenance for HRP 1000.5Y.KO Mass Comparator from Radwag: scheduled visits, safety checks, periodic calibration and a documented service report, backed by a contractual response time.

Troubleshooting, repair and spare parts — our laboratory balances engineers diagnose and repair HRP 1000.5Y.KO Mass Comparator on site or in the workshop, fit genuine spare parts and recommission the equipment after performance verification.

Features

  • Comfortable operation thanks to a 10-inch touchscreen display
  • Digital weighing audit by DWA®
  • Log-in via 4 secure methods (password, fingerprint, face recognition, RFID tags* and their combination)
  • Communication via Ambient Light alerts
  • Text Live Note creation
  • Measurement history in the Handy Library
  • Stunning selection of widgets.
  • Smartphone
  • Tablet
  • Laptop and computer
  • Printer
  • Barcode scanner
  • Additional screen
  • Keyboard
  • Mouse
  • Spreadsheet.
  • Receipt printers
  • Barcode scanners
  • Fingerprint reader
  • Self-centring pan
  • Stands, wall mounting kits and mounting brackets
  • RFID* tags
  • RAD KEY software
  • RMCS System
  • THBR 2.0 System – ambient sensors
  • Additional modules (RES Radwag Extended SI Module and CFR 21 Part 11 Compliance Module)
  • RS 232 and RS 485 cables
  • Protective covers for the terminal.

Technical specifications

Specifications
Display
10″ graphic colour touchscreen
Linearity
±30 g
Adjustment
internal (automatic)
Net weight
200 kg
Gross weight
269 kg
Readability [d]
1 g
Relative humidity
40% – 60%
Stabilization time
10 s
F2 Calibration Range
500 – 1000 kg
M1 Calibration Range
200 – 1000 kg
M2 Calibration Range
100 – 1000 kg
Operating temperature
+15 – +30 °C
Maximum capacity [Max]
1050 kg
Recommended load speed
0,3 m/min
Communication interface
2×USB-A, USB-C, RS 232 (COM3), HDMI, Ethernet, Wi-Fi ® , Hotspot
Weighing pan dimensions
1000×800 mm
Permissible repeatability
5 g
Eccentricity (tested load)
1d / 1 mm
Electric compensation range
0 – +1050 kg
Controling device dimensions
249×170×72 mm
Standard repeatability [Max]
2,5 g
Relative humidity change rate
±5% / 4 h
Maximum permissible load speed
0,6 m/min
Standard repeatability [5% Max]
1,5 g
Operating temperature change rate
±1 °C / 12 h
Self centering weighing pan dimensions
600×600 (extra charge) mm
Weighing unit dimensions with self centering weighing pan
1010×800×275 mm
Weighing unit dimensions without self centering weighing pan
1010×800×182 mm
Comparator packaging dimensions with self centering weighing pan
1200×1000×485 mm
Comparator packaging dimensions without self centering weighing pan
1200×1000×440 mm
