AxiTech — The Core of Precision

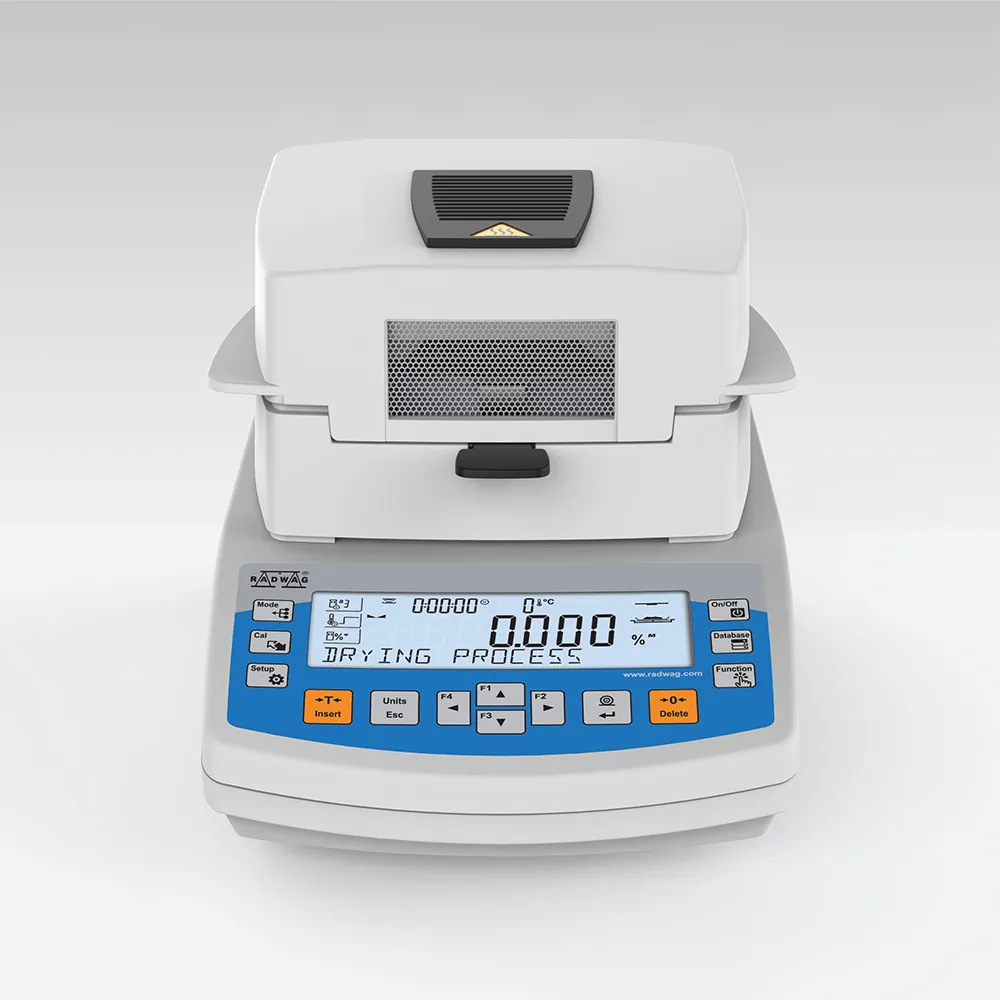

MA 110.R.WH Moisture Analyzer — main photograph
RadwagAvailability: Supplied to order

MA 110.R.WH Moisture Analyzer

Reference WL-305-0007

Moisture analyzer is a laboratory measuring instrument intended to determine relative humidity for small samples of different materials. MA.R series redefines moisture analyzers standards. This series has been equipped with brand new readable LCD display providing an extra text line for information such as supplementary messages and data, e.g. product name or tare value. The moisture analyzer, using respective pictograms, signalizes currently activated mode, computer connection and functions, both balance and service ones.

Request a service for this equipment

Nothing is charged online. Every request is reviewed by an AxiTech engineer before you receive a quotation.

At a glance

Reference
WL-305-0007
Category
Laboratory Balances

Overview

Moisture analyzer is a laboratory measuring instrument intended to determine relative humidity for small samples of different materials. MA.R series redefines moisture analyzers standards. This series has been equipped with brand new readable LCD display providing an extra text line for information such as supplementary messages and data, e.g. product name or tare value. The moisture analyzer, using respective pictograms, signalizes currently activated mode, computer connection and functions, both balance and service ones.

The MA.R series is enriched with various interfaces: RS232, USB type A, USB type B and Wi-Fi ® . The moisture analyzer is housed in a plastic casing. Exchange of information within the system is performed by means of USB port on bi-directional basis. It is possible to import and export databases using memory sticks.

Information system of R series moisture analyzers is based on 6 databases , allowing many operators to operate product database comprising many samples. Collected measurements may be subjected to subsequent analysis. Collected data is registered in 6 databases: Users (up to 10 users) Products (up to 1000 products) Weighings (up to 1000 weighings) Tares (up to 10 tares) Programs (up to 100 drying programs) Drying process reports (up to 1000 reports)

The results obtained using the moisture analyzer (the final result of the drying process): % M – the mass loss in %; displays the mass change recorded during the drying process, expressed as a percentage, % D – the dry mass obtained during the drying process, expressed as a percentage; the result is the portion of the sample that remains on the weighing pan after the moisture has evaporated, % R – the ratio of moisture content to dry mass, obtained during the drying process, expressed as a percentage; the result is the portion of the sample that evaporated during the drying process, g – the sample mass after drying.

Large, backlit LCD display, Uncomplicated, intuitive operation, Drying profiles (standard, mild, step, fast), End of the drying process (automatic, timed or manual mode), GLP/GMP printouts-reports, Repeatable and customized applications, Heating elements: IR radiator, halogen or a heating element in a metal casing. An additional feature that enhances the functionality of moisture analysers is a special kit for testing water vapour permeability, used, for example, in the tanning industry to determine the hygienic properties of leather.

Maintenance contract — AxiTech provides planned preventive maintenance for MA 110.R.WH Moisture Analyzer from Radwag: scheduled visits, safety checks, periodic calibration and a documented service report, backed by a contractual response time.

Troubleshooting, repair and spare parts — our laboratory balances engineers diagnose and repair MA 110.R.WH Moisture Analyzer on site or in the workshop, fit genuine spare parts and recommission the equipment after performance verification.

Features

  • Users (up to 10 users)
  • Products (up to 1000 products)
  • Weighings (up to 1000 weighings)
  • Tares (up to 10 tares)
  • Programs (up to 100 drying programs)
  • Drying process reports (up to 1000 reports)
  • % M – the mass loss in %; displays the mass change recorded during the drying process, expressed as a percentage,
  • % D – the dry mass obtained during the drying process, expressed as a percentage; the result is the portion of the sample that remains on the weighing pan after the moisture has evaporated,
  • % R – the ratio of moisture content to dry mass, obtained during the drying process, expressed as a percentage; the result is the portion of the sample that evaporated during the drying process,
  • g – the sample mass after drying.
  • Large, backlit LCD display,
  • Uncomplicated, intuitive operation,
  • Drying profiles (standard, mild, step, fast),
  • End of the drying process (automatic, timed or manual mode),
  • GLP/GMP printouts-reports,
  • Repeatable and customized applications,
  • Heating elements: IR radiator, halogen or a heating element in a metal casing.
  • Autotest
  • Statistics
  • GLP Procedures
  • Replaceable unit
  • Statistical Quality Control
  • ALIBI Memory
  • Drying modes
  • Samples drying
  • Moisture content analysis
  • Dry mass determination

Technical specifications

Specifications
Display
5,3” LCD (backlit)
Adjustment
external
Net weight
4,8 kg
Tare range
-110 g
Finish mode
4 modes (automatic, manual, time-defined, user-defined)
Display mode
%D, %M, %R, g
Gross weight
6 kg
Power supply
100 – 120 V AC 50/60 Hz or 200-240 V AC 50/60 Hz
Drying method
4 drying profiles (standard, fast, step, mild)
Heating module
halogen
Leveling system
manual
Readability [d]
1 mg
Protection class
IP 43
Power consumption
4 W
Additional functions
sample traceability
Heating module power
450 W
Maximum sample height
20 mm
Maximum sample weight
110 g
Operating temperature
+10 – +40 °C
Maximum capacity [Max]
110 g
Communication interface
RS232¹, USB-A, USB-B, Wi-Fi ®
Mass indication control
External mass standard 50g, 100g, 200g, depending on the type of moisture analyzer (additional equipment)
Weighing pan dimensions
ø90, h= 8 mm
Drying temperature range
Max 250 °C
Drying temperature control
One- or two-point, depending on the drying profile (additional equipment: GT105k-12/Z Control Thermometer)
Moisture content readability
0,001 %
Drying temperature adjustment
Three-point adjustment at defined temperatures, programmable values (additional equipment: GT105k-12/Z Control Thermometer)
Moisture content repeatability
±0,05 % (sample ~ 2 g), ±0,01 % (sample ~ 10 g)
Packaging dimensions W x D x H
476×381×346 mm
Moisture content indication control
Certified MV Test Set (additional equipment)
Service coverage

AxiTech maintains, repairs and supplies this equipment for hospitals, clinics, laboratories and imaging centres.

Maintenance contracts for MA 110.R.WH Moisture Analyzer

AxiTech provides preventive maintenance contracts for MA 110.R.WH Moisture Analyzer. Each contract fixes a schedule of planned visits in which our biomedical engineers inspect the equipment, replace wear parts before they fail, and verify that it still performs inside the manufacturer’s tolerances.

Every visit includes calibration and performance verification, and closes with a documented maintenance report you can present during an accreditation audit. Spare-parts availability and a guaranteed response time are written into the contract, so a breakdown never leaves a department waiting for an answer.

Laboratory analysers are usually maintained every three to six months, with calibration and quality-control verification at each visit so that results stay traceable.

  • Planned preventive maintenance visits at a fixed interval
  • Calibration and performance verification against the manufacturer’s specifications
  • A documented maintenance report after every intervention
  • Guaranteed availability of spare parts and consumables
  • A contractual response time when the equipment fails

Discover our maintenance contracts

Planned preventive maintenance and calibration under contract

Troubleshooting and repair for MA 110.R.WH Moisture Analyzer

When MA 110.R.WH Moisture Analyzer fails, our engineers start with a structured diagnostic: error codes, electrical and mechanical checks, and a functional test against the equipment’s own specification. That tells us whether the fault is a consumable, a worn part or a board-level failure before any part is ordered.

Straightforward faults are repaired on site so the department loses as little time as possible. Anything that needs a workbench, a full strip-down or a specialised spare part goes to our workshop and comes back only after a complete post-repair test and, where the equipment requires it, recalibration.

Faults we see most often on this type of equipment

On analysers most faults come from the fluidics — blocked probes, worn pumps and tubing, leaking valves — followed by optical drift and reagent-handling errors.

Discover our troubleshooting and repair service

Diagnostics, corrective repair and spare parts in the workshop
Troubleshooting

How to troubleshoot MA 110.R.WH Moisture Analyzer

Work through these checks before you escalate. They are the same first-line sequence our biomedical engineers run on arrival, and they either clear the fault or narrow it down enough that the intervention starts with the right spare part in the van.

  1. Capture the fault before you touch anything: write down the exact error code or message, the serial number from the rating plate, what the operator was doing and whether the fault clears on a restart.

  2. Review the quality-control and calibration history. A result that has drifted across several runs points at calibration or reagents; a sudden shift almost always points at the fluidics.

  3. Inspect the fluid path — probe, tubing, pump, valves and waste line — for blockage, crystallisation or leaks, and confirm reagent and wash levels together with their expiry dates.

  4. Confirm the ambient conditions the method depends on: bench temperature, ventilation, a level and vibration-free surface, and a stable mains supply.

  5. If the fault is still there, escalate with the evidence. Send AxiTech the model, serial number, error code and the checks you have already run, and an engineer will come back with a diagnosis, a repair quote and a spare-parts lead time for MA 110.R.WH Moisture Analyzer.

What to send us when you report the fault

  • Manufacturer, model and serial number, from the rating plate
  • The exact error code or message, and the screen it appears on
  • When the fault started, how often it occurs and what triggers it
  • A photograph of the display or of the fault, and the last maintenance report

If the fault survives all five steps, stop using MA 110.R.WH Moisture Analyzer and open a repair request. Continuing to run equipment through a fault it cannot clear turns a component failure into a board-level one, and on devices used for diagnosis or therapy it puts the result — and the patient — in doubt.

Discover our troubleshooting and repair service

Buying and installing MA 110.R.WH Moisture Analyzer

AxiTech supplies MA 110.R.WH Moisture Analyzer together with the accessories and consumables it needs to enter service. We handle importation, delivery and installation, then commission the equipment on site so that it is verified against its specification before the first patient or the first sample.

Installation is followed by training for the users and for your biomedical team, warranty registration, and — if you want it — a maintenance contract that takes over the day the warranty ends, so the equipment never spends a period without planned service.

Discover our equipment sales service

Delivery, installation, commissioning and user training
Questions we are asked

Frequently asked questions about Radwag MA 110.R.WH Moisture Analyzer

Yes. AxiTech services MA 110.R.WH Moisture Analyzer, either under a maintenance contract or as a one-off intervention. Our biomedical engineers cover preventive maintenance, calibration, corrective repair and spare-parts supply for this equipment.
