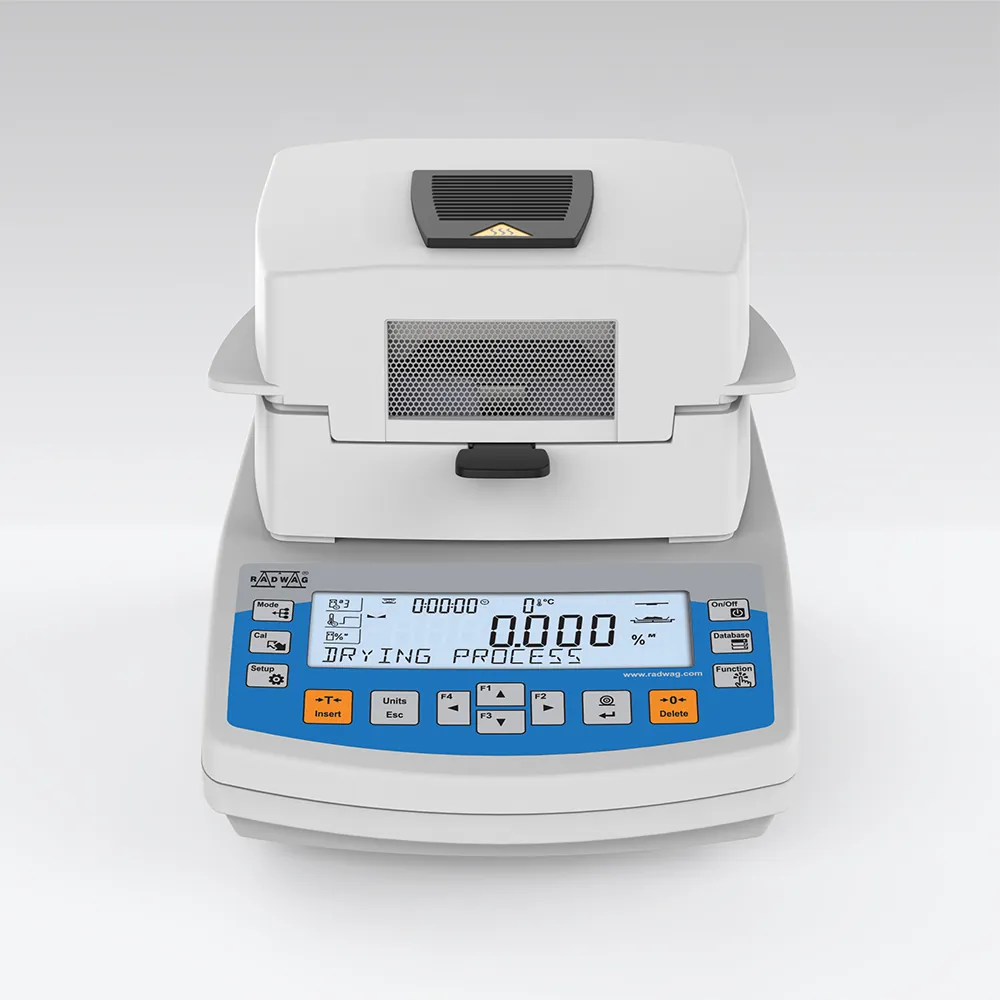

MA 210.R.WH Moisture Analyzer — main photograph
RadwagAvailability: Supplied to order

MA 210.R.WH Moisture Analyzer

Reference WL-305-0008

Moisture analyzer is a laboratory measuring instrument intended to determine relative humidity for small samples of different materials. MA.R series redefines moisture analyzers standards. This series has been equipped with brand new readable LCD display providing an extra text line for information such as supplementary messages and data, e.g. product name or tare value. The moisture analyzer, using respective pictograms, signalizes currently activated mode, computer connection and functions, both balance and service ones.

Request a service for this equipment

Nothing is charged online. Every request is reviewed by an AxiTech engineer before you receive a quotation.

At a glance

Reference
WL-305-0008
Category
Laboratory Balances

Overview

Moisture analyzer is a laboratory measuring instrument intended to determine relative humidity for small samples of different materials. MA.R series redefines moisture analyzers standards. This series has been equipped with brand new readable LCD display providing an extra text line for information such as supplementary messages and data, e.g. product name or tare value. The moisture analyzer, using respective pictograms, signalizes currently activated mode, computer connection and functions, both balance and service ones.

The MA.R series is enriched with various interfaces: RS232, USB type A, USB type B and Wi-Fi ® . The moisture analyzer is housed in a plastic casing. Exchange of information within the system is performed by means of USB port on bi-directional basis. It is possible to import and export databases using memory sticks.

Information system of R series moisture analyzers is based on 6 databases , allowing many operators to operate product database comprising many samples. Collected measurements may be subjected to subsequent analysis. Collected data is registered in 6 databases: Users (up to 10 users) Products (up to 1000 products) Weighings (up to 1000 weighings) Tares (up to 10 tares) Programs (up to 100 drying programs) Drying process reports (up to 1000 reports)

The results obtained using the moisture analyzer (the final result of the drying process): % M – the mass loss in %; displays the mass change recorded during the drying process, expressed as a percentage, % D – the dry mass obtained during the drying process, expressed as a percentage; the result is the portion of the sample that remains on the weighing pan after the moisture has evaporated, % R – the ratio of moisture content to dry mass, obtained during the drying process, expressed as a percentage; the result is the portion of the sample that evaporated during the drying process, g – the sample mass after drying.

Large, backlit LCD display, Uncomplicated, intuitive operation, Drying profiles (standard, mild, step, fast), End of the drying process (automatic, timed or manual mode), GLP/GMP printouts-reports, Repeatable and customized applications, Heating elements: IR radiator, halogen or a heating element in a metal casing. An additional feature that enhances the functionality of moisture analysers is a special kit for testing water vapour permeability, used, for example, in the tanning industry to determine the hygienic properties of leather.

Maintenance contract — AxiTech provides planned preventive maintenance for MA 210.R.WH Moisture Analyzer from Radwag: scheduled visits, safety checks, periodic calibration and a documented service report, backed by a contractual response time.

Troubleshooting, repair and spare parts — our laboratory balances engineers diagnose and repair MA 210.R.WH Moisture Analyzer on site or in the workshop, fit genuine spare parts and recommission the equipment after performance verification.

Features

  • Users (up to 10 users)
  • Products (up to 1000 products)
  • Weighings (up to 1000 weighings)
  • Tares (up to 10 tares)
  • Programs (up to 100 drying programs)
  • Drying process reports (up to 1000 reports)
  • % M – the mass loss in %; displays the mass change recorded during the drying process, expressed as a percentage,
  • % D – the dry mass obtained during the drying process, expressed as a percentage; the result is the portion of the sample that remains on the weighing pan after the moisture has evaporated,
  • % R – the ratio of moisture content to dry mass, obtained during the drying process, expressed as a percentage; the result is the portion of the sample that evaporated during the drying process,
  • g – the sample mass after drying.
  • Large, backlit LCD display,
  • Uncomplicated, intuitive operation,
  • Drying profiles (standard, mild, step, fast),
  • End of the drying process (automatic, timed or manual mode),
  • GLP/GMP printouts-reports,
  • Repeatable and customized applications,
  • Heating elements: IR radiator, halogen or a heating element in a metal casing.
  • Autotest
  • Statistics
  • GLP Procedures
  • Replaceable unit
  • Statistical Quality Control
  • ALIBI Memory
  • Drying modes
  • Samples drying
  • Moisture content analysis
  • Dry mass determination

Technical specifications

Specifications
Display
5,3” LCD (backlit)
Adjustment
external
Net weight
4,8 kg
Tare range
-210 g
Finish mode
4 modes (automatic, manual, time-defined, user-defined)
Display mode
%D, %M, %R, g
Gross weight
5,5 kg
Power supply
100 – 120 V AC 50/60 Hz or 200-240 V AC 50/60 Hz
Drying method
4 drying profiles (standard, fast, step, mild)
Heating module
halogen
Leveling system
manual
Readability [d]
1 mg
Protection class
IP 43
Power consumption
4 W
Additional functions
sample traceability
Heating module power
450 W
Maximum sample height
20 mm
Maximum sample weight
210 g
Operating temperature
+10 – +40 °C
Maximum capacity [Max]
210 g
Communication interface
RS232¹, USB-A, USB-B, Wi-Fi ®
Mass indication control
External mass standard 50g, 100g, 200g, depending on the type of moisture analyzer (additional equipment)
Weighing pan dimensions
ø90, h= 8 mm
Drying temperature range
Max 250 °C
Drying temperature control
One- or two-point, depending on the drying profile (additional equipment: GT105k-12/Z Control Thermometer)
Moisture content readability
0,001 %
Drying temperature adjustment
Three-point adjustment at defined temperatures, programmable values (additional equipment: GT105k-12/Z Control Thermometer)
Moisture content repeatability
±0,05 % (sample ~ 2 g), ±0,01 % (sample ~ 10 g)
Packaging dimensions W x D x H
476×381×346 mm
Moisture content indication control
Certified MV Test Set (additional equipment)
