AxiTech — The Core of Precision

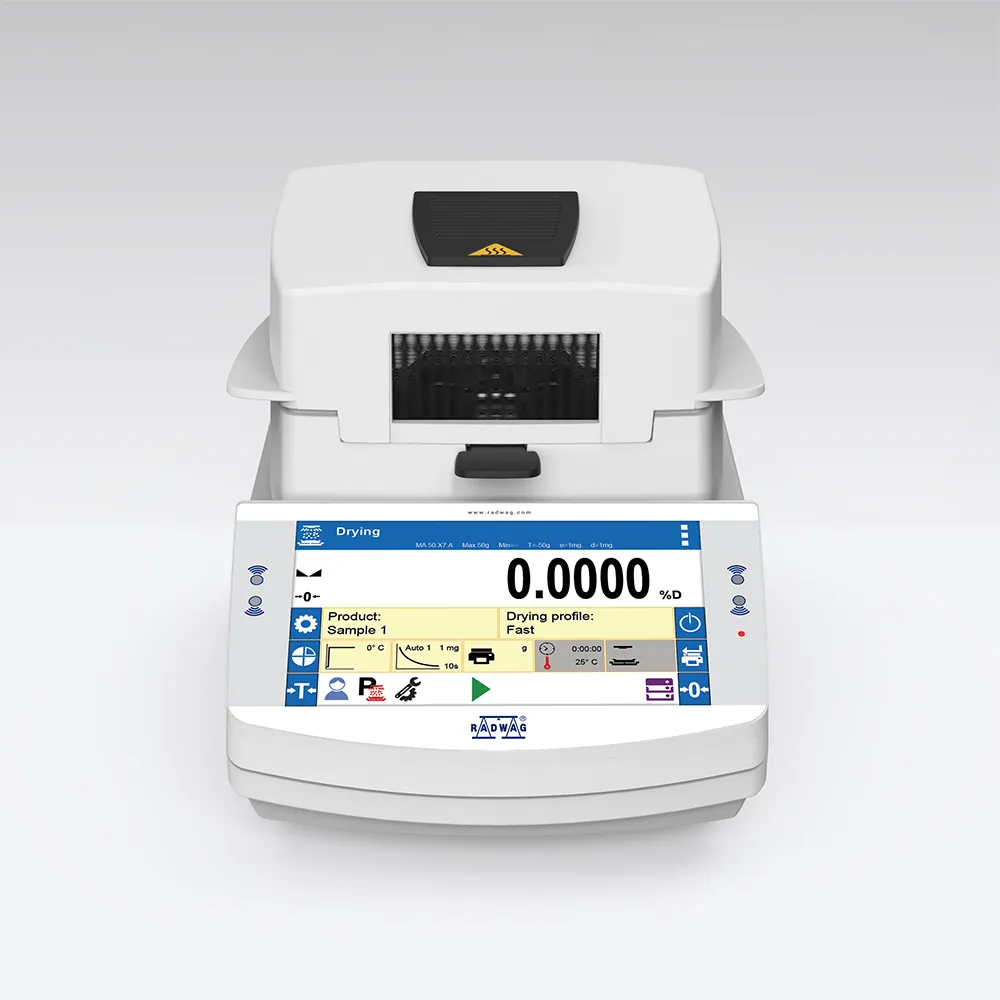

MA 50/1.X7.A Moisture Analyzer — main photograph
RadwagAvailability: Supplied to order

MA 50/1.X7.A Moisture Analyzer

Reference WL-308-0024

MA X7 moisture analyzers are hi-tech measuring instruments intended for quick determination of relative moisture content, dry mass content and other parameters in samples of different substances.

Request a service for this equipment

Nothing is charged online. Every request is reviewed by an AxiTech engineer before you receive a quotation.

At a glance

Reference
WL-308-0024
Category
Laboratory Balances

Overview

MA X7 moisture analyzers are hi-tech measuring instruments intended for quick determination of relative moisture content, dry mass content and other parameters in samples of different substances.

is equipped with innovative system: the drying chamber can be opened and closed automatically using button or proximity sensors. Such solution allows: Maintaining moisture analyzer clean – operator does not touch moisture analyzer’s housing. Removing any shocks caused by manual closing of the chamber – the chamber closes automatically and always with the same intensity. Achieving high repeatability of opening and closing the drying chamber. Enhancing drying process automation. Enhancing safety of operation by eliminating contact with hot components of drying chamber. Improving operation ergonomics.

Automatic opening and closing of the drying chamber 7” capacitive colour touchpad Modern interface Uncomplicated, intuitive operation Programmable display Drying profiles (standard, mild, step, fast) GLP/GMP printouts-reports Repeatable and customized applications Work optimization due to the use of halogen lamps

Information system of X7 series moisture analyzers is based on 8 databases , allowing many users to operate product database comprising many samples. Collected measurements may be subjected to subsequent analysis. Collected data is registered in 8 databases: Products (5 000 products) Users (100 users) Packaging (100 packaging types) Customers (1 000 customers) Drying programs (200 drying programs) Drying process reports (10 000 drying process reports) Ambient conditions (10 000 records) Weighings (50 000 records).

The results obtained using the moisture analyzer (the final result of the drying process): % M – the mass loss in %; displays the mass change recorded during the drying process, expressed as a percentage, % D – the dry mass obtained during the drying process, expressed as a percentage; the result is the portion of the sample that remains on the weighing pan after the moisture has evaporated, % R – the ratio of moisture content to dry mass, obtained during the drying process, expressed as a percentage; the result is the portion of the sample that evaporated during the drying process, g – the sample mass after drying.

Maintenance contract — AxiTech provides planned preventive maintenance for MA 50/1.X7.A Moisture Analyzer from Radwag: scheduled visits, safety checks, periodic calibration and a documented service report, backed by a contractual response time.

Troubleshooting, repair and spare parts — our laboratory balances engineers diagnose and repair MA 50/1.X7.A Moisture Analyzer on site or in the workshop, fit genuine spare parts and recommission the equipment after performance verification.

Features

  • Maintaining moisture analyzer clean – operator does not touch moisture analyzer’s housing.
  • Removing any shocks caused by manual closing of the chamber – the chamber closes automatically and always with the same intensity.
  • Achieving high repeatability of opening and closing the drying chamber.
  • Enhancing drying process automation.
  • Enhancing safety of operation by eliminating contact with hot components of drying chamber.
  • Improving operation ergonomics.
  • Automatic opening and closing of the drying chamber
  • 7” capacitive colour touchpad
  • Modern interface
  • Uncomplicated, intuitive operation
  • Programmable display
  • Drying profiles (standard, mild, step, fast)
  • GLP/GMP printouts-reports
  • Repeatable and customized applications
  • Work optimization due to the use of halogen lamps
  • Products (5 000 products)
  • Users (100 users)
  • Packaging (100 packaging types)
  • Customers (1 000 customers)
  • Drying programs (200 drying programs)
  • Drying process reports (10 000 drying process reports)
  • Ambient conditions (10 000 records)
  • Weighings (50 000 records).
  • % M – the mass loss in %; displays the mass change recorded during the drying process, expressed as a percentage,
  • % D – the dry mass obtained during the drying process, expressed as a percentage; the result is the portion of the sample that remains on the weighing pan after the moisture has evaporated,
  • % R – the ratio of moisture content to dry mass, obtained during the drying process, expressed as a percentage; the result is the portion of the sample that evaporated during the drying process,
  • g – the sample mass after drying.
  • Autotest
  • Statistics
  • IR sensors
  • GLP Procedures
  • Replaceable unit
  • Statistical Quality Control
  • ALIBI Memory
  • Drying modes
  • Samples drying
  • Moisture content analysis
  • Dry mass determination
  • Wi-Fi ®

Technical specifications

Specifications
Display
7″ graphic colour touchscreen
Adjustment
external
Net weight
5,2 kg
Tare range
-50 g
Finish mode
4 modes (automatic, manual, time-defined, user-defined)
Display mode
%D, %M, %R, g
Gross weight
6,5 kg
Power supply
100 – 120 V AC 50/60 Hz or 200-240 V AC 50/60 Hz
Drying method
4 drying profiles (standard, fast, step, mild)
Heating module
IR emitter
Leveling system
manual
Readability [d]
0,1 mg
Protection class
IP 43
Weighing chamber
automatic
Database capacity
Products, Users, Packaging, Customers, Drying programs, Drying process reports, Ambient Conditions, Weighings
Power consumption
6 W
Additional functions
sample traceability
Heating module power
450 W
Maximum sample height
20 mm
Maximum sample weight
50 g
Operating temperature
+10 – +40 °C
Maximum capacity [Max]
50 g
Communication interface
RS232¹, USB-A, USB-B, Ethernet, Wi-Fi ®
Mass indication control
External mass standard 50g, 100g, 200g, depending on the type of moisture analyzer (additional equipment)
Weighing pan dimensions
ø90, h= 8 mm
Drying temperature range
Max 160 °C
Drying temperature control
One- or two-point, depending on the drying profile (additional equipment: GT105k-12/Z Control Thermometer)
Moisture content readability
0,0001 %
Drying temperature adjustment
Three-point adjustment at defined temperatures, programmable values (additional equipment: GT105k-12/Z Control Thermometer)
Moisture content repeatability
±0,05 % (sample ~ 2 g), ±0,01 % (sample ~ 10 g)
Packaging dimensions W x D x H
476×381×346 mm
Moisture content indication control
Certified MV Test Set (additional equipment)
Service coverage

AxiTech maintains, repairs and supplies this equipment for hospitals, clinics, laboratories and imaging centres.

Maintenance contracts for MA 50/1.X7.A Moisture Analyzer

AxiTech provides preventive maintenance contracts for MA 50/1.X7.A Moisture Analyzer. Each contract fixes a schedule of planned visits in which our biomedical engineers inspect the equipment, replace wear parts before they fail, and verify that it still performs inside the manufacturer’s tolerances.

Every visit includes calibration and performance verification, and closes with a documented maintenance report you can present during an accreditation audit. Spare-parts availability and a guaranteed response time are written into the contract, so a breakdown never leaves a department waiting for an answer.

Laboratory analysers are usually maintained every three to six months, with calibration and quality-control verification at each visit so that results stay traceable.

  • Planned preventive maintenance visits at a fixed interval
  • Calibration and performance verification against the manufacturer’s specifications
  • A documented maintenance report after every intervention
  • Guaranteed availability of spare parts and consumables
  • A contractual response time when the equipment fails

Discover our maintenance contracts

Planned preventive maintenance and calibration under contract

Troubleshooting and repair for MA 50/1.X7.A Moisture Analyzer

When MA 50/1.X7.A Moisture Analyzer fails, our engineers start with a structured diagnostic: error codes, electrical and mechanical checks, and a functional test against the equipment’s own specification. That tells us whether the fault is a consumable, a worn part or a board-level failure before any part is ordered.

Straightforward faults are repaired on site so the department loses as little time as possible. Anything that needs a workbench, a full strip-down or a specialised spare part goes to our workshop and comes back only after a complete post-repair test and, where the equipment requires it, recalibration.

Faults we see most often on this type of equipment

On analysers most faults come from the fluidics — blocked probes, worn pumps and tubing, leaking valves — followed by optical drift and reagent-handling errors.

Discover our troubleshooting and repair service

Diagnostics, corrective repair and spare parts in the workshop
Troubleshooting

How to troubleshoot MA 50/1.X7.A Moisture Analyzer

Work through these checks before you escalate. They are the same first-line sequence our biomedical engineers run on arrival, and they either clear the fault or narrow it down enough that the intervention starts with the right spare part in the van.

  1. Capture the fault before you touch anything: write down the exact error code or message, the serial number from the rating plate, what the operator was doing and whether the fault clears on a restart.

  2. Review the quality-control and calibration history. A result that has drifted across several runs points at calibration or reagents; a sudden shift almost always points at the fluidics.

  3. Inspect the fluid path — probe, tubing, pump, valves and waste line — for blockage, crystallisation or leaks, and confirm reagent and wash levels together with their expiry dates.

  4. Confirm the ambient conditions the method depends on: bench temperature, ventilation, a level and vibration-free surface, and a stable mains supply.

  5. If the fault is still there, escalate with the evidence. Send AxiTech the model, serial number, error code and the checks you have already run, and an engineer will come back with a diagnosis, a repair quote and a spare-parts lead time for MA 50/1.X7.A Moisture Analyzer.

What to send us when you report the fault

  • Manufacturer, model and serial number, from the rating plate
  • The exact error code or message, and the screen it appears on
  • When the fault started, how often it occurs and what triggers it
  • A photograph of the display or of the fault, and the last maintenance report

If the fault survives all five steps, stop using MA 50/1.X7.A Moisture Analyzer and open a repair request. Continuing to run equipment through a fault it cannot clear turns a component failure into a board-level one, and on devices used for diagnosis or therapy it puts the result — and the patient — in doubt.

Discover our troubleshooting and repair service

Buying and installing MA 50/1.X7.A Moisture Analyzer

AxiTech supplies MA 50/1.X7.A Moisture Analyzer together with the accessories and consumables it needs to enter service. We handle importation, delivery and installation, then commission the equipment on site so that it is verified against its specification before the first patient or the first sample.

Installation is followed by training for the users and for your biomedical team, warranty registration, and — if you want it — a maintenance contract that takes over the day the warranty ends, so the equipment never spends a period without planned service.

Discover our equipment sales service

Delivery, installation, commissioning and user training
Questions we are asked

Frequently asked questions about Radwag MA 50/1.X7.A Moisture Analyzer

Yes. AxiTech services MA 50/1.X7.A Moisture Analyzer, either under a maintenance contract or as a one-off intervention. Our biomedical engineers cover preventive maintenance, calibration, corrective repair and spare-parts supply for this equipment.
