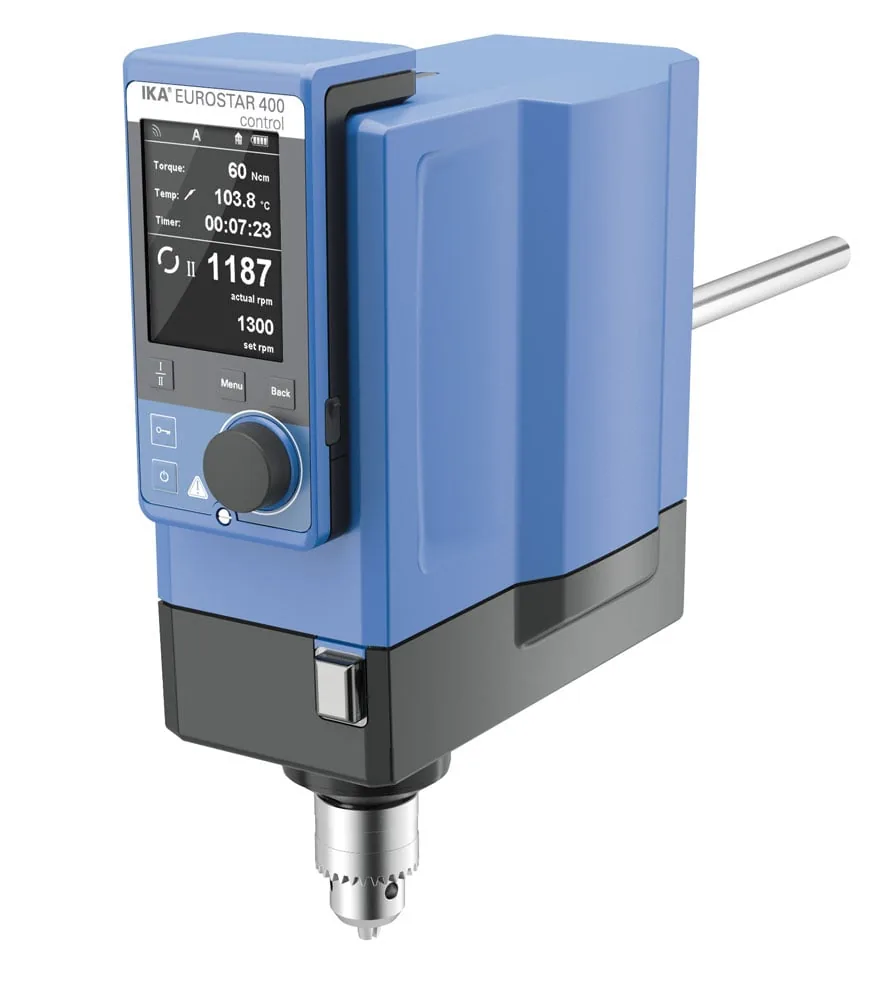

EUROSTAR 400 control — main photograph
IKAAvailability: Supplied to order

EUROSTAR 400 control

Reference 0004214100

EUROSTAR 400 control laboratory stirrer from IKA — AxiTech supports hospitals, clinics and laboratories with sales, installation, maintenance contracts, calibration, repair and spare parts for this equipment.

Request a service for this equipment

Nothing is charged online. Every request is reviewed by an AxiTech engineer before you receive a quotation.

At a glance

Reference
0004214100
Category
Shakers, Stirrers & Mixers

Overview

EUROSTAR 400 control Powerful laboratory stirrer for high viscous applications and intensive mixing for quantities up to 150 l (H2O). It automatically adjusts the speed within the range of 0/6 – 2000 rpm (two speed ranges) through microprocessor controlled technology. The control stirrer comes equipped with a RS 232 and a USB interface to control and document all parameters. An integrated torque trend display is provided for the measurement of viscosity changes, as well as integrated safety circuits ensure automatic cut-off in an anti-stall or overload conditions. Continuous comparison of shaft to desired speed is performed and variations are adjusted automatically. This ensures constant speed even with changes in viscosities of the sample. Multilingual TFT display Programmable functions Integrated temperature measurement Interval operation Timer function Adjustable safety circuit Locked function Infinitely adjustable speed Push-through agitator shafts Overload protection Short-term overload operation Slim casing Quiet operation Error code display H 67.60 temperature sensor and WH 11 WiCo holder included in delivery Scope of delivery EUROSTAR 400 control H 67.60 Temperature sensor,

Maintenance contract — AxiTech provides planned preventive maintenance for EUROSTAR 400 control from IKA: scheduled visits, safety checks, periodic calibration and a documented service report, backed by a contractual response time.

Troubleshooting, repair and spare parts — our shakers, stirrers & mixers engineers diagnose and repair EUROSTAR 400 control on site or in the workshop, fit genuine spare parts and recommission the equipment after performance verification.

Features

  • Multilingual TFT display
  • Programmable functions
  • Integrated temperature measurement
  • Interval operation
  • Timer function
  • Adjustable safety circuit
  • Locked function
  • Infinitely adjustable speed
  • Push-through agitator shafts
  • Overload protection
  • Short-term overload operation
  • Slim casing
  • Quiet operation
  • Error code display
  • H 67.60 temperature sensor and WH 11 WiCo holder included in delivery
  • EUROSTAR 400 control
  • H 67.60 Temperature sensor, stainless steel
  • WH11
  • OS 1.0 WiCo power supply unit
  • USB Cable - USB A to Micro-B, 2 m
  • USB cable micro A – micro B 2.0
  • Screw driver
  • Protective cover for WiCo contact
  • Chuck key

Technical specifications

Specifications
Timer
yes
Weight
8.8 kg
Voltage
230 V
Frequency
50/60 Hz
Power input
226 W
Speed range
0/6 - 2000 rpm
Speed control
electronic
Speed display
TFT
Timer display
TFT
Torque I max.
400 Ncm
USB interface
Micro-USB
Battery Weight
55 g
Nominal torque
4 Nm
Torque II max.
80 Ncm
Torque display
yes
Viscosity max.
100000 mPas
Battery Voltage
3.7 V
Motor principle
Brushless DC
Housing material
alu-cast coating / thermoplastic polymer
RS 232 interface
yes
Speed adjustment
stepless
Battery Cell Type
custom LiPo
Fastening on stand
extension arm
Motor rating input
220 W
Time setting range
1 - 6000 min
Torque measurement
trend
Motor rating output
176 W
Number of Batteries
1
Permissible ON time
100 %
Temperature display
yes
Chuck range diameter
3 - 16 mm
Extension arm length
160 mm
Speed range I (50 Hz)
6 - 400 rpm
Speed range I (60 Hz)
6 - 400 rpm
Battery Energy Content
7.4 Wh
Dimensions (W x H x D)
114 x 345 x 268 mm
Extension arm diameter
16 mm
Intermittent operation
yes
Setting accuracy speed
±1 rpm
Speed range II (50 Hz)
30 - 2000 rpm
Speed range II (60 Hz)
30 - 2000 rpm
Stirring element fastening
chuck
How is the Battery packaged
within appliance
Temperature measuring range
-10 - 350 °C
Hollow shaft, inner diameter
10.3 mm
Output max. at stirring shaft
167 W
Permissible relative humidity
80 %
Torque max. at stirring shaft
400 Ncm
Permissible ambient temperature
5 - 40 °C
Deviation of torque measurement I
±40 Ncm
Deviation of torque measurement II
±12 Ncm
Limit deviation temperature sensor
≤ ± (0.15 + 0.002xITI) K
Temperature measurement resolution
0.1 K
Accuracy of temperature measurement
±0.5 + tolerance PT1000 (DIN EN 60751 Class A) K
Batteries included with the product?
yes
Connection for ext. temperature sensor
PT1000
Deviation of speed measurement n < 300rpm
±3 rpm
Deviation of speed measurement n > 300rpm
±1 %
Hollow shaft (push through when stopped)
yes
Protection class according to DIN EN 60529
IP 42
Communication distance (depend onbuilding) max.
150 m
Stirring quantity max. per stirring position (H2O)
150 l
Service coverage

AxiTech maintains, repairs and supplies this equipment for hospitals, clinics, laboratories and imaging centres.

Maintenance contracts for EUROSTAR 400 control

AxiTech provides preventive maintenance contracts for EUROSTAR 400 control. Each contract fixes a schedule of planned visits in which our biomedical engineers inspect the equipment, replace wear parts before they fail, and verify that it still performs inside the manufacturer’s tolerances.

Every visit includes calibration and performance verification, and closes with a documented maintenance report you can present during an accreditation audit. Spare-parts availability and a guaranteed response time are written into the contract, so a breakdown never leaves a department waiting for an answer.

Plan at least one preventive maintenance visit per year, and a second visit for equipment in continuous or critical use.

  • Planned preventive maintenance visits at a fixed interval
  • Calibration and performance verification against the manufacturer’s specifications
  • A documented maintenance report after every intervention
  • Guaranteed availability of spare parts and consumables
  • A contractual response time when the equipment fails

Discover our maintenance contracts

Planned preventive maintenance and calibration under contract

Troubleshooting and repair for EUROSTAR 400 control

When EUROSTAR 400 control fails, our engineers start with a structured diagnostic: error codes, electrical and mechanical checks, and a functional test against the equipment’s own specification. That tells us whether the fault is a consumable, a worn part or a board-level failure before any part is ordered.

Straightforward faults are repaired on site so the department loses as little time as possible. Anything that needs a workbench, a full strip-down or a specialised spare part goes to our workshop and comes back only after a complete post-repair test and, where the equipment requires it, recalibration.

Faults we see most often on this type of equipment

The faults we see most often are worn moving parts, power-supply and control-board failures, sensors that have drifted out of tolerance, and fluid or air paths that have become blocked or contaminated.

Discover our troubleshooting and repair service

Diagnostics, corrective repair and spare parts in the workshop
Troubleshooting

How to troubleshoot EUROSTAR 400 control

Work through these checks before you escalate. They are the same first-line sequence our biomedical engineers run on arrival, and they either clear the fault or narrow it down enough that the intervention starts with the right spare part in the van.

  1. Capture the fault before you touch anything: write down the exact error code or message, the serial number from the rating plate, what the operator was doing and whether the fault clears on a restart.

  2. Confirm the power supply end to end — wall outlet, mains lead, fuse and any UPS or stabiliser in between. A device that is intermittently dead has a supply fault far more often than an internal one.

  3. Check the consumables and wear parts — filters, seals, tubing, probes, batteries — and note when each was last replaced. Anything past its service interval is the first suspect.

  4. Reproduce the fault once, deliberately, and record the sequence: what the operator did, what the device displayed, and whether a full power cycle clears it.

  5. If the fault is still there, escalate with the evidence. Send AxiTech the model, serial number, error code and the checks you have already run, and an engineer will come back with a diagnosis, a repair quote and a spare-parts lead time for EUROSTAR 400 control.

What to send us when you report the fault

  • Manufacturer, model and serial number, from the rating plate
  • The exact error code or message, and the screen it appears on
  • When the fault started, how often it occurs and what triggers it
  • A photograph of the display or of the fault, and the last maintenance report

If the fault survives all five steps, stop using EUROSTAR 400 control and open a repair request. Continuing to run equipment through a fault it cannot clear turns a component failure into a board-level one, and on devices used for diagnosis or therapy it puts the result — and the patient — in doubt.

Discover our troubleshooting and repair service

Buying and installing EUROSTAR 400 control

AxiTech supplies EUROSTAR 400 control together with the accessories and consumables it needs to enter service. We handle importation, delivery and installation, then commission the equipment on site so that it is verified against its specification before the first patient or the first sample.

Installation is followed by training for the users and for your biomedical team, warranty registration, and — if you want it — a maintenance contract that takes over the day the warranty ends, so the equipment never spends a period without planned service.

Discover our equipment sales service

Delivery, installation, commissioning and user training
Questions we are asked

Frequently asked questions about IKA EUROSTAR 400 control

Yes. AxiTech services EUROSTAR 400 control, either under a maintenance contract or as a one-off intervention. Our biomedical engineers cover preventive maintenance, calibration, corrective repair and spare-parts supply for this equipment.
