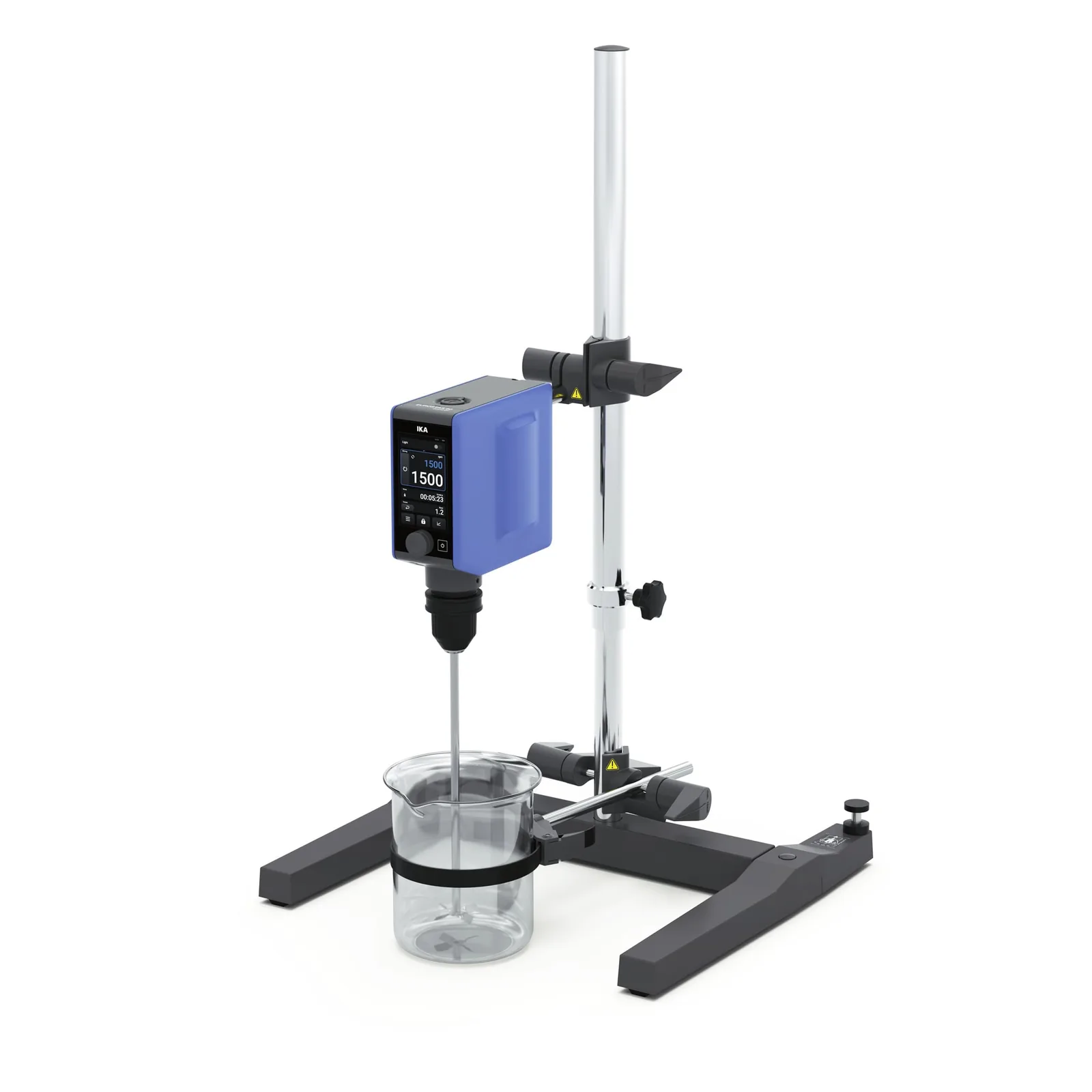

EUROSTAR 60c H-stand Solution — main photograph
IKAAvailability: Supplied to order

EUROSTAR 60c H-stand Solution

Reference 0010016592

EUROSTAR 60c H-stand Solution laboratory stirrer from IKA. AxiTech covers the full lifecycle: installation and commissioning, planned preventive maintenance, periodic calibration, on-site troubleshooting, workshop repair and spare parts supply.

Order this item

Nothing is charged online. Every request is reviewed by an AxiTech engineer before you receive a quotation.

At a glance

Reference
0010016592
Category
Shakers, Stirrers & Mixers

Overview

EUROSTAR 60c H-stand Solution The new generation of EUROSTAR overhead stirrers combines modern design, user-friendliness and reliable performance. With up to 23% less space required compared to the previous models they fit perfectly into any laboratory. EUROSTAR 60 control is a universal laboratory stirrer and the right solution for advanced mixing tasks up to 60 liters (H2O) and viscosities up to 50 000 mPas. Its maximum torque of 100 Ncm and linear adjustment to 60 Ncm at maximum speed guarantee reliable and powerful performance. The EUROSTAR control models come with various advanced features, such as integrated temperature measurement, reversible direction of rotation (left/right), interval mode and an integrated vibration sensor. Highest precision thanks to new viscosity measurement An integrated torque sensor offers high precision torque monitoring (+/- 1 Ncm accuracy). The torque measurement data can be used to calculate viscosity (mPas) based on user selected stirrer and vessel criteria providing important feedback on the mixing process. The desired stirring speed 30-2000rpm is always guaranteed even with changes to the torque demand or viscosity of the material. ISO Class 7

Maintenance contract — AxiTech provides planned preventive maintenance for EUROSTAR 60c H-stand Solution from IKA: scheduled visits, safety checks, periodic calibration and a documented service report, backed by a contractual response time.

Troubleshooting, repair and spare parts — our shakers, stirrers & mixers engineers diagnose and repair EUROSTAR 60c H-stand Solution on site or in the workshop, fit genuine spare parts and recommission the equipment after performance verification.

Features

  • EUROSTAR 60 control
  • R 2723 Telescopic stand
  • R 271 Boss head clamp
  • R 1345
  • RH 5 Strap clamp

Technical specifications

Specifications
Timer
yes
Weight
3.9 kg
Voltage
100 - 240 V
Frequency
50/60 Hz
Power input
186 W
Speed range
0/30 - 2000 rpm
Speed control
electronic
Speed display
TFT
Timer display
TFT
USB interface
USB-C
Battery Weight
3 g
Nominal torque
0.6 Nm
Torque display
yes
Viscosity max.
50000 mPas
WPAN interface
yes
WiFi Interface
yes
Battery Voltage
3 V
Motor principle
Brushless DC
Battery capacity
200 mAh
Housing material
alu-cast coating / thermoplastic polymer
RS 232 interface
yes
Speed adjustment
stepless
Battery Cell Type
BR2032/BN
Ethernet interface
yes
Fastening on stand
extension arm
Motor rating input
168 W
Time setting range
1 - 6000 min
Torque measurement
yes
Motor rating output
131 W
Number of Batteries
1
Permissible ON time
100 %
Temperature display
yes
Chuck range diameter
0.5 - 10 mm
Clean room qualified
yes
Extension arm length
220 mm
Noise without element
52 dB(A)
Dimensions (W x H x D)
89 x 237 x 191 mm
Extension arm diameter
16 mm
Intermittent operation
yes
Setting accuracy speed
±1 rpm
Stirring element fastening
chuck
How is the Battery packaged
within appliance
Temperature measuring range
-10 - 350 °C
Hollow shaft, inner diameter
11 mm
ISO Cleanroom Class (900rpm)
Class 7
ISO Cleanroom Class (1800rpm)
Class 8
Output max. at stirring shaft
126 W
Permissible relative humidity
80 %
Torque max. at stirring shaft
100 Ncm
Permissible ambient temperature
5 - 40 °C
Reversible direction of rotation
yes
Deviation of torque measurement I
±1 Ncm
Limit deviation temperature sensor
≤ ± (0.15 + 0.002xITI) K
Temperature measurement resolution
0.1 K
Accuracy of temperature measurement
±0.5 + tolerance PT1000 (DIN EN 60751 Class A) K
Batteries included with the product?
yes
Connection for ext. temperature sensor
PT1000
Deviation of speed measurement n < 300rpm
±3 rpm
Deviation of speed measurement n > 300rpm
±1 %
Hollow shaft (push through when stopped)
yes
Protection class according to DIN EN 60529
IP 54
Torque max. at stirring shaft at 30 400 rpm
100 Ncm
Torque max. at stirring shaft at 400 2000 rpm
100-60 Ncm
Stirring quantity max. per stirring position (H2O)
60 l
