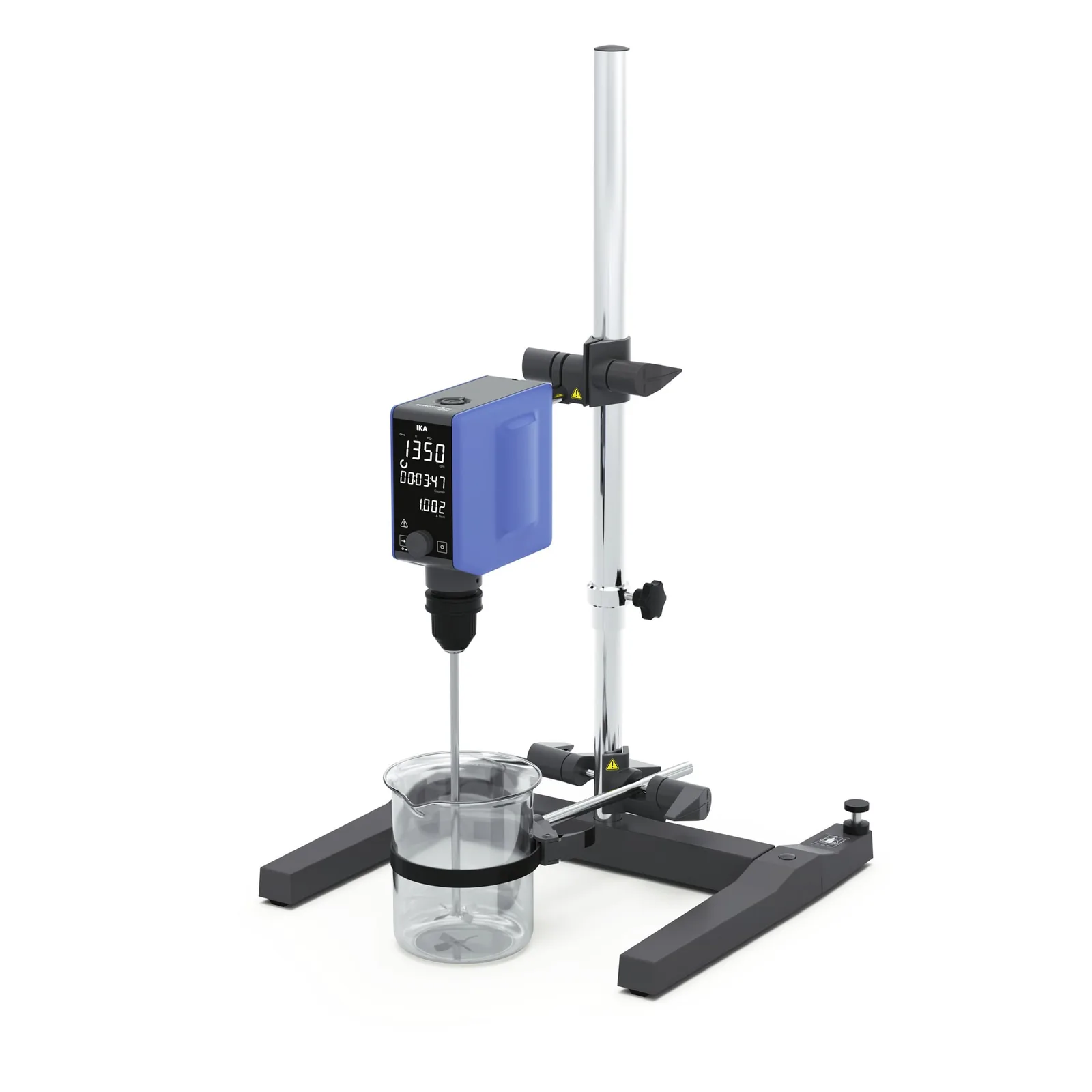

EUROSTAR 60d H-stand Solution

Reference 0010016608

EUROSTAR 60d H-stand Solution laboratory stirrer from IKA — supplied, installed and commissioned by AxiTech, with preventive maintenance, calibration, troubleshooting, repair and genuine spare parts.

Order this item

Nothing is charged online. Every request is reviewed by an AxiTech engineer before you receive a quotation.

At a glance

Reference: 0010016608
Category: Shakers, Stirrers & Mixers

Overview

EUROSTAR 60d H-stand Solution The new generation of EUROSTAR overhead stirrers combines modern design, user-friendliness and reliable performance. With up to 23% less space required compared to the previous models they fit perfectly into any laboratory. EUROSTAR 60 digital is the right solution for simple mixing tasks up to 60 liters (H2O) and viscosities up to 50 000 mPas. Its maximum torque of 100 Ncm and linear adjustment to 60 Ncm at maximum speed guarantee reliable and powerful performance. The innovative torque trend measurement shows the viscosity trend of the sample (+/- 6 Ncm accuracy). The torque trend is shown directly on the display and provides important feedback on the mixing process. The desired stirring speed 30-2000rpm is always guaranteed even with changes to the torque demand or viscosity of the material. ISO Class 7/8 Cleanroom Compliance allows for use in cleanroom environments in pharmaceutical, biotech, medical device, electronics, and aerospace labs, industries where particle control is critical. Maximum safety and reliability • User-friendly: Large LCD display shows all parameters at a glance • Quick Sense Keyless Chuck: allows the mixing tools to be change

Maintenance contract — AxiTech provides planned preventive maintenance for EUROSTAR 60d H-stand Solution from IKA: scheduled visits, safety checks, periodic calibration and a documented service report, backed by a contractual response time.

Troubleshooting, repair and spare parts — our shakers, stirrers & mixers engineers diagnose and repair EUROSTAR 60d H-stand Solution on site or in the workshop, fit genuine spare parts and recommission the equipment after performance verification.

Features

EUROSTAR 60 digital
R 2723 Telescopic stand
R 271 Boss head clamp
R 1345
RH 5 Strap clamp

Technical specifications

Specifications

Timer: yes
Weight: 3.8 kg
Voltage: 100 - 240 V
Frequency: 50/60 Hz
Power input: 186 W
Speed range: 0/30 - 2000 rpm
Speed control: electronic
Speed display: LCD
Timer display: LCD
USB interface: USB-C
Nominal torque: 0.6 Nm
Torque display: yes
Viscosity max.: 50000 mPas
Motor principle: Brushless DC
Housing material: alu-cast coating / thermoplastic polymer
RS 232 interface: yes
Speed adjustment: stepless
Fastening on stand: extension arm
Motor rating input: 168 W
Time setting range: 1 - 6000 min
Torque measurement: trend
Motor rating output: 131 W
Permissible ON time: 100 %
Chuck range diameter: 0.5 - 10 mm
Clean room qualified: yes
Extension arm length: 220 mm
Noise without element: 52 dB(A)
Dimensions (W x H x D): 89 x 237 x 191 mm
Extension arm diameter: 16 mm
Setting accuracy speed: ±1 rpm
Stirring element fastening: chuck
Hollow shaft, inner diameter: 11 mm
ISO Cleanroom Class (900rpm): Class 7
ISO Cleanroom Class (1800rpm): Class 8
Output max. at stirring shaft: 126 W
Permissible relative humidity: 80 %
Torque max. at stirring shaft: 100 Ncm
Permissible ambient temperature: 5 - 40 °C
Deviation of torque measurement I: ±6 Ncm
Deviation of speed measurement n < 300rpm: ±3 rpm
Deviation of speed measurement n > 300rpm: ±1 %
Hollow shaft (push through when stopped): yes
Protection class according to DIN EN 60529: IP 54
Torque max. at stirring shaft at 30 400 rpm: 100 Ncm
Torque max. at stirring shaft at 400 2000 rpm: 100-60 Ncm
Stirring quantity max. per stirring position (H2O): 60 l
