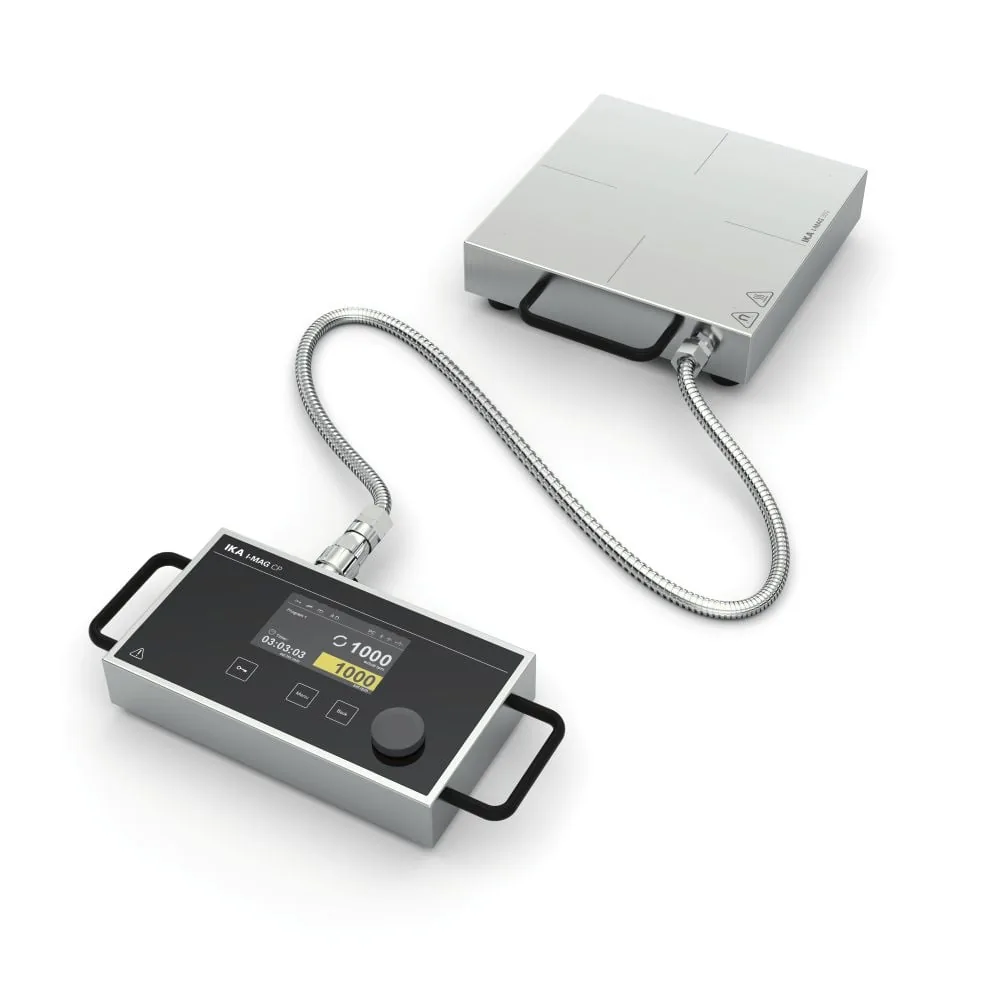

I-MAG Industry stirrer — main photograph
IKAAvailability: Supplied to order

I-MAG Industry stirrer

Reference 0020014226

I-MAG Industry stirrer laboratory stirrer from IKA — AxiTech supports hospitals, clinics and laboratories with sales, installation, maintenance contracts, calibration, repair and spare parts for this equipment.

Request a service for this equipment

Nothing is charged online. Every request is reviewed by an AxiTech engineer before you receive a quotation.

At a glance

Reference
0020014226
Category
Shakers, Stirrers & Mixers

Overview

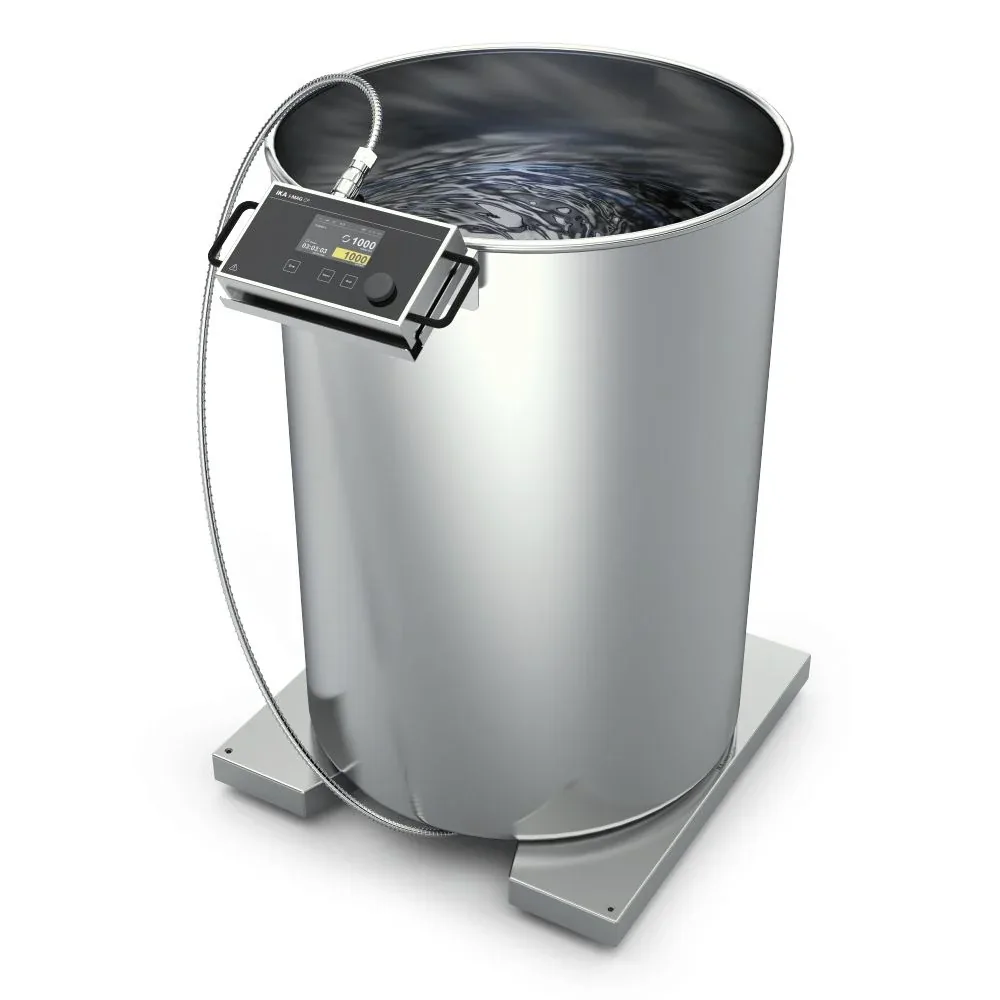

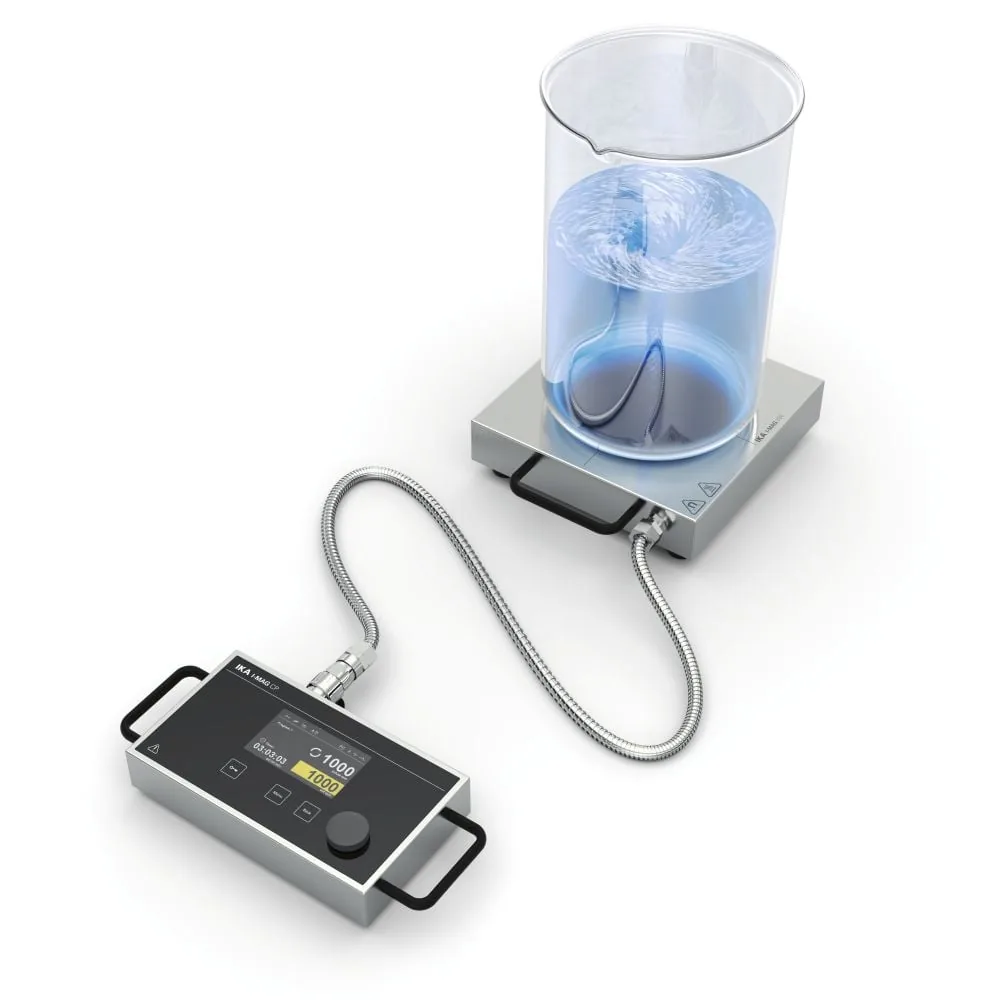

I-MAG Industry stirrer I-MAG is a powerful yet compact magnetic stirrer for applications in laboratory and production environments. In combination with the I-MAG SP set-up frames for large vessels, which are available as accessories, up to 300 liters of water can be mixed efficiently. The wired operating unit (controller) ensures convenient handling and simple integration into e.g. process engineering systems. The robust drive unit (IP protection class 64) consists of the high-torque and wear-free motor and the magnetic coupling with high-performance neodymium magnets. This enables the effective mixing of viscous media as well as mixing in vessels with a larger distance between the installation surface and the stirring rod (e.g. double-walled containers or vessels with insulated bottoms). In order to reliably achieve high speeds even under difficult conditions, I-MAG has an adjustable start-up speed that prevents the magnetic stirring bar from breaking off during the acceleration phase. Process reliability is additionally achieved by the integrated detection of the magnetic stirring bar coupling. In the event of a tear-off or failure of the magnetic coupling, the user is informed v

Maintenance contract — AxiTech provides planned preventive maintenance for I-MAG Industry stirrer from IKA: scheduled visits, safety checks, periodic calibration and a documented service report, backed by a contractual response time.

Troubleshooting, repair and spare parts — our shakers, stirrers & mixers engineers diagnose and repair I-MAG Industry stirrer on site or in the workshop, fit genuine spare parts and recommission the equipment after performance verification.

Features

  • Drive with very high IP protection class 64: unrestricted use even under harsh environmental conditions thanks to enclosed stainless steel housing
  • Electronically controlled motor for very stable speeds even under load for reproducible results
  • Secure and ergonomic mounting of the controller directly on the vessel or with a stand rod using the I-MAG UHC universal holder (available as accessory)
  • Multilingual menu navigation
  • I-MAG Industry stirrer
  • IKAFLON 90 slide (1 pc.)
  • USB A-B Cable
  • Adapter for analog interface (3 pcs.)

Technical specifications

Specifications
Timer
yes
Weight
8 kg
Voltage
100 - 240 V
Programs
yes
Frequency
50/60 Hz
Power input
140 W
Speed range
100 - 1500 rpm
Analog input
yes
Maximum load
75 kg
Analog output
yes
Timer display
TFT
USB interface
USB-B
WiFi Interface
yes
Speed deviation
±10 rpm
RS 232 interface
yes
Speed adjustment
Turning knob
Intermittent mode
yes
Time setting range
1 - 14399 min
Motor rating output
90 W
Power input standby
5 W
Stirring bar length
30 - 140 mm
Analog pedal control
yes
Direction of rotation
right / left
Set up plate material
stainless steel 1.4301
Dimensions (W x H x D)
260 x 70 x 300 mm
Setting accuracy speed
10 rpm
Dimensions (Controller)
335 x 165 x 65 mm
Set up plate dimensions
260 x 260 mm
Speed display set value
TFT
Automatic reverse rotation
yes
Speed display actual value
TFT
Break detection stirring bar
yes
Number of stirring positions
1
Permissible relative humidity
80 %
Cable from controller to device
2000 mm
Permissible ambient temperature
5 - 40 °C
Protection class according to DIN EN 60529
IP 64 (Drive unit) / IP 22 (Control unit)
Operating temperature max. (with external heating)
70 °C
Operating temperature min. (with external cooling)
5 °C
Stirring quantity max. per stirring position (H2O)
300 l
Stirring quantity max. (without extension platform I MAG SP)
50 l
Self heating of the set up plate by max. stirring (RT:22°C/duration:1h)
+26 K
Service coverage

AxiTech maintains, repairs and supplies this equipment for hospitals, clinics, laboratories and imaging centres.

Maintenance contracts for I-MAG Industry stirrer

AxiTech provides preventive maintenance contracts for I-MAG Industry stirrer. Each contract fixes a schedule of planned visits in which our biomedical engineers inspect the equipment, replace wear parts before they fail, and verify that it still performs inside the manufacturer’s tolerances.

Every visit includes calibration and performance verification, and closes with a documented maintenance report you can present during an accreditation audit. Spare-parts availability and a guaranteed response time are written into the contract, so a breakdown never leaves a department waiting for an answer.

Plan at least one preventive maintenance visit per year, and a second visit for equipment in continuous or critical use.

  • Planned preventive maintenance visits at a fixed interval
  • Calibration and performance verification against the manufacturer’s specifications
  • A documented maintenance report after every intervention
  • Guaranteed availability of spare parts and consumables
  • A contractual response time when the equipment fails

Discover our maintenance contracts

Planned preventive maintenance and calibration under contract

Troubleshooting and repair for I-MAG Industry stirrer

When I-MAG Industry stirrer fails, our engineers start with a structured diagnostic: error codes, electrical and mechanical checks, and a functional test against the equipment’s own specification. That tells us whether the fault is a consumable, a worn part or a board-level failure before any part is ordered.

Straightforward faults are repaired on site so the department loses as little time as possible. Anything that needs a workbench, a full strip-down or a specialised spare part goes to our workshop and comes back only after a complete post-repair test and, where the equipment requires it, recalibration.

Faults we see most often on this type of equipment

The faults we see most often are worn moving parts, power-supply and control-board failures, sensors that have drifted out of tolerance, and fluid or air paths that have become blocked or contaminated.

Discover our troubleshooting and repair service

Diagnostics, corrective repair and spare parts in the workshop
Troubleshooting

How to troubleshoot I-MAG Industry stirrer

Work through these checks before you escalate. They are the same first-line sequence our biomedical engineers run on arrival, and they either clear the fault or narrow it down enough that the intervention starts with the right spare part in the van.

  1. Capture the fault before you touch anything: write down the exact error code or message, the serial number from the rating plate, what the operator was doing and whether the fault clears on a restart.

  2. Confirm the power supply end to end — wall outlet, mains lead, fuse and any UPS or stabiliser in between. A device that is intermittently dead has a supply fault far more often than an internal one.

  3. Check the consumables and wear parts — filters, seals, tubing, probes, batteries — and note when each was last replaced. Anything past its service interval is the first suspect.

  4. Reproduce the fault once, deliberately, and record the sequence: what the operator did, what the device displayed, and whether a full power cycle clears it.

  5. If the fault is still there, escalate with the evidence. Send AxiTech the model, serial number, error code and the checks you have already run, and an engineer will come back with a diagnosis, a repair quote and a spare-parts lead time for I-MAG Industry stirrer.

What to send us when you report the fault

  • Manufacturer, model and serial number, from the rating plate
  • The exact error code or message, and the screen it appears on
  • When the fault started, how often it occurs and what triggers it
  • A photograph of the display or of the fault, and the last maintenance report

If the fault survives all five steps, stop using I-MAG Industry stirrer and open a repair request. Continuing to run equipment through a fault it cannot clear turns a component failure into a board-level one, and on devices used for diagnosis or therapy it puts the result — and the patient — in doubt.

Discover our troubleshooting and repair service

Buying and installing I-MAG Industry stirrer

AxiTech supplies I-MAG Industry stirrer together with the accessories and consumables it needs to enter service. We handle importation, delivery and installation, then commission the equipment on site so that it is verified against its specification before the first patient or the first sample.

Installation is followed by training for the users and for your biomedical team, warranty registration, and — if you want it — a maintenance contract that takes over the day the warranty ends, so the equipment never spends a period without planned service.

Discover our equipment sales service

Delivery, installation, commissioning and user training
Questions we are asked

Frequently asked questions about IKA I-MAG Industry stirrer

Yes. AxiTech services I-MAG Industry stirrer, either under a maintenance contract or as a one-off intervention. Our biomedical engineers cover preventive maintenance, calibration, corrective repair and spare-parts supply for this equipment.
