IKASupplied to order

RCT basic anodized ready-to-go Solution

Reference 0010016471

RCT basic anodized ready-to-go Solution laboratory stirrer from IKA — AxiTech supports hospitals, clinics and laboratories with sales, installation, maintenance contracts, calibration, repair and spare parts for this equipment.

Order this item

Nothing is charged online. Every request is reviewed by an AxiTech engineer before you receive a quotation.

At a glance

Reference: 0010016471
Category: Shakers, Stirrers & Mixers

Overview

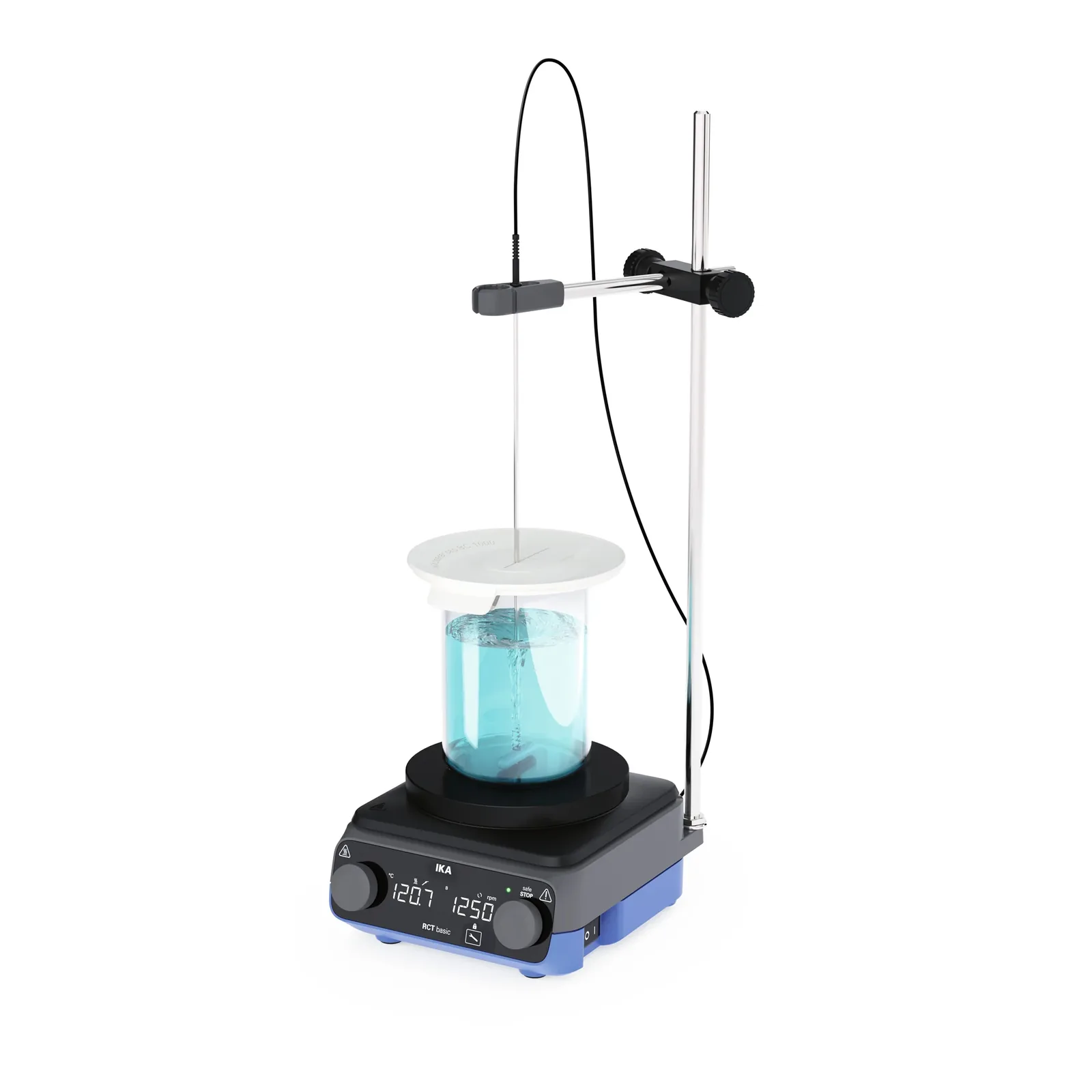

RCT basic anodized ready-to-go Solution The RCT basic ready-to-go system solution includes all the components required for precise temperature control of your sample using the RCT basic anodized magnetic stirrer. Stand for secure positioning This complete solution includes a stand with an extension arm and a cross-sleeve. These ensure the correct and secure positioning of the PT 1000 temperature sensor, which is also supplied. This is because the sensor should always be positioned outside the vortex created during stirring and immersed at least 20 mm deep into the medium. Thanks to the stand, the position of the temperature sensor can be precisely adjusted to the reaction vessel and the liquid level in both vertical and horizontal directions. Multifunctional silicone cover The package also includes a universal silicone cover for 600 ml and 1000 ml beakers. It features integrated openings for the temperature sensor. The chemically highly resistant cover fulfils three functions: it acts as a splash guard, minimises energy consumption when used as a lid, and reduces the noise that can be generated by air intake during rapid stirring. Scope of delivery RCT basic anodized IKAFLON® 30 Ma

Maintenance contract — AxiTech provides planned preventive maintenance for RCT basic anodized ready-to-go Solution from IKA: scheduled visits, safety checks, periodic calibration and a documented service report, backed by a contractual response time.

Troubleshooting, repair and spare parts — our shakers, stirrers & mixers engineers diagnose and repair RCT basic anodized ready-to-go Solution on site or in the workshop, fit genuine spare parts and recommission the equipment after performance verification.

Features

RCT basic anodized
IKAFLON® 30 Magnetic stirring bar
IKAFLON® 40 Magnetic stirring bar
BC 1000 Beaker cap
H 16 V Support rod
PT 1000.60 Temperature sensor, stainless steel
H 44 Boss head clamp
H 38 Holding rod
H 80 Temperature sensor holder
Screwdriver

Technical specifications

Specifications

Timer: yes
Weight: 2.3 kg
Voltage: 220 - 230 V
Frequency: 50/60 Hz
Heat output: 800 W
Power input: 820 W
Speed range: 50 - 1500 rpm
Heat control: Control knob (Rotating / Pressing)
Maximum load: 25 kg
Timer display: LED
USB interface: USB-C
WPAN interface: optional (USB WD)
PH measurement: optional (with ETS-D7, PT wireless)
Motor principle: Brushless DC
RS 232 interface: yes
Speed adjustment: Control knob (Rotating / Pressing)
Temperature unit: °C
Time setting max.: 5999 min
Time setting min.: 1 s
Display resolution: 0.1 K
Motor rating output: 9 W
Power input standby: 0.45 W
Stirring bar length: 20 - 80 mm
Direction of rotation: right
Set up plate material: Aluminum with ceramic coating
Dimensions (W x H x D): 160 x 100 x 200 mm
Setting accuracy speed: 10 rpm
Set up plate dimensions: Ø 135 mm
Speed display set value: LED
Adjustable safety circuit: 50 - 360 °C
Heating temperature range: Room temp. + device self heating - 310 °C
Temperature setting range: 0 - 310 °C
Sensor in medium detection: yes
Speed display actual value: LED
Number of stirring positions: 1
Permissible relative humidity: 80 %
Temperature display set value: LED
Heating rate (1l H2O in H1500): 9 K/min
Permissible ambient temperature: 5 - 40 °C
Temperature display actual value: LED
Temperature measure range PT1000: -20 - 310 °C
PT 1000 deviation;DIN EN 60751 Kl. A: ≤ ± (0.15 +0.002xITI) K
Connection for ext. temperature sensor: PT1000, ETS-D5, ETS-D7, PT wireless
Temperature setting resolution of medium: 1 K
Protection class according to DIN EN 60529: IP 54
Temperature setting resolution of heating plate: 1 K
Operating temperature min. (with external cooling): -20 °C
Stirring quantity max. per stirring position (H2O): 20 l
Speed deviation (no load,nominal voltage, at 1500rpm + 25 °C): ±2 %
Heat control accuracy of heating plate centre without vessel (at 100°C): ±5 K
Self heating of the set up plate by max. stirring (RT:22°C/duration:1h): +12 K
Heat control accuracy with ETS D5 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C): ±0.5 K
Heat control accuracy with ETS D7 (500ml H2O in 600ml beaker, 40mm stirring bar, 600rpm, 50°C): ±0.2 K
Heat control accuracy with ext. PT1000 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C): ±0.5 K
Heat control accuracy with PT wireless (500ml H2O in 600ml beaker, 40mm stirring bar, 600rpm, 50°C): ±0.2 K

Supply and reordering

AxiTech supplies RCT basic anodized ready-to-go Solution alongside the instruments it is used with, so a calibration or a service visit never stalls waiting on a consumable.

Ordering RCT basic anodized ready-to-go Solution

Tell us the reference and the quantity and we come back with a price, a lead time and the batch documentation. Consumables ordered against a maintenance contract are scheduled with the visit, so they arrive with the engineer rather than after them.

Batch and expiry documentation supplied with every delivery
Quoted with a lead time, not just a price
Scheduled with your maintenance visit when you hold a contract
Standing orders for items you consume on a predictable cycle

The instrument it is used with

AxiTech maintains, calibrates and repairs the IKA equipment that RCT basic anodized ready-to-go Solution is used with. If you operate it, we can put it under a preventive maintenance contract and supply this item as part of the schedule.

Discover our maintenance contracts Browse the equipment catalogue

Questions we are asked

Frequently asked questions about IKA RCT basic anodized ready-to-go Solution

Yes. AxiTech supplies RCT basic anodized ready-to-go Solution to hospitals, clinics and laboratories, either as a one-off order or on a standing schedule. Send us the reference and the quantity and we come back with a price and a lead time.

It depends on whether the item is held regionally or ordered from the manufacturer, so we confirm a date with the quotation rather than after the order. Items covered by a maintenance contract are planned ahead of the visit so they are on site when the engineer is.

Yes. Consumables and wear parts can be written into the contract and delivered on the maintenance schedule, which removes the reorder cycle and the risk of a visit stalling because something was out of stock.

Follow the manufacturer’s storage temperature and observe the expiry date printed on the batch: an out-of-specification standard or reagent will quietly bias every result measured against it. We supply batch documentation with each delivery so the traceability is there for an audit.

Yes. Maintenance, calibration and repair of the instrument is AxiTech’s core business, and this item is one of the things we supply as part of that. Tell us the model you operate and we will propose a maintenance schedule around it.
