IKASupplied to order

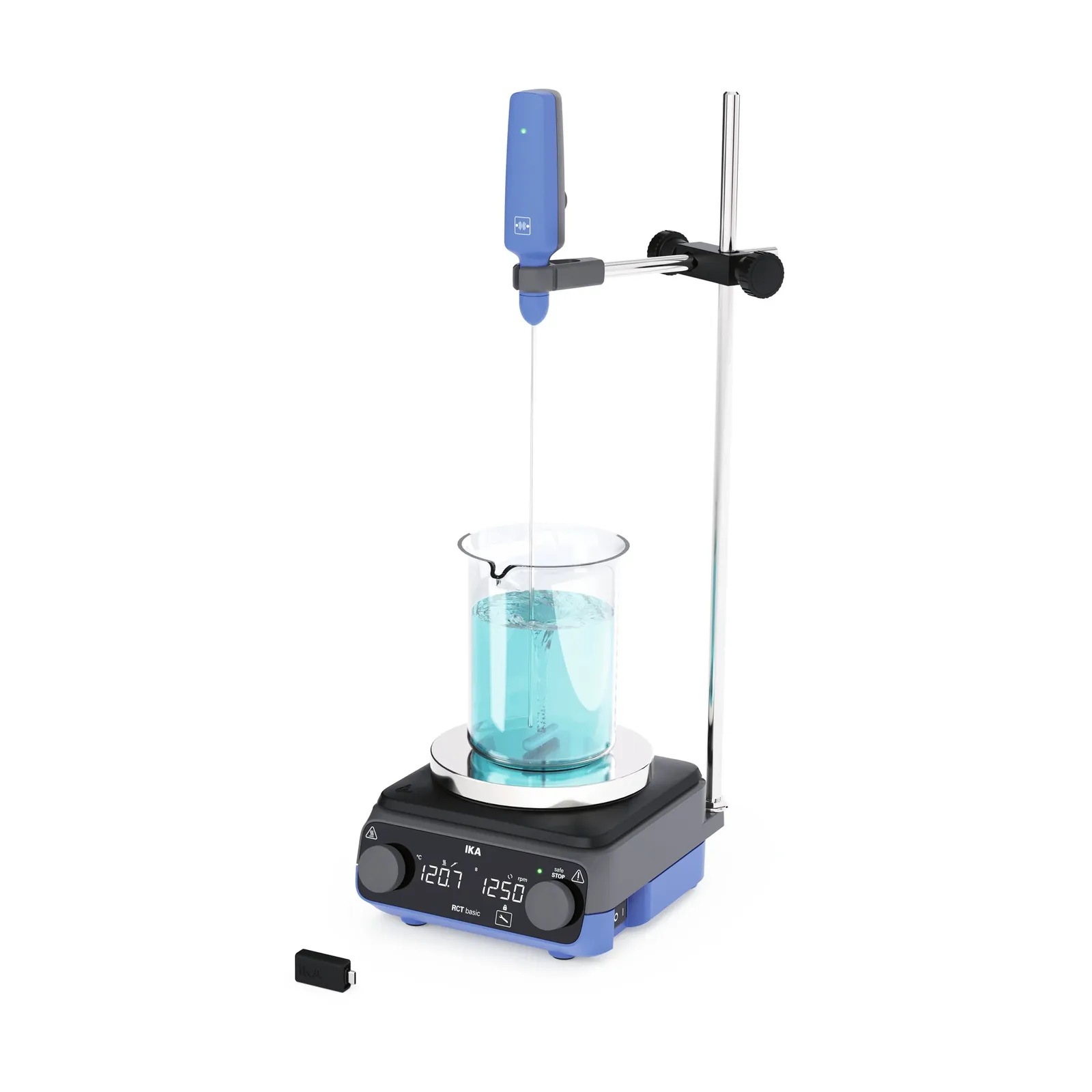

RCT basic PT Wireless Solution

Reference 0010016513

RCT basic PT Wireless Solution laboratory stirrer from IKA — supplied, installed and commissioned by AxiTech, with preventive maintenance, calibration, troubleshooting, repair and genuine spare parts.

Order this item

Nothing is charged online. Every request is reviewed by an AxiTech engineer before you receive a quotation.

At a glance

Reference: 0010016513
Category: Shakers, Stirrers & Mixers

Overview

RCT basic PT Wireless Solution More features, more flexibility – wireless and secure The RCT basic PT Wireless Solution expands the trusted RCT basic with additional features for wireless temperature and pH measurement. The system combines precise measurement technology with enhanced security and maximum flexibility in everyday laboratory work. Wireless data transmission The USB WD wireless dongle included in the scope of delivery enables the wireless transmission of measurement data. The central system component is the PT Wireless Sensor, also included, which transmits temperature data wirelessly to the RCT basic. A pH electrode can optionally be connected to the PT Wireless via a BNC connector. In this configuration, the RCT basic becomes a pH meter: The pH value can be displayed directly on the screen – without the need for an additional external measuring device. Another advantage of the wireless sensor technology: No cables are required on the temperature sensor – damaged or burnt sensor cables are a thing of the past. Alternatively, the Wireless Dongle USB WD also allows connection to the IKA ‘Lab Assistant’ app for visualising measurement data. Increased safety through dual

Maintenance contract — AxiTech provides planned preventive maintenance for RCT basic PT Wireless Solution from IKA: scheduled visits, safety checks, periodic calibration and a documented service report, backed by a contractual response time.

Troubleshooting, repair and spare parts — our shakers, stirrers & mixers engineers diagnose and repair RCT basic PT Wireless Solution on site or in the workshop, fit genuine spare parts and recommission the equipment after performance verification.

Features

PT 1000.60 (wired): Monitoring and limiting the temperature of a heat transfer medium, e.g. synthesis block, oil, water or sand bath
PT Wireless: Temperature control directly within the reaction medium
RCT basic
IKAFLON® 30 Magnetic stirring bar
IKAFLON® 40 Magnetic stirring bar
PT wireless Wireless Sensor
USB WD USB Dongle RCT
H 16 V Support rod
PT 1000.60 Temperature sensor, stainless steel
H 38 Holding rod
H 44 Boss head clamp
H 80 Temperature sensor holder
Screwdriver

Technical specifications

Specifications

Timer: yes
Weight: 2.3 kg
Voltage: 220 - 230 V
Frequency: 50/60 Hz
Heat output: 800 W
Power input: 820 W
Speed range: 50 - 1500 rpm
Heat control: Control knob (Rotating / Pressing)
Maximum load: 25 kg
Timer display: LED
USB interface: USB-C
WPAN interface: optional (USB WD)
PH measurement: optional (with ETS-D7, PT wireless)
Motor principle: Brushless DC
RS 232 interface: yes
Speed adjustment: Control knob (Rotating / Pressing)
Temperature unit: °C
Time setting max.: 5999 min
Time setting min.: 1 s
Display resolution: 0.1 K
Motor rating output: 9 W
Power input standby: 0.45 W
Stirring bar length: 20 - 80 mm
Direction of rotation: right
Set up plate material: Aluminium alloy
Dimensions (W x H x D): 160 x 100 x 200 mm
Setting accuracy speed: 10 rpm
Set up plate dimensions: Ø 135 mm
Speed display set value: LED
Adjustable safety circuit: 50 - 360 °C
Heating temperature range: Room temp. + device self heating - 310 °C
Temperature setting range: 0 - 310 °C
Sensor in medium detection: yes
Speed display actual value: LED
Number of stirring positions: 1
Permissible relative humidity: 80 %
Temperature display set value: LED
Heating rate (1l H2O in H1500): 9 K/min
Permissible ambient temperature: 5 - 40 °C
Temperature display actual value: LED
Temperature measure range PT1000: -20 - 310 °C
PT 1000 deviation;DIN EN 60751 Kl. A: ≤ ± (0.15 +0.002xITI) K
Connection for ext. temperature sensor: PT1000, ETS-D5, ETS-D7, PT wireless
Temperature setting resolution of medium: 1 K
Protection class according to DIN EN 60529: IP 54
Temperature setting resolution of heating plate: 1 K
Operating temperature min. (with external cooling): -20 °C
Stirring quantity max. per stirring position (H2O): 20 l
Speed deviation (no load,nominal voltage, at 1500rpm + 25 °C): ±2 %
Heat control accuracy of heating plate centre without vessel (at 100°C): ±5 K
Self heating of the set up plate by max. stirring (RT:22°C/duration:1h): +12 K
Heat control accuracy with ETS D5 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C): ±0.5 K
Heat control accuracy with ETS D7 (500ml H2O in 600ml beaker, 40mm stirring bar, 600rpm, 50°C): ±0.2 K
Heat control accuracy with ext. PT1000 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C): ±0.5 K
Heat control accuracy with PT wireless (500ml H2O in 600ml beaker, 40mm stirring bar, 600rpm, 50°C): ±0.2 K

Supply and reordering

AxiTech supplies RCT basic PT Wireless Solution alongside the instruments it is used with, so a calibration or a service visit never stalls waiting on a consumable.

Ordering RCT basic PT Wireless Solution

Tell us the reference and the quantity and we come back with a price, a lead time and the batch documentation. Consumables ordered against a maintenance contract are scheduled with the visit, so they arrive with the engineer rather than after them.

Batch and expiry documentation supplied with every delivery
Quoted with a lead time, not just a price
Scheduled with your maintenance visit when you hold a contract
Standing orders for items you consume on a predictable cycle

The instrument it is used with

AxiTech maintains, calibrates and repairs the IKA equipment that RCT basic PT Wireless Solution is used with. If you operate it, we can put it under a preventive maintenance contract and supply this item as part of the schedule.

Discover our maintenance contracts Browse the equipment catalogue

Questions we are asked

Frequently asked questions about IKA RCT basic PT Wireless Solution

Yes. AxiTech supplies RCT basic PT Wireless Solution to hospitals, clinics and laboratories, either as a one-off order or on a standing schedule. Send us the reference and the quantity and we come back with a price and a lead time.

It depends on whether the item is held regionally or ordered from the manufacturer, so we confirm a date with the quotation rather than after the order. Items covered by a maintenance contract are planned ahead of the visit so they are on site when the engineer is.

Yes. Consumables and wear parts can be written into the contract and delivered on the maintenance schedule, which removes the reorder cycle and the risk of a visit stalling because something was out of stock.

Follow the manufacturer’s storage temperature and observe the expiry date printed on the batch: an out-of-specification standard or reagent will quietly bias every result measured against it. We supply batch documentation with each delivery so the traceability is there for an audit.

Yes. Maintenance, calibration and repair of the instrument is AxiTech’s core business, and this item is one of the things we supply as part of that. Tell us the model you operate and we will propose a maintenance schedule around it.
