IKASupplied to order

RCT basic Synthesis Solution 1000

Reference 0010016478

RCT basic Synthesis Solution 1000 laboratory stirrer from IKA — AxiTech supports hospitals, clinics and laboratories with sales, installation, maintenance contracts, calibration, repair and spare parts for this equipment.

Order this item

Nothing is charged online. Every request is reviewed by an AxiTech engineer before you receive a quotation.

At a glance

Reference: 0010016478
Category: Shakers, Stirrers & Mixers

Overview

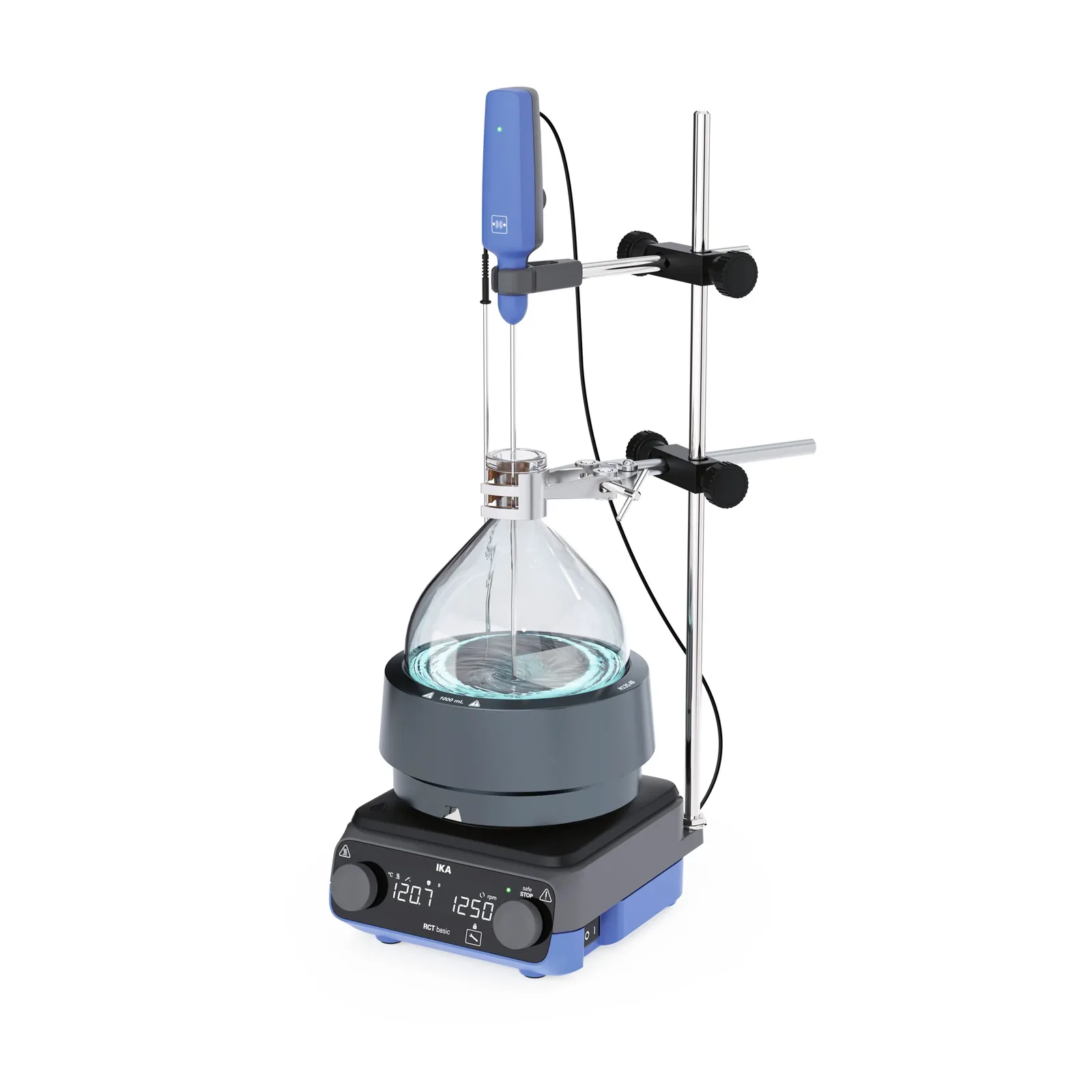

RCT basic Synthesis Solution 1000 Safe round-bottom flask synthesis with wireless temperature and pH measurement The RCT basic Synthesis Solution 1000 is a complete system solution for safe and controlled synthesis in round-bottom flasks with a volume of up to 1000 ml. It combines the trusted IKA synthesis blocks with modern wireless temperature and pH measurement, as well as enhanced process safety. The use of solid aluminium synthesis blocks significantly reduces potential hazards compared to oil or sand baths and simplifies handling and cleaning. At the same time, costs can be reduced and workflows made more efficient. Wireless temperature and pH measurement in the reaction medium The core component of the system solution is the PT Wireless Sensor, which transmits measured values wirelessly to the RCT basic. In addition to temperature, a pH electrode can also be connected via the BNC port of the PT Wireless as an option. In this configuration, the RCT basic becomes a pH meter – the pH value is displayed directly on the screen, without the need for an additional external instrument. The elimination of sensor cables not only increases flexibility in setup but also reduces typical

Maintenance contract — AxiTech provides planned preventive maintenance for RCT basic Synthesis Solution 1000 from IKA: scheduled visits, safety checks, periodic calibration and a documented service report, backed by a contractual response time.

Troubleshooting, repair and spare parts — our shakers, stirrers & mixers engineers diagnose and repair RCT basic Synthesis Solution 1000 on site or in the workshop, fit genuine spare parts and recommission the equipment after performance verification.

Features

PT 1000.60 (wired): Temperature monitoring and limitation of the synthesis block or heat carrier
PT Wireless: Temperature control directly in the reaction medium
Flask holder for 1000 ml round-bottom flasks
Synthesis block made of solid anodised aluminium, temperature-resistant up to 300°C
Stand rod and support rod for positioning sensors and accessories
Two cross-sockets
Universal clamp for secure attachment of the round-bottom flask
Elliptical magnetic stir bars, optimally adapted to the shape of the round-bottom flask
RCT basic
PT wireless Wireless Sensor
H 135.40 Flask carrier 1000 ml without handle
R 350 Universal clamp
USB WD USB RCT Dongle
H 38 Holding rod
H 44 Boss head clamp (2 pcs.)
PT 1000.60 Temperature sensor, stainless steel
IKAFLON 25 ellipse (5 pcs.)
IKAFLON® 30 Magnetic stirring bar
IKAFLON® 40 Magnetic stirring bar
H 16 V Support rod
H 80 Temperature sensor holder
Screwdriver

Technical specifications

Specifications

Timer: yes
Weight: 2.3 kg
Voltage: 220 - 230 V
Frequency: 50/60 Hz
Heat output: 800 W
Power input: 820 W
Speed range: 50 - 1500 rpm
Heat control: Control knob (Rotating / Pressing)
Maximum load: 25 kg
Timer display: LED
USB interface: USB-C
WPAN interface: optional (USB WD)
PH measurement: optional (with ETS-D7, PT wireless)
Motor principle: Brushless DC
RS 232 interface: yes
Speed adjustment: Control knob (Rotating / Pressing)
Temperature unit: °C
Time setting max.: 5999 min
Time setting min.: 1 s
Display resolution: 0.1 K
Motor rating output: 9 W
Power input standby: 0.45 W
Stirring bar length: 20 - 80 mm
Direction of rotation: right
Set up plate material: Aluminium alloy
Dimensions (W x H x D): 160 x 100 x 200 mm
Setting accuracy speed: 10 rpm
Set up plate dimensions: Ø 135 mm
Speed display set value: LED
Adjustable safety circuit: 50 - 360 °C
Heating temperature range: Room temp. + device self heating - 310 °C
Temperature setting range: 0 - 310 °C
Sensor in medium detection: yes
Speed display actual value: LED
Number of stirring positions: 1
Permissible relative humidity: 80 %
Temperature display set value: LED
Heating rate (1l H2O in H1500): 9 K/min
Permissible ambient temperature: 5 - 40 °C
Temperature display actual value: LED
Temperature measure range PT1000: -20 - 310 °C
PT 1000 deviation;DIN EN 60751 Kl. A: ≤ ± (0.15 +0.002xITI) K
Connection for ext. temperature sensor: PT1000, ETS-D5, ETS-D7, PT wireless
Temperature setting resolution of medium: 1 K
Protection class according to DIN EN 60529: IP 54
Temperature setting resolution of heating plate: 1 K
Operating temperature min. (with external cooling): -20 °C
Stirring quantity max. per stirring position (H2O): 20 l
Speed deviation (no load,nominal voltage, at 1500rpm + 25 °C): ±2 %
Heat control accuracy of heating plate centre without vessel (at 100°C): ±5 K
Self heating of the set up plate by max. stirring (RT:22°C/duration:1h): +12 K
Heat control accuracy with ETS D5 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C): ±0.5 K
Heat control accuracy with ETS D7 (500ml H2O in 600ml beaker, 40mm stirring bar, 600rpm, 50°C): ±0.2 K
Heat control accuracy with ext. PT1000 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C): ±0.5 K
Heat control accuracy with PT wireless (500ml H2O in 600ml beaker, 40mm stirring bar, 600rpm, 50°C): ±0.2 K
