IKASupplied to order

RET basic ETS-D7 Solution

Reference 0010016577

RET basic ETS-D7 Solution laboratory stirrer from IKA. AxiTech covers the full lifecycle: installation and commissioning, planned preventive maintenance, periodic calibration, on-site troubleshooting, workshop repair and spare parts supply.

Order this item

Nothing is charged online. Every request is reviewed by an AxiTech engineer before you receive a quotation.

At a glance

Reference: 0010016577
Category: Shakers, Stirrers & Mixers

Overview

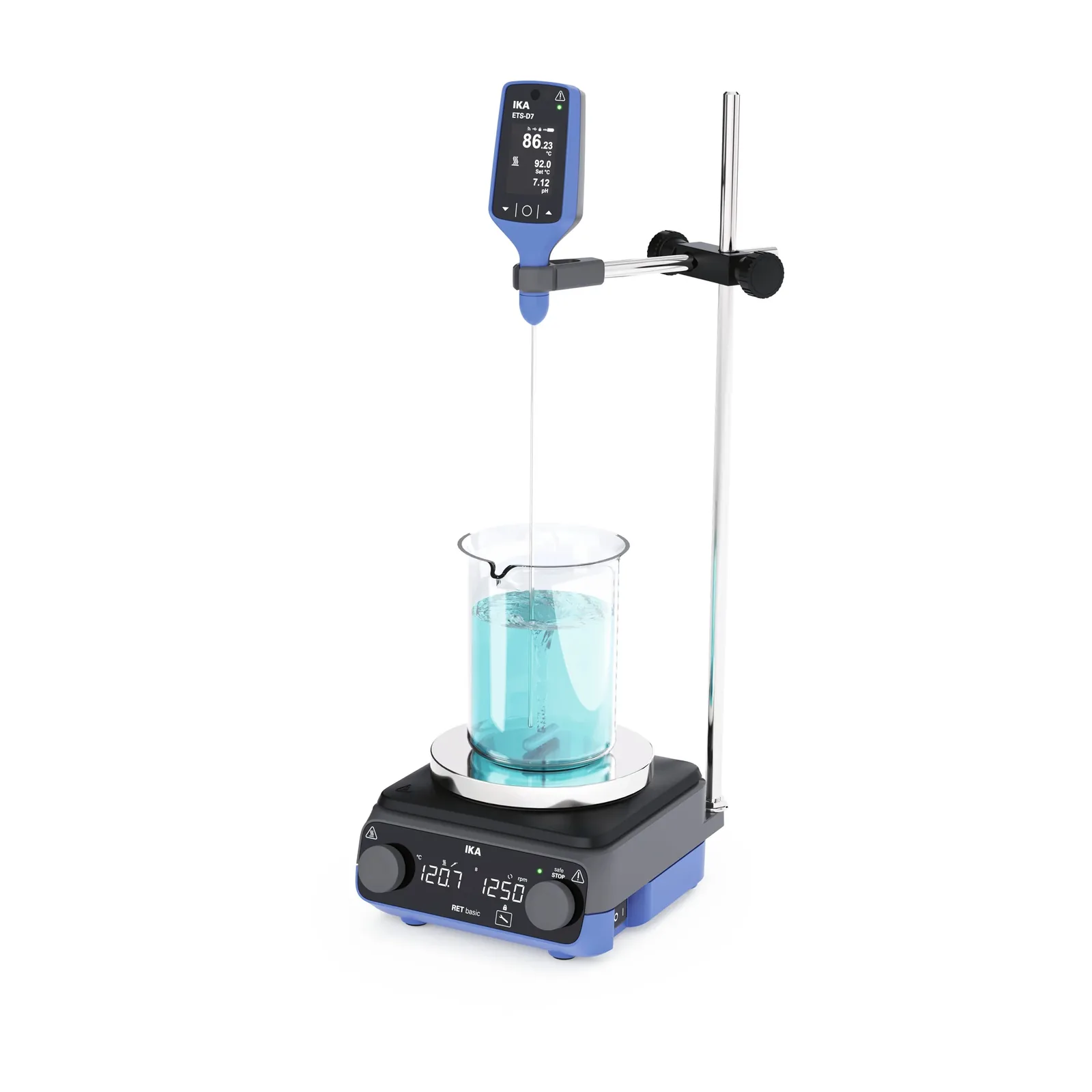

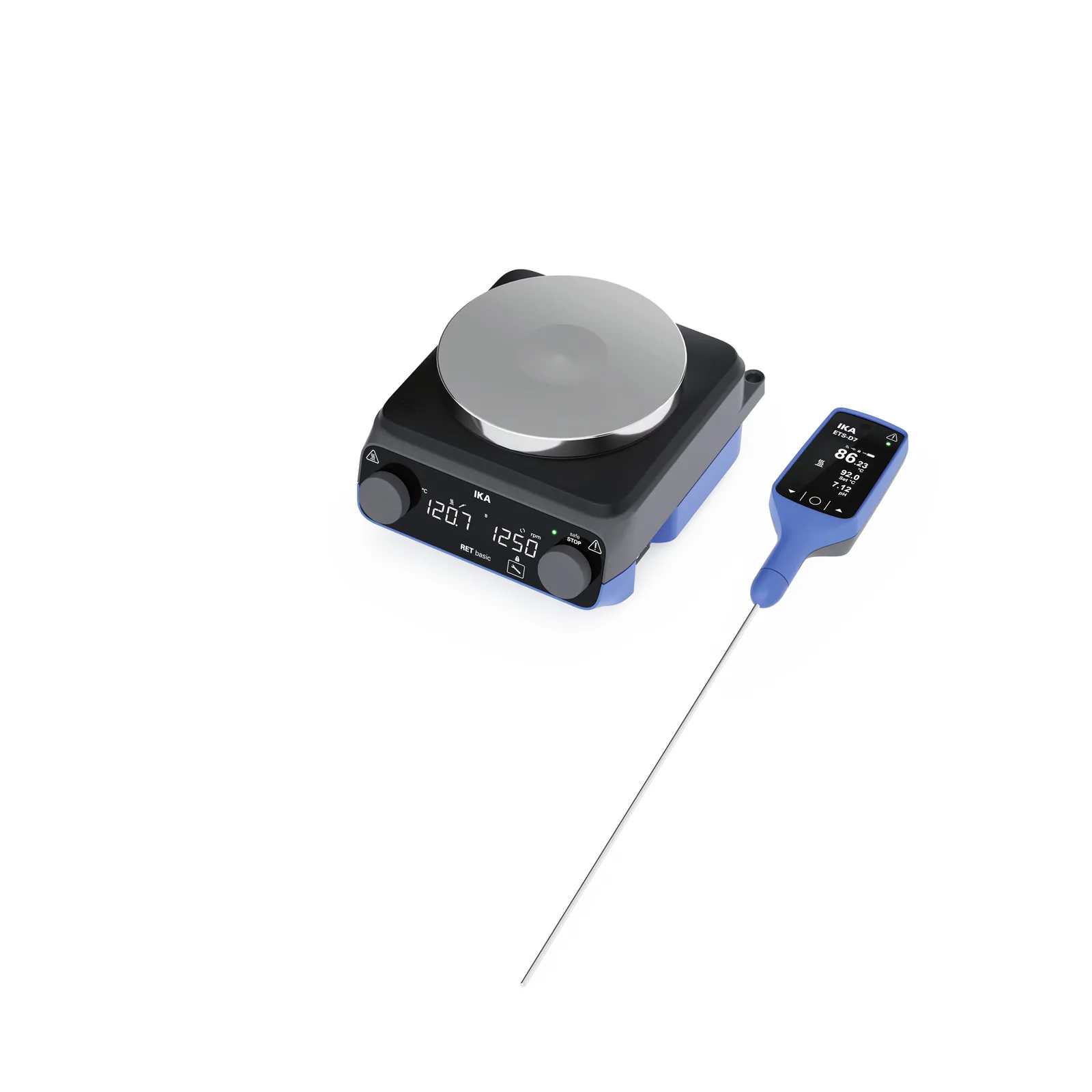

RET basic ETS-D7 Solution More functions, more flexibility – wireless and safe The RET basic ETS-D7 Solution expands the trusted RCT basic with additional functions for wireless temperature and pH measurement. The system combines precise measurement technology with enhanced safety and maximum flexibility in everyday laboratory work. A pH electrode can be connected to the ETS-D7 via a BNC connector. The pH value is displayed directly on the ETS-D7 screen. Additionally, the pH value can also be displayed on the RET basic screen. If required, the ETS-D7 can also be used without the RET basic as a standalone pH meter or temperature measuring device. Another advantage of wireless sensor technology: No cables on the temperature sensor – damaged or burnt sensor cables are a thing of the past. Increased safety through dual temperature measurement In combination with the wired temperature sensor PT 1000.60, which is also included in the scope of delivery, two temperatures can be measured simultaneously: PT 1000.60 (wired): Monitoring and limiting the temperature of a heat transfer medium, e.g. synthesis block, oil, water or sand bath ETS-D7: Temperature control directly within the reaction

Maintenance contract — AxiTech provides planned preventive maintenance for RET basic ETS-D7 Solution from IKA: scheduled visits, safety checks, periodic calibration and a documented service report, backed by a contractual response time.

Troubleshooting, repair and spare parts — our shakers, stirrers & mixers engineers diagnose and repair RET basic ETS-D7 Solution on site or in the workshop, fit genuine spare parts and recommission the equipment after performance verification.

Features

PT 1000.60 (wired): Monitoring and limiting the temperature of a heat transfer medium, e.g. synthesis block, oil, water or sand bath
ETS-D7: Temperature control directly within the reaction medium
RET basic
IKAFLON® 30 Magnetic stirring bar
IKAFLON® 40 Magnetic stirring bar
ETS-D7 Wireless Sensor
H 16 V Support rod
PT 1000.60 Temperature sensor, stainless steel
H 38 Holding rod
H 44 Boss head clamp
H 80 Temperature sensor holder
Screwdriver

Technical specifications

Specifications

Timer: yes
Weight: 2.3 kg
Voltage: 220 - 230 V
Programs: optional (with IKA HUB)
Frequency: 50/60 Hz
Heat output: 800 W
Power input: 820 W
Speed range: 50 - 1700 rpm
Heat control: Control knob (Rotating / Pressing)
Maximum load: 25 kg
Timer display: LED
USB interface: USB-C
WPAN interface: yes
WiFi Interface: yes
PH measurement: optional (with ETS-D7, PT wireless)
Motor principle: Brushless DC
RS 232 interface: yes
Speed adjustment: Control knob (Rotating / Pressing)
Temperature unit: °C
Intermittent mode: optional (with IKA HUB)
Time setting max.: 5999 min
Time setting min.: 1 s
Display resolution: 0.1 K
Ethernet interface: yes
Motor rating output: 9 W
Power input standby: 0.45 W
Stirring bar length: 20 - 80 mm
Direction of rotation: right
Set up plate material: Aluminium alloy
Dimensions (W x H x D): 160 x 100 x 200 mm
Setting accuracy speed: 10 rpm
Set up plate dimensions: Ø 135 mm
Speed display set value: LED
Adjustable safety circuit: 50 - 360 °C
Heating temperature range: Room temp. + device self heating - 340 °C
Temperature setting range: 0 - 340 °C
Automatic reverse rotation: optional (with IKA HUB)
Sensor in medium detection: yes
Speed display actual value: LED
Viscosity trend measurement: optional (with IKA HUB)
Break detection stirring bar: optional (with IKA HUB)
Number of stirring positions: 1
Permissible relative humidity: 80 %
Temperature display set value: LED
Heating rate (1l H2O in H1500): 9 K/min
Permissible ambient temperature: 5 - 40 °C
Temperature display actual value: LED
Temperature measure range PT1000: -20 - 340 °C
PT 1000 deviation;DIN EN 60751 Kl. A: ≤ ± (0.15 +0.002xITI) K
Connection for ext. temperature sensor: PT1000, ETS-D5, ETS-D7, PT wireless
Temperature setting resolution of medium: 0.1 K
Protection class according to DIN EN 60529: IP 54
Temperature setting resolution of heating plate: 1 K
Operating temperature min. (with external cooling): -20 °C
Stirring quantity max. per stirring position (H2O): 20 l
Speed deviation (no load,nominal voltage, at 1500rpm + 25 °C): ±2 %
Heat control accuracy of heating plate centre without vessel (at 100°C): ±5 K
Self heating of the set up plate by max. stirring (RT:22°C/duration:1h): +15 K
Heat control accuracy with ETS D5 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C): ±0.5 K
Heat control accuracy with ETS D7 (500ml H2O in 600ml beaker, 40mm stirring bar, 600rpm, 50°C): ±0.2 K
Heat control accuracy with ext. PT1000 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C): ±0.5 K
Heat control accuracy with PT wireless (500ml H2O in 600ml beaker, 40mm stirring bar, 600rpm, 50°C): ±0.2 K

Supply and reordering

AxiTech supplies RET basic ETS-D7 Solution alongside the instruments it is used with, so a calibration or a service visit never stalls waiting on a consumable.

Ordering RET basic ETS-D7 Solution

Tell us the reference and the quantity and we come back with a price, a lead time and the batch documentation. Consumables ordered against a maintenance contract are scheduled with the visit, so they arrive with the engineer rather than after them.

Batch and expiry documentation supplied with every delivery
Quoted with a lead time, not just a price
Scheduled with your maintenance visit when you hold a contract
Standing orders for items you consume on a predictable cycle

The instrument it is used with

AxiTech maintains, calibrates and repairs the IKA equipment that RET basic ETS-D7 Solution is used with. If you operate it, we can put it under a preventive maintenance contract and supply this item as part of the schedule.

Discover our maintenance contracts Browse the equipment catalogue

Questions we are asked

Frequently asked questions about IKA RET basic ETS-D7 Solution

Yes. AxiTech supplies RET basic ETS-D7 Solution to hospitals, clinics and laboratories, either as a one-off order or on a standing schedule. Send us the reference and the quantity and we come back with a price and a lead time.

It depends on whether the item is held regionally or ordered from the manufacturer, so we confirm a date with the quotation rather than after the order. Items covered by a maintenance contract are planned ahead of the visit so they are on site when the engineer is.

Yes. Consumables and wear parts can be written into the contract and delivered on the maintenance schedule, which removes the reorder cycle and the risk of a visit stalling because something was out of stock.

Follow the manufacturer’s storage temperature and observe the expiry date printed on the batch: an out-of-specification standard or reagent will quietly bias every result measured against it. We supply batch documentation with each delivery so the traceability is there for an audit.

Yes. Maintenance, calibration and repair of the instrument is AxiTech’s core business, and this item is one of the things we supply as part of that. Tell us the model you operate and we will propose a maintenance schedule around it.
