IKASupplied to order

RH basic ETS-D5 Solution

Reference 0020106987

RH basic ETS-D5 Solution laboratory stirrer from IKA — AxiTech supports hospitals, clinics and laboratories with sales, installation, maintenance contracts, calibration, repair and spare parts for this equipment.

Order this item

Nothing is charged online. Every request is reviewed by an AxiTech engineer before you receive a quotation.

At a glance

Reference: 0020106987
Category: Shakers, Stirrers & Mixers

Overview

RH basic ETS-D5 Solution Compact. Powerful. Precisely controlled. The new RH basic is the ideal solution for anyone looking for a compact, powerful magnetic stirrer for entry-level or basic laboratory use—without compromising on professional temperature control. Based on the RH lite, the RH basic offers all the advantages of its sister model and goes one step further: Thanks to the integrated contact thermometer interface and the ETS-D5 included in the scope of delivery, it enables precise, external temperature control directly in the medium. The highlights of the RH basic External temperature control with ETS-D5: The ETS-D5 interface and the included contact thermometer measure and control the temperature not only at the heating plate, but directly in the medium – for maximum precision and process reliability. Adjustable temperature safety circuit for the heating plate in accordance with laboratory equipment standard EN IEC 61010-2-010 for heated devices. Two rotary and push buttons for independent setpoint adjustment and start/stop of the heating and stirring function. 600 W heating power and 135 mm aluminum heating plate with increased surface strength – for a wide range of appl

Maintenance contract — AxiTech provides planned preventive maintenance for RH basic ETS-D5 Solution from IKA: scheduled visits, safety checks, periodic calibration and a documented service report, backed by a contractual response time.

Troubleshooting, repair and spare parts — our shakers, stirrers & mixers engineers diagnose and repair RH basic ETS-D5 Solution on site or in the workshop, fit genuine spare parts and recommission the equipment after performance verification.

Features

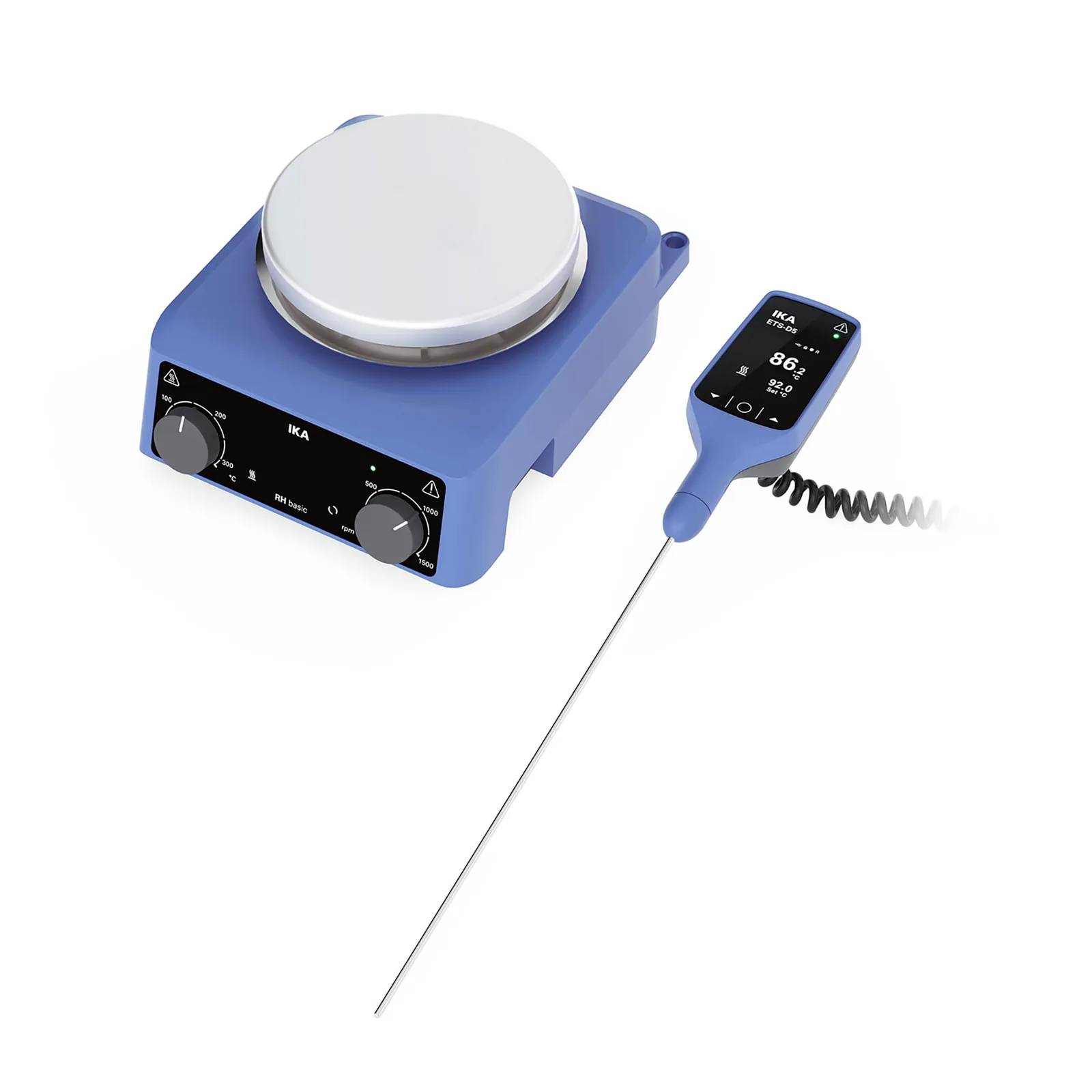

External temperature control with ETS-D5: The ETS-D5 interface and the included contact thermometer measure and control the temperature not only at the heating plate, but directly in the medium – for maximum precision and process reliability.
Adjustable temperature safety circuit for the heating plate in accordance with laboratory equipment standard EN IEC 61010-2-010 for heated devices.
Two rotary and push buttons for independent setpoint adjustment and start/stop of the heating and stirring function.
600 W heating power and 135 mm aluminum heating plate with increased surface strength – for a wide range of applications and a long service life.
Maximum temperature: 310°C and maximum speed: 1,500 rpm – powerful, homogeneous stirring and efficient heating.
Energy-efficient EC motor for powerful stirring with minimal energy consumption.
Extremely compact design: only 168 × 217 mm – ideal for small work surfaces.
Low self-heating of the heating plate – perfect for mixing temperature-sensitive samples.
Two stand mounting points for flexible use and secure test setup.
Display of setpoint and actual temperature with a resolution of 0.1 K and high control accuracy of (±0.2 K + PT1000 sensor tolerance, class A)
Optimized PID control for stable temperature control without overshoot
Automatic shutdown of the magnetic stirrer in case of sensor error or exceeding the defined safety temperature
Replaceable temperature sensor (optionally with special coating or made of glass)
Three temperature control modes: Fast (rapid heating), Precise (highest accuracy), Synthesis block optimized (perfect for chemical syntheses)
Adjustable heating speed in percent for sensitive samples
Convenient touch display for intuitive operation
USB-C interface for fast and easy data transfer to a PC
RH basic ETS-D5 Solution
ETS-D5 Electronic contact thermometer
H 16 V Support rod
H 44 Boss head clamp
H 38 Holding rod
IKAFLON® 30 Magnetic stirring bar
Screwdriver

Technical specifications

Specifications

Weight: 2.1 kg
Voltage: 220 - 230 V
Frequency: 50/60 Hz
Heat output: 600 W
Power input: 620 W
Speed range: 100 - 1500 rpm
Heat control: Turning knob
Maximum load: 20 kg
Motor principle: Brushless DC
Speed adjustment: Turning knob
Temperature unit: °C
Motor rating output: 7 W
Stirring bar length: 20 - 80 mm
Direction of rotation: right
Set up plate material: Aluminium alloy
Dimensions (W x H x D): 168 x 100 x 217 mm
Set up plate dimensions: Ø 135 mm
Speed display set value: scale
Adjustable safety circuit: 50 - 360 °C
Heating temperature range: Room temp. + device self heating - 310 °C
Temperature setting range: 0 - 310 °C
Speed display actual value: scale
Number of stirring positions: 1
Permissible relative humidity: 80 %
Temperature display set value: scale
Heating rate (1l H2O in H1500): 5.5 K/min
Permissible ambient temperature: 5 - 40 °C
Temperature display actual value: scale
Connection for ext. temperature sensor: ETS-D5
Protection class according to DIN EN 60529: IP 22
Stirring quantity max. per stirring position (H2O): 15 l
Speed deviation (no load,nominal voltage, at 1500rpm + 25 °C): ±5 %
Heat control accuracy of heating plate centre without vessel (at 100°C): ±5 K
Heat control accuracy of heating plate centre without vessel (at 300°C): ±15 K
Self heating of the set up plate by max. stirring (RT:22°C/duration:1h): +6 K
Heat control accuracy with ETS D5 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C): ±0.5 K
