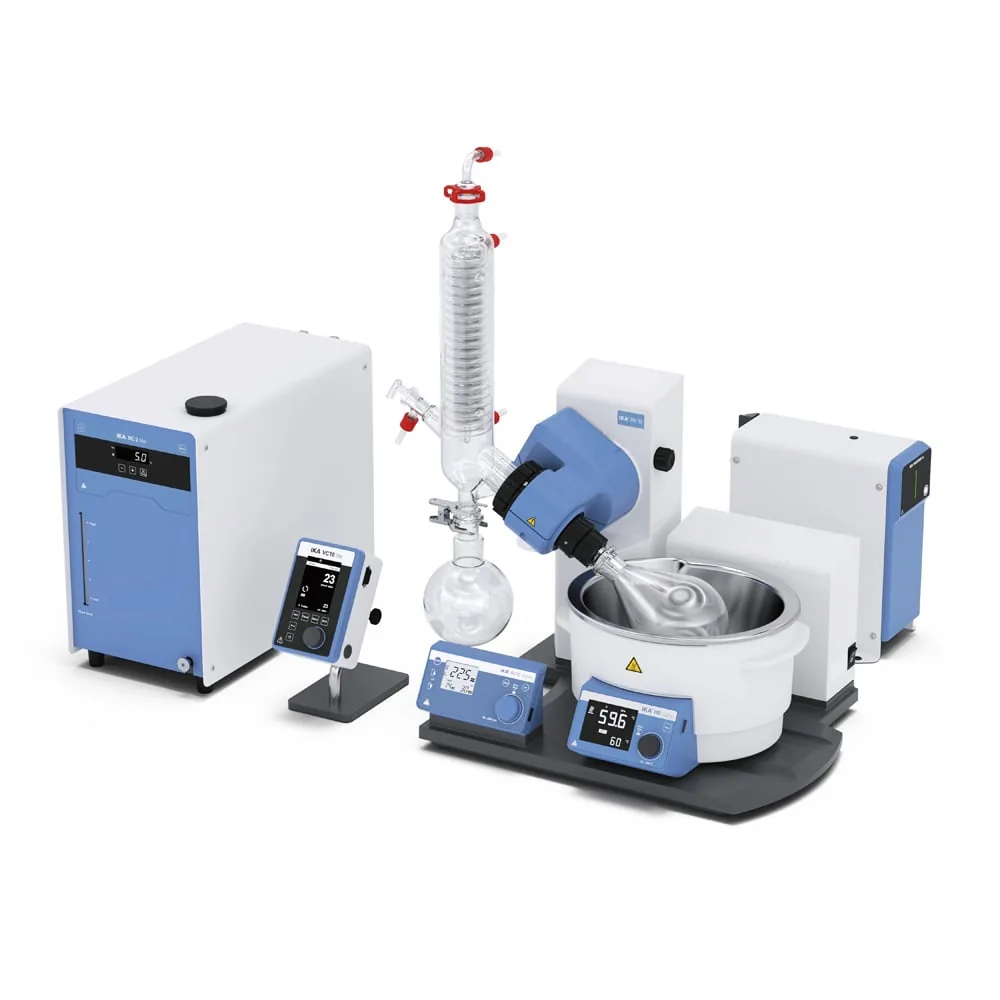

RV 10 digital V Starter Solution — main photograph
IKAAvailability: Supplied to order

RV 10 digital V Starter Solution

Reference 0010013947

RV 10 digital V Starter Solution laboratory stirrer from IKA — AxiTech supports hospitals, clinics and laboratories with sales, installation, maintenance contracts, calibration, repair and spare parts for this equipment.

Order this item

Nothing is charged online. Every request is reviewed by an AxiTech engineer before you receive a quotation.

At a glance

Reference
0010013947
Category
Shakers, Stirrers & Mixers

Overview

RV 10 digital V Starter Solution The RV 10 digital Starter Solution package is the cost-effective complete solution for your rotary evaporator setup. In addition to the RV 10 digital V rotary evaporator, the package includes the HB digital heating bath with a capacity of 4 liters and a heating temperature range of RT to 180 °C, a highly efficient vertical glass condenser set with 1L receiver and evaporator flask, as well as the VACSTAR lite vacuum pump with VC 10 lite vacuum controller and the RC 2 lite recirculating chiller. All components and connections required for operation are included. RV 10 digital is a robust and reliable lab companion. Its optimized bath volume allows for fast heat-up times. The condenser unit has special designed glass tubes that utilize the 1500 cm² surface extremely efficient. That’s why the RV 10 digital delivers reliable and reproducible process results that are usually reserved for more costly systems. Additional features such as smooth start, left-right interval or timer function capability support the user in their daily lab work. Another important aspect of the RV 10 digital are the sophisticated safety features. The motorized lift has an automat

Maintenance contract — AxiTech provides planned preventive maintenance for RV 10 digital V Starter Solution from IKA: scheduled visits, safety checks, periodic calibration and a documented service report, backed by a contractual response time.

Troubleshooting, repair and spare parts — our shakers, stirrers & mixers engineers diagnose and repair RV 10 digital V Starter Solution on site or in the workshop, fit genuine spare parts and recommission the equipment after performance verification.

Features

  • RV 10 digital FLEX
  • RV 10.1 Glassware vertical
  • VC 10 lite
  • VACSTAR lite
  • VC 10.400 Stand
  • RC 2 lite
  • RV 10.5005 Set of hoses
  • PC 1.3 Cable

Technical specifications

Specifications
Lift
Motor
Timer
yes
Stroke
140 mm
Weight
20 kg
Voltage
220 - 240 V
Frequency
50/60 Hz
Heat output
1300 W
Power input
1400 W
Speed range
5 - 280 rpm
Vacuum pump
VACSTAR lite
Final pressure
9 mbar
Cooling surface
1500 cm2
Motor principle
DC
Type of cooling
vertical
RS 232 interface
yes
Filling volume max.
3 l
Dimensions (W x H x D)
500 x 430 x 440 mm
Pump rate max. (50/60Hz)
16.7 l/min
Heating temperature range
room temp. - 180 °C
Set temperature resolution
1 K
Permissible relative humidity
80 %
Permissible ambient temperature
5 - 40 °C
Reversible direction of rotation
yes
Protection class according to DIN EN 60529
IP 20
Supply and reordering

AxiTech supplies RV 10 digital V Starter Solution alongside the instruments it is used with, so a calibration or a service visit never stalls waiting on a consumable.

Ordering RV 10 digital V Starter Solution

Tell us the reference and the quantity and we come back with a price, a lead time and the batch documentation. Consumables ordered against a maintenance contract are scheduled with the visit, so they arrive with the engineer rather than after them.

  • Batch and expiry documentation supplied with every delivery
  • Quoted with a lead time, not just a price
  • Scheduled with your maintenance visit when you hold a contract
  • Standing orders for items you consume on a predictable cycle

The instrument it is used with

AxiTech maintains, calibrates and repairs the IKA equipment that RV 10 digital V Starter Solution is used with. If you operate it, we can put it under a preventive maintenance contract and supply this item as part of the schedule.

Discover our maintenance contractsBrowse the equipment catalogue

Questions we are asked

Frequently asked questions about IKA RV 10 digital V Starter Solution

Yes. AxiTech supplies RV 10 digital V Starter Solution to hospitals, clinics and laboratories, either as a one-off order or on a standing schedule. Send us the reference and the quantity and we come back with a price and a lead time.
