IKASupplied to order

T 10 battery ULTRA-TURRAX®

Reference 0020103418

T 10 battery ULTRA-TURRAX® laboratory stirrer from IKA — supplied, installed and commissioned by AxiTech, with preventive maintenance, calibration, troubleshooting, repair and genuine spare parts.

Order this item

Nothing is charged online. Every request is reviewed by an AxiTech engineer before you receive a quotation.

At a glance

Reference: 0020103418
Category: Shakers, Stirrers & Mixers

Overview

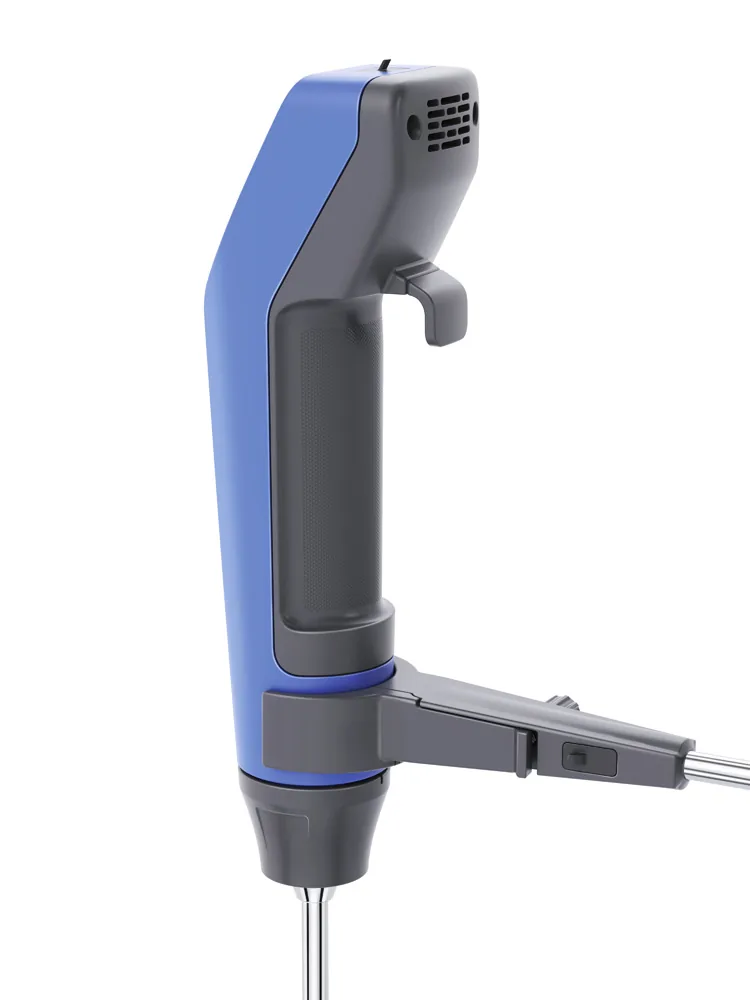

T 10 battery ULTRA-TURRAX® IKA’s first battery-operated, cordless homogeniser. Designed for small volumes up to 100 ml (H2O), this homogeniser can even be operated inside of a microcentrifuge tube. The T 10 battery is ideal for on-site sampling operations or use in a biosafety cabinet or laminar flow cabinet due to its compact and portable design and the fact that it does not require an electricity supply in order to operate. It is also ideal as a tissue homogeniser to break down complex tissues. A wide range of dispersing tools are available to suit a variety of application needs such as blunt-edged, sawtooth, stainless steel and plastic types. Features: Large LCD display allows for easy parameter viewing Brushless DC motor for quieter operation Precise speed setting with numerical values Timer and counter functions for reproducible and precise operation Rechargeable battery with two charging options: Either directly through a USB-C cable or via a charging clamp Labworldsoft compatible for remote control and data export and documentation The dispersing tool is not included in the scope of delivery. Scope of delivery T 10 battery ULTRA-TURRAX®

Maintenance contract — AxiTech provides planned preventive maintenance for T 10 battery ULTRA-TURRAX® from IKA: scheduled visits, safety checks, periodic calibration and a documented service report, backed by a contractual response time.

Troubleshooting, repair and spare parts — our shakers, stirrers & mixers engineers diagnose and repair T 10 battery ULTRA-TURRAX® on site or in the workshop, fit genuine spare parts and recommission the equipment after performance verification.

Features

Large LCD display allows for easy parameter viewing
Brushless DC motor for quieter operation
Precise speed setting with numerical values
Timer and counter functions for reproducible and precise operation

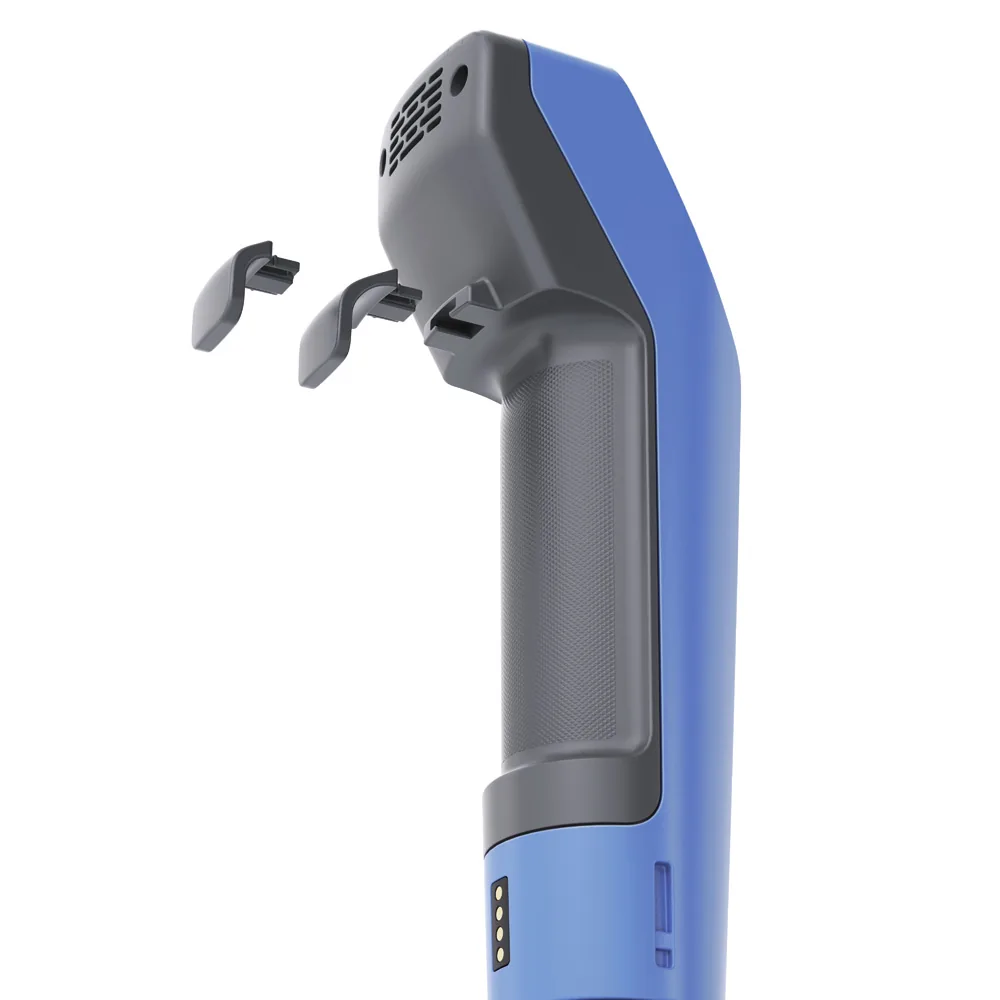

Rechargeable battery with two charging options: Either directly through a USB-C cable or via a charging clamp
Labworldsoft compatible for remote control and data export and documentation
T 10 battery ULTRA-TURRAX®

Technical specifications

Specifications

Timer: yes
Weight: 0.5 kg
DC Voltage: 15 V=
Speed range: 8000 - 30000 rpm
Process type: batch
Power ON time: 10 min
Speed display: LCD
Timer display: LCD
USB interface: USB-C
Battery Weight: 160 g
Power OFF time: 5 min
Viscosity max.: 200 mPas
Battery Voltage: 10.8 V
Motor principle: Brushless DC
Speed deviation: 5 %
Power input max.: 45 W
Speed adjustment: stepless
Battery Cell Type: Custom LiPo / 18650-3S1P
Motor rating input: 30 W
Volume range (H2O): 0.0005 - 0.1 l
Current consumption: 3000 mA
Motor rating output: 25 W
Number of Batteries: 3
Power input standby: 0.1 W
Extension arm length: 100 mm
Noise without element: 65 dB(A)
Battery Energy Content: 34.56 Wh
Dimensions (W x H x D): 53 x 239 x 70 mm
Extension arm diameter: 8 mm
How is the Battery packaged: within appliance
Permissible relative humidity: 80 %
Permissible ambient temperature: 5 - 40 °C
Batteries included with the product?: yes
Protection class according to DIN EN 60529: IP 30

Supply and reordering

AxiTech supplies T 10 battery ULTRA-TURRAX® as a spare, so a worn part is replaced during the same visit rather than becoming a second call-out.

Ordering T 10 battery ULTRA-TURRAX®

Tell us the reference, or the model and serial number of the instrument it belongs to, and we confirm the correct part, its price and its lead time. Parts ordered against a maintenance contract are carried on the visit.

Compatibility confirmed against your instrument before despatch
Quoted with a lead time, not just a price
Scheduled with your maintenance visit when you hold a contract
Standing orders for items you consume on a predictable cycle

The instrument it belongs to

AxiTech maintains, calibrates and repairs the IKA equipment that T 10 battery ULTRA-TURRAX® is used with. If you operate it, we can put it under a preventive maintenance contract and supply this item as part of the schedule.

Discover our maintenance contracts Browse the equipment catalogue

Questions we are asked

Frequently asked questions about IKA T 10 battery ULTRA-TURRAX®

Yes. AxiTech supplies T 10 battery ULTRA-TURRAX® to hospitals, clinics and laboratories, either as a one-off order or on a standing schedule. Send us the reference and the quantity and we come back with a price and a lead time.

It depends on whether the item is held regionally or ordered from the manufacturer, so we confirm a date with the quotation rather than after the order. Items covered by a maintenance contract are planned ahead of the visit so they are on site when the engineer is.

Yes. Consumables and wear parts can be written into the contract and delivered on the maintenance schedule, which removes the reorder cycle and the risk of a visit stalling because something was out of stock.

Keep it in its original packaging until it is fitted, and check the compatibility of the connector and the instrument firmware before installation. We confirm the correct part against your model and serial number before despatch.

Yes. Maintenance, calibration and repair of the instrument is AxiTech’s core business, and this item is one of the things we supply as part of that. Tell us the model you operate and we will propose a maintenance schedule around it.
