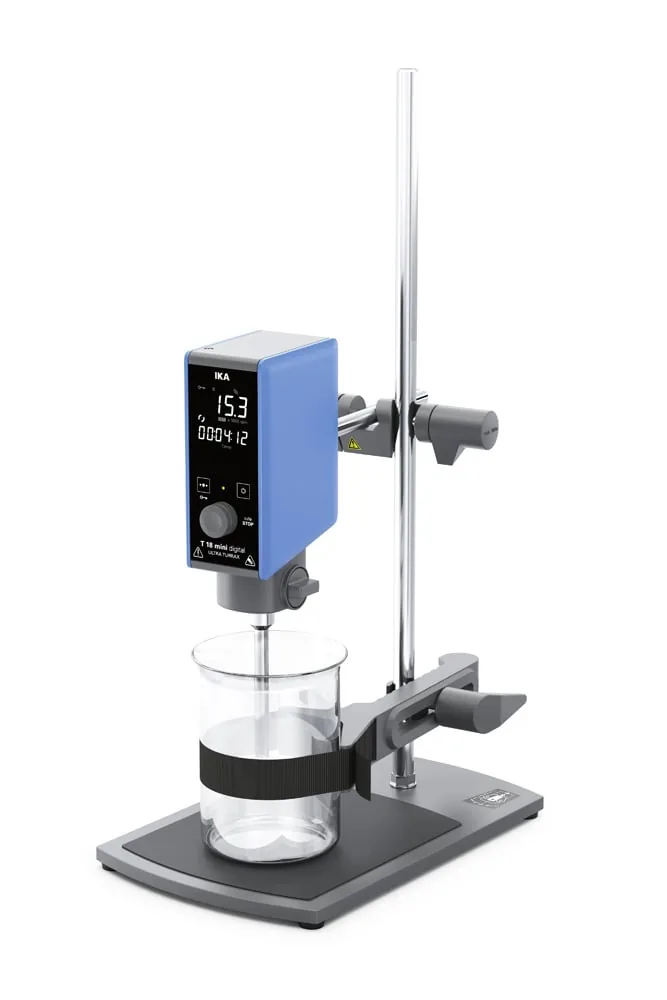

T 18 mini digital ULTRA-TURRAX® — main photograph
IKAAvailability: Supplied to order

T 18 mini digital ULTRA-TURRAX®

Reference 0025005828

T 18 mini digital ULTRA-TURRAX® laboratory stirrer from IKA. AxiTech covers the full lifecycle: installation and commissioning, planned preventive maintenance, periodic calibration, on-site troubleshooting, workshop repair and spare parts supply.

Request a service for this equipment

Nothing is charged online. Every request is reviewed by an AxiTech engineer before you receive a quotation.

At a glance

Reference
0025005828
Category
Shakers, Stirrers & Mixers

Overview

T 18 mini digital ULTRA-TURRAX® T 18 mini digital is an economical high-performance dispersing instrument with a wide speed range of 3000 - 25,000 rpm for working volumes of up to 1.5 liters (H20). It enables the user to work at high circumferential speeds even with small rotor diameters. The compact design of this disperser allows for operation in the tightest of spaces. A large TFT display ensures easy readability from a greater distance, even from outside a fume hood. This setup is best suited for simple applications homogenizing samples with low viscosity. A broad choice of dispersing elements guarantee a wide range of applications for efficient emulsification, homogenization, dispersing and suspending as well as reduction of particle sizes to the micrometer range. Digital speed display and adjustment Brushless motor for improved motor lifetime, quieter operation and more hygienic applications Timer function for unattended operation Dispersing elements: stainless steel option with a high chemical resistance or plastic options that come in two sizes Quick insert for easy change of dispersing elements for convenient cleaning and maintenance USB interface for remote control and pa

Maintenance contract — AxiTech provides planned preventive maintenance for T 18 mini digital ULTRA-TURRAX® from IKA: scheduled visits, safety checks, periodic calibration and a documented service report, backed by a contractual response time.

Troubleshooting, repair and spare parts — our shakers, stirrers & mixers engineers diagnose and repair T 18 mini digital ULTRA-TURRAX® on site or in the workshop, fit genuine spare parts and recommission the equipment after performance verification.

Features

  • Digital speed display and adjustment
  • Brushless motor for improved motor lifetime, quieter operation and more hygienic applications
  • Timer function for unattended operation
  • Dispersing elements: stainless steel option with a high chemical resistance or plastic options that come in two sizes
  • Quick insert for easy change of dispersing elements for convenient cleaning and maintenance
  • USB interface for remote control and parameter documentation with the IKA labworldsoft® software

Technical specifications

Specifications
Timer
yes
Weight
1.8 kg
Voltage
100 - 240 V
Frequency
50/60 Hz
DC Voltage
48 V=
Power input
210 W
Speed range
3000 - 25000 rpm
Process type
batch
Speed display
LED
Timer display
LED
USB interface
USB-C
Viscosity max.
2000 mPas
Motor principle
Brushless DC
Speed deviation
3 %
Power input max.
250 W
Speed adjustment
stepless
Motor rating input
210 W
Volume range (H2O)
0.001 - 1.5 l
Current consumption
4500 mA
Motor rating output
160 W
Permissible ON time
100 %
Power input standby
3 W
Extension arm length
160 mm
Noise without element
75 dB(A)
Dimensions (W x H x D)
66 x 186 x 100 mm
Extension arm diameter
13 mm
Permissible relative humidity
80 %
Permissible ambient temperature
5 - 40 °C
Protection class according to DIN EN 60529
IP 30
Service coverage

AxiTech maintains, repairs and supplies this equipment for hospitals, clinics, laboratories and imaging centres.

Maintenance contracts for T 18 mini digital ULTRA-TURRAX®

AxiTech provides preventive maintenance contracts for T 18 mini digital ULTRA-TURRAX®. Each contract fixes a schedule of planned visits in which our biomedical engineers inspect the equipment, replace wear parts before they fail, and verify that it still performs inside the manufacturer’s tolerances.

Every visit includes calibration and performance verification, and closes with a documented maintenance report you can present during an accreditation audit. Spare-parts availability and a guaranteed response time are written into the contract, so a breakdown never leaves a department waiting for an answer.

Plan at least one preventive maintenance visit per year, and a second visit for equipment in continuous or critical use.

  • Planned preventive maintenance visits at a fixed interval
  • Calibration and performance verification against the manufacturer’s specifications
  • A documented maintenance report after every intervention
  • Guaranteed availability of spare parts and consumables
  • A contractual response time when the equipment fails

Discover our maintenance contracts

Planned preventive maintenance and calibration under contract

Troubleshooting and repair for T 18 mini digital ULTRA-TURRAX®

When T 18 mini digital ULTRA-TURRAX® fails, our engineers start with a structured diagnostic: error codes, electrical and mechanical checks, and a functional test against the equipment’s own specification. That tells us whether the fault is a consumable, a worn part or a board-level failure before any part is ordered.

Straightforward faults are repaired on site so the department loses as little time as possible. Anything that needs a workbench, a full strip-down or a specialised spare part goes to our workshop and comes back only after a complete post-repair test and, where the equipment requires it, recalibration.

Faults we see most often on this type of equipment

The faults we see most often are worn moving parts, power-supply and control-board failures, sensors that have drifted out of tolerance, and fluid or air paths that have become blocked or contaminated.

Discover our troubleshooting and repair service

Diagnostics, corrective repair and spare parts in the workshop
Troubleshooting

How to troubleshoot T 18 mini digital ULTRA-TURRAX®

Work through these checks before you escalate. They are the same first-line sequence our biomedical engineers run on arrival, and they either clear the fault or narrow it down enough that the intervention starts with the right spare part in the van.

  1. Capture the fault before you touch anything: write down the exact error code or message, the serial number from the rating plate, what the operator was doing and whether the fault clears on a restart.

  2. Confirm the power supply end to end — wall outlet, mains lead, fuse and any UPS or stabiliser in between. A device that is intermittently dead has a supply fault far more often than an internal one.

  3. Check the consumables and wear parts — filters, seals, tubing, probes, batteries — and note when each was last replaced. Anything past its service interval is the first suspect.

  4. Reproduce the fault once, deliberately, and record the sequence: what the operator did, what the device displayed, and whether a full power cycle clears it.

  5. If the fault is still there, escalate with the evidence. Send AxiTech the model, serial number, error code and the checks you have already run, and an engineer will come back with a diagnosis, a repair quote and a spare-parts lead time for T 18 mini digital ULTRA-TURRAX®.

What to send us when you report the fault

  • Manufacturer, model and serial number, from the rating plate
  • The exact error code or message, and the screen it appears on
  • When the fault started, how often it occurs and what triggers it
  • A photograph of the display or of the fault, and the last maintenance report

If the fault survives all five steps, stop using T 18 mini digital ULTRA-TURRAX® and open a repair request. Continuing to run equipment through a fault it cannot clear turns a component failure into a board-level one, and on devices used for diagnosis or therapy it puts the result — and the patient — in doubt.

Discover our troubleshooting and repair service

Buying and installing T 18 mini digital ULTRA-TURRAX®

AxiTech supplies T 18 mini digital ULTRA-TURRAX® together with the accessories and consumables it needs to enter service. We handle importation, delivery and installation, then commission the equipment on site so that it is verified against its specification before the first patient or the first sample.

Installation is followed by training for the users and for your biomedical team, warranty registration, and — if you want it — a maintenance contract that takes over the day the warranty ends, so the equipment never spends a period without planned service.

Discover our equipment sales service

Delivery, installation, commissioning and user training
Questions we are asked

Frequently asked questions about IKA T 18 mini digital ULTRA-TURRAX®

Yes. AxiTech services T 18 mini digital ULTRA-TURRAX®, either under a maintenance contract or as a one-off intervention. Our biomedical engineers cover preventive maintenance, calibration, corrective repair and spare-parts supply for this equipment.
