IKASupplied to order

T 25 mini control Solution

Reference 0010015125

T 25 mini control Solution laboratory stirrer from IKA — AxiTech supports hospitals, clinics and laboratories with sales, installation, maintenance contracts, calibration, repair and spare parts for this equipment.

Order this item

Nothing is charged online. Every request is reviewed by an AxiTech engineer before you receive a quotation.

At a glance

Reference: 0010015125
Category: Shakers, Stirrers & Mixers

Overview

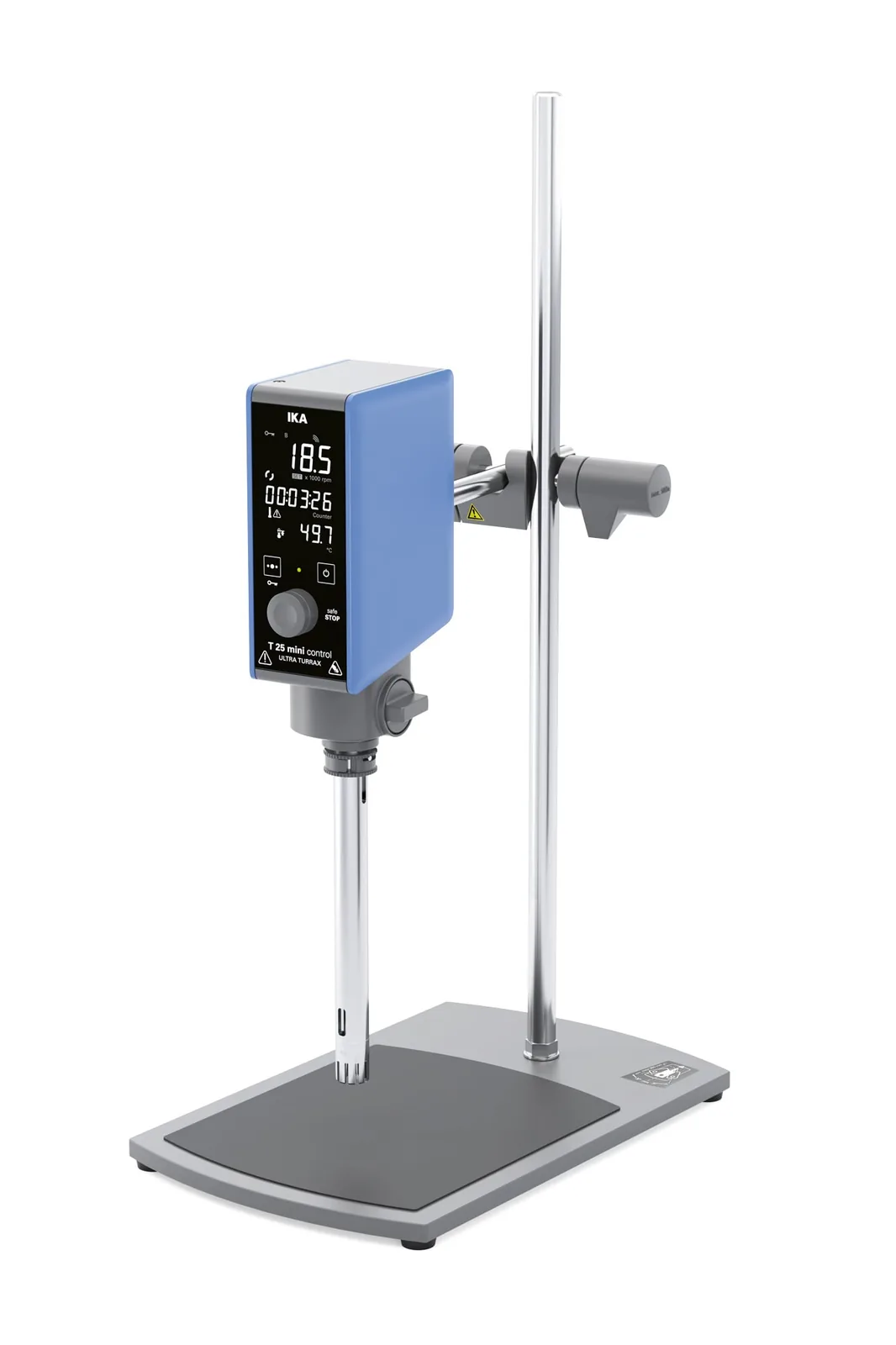

T 25 mini control Solution The T 25 mini control is a high-performance dispersing instrument with a wide speed range of 600 - 25,000 rpm for working volumes of up to 1.5 liters (H20). It enables the user to work at high circumferential speeds even with small rotor diameters. The compact design of this disperser allows for operation in the tightest of spaces. A large TFT display ensures easy readability from a greater distance, even from outside a fume hood. This setup is best suited for simple applications homogenizing samples with low viscosity. A broad choice of dispersing elements guarantee a wide range of applications for efficient emulsification, homogenization, dispersing and suspending as well as reduction of particle sizes to the micrometer range. Digital speed display and adjustment Brushless motor for improved motor lifetime, quieter operation and more hygienic applications Timer function for unattended operation Dispersing elements: stainless steel option with a high chemical resistance or plastic options that come in two sizes Quick insert for easy change of dispersing elements for convenient cleaning and maintenance USB interface for remote control and parameter docume

Maintenance contract — AxiTech provides planned preventive maintenance for T 25 mini control Solution from IKA: scheduled visits, safety checks, periodic calibration and a documented service report, backed by a contractual response time.

Troubleshooting, repair and spare parts — our shakers, stirrers & mixers engineers diagnose and repair T 25 mini control Solution on site or in the workshop, fit genuine spare parts and recommission the equipment after performance verification.

Features

Digital speed display and adjustment
Brushless motor for improved motor lifetime, quieter operation and more hygienic applications
Timer function for unattended operation
Dispersing elements: stainless steel option with a high chemical resistance or plastic options that come in two sizes
Quick insert for easy change of dispersing elements for convenient cleaning and maintenance
USB interface for remote control and parameter documentation with the IKA labworldsoft® software
T 25 mini control ULTRA-TURRAX®
S 25 EC - T - C - 18 G Dispersing tool
R 1826 Plate stand
R 182 Boss head clamp

Technical specifications

Specifications

Timer: yes
Weight: 1.8 kg
Voltage: 100 - 240 V
Frequency: 50/60 Hz
DC Voltage: 48 V=
Power input: 210 W
Speed range: 600 - 25000 rpm
Process type: batch
Speed display: LED
Timer display: LED
USB interface: USB-C
Viscosity max.: 2000 mPas
WPAN interface: yes
WiFi Interface: yes
Motor principle: Brushless DC
Power input max.: 250 W
RS 232 interface: yes
Speed adjustment: stepless
Ethernet interface: yes
Motor rating input: 210 W
Volume range (H2O): 0.001 - 1.5 l
Current consumption: 4500 mA
Motor rating output: 160 W
Permissible ON time: 100 %
Power input standby: 3 W
Temperature display: yes
Extension arm length: 160 mm
Noise without element: 75 dB(A)
Dimensions (W x H x D): 66 x 186 x 100 mm
Extension arm diameter: 13 mm
Temperature measuring range: 0 - 125 °C
Permissible relative humidity: 80 %
Permissible ambient temperature: 5 - 40 °C
Temperature measurement resolution: 0.1 K
Accuracy of temperature measurement: ±1 K
Deviation of speed measurement n < 3000rpm: ≤±100 rpm
Deviation of speed measurement n > 3000rpm: ±3 %
Protection class according to DIN EN 60529: IP 30

Supply and reordering

AxiTech supplies T 25 mini control Solution alongside the instruments it is used with, so a calibration or a service visit never stalls waiting on a consumable.

Ordering T 25 mini control Solution

Tell us the reference and the quantity and we come back with a price, a lead time and the batch documentation. Consumables ordered against a maintenance contract are scheduled with the visit, so they arrive with the engineer rather than after them.

Batch and expiry documentation supplied with every delivery
Quoted with a lead time, not just a price
Scheduled with your maintenance visit when you hold a contract
Standing orders for items you consume on a predictable cycle

The instrument it is used with

AxiTech maintains, calibrates and repairs the IKA equipment that T 25 mini control Solution is used with. If you operate it, we can put it under a preventive maintenance contract and supply this item as part of the schedule.

Discover our maintenance contracts Browse the equipment catalogue

Questions we are asked

Frequently asked questions about IKA T 25 mini control Solution

Yes. AxiTech supplies T 25 mini control Solution to hospitals, clinics and laboratories, either as a one-off order or on a standing schedule. Send us the reference and the quantity and we come back with a price and a lead time.

It depends on whether the item is held regionally or ordered from the manufacturer, so we confirm a date with the quotation rather than after the order. Items covered by a maintenance contract are planned ahead of the visit so they are on site when the engineer is.

Yes. Consumables and wear parts can be written into the contract and delivered on the maintenance schedule, which removes the reorder cycle and the risk of a visit stalling because something was out of stock.

Follow the manufacturer’s storage temperature and observe the expiry date printed on the batch: an out-of-specification standard or reagent will quietly bias every result measured against it. We supply batch documentation with each delivery so the traceability is there for an audit.

Yes. Maintenance, calibration and repair of the instrument is AxiTech’s core business, and this item is one of the things we supply as part of that. Tell us the model you operate and we will propose a maintenance schedule around it.
